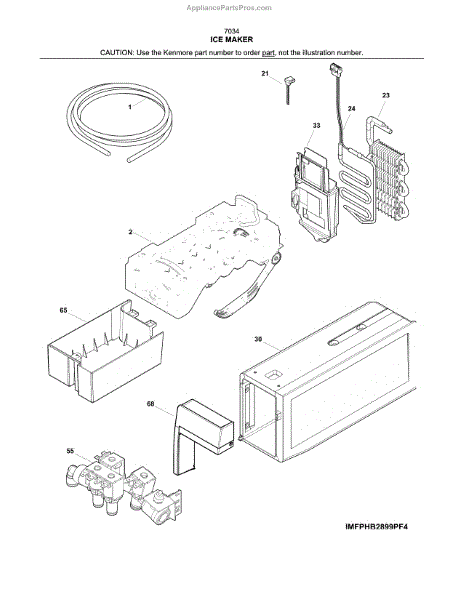

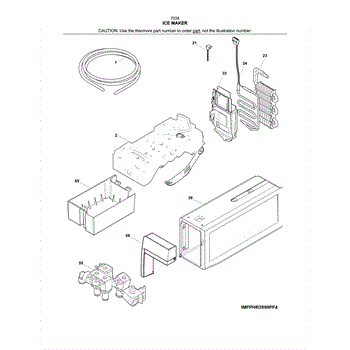

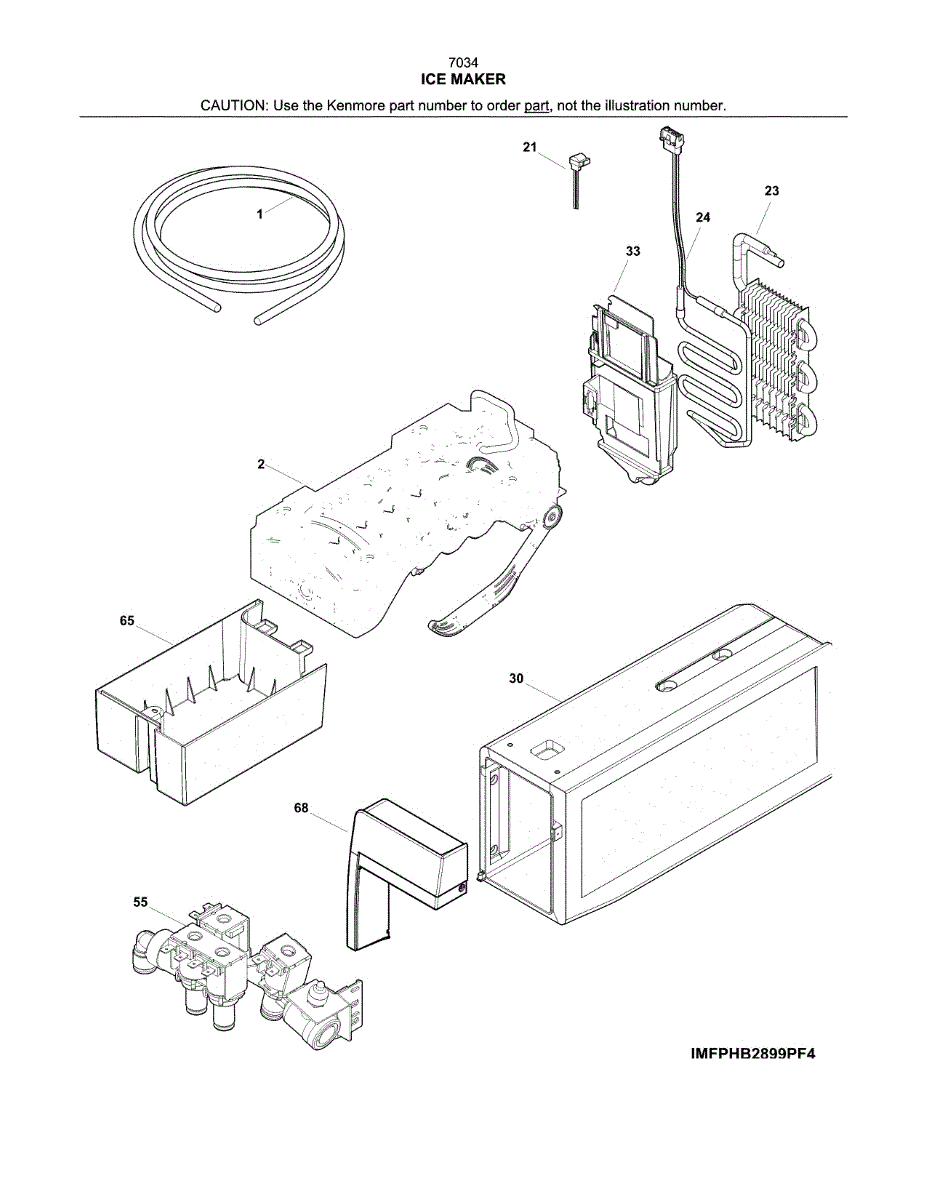

Parts for Kenmore 253.7034941B (2537034941B, 253 7034941B): Ice Maker Parts

The Air Filter is an OEM part for Frigidaire refrigerators designed to enhance the air quality inside the refrigerator, ensuring that food stays fresh and odor-free.

The Air Filter helps to remove unwanted odors and impurities from the refrigerator's circulating air. It absorbs and neutralizes common food odors, keeping your fridge smelling clean and pleasant. The activated carbon filter is 7 times more effective than baking soda at removing odors.

For best results, change filter every 6 months.
Color: Black.
Measures about 7 inches wide by 5 inches deep.

Symptoms of a bad air filter include:

• Lingering food odors inside the refrigerator
• Increased presence of stale or unpleasant smells
• Decreased effectiveness in eliminating odors

Replace your Air Filter with this genuine part to ensure a clean and fresh-smelling refrigerator. This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This water inlet tube routes water from the inlet valve to the ice maker and dispenser, restoring proper water flow and helping prevent leaks. Use when the original tube is cracked, split, or blocking water delivery. What it does:

• Directs water from the refrigerator inlet valve to the ice maker and dispenser assembly.
• Restores normal water flow if the original tube is crushed, cracked, or blocked.
• Helps stop leaks associated with damaged or deteriorated inlet tubing.
• Common symptoms: no water to ice maker or dispenser, slow dispenser flow, or visible leaking beneath the fridge.

• Disconnect electrical power and shut off the household water supply before starting.
• Handle tubing carefully and avoid sharp bends or kinks when routing.
• Check and reuse or replace any associated fittings, clips, or seals as needed for a secure, leak-free connection.

The Ice Maker Assembly is an OEM part for Frigidaire refrigerators. It is responsible for automatically producing batches of ice through a process of freezing water into cube form. The ice maker works in conjunction with the refrigerator's freezer compartment and water supply line to perform its ice production function.

Symptoms of a faulty ice maker include:

• Failure to produce ice cubes
• Oddly shaped, sparse, or chunky ice output
• Leaks or water pools in the freezer
• Strange noises coming from the ice maker area
• Error codes shown regarding ice maker performance

Causes of a bad ice maker assembly can include issues with components like the mold heater, water valve, or agitator that are vital to the freezing process. Improper refrigeration temperatures or clogs preventing water flow can also negatively impact ice production.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


This defrost thermostat controls power to the defrost heater by sensing the evaporator's temperature. Replacing a failed thermostat helps stop heavy frost build-up and supports consistent cooling and airflow in your refrigerator and freezer.

• Monitors evaporator coil temperature during the defrost cycle
• Opens to shut off the defrost heater at a safe temperature; closes again when cold to allow the next defrost
• Failure symptoms can include heavy frost/ice on the back wall or evaporator
• May lead to reduced airflow, poor cooling, or the fresh food section warming after several days

• Disconnect power before servicing; wear cut-resistant gloves
• Access by removing the freezer's rear panel to reach the evaporator area; defrost any heavy ice to avoid damage
• Position the thermostat in the same spot on the evaporator tubing; ensure firm contact and route wiring as originally secured, away from sharp edges and the heater
• Reassemble panels, restore power, and observe for proper defrosting over the next cycles

The Defrost Heater is an OEM replacement part for Frigidaire refrigerators. It is an electric heating element located within the back wall and along the evaporator coil compartment. The heater defrost works to melt any accumulated frost or ice during refrigeration defrost cycles.

Causes of a bad defrost heater include failure of the heating coil or wiring over time due to regular use. Moisture exposure can also degrade insulation and connections.

Symptoms of a bad defrost heater include:

• Ice buildup inside the refrigerator that does not melt
• Inability to maintain proper cooling temperatures
• Frost accumulating externally on refrigerator coils
• Unusual smells emanating from within the appliance

This OEM Frigidaire replacement defrost heater restores automatic defrost capabilities. Compatible with some Electrolux, Roper, and Kenmore models as well, regular replacements prevent defrost issues.

This refrigerator housing is the molded support used to mount and protect its associated components inside the appliance. Replacing a damaged housing restores a secure fit and proper alignment so parts stay in place and function correctly.

• Provides structural support and mounting points for the related controls/components
• Helps route air and/or wiring as designed by the manufacturer
• Restores proper alignment to reduce rattles, rubbing, or interference
• Symptoms can include cracked plastic, broken tabs, loose or sagging assemblies, or components that won't stay secured

• Disconnect power before servicing; shut off water as needed if working near dispenser/ice components
• Transfer sensors, wiring, controls, and hardware from the original housing unless new parts are supplied
• Reuse original screws/clips; avoid overtightening to prevent cracking
• Verify harness connections and clearances before restoring power and water

The Water Inlet Valve is an OEM part for Frigidaire refrigerators. It is designed to manage the flow of water to the ice maker and water dispenser. This solenoid-operated valve responds to commands from the refrigerator's electronic control, opening to allow water in and closing to stop the flow, ensuring proper operation of both ice production and water dispensing functions.

Symptoms of a bad Water Inlet Valve include:

• No water being dispensed or ice being made
• Leaking water at the back or bottom of the refrigerator
• An unusually noisy operation when the valve is activated

Causes of a bad water inlet valve can include mineral buildup, which may obstruct the flow of water, mechanical failure of the solenoids, or wear and tear that leads to leaks or failure to open/close properly.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This cover shields the control knob housing, protecting internal switch components and giving the control panel a finished look. Replacing a damaged cover helps keep debris out and maintains proper knob alignment and appearance.

• Protects the control area from dust, moisture, and accidental contact
• Helps maintain smooth knob operation and alignment
• Common failure signs: cracked or missing cover, loose knob feel, exposed control components
• Restores a clean, finished look to the control panel

• Disconnect power before servicing
• Pull off the knob, then release any tabs or screws retaining the cover
• Note orientation before removal; seat the new cover fully
• Reinstall knob and test for proper fit and operation

Replacement cover that restores appliance appearance and protects internal components from dirt and damage. Installs in place of a worn, cracked or missing cover to keep controls and wiring safely concealed and the unit looking finished. What it does:

• Protects the control area and internal components from spills, dust, and accidental contact.
• Hides and secures wiring and mounting points to prevent snagging or tampering.
• Restores the appliance's finished look when the original cover is scratched, cracked, broken, loose, or missing.
• Helps reduce the chance of debris entering sensitive areas that can affect performance.

• One replacement cover.

• Disconnect power (unplug or shut off circuit breaker) before attempting any service.
• Basic hand tools are typically required; support the cover while removing fasteners to avoid dropped parts.
• Handle edges carefully to avoid cuts and to prevent scratching adjacent surfaces.
• Refer to the appliance's service manual or model-specific instructions for exact removal and reinstallation steps.

The Screw is an OEM part for Frigidaire refrigerators. As a common fastener used throughout the appliance, screws hold panels, handles, components and more securely in place. Reliable performance depends on intact assemblies.

Causes of a bad screw can include wear and corrosion over time from constant vibration, as well as stripping or shearing from repeated securing and removal of parts during repairs.

Symptoms of a loose, damaged, or missing screw include:

• Rattling noises and vibration
• Doors, handles, or panels that are no longer flush or tightened securely
• Internal components that have shifted position

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This is a refrigerator door gasket that restores a tight seal to maintain proper cooling and help reduce frost and energy loss. Replacing a worn gasket improves temperature stability and keeps food fresher longer. What it does:

• Seals the refrigerator door to prevent warm air and moisture from entering the fresh-food compartment.
• Helps stop frost buildup and water pooling caused by a failing seal.
• Can reduce excessive run time from the compressor associated with air leaks.
• Common symptom: visible gaps, brittle or torn rubber, or a door that no longer seals evenly.

• One refrigerator door gasket.

• Remove stored food and shelves as needed for safe access before starting.
• Clean and dry the mounting surface thoroughly before installing the new gasket.
• Seat the gasket evenly around the door frame and check the door closing and seal.

This tube adapter connects and seals a refrigerator water line to the inlet or valve, restoring a secure water pathway for the ice maker or dispenser. Use it to stop leaks and re-establish reliable water flow. What it does

• Adapts and secures the appliance water tube to the inlet or valve, forming a leak-proof connection
• Restores proper water feed to the ice maker and/or water dispenser when the original adapter is damaged
• Helps prevent drips or steady leaks at the tube connection
• Works with standard refrigerator water tubing and compression fittings where specified

• One tube adapter

• Turn off the refrigerator power and shut off the household water supply before starting
• Remove the damaged adapter and clean tube ends; replace with this adapter using appropriate compression or push-fit method
• Tighten fittings to a snug, leak-free fit; avoid over-tightening plastic parts
• After installation, restore water and power, and check thoroughly for leaks

The Water Tube Kit is an OEM part for Frigidaire refrigerators. As an integral part of the ice maker system, the flexible tubing transports water from the external water supply to the internal ice maker assembly.

Symptoms of a bad water tube kit include:

• Slow or incomplete ice production when the ice maker is engaged
• Water leaks detected inside the refrigerator compartment
• Disconnection between the external water source and ice maker assembly

Causes may involve cracked or split tubing from repeated flexing during years of use, degraded connectors coming loose from vibrations, or punctures from impact or rodent damage.

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Replacement water tube that carries water from the inlet valve to the dispenser and ice system, restoring water delivery and preventing leaks when the original tube is cracked, clogged, or disconnected. What it does:

• Routes water from the refrigerator inlet valve to the ice maker and/or water dispenser.
• Restores normal water flow when the existing tube is blocked, kinked, or leaking.
• Helps stop leaks and puddling caused by cracked or damaged tubing.
• Matches original routing and connections to maintain proper water delivery.

• Disconnect power and shut off the refrigerator water supply before starting work.
• Drain remaining water from the line and place a towel or tray to catch drips.
• Inspect connection fittings and any O-rings; replace seals if damaged to prevent leaks.
• After installation, restore water and power, then check all connections carefully for leaks.

Replacement water tube that routes water from the inlet valve to the refrigerator dispenser and ice maker, helping restore proper water flow for reliable dispensing and ice production. What it does:

• Carries water from the refrigerator inlet/valve to the dispenser and ice maker fill system.
• Used when cracked, kinked, clogged or brittle tubing prevents water flow.
• Helps stop leaks and restore normal ice maker fill when tubing is damaged.
• Addresses symptoms such as no water at the dispenser, ice maker not filling, or visible leaking under the fridge.

• Turn off the water supply and unplug the refrigerator before beginning any work.
• May require basic hand tools and careful routing to avoid kinks; do not overtighten fittings.
• Inspect and replace any damaged clamps or seals; test for leaks after reconnecting the water supply.

The Fill Tube Kit is an OEM part for Frigidaire refrigerators. It contains the tubes used to direct water from the water supply line into the refrigerator's water dispenser and ice maker. As these tubes can degrade over time due to mineral buildup or cracking, this kit provides a like-new replacement to ensure optimal water flow.

Causes of a bad fill tube include mineral or limescale deposits restricting water flow, cracks or leaks developing from general wear and tear, or accidental damage from installation or maintenance issues.

Symptoms of a bad fill tube are:

• Slow or inconsistent water flow from the dispenser
• Dripping or leaks from the fill tube connection points
• Ice maker not working or producing small or misshapen ice cubes
• Water backing up or overflowing in the refrigerator

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This replacement screw secures appliance components in place. Use it to replace a missing, stripped, or rusted fastener so shelves, handles, panels, or brackets stay properly mounted and the unit operates without unwanted movement.

• Fastens components to the cabinet, door, liner, or frame
• Restores a solid fit when the original screw is worn or lost
• Helps eliminate looseness, rattling, or misalignment
• Matches the original hardware for correct fit and thread engagement

• Disconnect power before servicing; for refrigerators, also turn off the water supply
• Align parts and start the screw by hand to avoid cross-threading
• Tighten with the correct driver; do not overtighten, especially into plastic
• If receiving threads are damaged, repair or replace the mating clip/bracket before installing

This water connector links sections of the refrigerator's water supply tubing, maintaining a sealed path to the dispenser and ice maker. Replace a cracked or leaking connector to stop drips and restore reliable water flow and ice production.

• Connects sections of internal water tubing between components (inlet valve, filter, door, ice maker)
• Helps maintain a sealed route for proper dispenser and ice maker operation
• Common symptoms: water leaking behind/under the refrigerator, weak/no dispenser flow, ice maker not filling, visible damage at the fitting
• Direct-fit component built to OEM specifications for the intended application

• Unplug the refrigerator and shut off the household water supply before servicing
• Dispense water to relieve line pressure; place a towel to catch residual water
• Cut tubing ends square and fully insert into the connector until seated; tug gently to confirm engagement
• Restore water, check carefully for leaks, and recheck after the first dispense cycle

This refrigerator water inlet tube routes water from the supply/valve into the appliance's water system. Replacing a cracked or kinked tube restores proper flow to the dispenser and ice maker while helping prevent leaks.

• Directs water from the inlet valve to internal components for dispensing and ice production
• Maintains a sealed, food-grade water path
• Replace if you notice leaks under/behind the unit, visible cracks/kinks, reduced or intermittent dispenser flow, or ice maker not filling
• Normal wear, brittleness, or damage during moves can lead to failures

• Disconnect power and shut off the water supply before servicing
• Place a towel or tray to catch residual water when disconnecting lines
• Note the original routing; release any retaining clips and disconnect the tube from fittings
• Route the new tube exactly like the original and fully seat tube ends in connectors; restore water and check for leaks

This air handler housing and seal kit restores a tight, factory fit around the refrigerator's air plenum. Replacing a warped housing or flattened seals helps direct airflow correctly and prevent warm-air leaks that lead to frost, moisture, and temperature swings.

• Seals and supports the air-handler ducting to maintain designed airflow between compartments
• Helps keep temperatures stable and reduce moisture or frost caused by air leaks
• Replace if the housing is cracked/warped or the seals are torn, missing, or permanently compressed
• Symptoms may include weak airflow from vents, condensation/frost around the plenum, temperature fluctuations, or rattling from a loose housing

• Unplug the refrigerator and shut off water if working near ice/water components
• Remove shelves, drawers, and panels as needed to access the air handler area
• Carefully extract the old housing; clean mating surfaces and transfer any reusable parts from the original assembly as required
• Seat new seals evenly and fasten the housing without overtightening; reassemble and verify airflow
