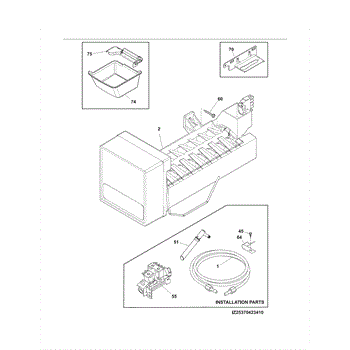

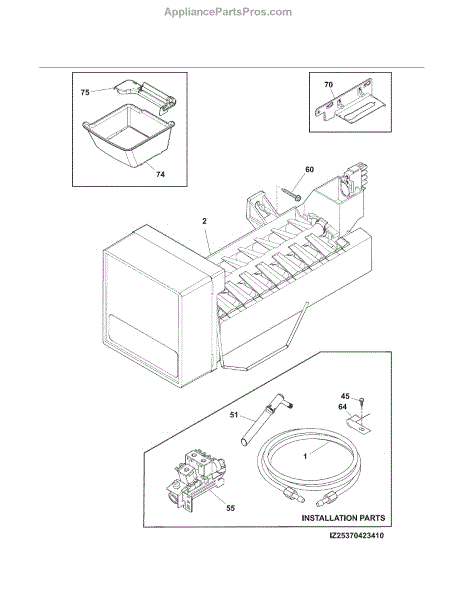

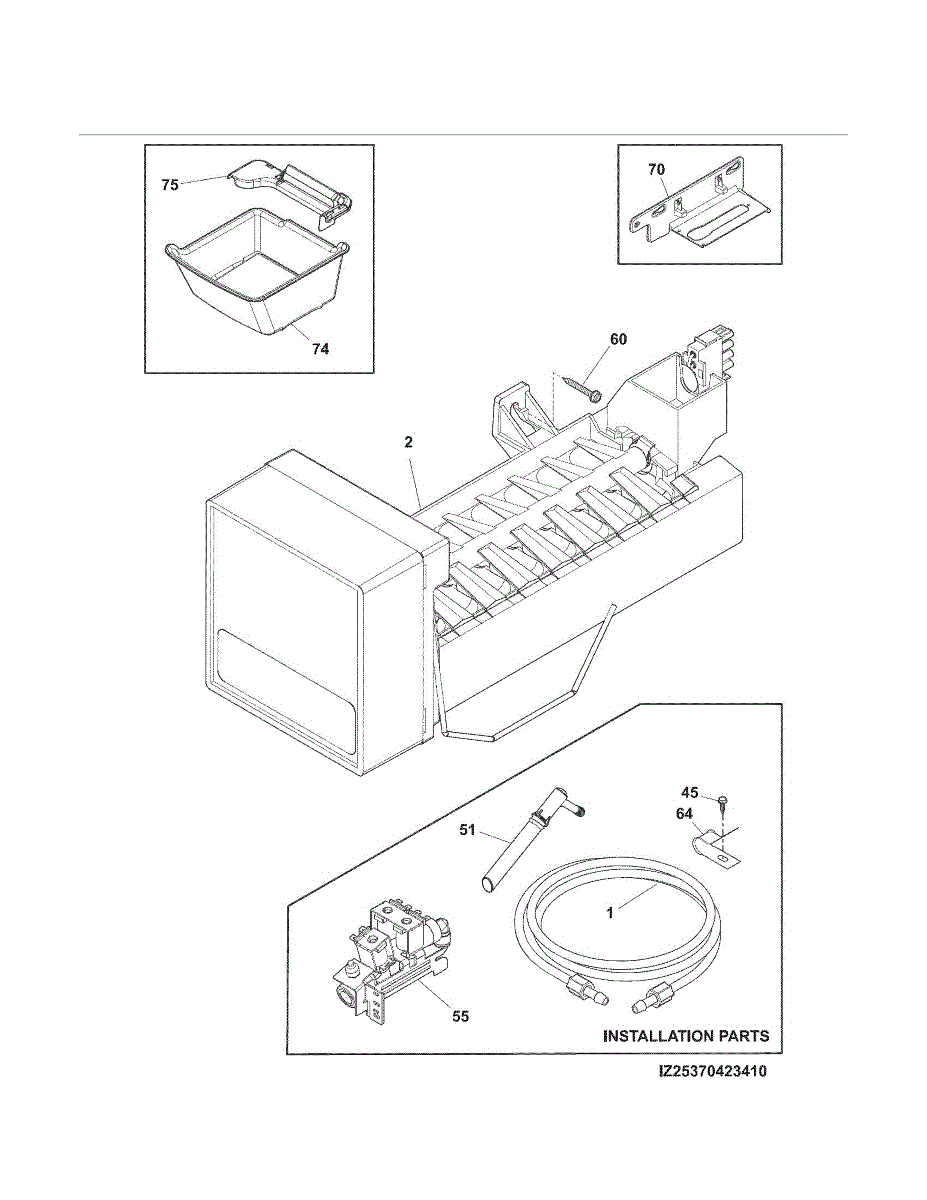

Parts for Kenmore 253.70423410 (25370423410, 253 70423410): Ice Maker Parts

The Air Filter is an OEM part for Frigidaire refrigerators designed to enhance the air quality inside the refrigerator, ensuring that food stays fresh and odor-free.

The Air Filter helps to remove unwanted odors and impurities from the refrigerator's circulating air. It absorbs and neutralizes common food odors, keeping your fridge smelling clean and pleasant. The activated carbon filter is 7 times more effective than baking soda at removing odors.

For best results, change filter every 6 months.
Color: Black.
Measures about 7 inches wide by 5 inches deep.

Symptoms of a bad air filter include:

• Lingering food odors inside the refrigerator
• Increased presence of stale or unpleasant smells
• Decreased effectiveness in eliminating odors

Replace your Air Filter with this genuine part to ensure a clean and fresh-smelling refrigerator. This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This refrigerator water inlet tube routes water from the supply/valve into the appliance's water system. Replacing a cracked or kinked tube restores proper flow to the dispenser and ice maker while helping prevent leaks.

• Directs water from the inlet valve to internal components for dispensing and ice production
• Maintains a sealed, food-grade water path
• Replace if you notice leaks under/behind the unit, visible cracks/kinks, reduced or intermittent dispenser flow, or ice maker not filling
• Normal wear, brittleness, or damage during moves can lead to failures

• Disconnect power and shut off the water supply before servicing
• Place a towel or tray to catch residual water when disconnecting lines
• Note the original routing; release any retaining clips and disconnect the tube from fittings
• Route the new tube exactly like the original and fully seat tube ends in connectors; restore water and check for leaks

The Freezer Ice Maker is an OEM part for Frigidaire freezers. It is responsible for producing ice within the freezer compartment, providing a steady supply of ice cubes.

Causes of a bad ice maker can include wear and tear over time, issues with the water supply line, or electrical problems affecting the ice-making cycle.

Symptoms of a bad ice maker include:

• The ice maker not producing ice
• Ice cubes being smaller or misshapen
• Unusual noises coming from the ice maker
• Water leaks around the ice maker area

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This water tube kit restores the refrigerator's water path. Replacing damaged or brittle tubing helps stop leaks and brings back reliable water flow to the dispenser and/or ice maker.

• Provides a secure route for water from the inlet valve through the refrigerator
• Replaces kinked, cracked, or leaking tubing that can restrict flow
• Helps resolve little/no water dispensing, slow/no ice production, or water drips/leaks
• Matches original routing and connection style on applicable units

• Unplug the refrigerator and shut off the water supply before servicing
• Place a towel to catch residual water and depressurize the line
• Note tube routing; cut ends square and fully seat tubing into fittings; avoid kinks
• Restore water and power, then check all connections for leaks and purge air by dispensing water

This Refrigerator Water Valve is a genuine OEM replacement part for Frigidaire refrigerators. It is responsible for controlling the flow of water into the refrigerator's ice maker and water dispenser. This part ensures a steady and reliable water supply for ice production and water dispensing.

Causes of a bad water valve can include a faulty solenoid, clogged or blocked water lines, or a malfunctioning water pressure regulator. These issues can result in a variety of problems, such as slow or no ice production, weak water flow from the dispenser, or leaks around the valve.

Symptoms of a bad water valve include:

• No ice cubes being produced
• Low water pressure or weak water flow from the dispenser
• Leaks around the water valve or water lines
• Inconsistent ice production or dispensing

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This is a factory-style replacement screw used to secure appliance components. It restores proper fastening where the original screw is missing, stripped, or damaged so panels and assemblies stay firmly attached. What it does:

• Fastens panels, brackets, or components to the appliance frame or assemblies
• Replaces missing or damaged mounting hardware that can cause rattles or loose parts
• Provides the correct fit and thread engagement for a secure connection
• Helps maintain appliance alignment and safe operation

• Use the matching screwdriver or bit to avoid stripping the head
• Tighten until snug; do not over-torque to prevent thread or part damage
• Turn off power and remove any access panels before working on electrical components

This spring-style hose clamp secures flexible appliance hoses and helps prevent leaks by holding hose ends tightly to fittings. Reliable, low-profile design for use on drain, water, or vent hoses where a strong, consistent grip is needed. What it does:

• Provides a spring-tensioned grip to keep hoses seated on fittings and reduce leaks
• Commonly used on flexible drain or water hoses and small vent lines
• Helps maintain proper connection under normal vibration and thermal cycling
• Replaces worn, stretched, or corroded clamps that no longer hold tension

• One spring hose clamp (exact quantity as sold)

• Use pliers to expand the clamp, slide into position, then release to seat on the fitting
• Inspect hose ends and fittings for wear; replace hose if damaged before installing clamp
• Wear eye protection when compressing the clamp; keep fingers clear of the clamp's edges
• Tighten only as needed—over-compressing can damage the hose

Replace a damaged refrigerator bracket to restore secure mounting of the associated component. This part holds the component firmly in place to maintain proper alignment and reliable performance inside the appliance.

• Provides a solid mounting point for the related interior part or assembly
• Helps maintain correct alignment and spacing of the component
• Reduces movement and vibration that can lead to noise or wear
• Common signs it may be bad: cracked or broken bracket, stripped holes, loose or misaligned component, rattling

• Disconnect power and shut off water supply before service; wear cut-resistant gloves
• Clear shelves/panels to access the bracket area and note part orientation
• Remove fasteners, swap the bracket, and reuse existing hardware if applicable
• Do not overtighten screws; confirm proper fit and alignment before reassembly

This snap bucket is the removable ice collection bin that holds and delivers cubed ice from the ice maker. It restores a secure, easy-to-remove ice storage that keeps ice contained and ready for dispensing. What it does:

• Collects and stores ice produced by the refrigerator ice maker
• Snaps into the ice maker housing for a secure fit and easy removal
• Helps prevent ice from spilling inside the freezer compartment
• Can be replaced if cracked, warped, or if ice does not properly collect

• Disconnect power to the appliance before servicing to avoid injury
• Remove any remaining ice and slide the old bucket out, then snap the new bucket into the ice maker housing
• Handle carefully to avoid damaging the ice maker components or surrounding trim
• No special tools are typically required;

Color: Black/natural. Nylon

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

This factory fastener secures appliance panels and components. Replace a missing, stripped, or corroded screw to restore a tight, rattle-free fit and keep brackets and covers properly aligned.

• Fastens panels, brackets, and internal parts as specified by the manufacturer
• Helps maintain alignment and reduces vibration/rattling
• Replace if the head is stripped, threads are damaged, or corrosion is present
• Symptoms include loose/missing hardware, gaps, or rattling during operation

• Disconnect power; shut off gas/water if applicable before servicing
• Use the correct driver/bit size to avoid stripping the head
• Start threads by hand to prevent cross-threading; do not overtighten
• Match screw length/thread to the location; replace in sets when required

This refrigerator clip is a small retainer that secures a component in place so it stays properly seated during use. Replacing a worn or missing clip restores a snug fit and helps eliminate looseness, rattling, or misalignment.

• Holds a part, panel, tube, or wire securely in its mounting point
• Maintains alignment to prevent shifting or vibration
• Helps preserve proper fit and airflow when components are correctly seated
• Symptoms can include loose or sagging pieces, rattling noises, or parts that won't stay attached

• Unplug the refrigerator; if working near water lines, shut off the water supply
• Note the clip's orientation before removal; take a photo for reference
• Use needle-nose pliers to release/install; avoid over-flexing the clip
• After installation, tug-test gently to confirm a secure fit before reassembling

This refrigerator water inlet tube routes water from the supply/valve into the appliance's water system. Replacing a cracked or kinked tube restores proper flow to the dispenser and ice maker while helping prevent leaks.

• Directs water from the inlet valve to internal components for dispensing and ice production
• Maintains a sealed, food-grade water path
• Replace if you notice leaks under/behind the unit, visible cracks/kinks, reduced or intermittent dispenser flow, or ice maker not filling
• Normal wear, brittleness, or damage during moves can lead to failures

• Disconnect power and shut off the water supply before servicing
• Place a towel or tray to catch residual water when disconnecting lines
• Note the original routing; release any retaining clips and disconnect the tube from fittings
• Route the new tube exactly like the original and fully seat tube ends in connectors; restore water and check for leaks

The Screw Kit is an OEM part for Frigidaire appliances. It contains various screws specifically designed to fit and secure different components of Frigidaire appliances, ensuring a tight and secure assembly. This kit is essential for both initial installations and for making repairs or replacements to existing appliances, providing the necessary hardware to maintain or restore the structural integrity of your appliance.  These screws are #10-16 x .500 inches long and can be loosened or tightened using either a Phillips-head or square-head screwdriver.

Symptoms of needing a new Screw Kit include:

• Loose components or panels on your appliance due to missing or damaged screws.
• Inability to securely fasten parts during assembly or repairs, which can lead to operational issues or safety hazards.
• Screws stripping or corroding over time, which can compromise the stability and durability of the appliance.

Causes for replacing screws can include mechanical stress that causes screws to loosen or fall out, environmental factors like moisture leading to corrosion, or accidental damage during cleaning or maintenance.

This screw kit is designed to be universally compatible with various Frigidaire models, ensuring that you have the right screws for a range of repair needs.
