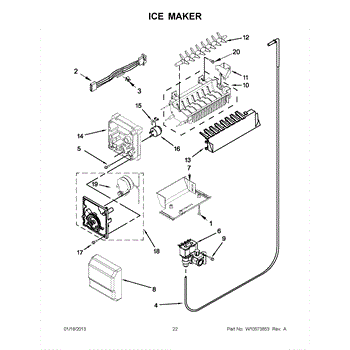

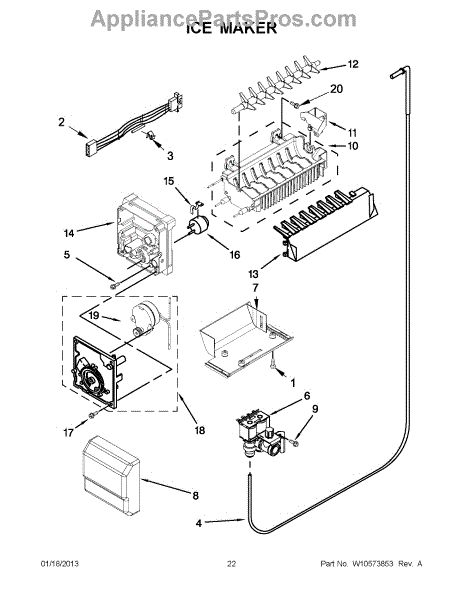

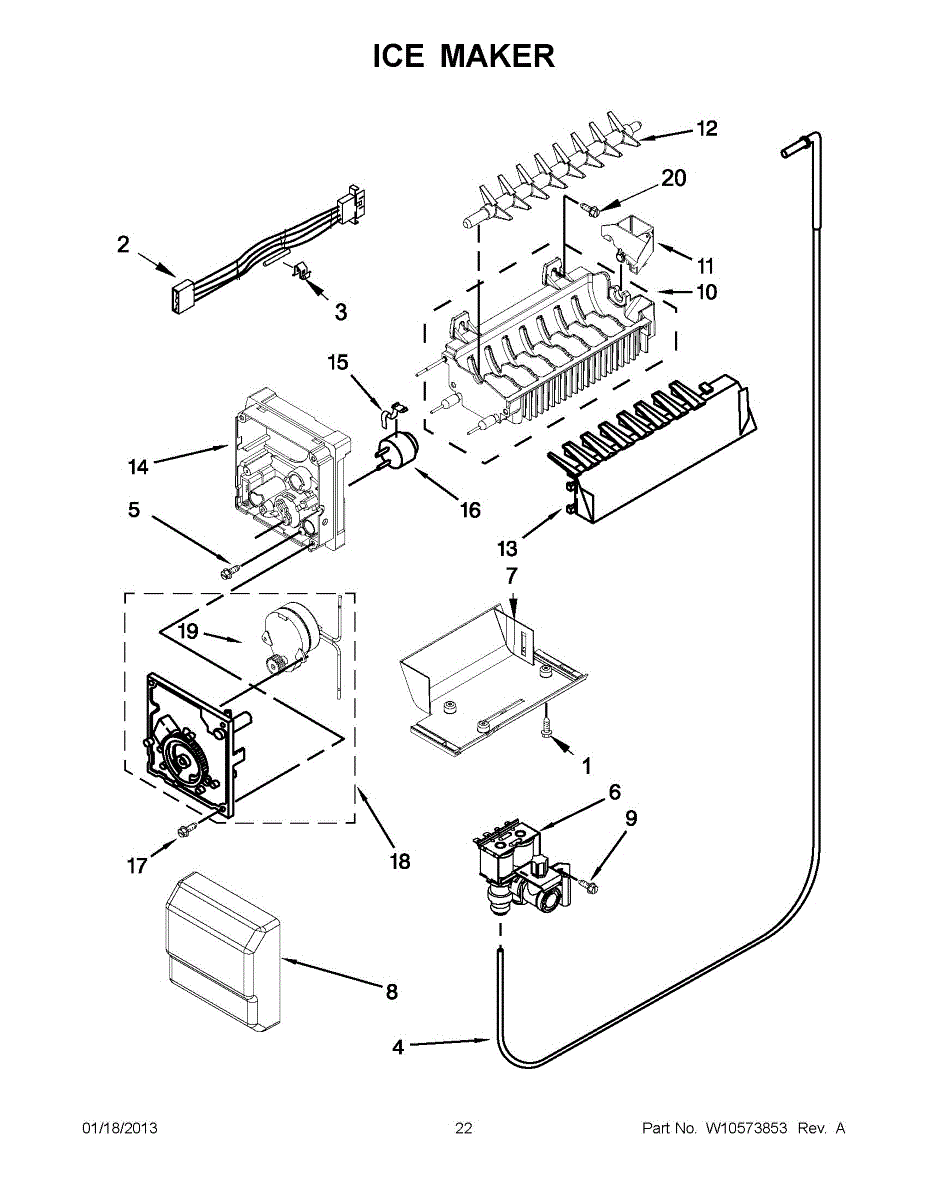

Parts for Whirlpool WRS342FIAB00: 11 - Ice Maker Parts

Size: 8 x 1/2 ab.

This small metal mounting clip secures the thermal fuse in place to maintain proper thermal contact and stable wiring. It helps keep the fuse positioned so the appliance can monitor temperature reliably and operate safely. What it does:

• Secures the thermal fuse to the appliance housing or duct to prevent movement
• Keeps the fuse in correct contact with temperature-sensing surfaces
• Helps prevent intermittent heating or thermal-sensor misreads caused by a loose fuse
• Useful when replacing a damaged or missing fuse retainer during fuse service

• One thermal fuse mounting clip

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove access panels per your model's service instructions to reach the fuse location
• Install clip in the same orientation as the original; use pliers if needed to seat it firmly
• Inspect the thermal fuse and wiring while installing; replace any damaged components per OEM guidance

A single replacement screw used to secure appliance panels and components. Restores proper fastening to reduce vibration and keep parts aligned for safe, quiet operation. What it does:

• Fastens panels, brackets or assemblies to the appliance frame
• Helps eliminate rattling or looseness from unsecured parts
• Maintains component alignment for reliable operation
• Matches the OEM fastening point and thread where specified

• Disconnect power and water before beginning work
• Use the correct screwdriver or bit to avoid stripping the head
• Install in the original location and hand-start threads to avoid cross-threading
• Do not overtighten; tighten to snug fit per service literature

This water inlet valve assembly controls and routes water into your refrigerator's system. A worn or leaking valve can stop dispenser flow or ice production; replacing it restores proper, dependable water delivery.

• Regulates the incoming water supply, opening only when energized by the control
• Directs flow to the dispenser and ice maker (on models equipped)
• Helps maintain proper fill volume for cubes and dispensing
• Common symptoms: no dispense/no ice, small or hollow cubes, slow fill, dripping at the valve or tubing, buzzing when activated but no water

• Unplug the refrigerator and shut off the household water supply before servicing
• Place a towel or pan to catch residual water; relieve line pressure by dispensing water
• Note tubing and wire positions; transfer any brackets/fittings as needed and seat tubing fully in quick-connects
• Restore water and power, check all connections for leaks, and purge air by running the dispenser

This front cover is the external panel that restores the appliance's appearance and protects internal components from dirt and damage. Replacing a damaged or corroded cover helps maintain proper airflow and cabinet integrity. What it does

• Replaces a cracked, rusted, or dented front panel to improve appearance and safety
• Shields internal components from dust, moisture, and impact
• Restores proper alignment of the cabinet face and seal areas
• Helps prevent debris from entering service areas that can cause issues

• Disconnect power (and gas if applicable) before starting any repair
• Remove exterior fasteners and any trim pieces to access the front cover
• Handle edges carefully—metal panels can be sharp

A replacement machine screw with 8-32 threads used to secure panels and components on compatible Whirlpool appliances. Installs quickly to restore proper fit and stop rattling or loose parts. What it does:

• Secures panels, trim, brackets or components that use 8-32 machine-thread fasteners
• Restores proper alignment and prevents vibration-related noise
• Replaces missing, stripped, or damaged screws that allow parts to come loose
• Works where a standard 8-32 machine screw is specified by the manufacturer

• Disconnect power and/or gas before servicing the appliance to reduce shock or injury risk
• Use the proper screwdriver or nut driver for the screw head to avoid stripping
• Thread gently and stop when snug; do not overtighten to prevent stripping or damage
• If threads are damaged, replace with the correct-size screw rather than forcing it

This ice mold is the molded tray section that forms individual ice cubes in the refrigerator ice-making assembly, restoring proper cube shape and water containment for consistent ice production. What it does:

• Holds and shapes water into individual ice cubes as part of the ice maker assembly
• Directs water into cube cavities for even freezing and consistent cube size
• Replaces a cracked, warped or damaged mold that can cause leaks or misshapen cubes
• Helps stop water pooling inside the ice maker area when the mold is intact

• Disconnect power to the appliance and shut off the water supply before servicing
• Remove the ice maker assembly to access the mold; handle carefully to avoid damage
• Inspect mounting tabs and seals; replace any damaged fasteners or gaskets before reassembly

This support mounts in the dispenser area to secure the ice housing assembly. It helps keep the chute and door properly aligned so ice dispenses smoothly and the opening seals as designed.

• Supports and positions the ice housing/chute assembly in the freezer door
• Helps maintain proper alignment and sealing of the ice door/flapper
• Reduces wobble or flex that can affect dispensing performance
• Typical signs it may be needed: loose or misaligned dispenser housing, ice or air leaking at the chute, frost buildup around the dispenser, inconsistent ice dispensing

• Disconnect power to the refrigerator before servicing
• Remove the dispenser trim/control to access the housing; handle wiring and tabs carefully
• Remove mounting fasteners, replace the support, and transfer any reusable hardware
• Reassemble, restore power, and test ice dispensing and chute seal

This thermostat retainer clip secures the defrost thermostat to the evaporator tubing in your refrigerator or freezer, maintaining firm contact for accurate temperature sensing and dependable defrost operation.

• Holds the thermostat firmly against the evaporator line for proper temperature feedback
• Helps prevent a loose or dangling thermostat that contribute to frost buildup and poor defrost performance
• Restores correct mounting when the original clip is cracked, bent, or missing
• Common signs include a broken clip or a thermostat not attached to the coil

• Disconnect power to the appliance before servicing; wear cut-resistant gloves
• Access the evaporator compartment; remove accumulated frost/ice as needed without prying on coil fins
• Position the thermostat body flat against the tubing and snap the retainer over it, avoiding pinched wires or damaged fins
• Confirm a secure fit and proper wire routing before reassembling and restoring power

This bimetal defrost thermostat controls power to the evaporator defrost heater. Replacing a failed thermostat restores proper defrost cycling, helping prevent ice buildup on the coils and safeguarding the unit from overheating during defrost.

• Senses evaporator coil temperature and opens/closes the defrost heater circuit
• Protects against overheating by cutting heater power when the coil warms
• Works with the control/timer to complete the defrost cycle
• Common symptoms: heavy frost on the freezer back panel/evaporator, warming temperatures after several days, or a defrost heater that won't energize

• Disconnect power; remove freezer shelves and the rear panel to access the evaporator
• The thermostat is typically clipped to the evaporator tubing—note placement/orientation before removal
• Make secure electrical connections and route wires away from sharp edges and the fan
• Reassemble, restore power, and operate the defrost system properly

This is a replacement screw fastener used to secure appliance components and panels. It restores proper fastening and helps stop loose parts from vibrating or shifting during operation. What it does:

• Secures panels, brackets, or components in place to maintain appliance stability
• Stops rattling, vibration noise, and intermittent contact caused by loose fasteners
• Restores proper alignment where original screws have stripped, corroded, or been lost
• Functions as a direct-fit hardware replacement when the OEM screw is needed

• One replacement screw (quantity: 1)

• Use appropriate driver and moderate torque to avoid stripping threads or damaging parts
• Disconnect power and follow appliance safety procedures before working on the unit
• Repair or replace the mating component as needed

The Icemaker Motor Module is an OEM part for Whirlpool refrigerators. This module is the heart of the icemaker, responsible for controlling the ice production cycle. It manages the timing, water fill, and ice tray ejection, ensuring that your refrigerator consistently produces and dispenses ice.

Symptoms of a bad Icemaker Motor Module include:

• The icemaker failing to produce ice,
• Ice cubes not ejecting into the bin,
• The icemaker making unusual noises during operation.

Causes of motor module failure typically involve mechanical wear from continuous use, electrical failures such as short circuits, or water damage affecting the electronic components.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This ice maker assembly replaces the complete cube-making unit in your refrigerator. It restores automatic freezing, harvesting, and bin-level shutoff so your appliance can reliably produce a steady supply of ice again.

• Freezes water in the mold and ejects cubes into the ice bin during each harvest cycle
• Pauses production when the bin is full via the built-in shutoff mechanism
• Typical failure symptoms: no ice production, cubes not ejecting or stuck mid-cycle, intermittent clicking/grinding from the module
• Can replace a cracked or seized ice mold assembly that jams or leaks at the icemaker

• Disconnect power and shut off the refrigerator's water supply before servicing
• Remove the ice bin; loosen mounting screws and unplug the wire harness to release the old unit
• Transfer any mounting brackets or covers from the original unit if needed; reuse existing hardware
• Restore power and water; ensure the fill tube is clear and allow the icemaker to begin cycling
