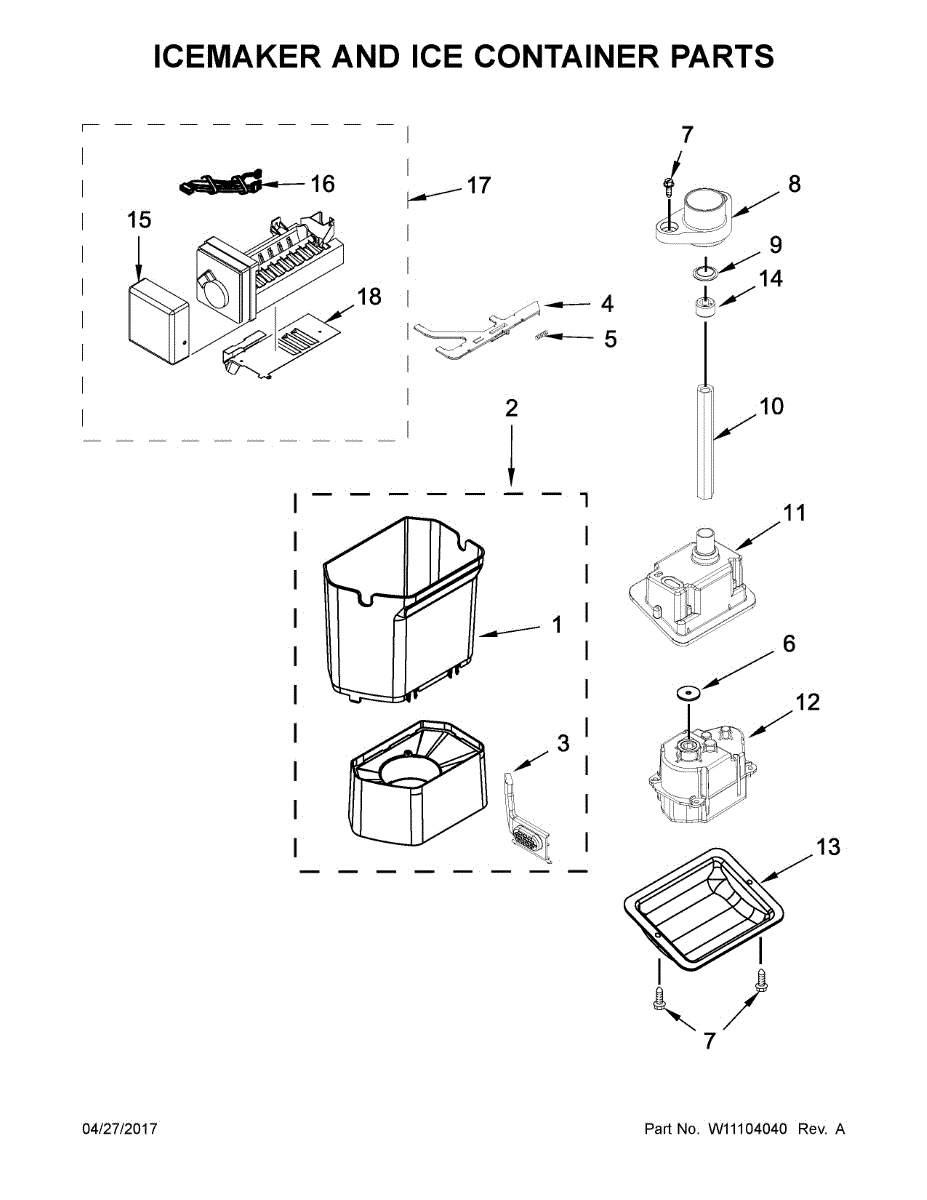

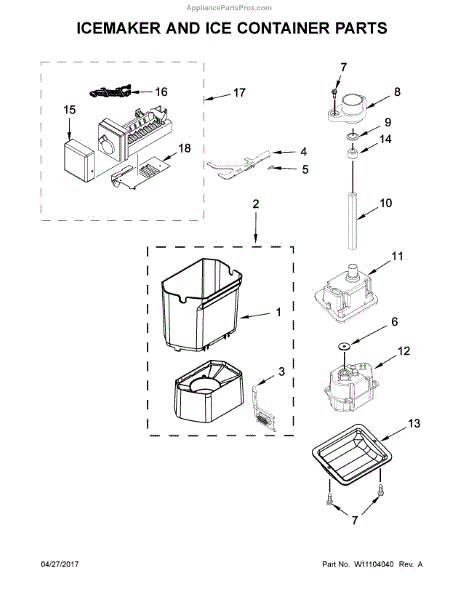

Parts for Jenn-Air JS48PPDUDE01: Icemaker And Ice Container Parts

The Refrigerator Water Filter is an OEM part for Whirlpool refrigerators. It delivers clean, filtered drinking water and ice by effectively reducing contaminants, including chlorine taste and odor, particulates, and various other harmful substances that may be present in the water supply.

Causes of a bad Refrigerator Water Filter can include regular wear and tear over time leading to reduced efficacy in filtering out contaminants, as well as accumulation of contaminants and sediment.

Symptoms of a bad Refrigerator Water Filter include:

• Noticeable decrease in water flow rate.
• Unpleasant taste or odor in the water or ice.
• Discoloration of water or ice.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

This upper crusher ice bin collects and guides crushed ice in the freezer ice maker assembly to the dispenser, helping maintain proper ice storage and delivery. It replaces a cracked, warped, or damaged upper crusher bin to restore ice flow. What it does:

• Houses crushed ice from the ice crusher and channels it toward the dispenser chute
• Prevents ice jams by providing a shaped trough for ice movement
• Helps keep crushed ice contained and reduces spilling inside the freezer compartment
• Commonly replaced when cracked, split, broken mounting tabs, or when ice flow is obstructed

• One upper crusher ice bin

• Disconnect power to the appliance before servicing to avoid electrical or mechanical injury
• Remove ice maker and surrounding trim to access and replace the bin
• Inspect mounting tabs and adjacent parts for damage; replace additional components if needed
• Handle plastic parts carefully to avoid cracking during removal or installation

The Ice Container is an OEM part for Whirlpool side-by-side refrigerators. It serves as the storage container that holds ice produced by the icemaker.

Symptoms of a bad Ice Container include:

• Cracks or leaks that allow melted ice to spill into the freezer
• Difficulty removing ice cubes due to a damaged structure
• Inability to securely lock into place in the refrigerator

Causes of a bad ice container can be wear and tear over time from repeated use. The plastic may become brittle or fragile from long term very cold temperatures in the freezer. Accidental impact or mishandling during cleaning could also damage it.

This genuine Whirlpool replacement is compatible with additional brands including Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This button bin is the plastic holder that secures and positions push buttons on the appliance control panel, keeping switches aligned and responsive for reliable user input. What it does:

• Holds individual control panel buttons in place so they actuate correctly
• Keeps button alignment and prevents wobble or mis-seating
• Helps buttons return smoothly after being pressed
• Restores proper button feel when worn or broken

• One button bin

• Disconnect power before attempting any repairs to avoid shock or injury
• Typically accessed from behind the control panel; remove panel fasteners as needed
• Handle the plastic clip carefully to avoid cracking; use plastic trim tools if available

This bin latch secures a refrigerator bin or drawer to its mounting points so it stays put during everyday use. Replacing a worn latch restores a solid, reliable fit and helps prevent spills or drops.

• Locks the bin or drawer into place on the door or liner
• Maintains alignment for smooth removal and reinstallation
• Common symptoms: bin won't stay seated, tilts or rattles, falls off, or latch is cracked/missing
• Helps protect contents from shifting due to a loose bin

• Disconnect power before servicing
• Remove the bin to access the latch
• Release the old latch's locking tabs and remove it; align and snap the new latch into place
• Do not force parts; the bin seats securely before use

The Whirlpool latch spring is an OEM replacement part responsible for securing the ice container or bin in place on a refrigerator. Its main function is to provide tension and support to the ice container latch, allowing it to engage and disengage properly. When the ice container is inserted into the refrigerator's ice compartment, the latch spring ensures that it securely locks in place, preventing accidental spillage of ice.

Causes of a bad latch spring can include metal fatigue from repeated use, rust or corrosion from exposure to moisture, or physical damage from accidental impacts.

Symptoms of a bad latch spring include:

• The ice container not staying in place and sliding out of position
• Difficulty in properly attaching or detaching the ice container from the refrigerator
• The ice container feeling loose or wobbly when inside the ice compartment
• The ice container not aligning correctly with the ice dispenser or auger

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Replacement rubber boot that seals the washer's drive/transmission shaft where it passes through the tub, helping to reduce leaks and keep grease and water separated for cleaner operation and longer seal life. What it does:

• Helps seal the shaft opening between the tub and drive/transmission to reduce water escaping from the washer base.
• Replaces boots that are cracked, torn, hardened or missing—which are common causes of leaks and grease migration.
• Common symptoms: water pooling under the washer, visible tears or gaps at the tub seam, or grease and debris collecting around the shaft.
• Durable rubber construction resists wear from shaft movement and detergent exposure.

• Disconnect power and turn off water supply before beginning any repair.
• Drain the washer and access the shaft area by removing panels/outer tub.
• Inspect nearby seals, gaskets and fasteners while replacing the boot; replace any damaged components to ensure a proper seal.

This replacement screw secures panels, brackets, and internal components within your appliance. Replacing a missing or damaged fastener restores a tight fit, reduces vibration and noise, and helps keep parts properly aligned during operation.

• Fastens panels, trim, brackets, or internal components to the chassis
• Maintains proper alignment and stability during normal use
• Replaces missing, rusted, or stripped hardware
• Common symptoms: loose or rattling panels, vibration, difficulty fastening, or a visibly missing screw

• Disconnect power; for gas appliances, also shut off the gas supply
• Match length and thread to the original; replace one-for-one in the same location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving hole is stripped, repair threads or replace the clip/nut before installing

The Drive Shaft Seal is an OEM part for Whirlpool washing machines. It plays a role in preventing water from leaking out of the tub and onto the drive system. This seal ensures that the connection between the drive shaft and the washing machine tub remains watertight, protecting the mechanical components from water damage and corrosion.

Causes of a bad drive shaft seal include aging and deterioration of the material, excessive load sizes that strain the washer, and foreign objects caught between the seal and the shaft, which can lead to tears or breaks.

Symptoms of a bad Drive Shaft Seal include:

• Water leakage from the underside of the washing machine
• Unusual noises during the spin cycle
• A visible tear or damage to the seal itself
• Increased vibration and movement of the machine during operation

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Shaft is an OEM replacement part for Whirlpool refrigerators. As a part of the ice bin assembly, it works to eject cubes from the bin.

Causes of shaft malfunction include wear and fatigue stress from years pushing ice through the chute. Mineral deposits inhibiting smooth rotation also lead to failures over time.

Symptoms of an inefficient auger shaft comprise:

• Failing or sporadic ice release from the icemaker compartment
• Abnormal noises like grinding coming from shaft area
• Reduced ice output volumes versus when new

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Ice Auger Motor is an OEM part for Whirlpool refrigerators. This motor drives the ice auger, which moves ice from the ice bin to the dispenser chute.

Causes of a bad ice auger motor can include electrical malfunctions, wear and tear from regular use, or damage due to ice jams or overloading.

Symptoms of a bad ice auger motor include:

• The ice dispenser not dispensing ice
• Unusual noises or grinding sounds from the ice dispenser area
• The auger not turning or moving ice
• Intermittent or inconsistent ice dispensing

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Icemaker Drive Shaft Sleeve is an OEM replacement part for Whirlpool refrigerators. This sleeve fits over the drive shaft that powers the icemaker. It works to smoothly transmit torque from the motor to ensure proper ice production.

Symptoms of a bad drive shaft sleeve icemaker include:

• Incomplete or inconsistent ice production
• Jammed or frozen icemaker
• Ice cubes not fully formed
• Ice falling out of cube trays improperly

Causes of a bad drive shaft sleeve icemaker can include cracks, splits, or damage due to repeated use over time. Failure of this part can lead to icemaker malfunction.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This wire harness is the factory-style wiring assembly that connects the appliance's electrical components, restoring reliable electrical routing and control. It replaces damaged or frayed wiring to help return normal operation. What it does:

• Routes power and signals between controls, switches, motors and sensors.
• Replaces broken, burned, or frayed wires that can cause loss of function.
• Helps stop intermittent power, no-start conditions, and control communication issues.
• Prevents arcing or shorting from damaged insulation when installed correctly.

• One complete wire harness assembly.

• Turn off and disconnect power before servicing; confirm with a meter.
• Match connector shapes and pin counts to the existing harness during replacement.
• Secure harness away from heat, moving parts, and sharp edges; use existing clips.

This is a complete ice maker assembly that produces and harvests ice for compatible refrigerator freezers, restoring normal ice production and delivery. Designed to replace a failed ice maker unit and resume automatic ice cycles. What it does:

• Fills the ice mold with water and freezes it into cubes
• Initiates the harvest cycle to eject ice into the bin
• Restores automatic ice production when the original unit has failed
• Helps resolve common symptoms like no ice production, ice not ejecting, or an empty ice bin when the freezer is at the correct temperature

• Disconnect power and water supply before beginning service
• Handle with care to avoid damaging the fill tube, mounting tabs, or electrical connector
• After installation, restore power and run a test cycle; allow several hours for the first batch of ice

This mounting bracket secures internal parts to the appliance frame to maintain alignment and reduce movement. It's a direct-fit replacement that restores proper support for the attached assembly and helps stop rattling or shifting. What it does:

• Provides a secure attachment point for internal components to the appliance frame
• Restores correct alignment to reduce vibration and noise during operation
• Prevents mounted parts from shifting or coming loose over time
• Helps maintain safe, stable operation of the affected assembly

• Disconnect power (and water for washer/dishwasher) before starting any repair
• Use basic hand tools to remove fasteners; keep track of screws and clips
• Handle edges carefully—metal brackets can be sharp
• Refer to OEM instructions for exact location and torque specs
