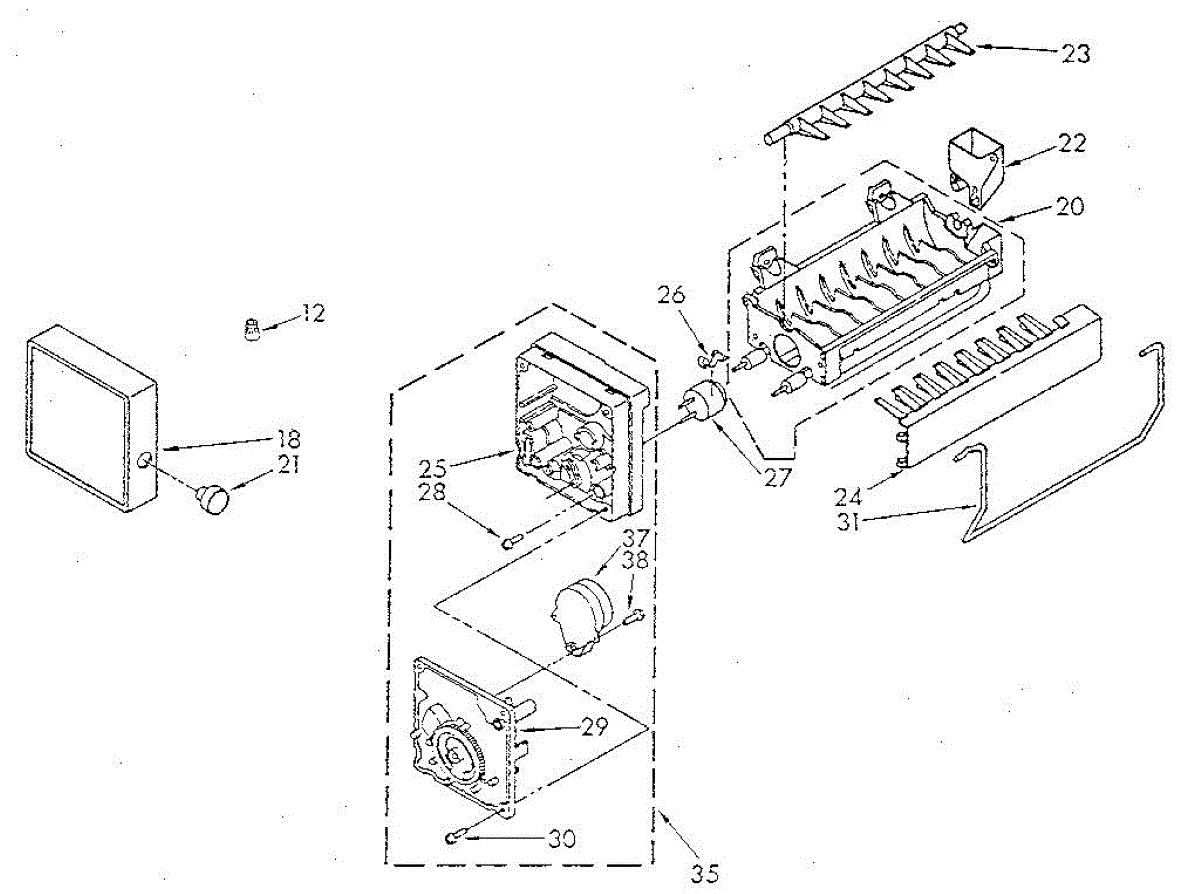

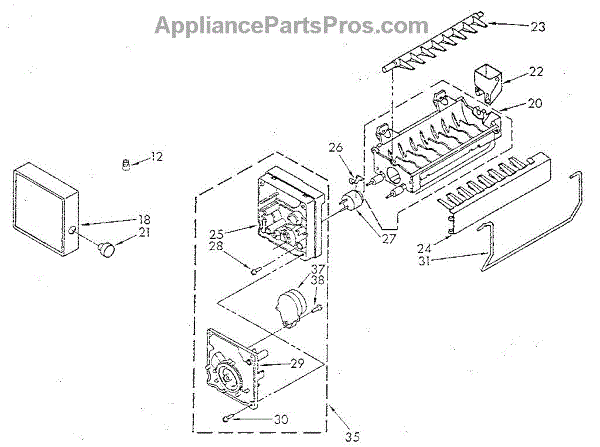

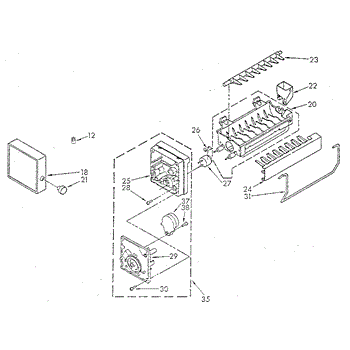

Parts for Kenmore 612.8894050 (6128894050, 612 8894050): Icemaker Parts

This ice maker cover shields the front of the ice maker assembly, protecting the module and moving parts from dust and accidental contact. Replacing a cracked or missing cover restores a clean, finished appearance and keeps components protected.

• Shields the ice maker's front components and control module
• Helps keep dust, splashes, and debris out of the mechanism
• Prevents accidental contact with moving ejector parts
• Replace if the cover is cracked, warped, missing, or will not stay attached

• Unplug the refrigerator before servicing
• Access the ice maker in the freezer compartment
• Carefully release the retaining tabs and remove the old cover; note orientation
• Align the new cover and press until it snaps securely into place—do not force the tabs

This mold heater assembly warms the ice maker mold to help release ice and prevent ice buildup for consistent ice production. It replaces a faulty heater that can cause stuck cubes or irregular harvesting. What it does:

• Gently warms the ice mold so ice cubes release cleanly from the tray
• Helps prevent ice from sticking or freezing unevenly to the mold
• Supports regular ice harvesting cycles when heater has failed or is intermittent
• Works as the heater component inside the ice maker housing

• One mold heater assembly

• Disconnect power to the appliance before attempting any service
• Accessible from the ice maker module area; some models require removing the ice bin or access panel
• Handle the heater and surrounding components carefully to avoid damage to the ice maker

This icemaker fill cup and bearing assembly directs water from the inlet tube into the ice mold and provides the pivot point for the shutoff arm. Replacing a cracked or missing cup helps stop leaks, misdirected fills, and inconsistent ice production.

• Channels incoming water into the ice mold to prevent splashing and overfilling
• Provides the pivot/bearing for the ice level (shutoff) arm
• Helps maintain consistent cube size and reliable icemaker shutoff
• Typical symptoms: water or ice buildup under the icemaker, overfilling or hollow/irregular cubes, or a loose/binding shutoff arm

• Unplug the refrigerator and shut off the water supply before servicing
• Remove the ice bin and detach the icemaker to access the side-mounted cup
• Position the new cup directly under the fill tube; secure with existing hardware and verify the shutoff arm pivots freely in the bearing
• Restore power and water; run a test fill and check for leaks

This replacement ejector is the plastic arm that pushes harvested ice cubes out of the ice mold and into the storage bin, helping restore proper ice ejection and reduce ice that sticks inside the tray. What it does:

• Pushes ice cubes out of the ice mold during the ice maker's harvest cycle.
• Works with the ice maker's motor/gear assembly to advance cubes into the bin.
• Replaces worn, cracked, or broken ejector arms that can leave ice stuck in the mold.
• Can help address symptoms such as cubes that don't eject, partial fills, or frequent ice jams.

• Disconnect power to the refrigerator before servicing to prevent electrical shock.
• Remove the ice bin and follow the OEM ice maker removal steps to access the ejector.
• Handle plastic components carefully to avoid cracking; inspect gears, mounts, and the ice tray for related wear.

Ice stripper removes ice cubes from the ice maker mold so the dispenser or storage bin fills properly. Replacing a worn or broken stripper helps the ice maker eject cubes cleanly and reduces ice jams or stuck cubes. What it does:

• Pushes or guides harvested cubes out of the ice mold into the bin during the ice maker's harvest cycle.
• Prevents cubes from sticking in the mold; a damaged stripper can cause incomplete ejection or leftover ice in the mold.
• Works with the ice maker's ejector mechanism to maintain consistent cube release and storage.
• A faulty or broken stripper may lead to noisy operation, partial fills, or visible ice build-up in the mold.

• Disconnect power to the appliance before starting any repair to avoid electrical shock.
• Remove the ice maker or access panel per the manufacturer's instructions to reach the stripper; keep small parts and screws organized.
• Inspect the ice mold and surrounding components for damage or ice build-up; clear ice before installing the new stripper.
• After installation, restore power and run a test harvest cycle to ensure proper cube ejection.

This support mounts in the dispenser area to secure the ice housing assembly. It helps keep the chute and door properly aligned so ice dispenses smoothly and the opening seals as designed.

• Supports and positions the ice housing/chute assembly in the freezer door
• Helps maintain proper alignment and sealing of the ice door/flapper
• Reduces wobble or flex that can affect dispensing performance
• Typical signs it may be needed: loose or misaligned dispenser housing, ice or air leaking at the chute, frost buildup around the dispenser, inconsistent ice dispensing

• Disconnect power to the refrigerator before servicing
• Remove the dispenser trim/control to access the housing; handle wiring and tabs carefully
• Remove mounting fasteners, replace the support, and transfer any reusable hardware
• Reassemble, restore power, and test ice dispensing and chute seal

This thermostat retainer clip secures the defrost thermostat to the evaporator tubing in your refrigerator or freezer, maintaining firm contact for accurate temperature sensing and dependable defrost operation.

• Holds the thermostat firmly against the evaporator line for proper temperature feedback
• Helps prevent a loose or dangling thermostat that contribute to frost buildup and poor defrost performance
• Restores correct mounting when the original clip is cracked, bent, or missing
• Common signs include a broken clip or a thermostat not attached to the coil

• Disconnect power to the appliance before servicing; wear cut-resistant gloves
• Access the evaporator compartment; remove accumulated frost/ice as needed without prying on coil fins
• Position the thermostat body flat against the tubing and snap the retainer over it, avoiding pinched wires or damaged fins
• Confirm a secure fit and proper wire routing before reassembling and restoring power

The Icemaker Cycling Thermostat is an OEM part for Whirlpool refrigerators. This thermostat plays a crucial role in the icemaker's operation by monitoring the temperature in the icemaker and ensuring it is at the appropriate level for proper ice production. It reads the temperature to determine when the icemaker should cycle on and off.

Causes of a bad icemaker cycling thermostat can include electrical malfunctions, temperature sensor issues, or wear and tear.

Symptoms of a bad icemaker cycling thermostat may include:

• Inconsistent ice production.
• The icemaker not cycling properly.
• The icemaker not dumping the ice into the ice bin.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Ice Maker Control Module is an OEM replacement part for Whirlpool refrigerators. It acts as the brain of the ice maker, controlling and regulating its various functions to ensure efficient and consistent ice production.

Symptoms of a bad ice maker control module include:

• No ice production or intermittent ice production
• Ice maker not cycling on or off correctly
• Errors or error codes related to the ice maker on the refrigerator's display
• Unusual noises or clicking sounds from the ice maker

Causes of a bad control module can range from electrical issues, such as power surges or voltage fluctuations, to physical damage or wear and tear over time.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Screw is an OEM part for Whirlpool refrigerators, designed to secure components of the ice maker assembly. This screw maintains the structural integrity of the ice maker, ensuring that all parts are tightly fastened to prevent malfunction or inefficiency in ice production.

Causes of failure can include stripping of the screw threads through over-tightening or corrosion, leading to a less secure fit.

Symptoms of a bad Screw include:

• Loose or dislodged components within the ice maker assembly.
• Inconsistent or halted ice production due to components shifting.
• Unusual noises emanating from the ice maker as a result of loose parts.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This ice maker shut-off arm is the wire lever that detects the ice bin level and stops production when raised. Replace a bent, broken, or missing arm to restore reliable on/off control of your icemaker.

• Monitors bin fullness; in the up position it opens the internal switch to pause ice making
• Lowers as ice is used so the icemaker can resume cycles
• Restores manual shutoff when you lift the arm

• Disconnect refrigerator power and turn off the water supply before servicing
• Remove the ice bin for access; open the icemaker front cover if your model has one
• Pull the old arm straight out of the pivot holes; align and fully seat the new arm so it moves freely
• Restore power and lower the arm to resume ice production; the arm raises and stops production when the bin is full

The Ice Maker Control Module is an OEM replacement part for Whirlpool refrigerators. It acts as the brain of the ice maker, controlling and regulating its various functions to ensure efficient and consistent ice production.

Symptoms of a bad ice maker control module include:

• No ice production or intermittent ice production
• Ice maker not cycling on or off correctly
• Errors or error codes related to the ice maker on the refrigerator's display
• Unusual noises or clicking sounds from the ice maker

Causes of a bad control module can range from electrical issues, such as power surges or voltage fluctuations, to physical damage or wear and tear over time.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Ice Maker Control Module is an OEM replacement part for Whirlpool refrigerators. It acts as the brain of the ice maker, controlling and regulating its various functions to ensure efficient and consistent ice production.

Symptoms of a bad ice maker control module include:

• No ice production or intermittent ice production
• Ice maker not cycling on or off correctly
• Errors or error codes related to the ice maker on the refrigerator's display
• Unusual noises or clicking sounds from the ice maker

Causes of a bad control module can range from electrical issues, such as power surges or voltage fluctuations, to physical damage or wear and tear over time.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
