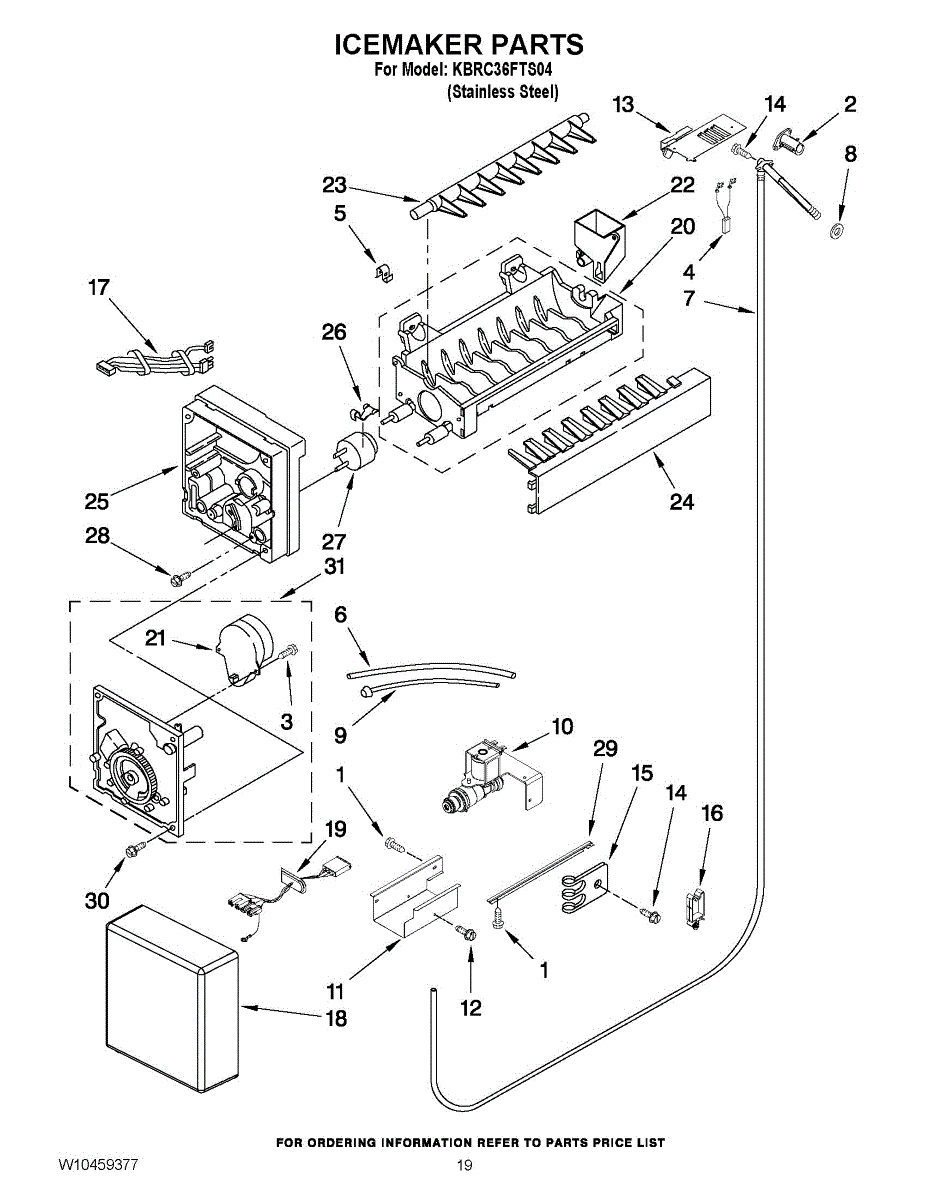

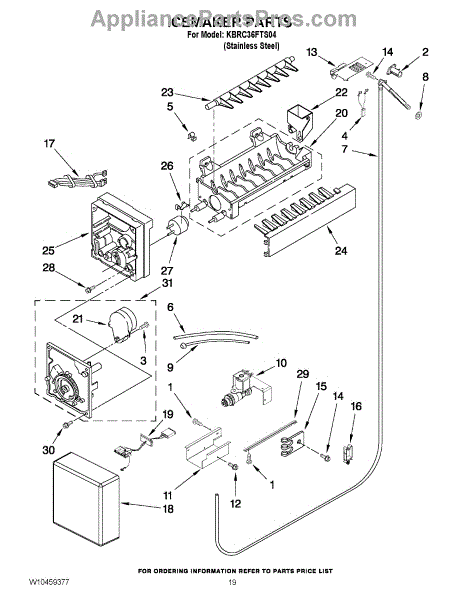

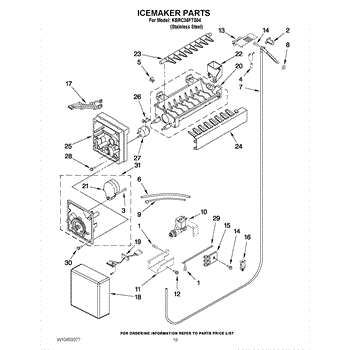

Parts for Kitchenaid KBRC36FTS04: 11 - Icemaker Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This heater fill tube channels water from the inlet valve to the appliance's heater/fill assembly, restoring proper fill performance and reducing the risk of leaks. Replace a damaged tube to re-establish correct water flow and operation. What it does:

• Directs water from the inlet valve into the heater/fill assembly so the unit can fill as intended.
• Commonly replaced when the tube is cracked, split, blocked, or leaking.
• Faulty tubes can cause water pooling, intermittent or no fill, or visible leaks at the connection.
• Works with existing seals and clamps to maintain a watertight connection when installed correctly.

• Disconnect power to the appliance and shut off the water supply before starting.
• Drain residual water from lines and remove necessary access panels to reach the tube.
• Inspect and replace any worn clamps or seals during installation to ensure a secure, leak-free connection.

This wire assembly is the factory replacement harness that connects electrical components so your appliance gets reliable power and signal routing. Restores proper connections for controls, sensors and powered parts. What it does:

• Routes power and signal between control board and components
• Replaces damaged, frayed or burned wiring that can cause intermittent or no operation
• Helps resolve symptoms like control or component failures, no-start or loss of specific functions
• Maintains correct connector fit and wire lengths for safe operation

• Disconnect all power (unplug or shut off breaker) before starting any repair
• Compare connectors and wire colors to the original harness before installing
• Route harness away from sharp edges, moving parts and heat sources; secure with existing clips/fasteners

This small metal mounting clip secures the thermal fuse in place to maintain proper thermal contact and stable wiring. It helps keep the fuse positioned so the appliance can monitor temperature reliably and operate safely. What it does:

• Secures the thermal fuse to the appliance housing or duct to prevent movement
• Keeps the fuse in correct contact with temperature-sensing surfaces
• Helps prevent intermittent heating or thermal-sensor misreads caused by a loose fuse
• Useful when replacing a damaged or missing fuse retainer during fuse service

• One thermal fuse mounting clip

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove access panels per your model's service instructions to reach the fuse location
• Install clip in the same orientation as the original; use pliers if needed to seat it firmly
• Inspect the thermal fuse and wiring while installing; replace any damaged components per OEM guidance

This inlet fitting connects the household water supply to the appliance's waterline, providing a secure, leak-resistant connection for ice makers and water dispensers. Use it to replace damaged or leaking supply fittings and restore proper water flow. What it does:

• Provides a sealed connection between the home's water supply and the appliance waterline
• Replaces cracked, corroded, or leaking inlet fittings that cause drips or loss of water supply
• Helps restore proper water flow to ice makers and dispensers when the original connector fails
• Compatible with standard waterline tubing used on many Whirlpool refrigeration applications

• Turn off the household water supply and unplug the appliance before beginning any work
• Inspect tubing for damage and replace the waterline if brittle or kinked to ensure a reliable seal
• Use appropriate thread sealant or ferrules per the original installation type; hand-tighten then secure per manufacturer guidance

This replacement water tube directs water through the appliance's dispenser/ice delivery path, restoring a secure routed water connection to prevent leaks and loss of water flow. Designed to match the OEM part's shape and fit. What it does:

• Routes water between the main water valve and dispenser/ice components for normal dispensing and ice fill.
• Replaces cracked, split, or kinked tubing that can cause leaks or reduced water flow.
• Helps stop visible drips or pooling under the appliance when the original tube is damaged.
• Restores proper water delivery to the dispenser and ice maker when worn tubing is the cause.

• One replacement water tube.

• Turn off and disconnect the water supply and power before starting work to avoid leaks and electrical hazards.
• Inspect fittings and seals; replace any damaged clips or O-rings to ensure a watertight connection.

This gasket/seal creates a tight barrier between two mating parts in your appliance to prevent leaks and performance loss. Replacing a worn gasket restores proper sealing and helps stop seepage at the joint. What it does

• Forms a reliable seal between components to prevent fluid or air leaks
• Maintains proper operation by keeping the sealed area contained
• Replaces gaskets that are brittle, cracked, flattened, or swollen
• Common signs include residue or moisture around the joint, visible wear on the old gasket, or a loose/poor seal

• 1 gasket/seal

• Disconnect power and any water or gas supply before servicing
• Note the gasket's orientation; compare old and new parts before installation
• Clean and dry mating surfaces; remove old adhesive and debris
• Seat the gasket evenly; do not overtighten fasteners; test for leaks after reassembly

The Water Supply Tube is an OEM part for Whirlpool refrigerators. This tube transports water to supply the automatic ice maker. It ensures a consistent water flow to produce batches of ice on demand.

Causes of a bad water supply tube can include cracks or leaks from regular use and flexing over time. Mineral buildup inside the tube may also restrict water flow.

Symptoms of a bad water supply tube include:

• Ice maker not working or producing ice slowly
• Water droplets under the refrigerator
• Noticeable cracks or splits in the tube

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This water inlet valve uses a single solenoid to control water flow into the unit. Replacing a sticking or leaking valve restores proper fill and can resolve issues like no ice production or unwanted drips.

• Opens and closes the household water supply to deliver the correct amount of water during a fill cycle
• Common fix for an icemaker that won't fill or produces no ice
• Helps stop leaks from the valve area or water seeping into the ice mold between cycles
• Can resolve a condition where the valve hums/buzzes but no water flows

• Disconnect power and shut off the water supply before servicing.
• Place a towel or pan to catch residual water and relieve line pressure.
• Move tubing and wire connectors one at a time to the new valve to match positions; secure all connections.
• Restore water and power, check carefully for leaks, and run a test fill (clear any ice from the fill tube if applicable).

Screw: 8-16 x 3/8 inch.

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

This spring-style tube clamp secures flexible tubing to fittings, helping prevent leaks and maintain proper flow. It's a simple replacement that restores a firm seal on water or drain lines. What it does:

• Keeps flexible tubing firmly clamped to barbed or nipple fittings
• Helps stop or reduce leaks from loose or corroded connections
• Prevents tubing from slipping off under pressure or vibration
• Useful where a compact, spring-action clamp is required

• Disconnect power and shut off water to the appliance before replacing parts
• Use pliers to expand the clamp, position it over the tube/fitting, then release to secure
• Inspect connected tubing and fittings for damage; replace if cracked or severely corroded

This wire harness is the factory-style wiring assembly that routes power and signals between components, restoring reliable electrical connections for safe appliance operation. Replace a damaged or burned harness to reestablish proper power and control function. What it does:

• Carries power and control signals between controls, motors, switches, and sensors
• Restores lost or intermittent power caused by frayed, broken, or burned wires
• Prevents shorts and arcing from damaged insulation or loose connectors
• Ensures correct connector routing for dependable component operation

• Disconnect power (unplug or shut off breaker) before starting any repair
• Compare new harness to the old part for connector type, length, and routing before installation
• Route wires along the original paths and secure all clips and fasteners to avoid rubbing or heat contact

This ice maker cover shields the front of the ice maker assembly, protecting the module and moving parts from dust and accidental contact. Replacing a cracked or missing cover restores a clean, finished appearance and keeps components protected.

• Shields the ice maker's front components and control module
• Helps keep dust, splashes, and debris out of the mechanism
• Prevents accidental contact with moving ejector parts
• Replace if the cover is cracked, warped, missing, or will not stay attached

• Unplug the refrigerator before servicing
• Access the ice maker in the freezer compartment
• Carefully release the retaining tabs and remove the old cover; note orientation
• Align the new cover and press until it snaps securely into place—do not force the tabs

The Ice Mold is an OEM part for Whirlpool refrigerators. This component forms the ice cubes in the icemaker, shaping the water into cubes as it freezes. The ice mold is crucial for the efficient production of ice, ensuring that each cube is properly formed and easily released into the ice bucket.

You should replace the ice mold if it shows signs of wear or damage. Causes of a bad ice mold can include mineral buildup from hard water, physical damage to the mold surface, or malfunctioning heating elements that prevent ice from releasing properly.

Symptoms of a bad Ice Mold include:

• Ice cubes not forming correctly or being irregular in shape
• Ice cubes sticking to the mold and not dispensing
• The icemaker not producing ice at all
• Leaks around the icemaker area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Icemaker Motor Module is an OEM part for Whirlpool refrigerators. This module is the heart of the icemaker, responsible for controlling the ice production cycle. It manages the timing, water fill, and ice tray ejection, ensuring that your refrigerator consistently produces and dispenses ice.

Symptoms of a bad Icemaker Motor Module include:

• The icemaker failing to produce ice,
• Ice cubes not ejecting into the bin,
• The icemaker making unusual noises during operation.

Causes of motor module failure typically involve mechanical wear from continuous use, electrical failures such as short circuits, or water damage affecting the electronic components.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This icemaker fill cup guides incoming water from the refrigerator's inlet tube into the ice mold, helping prevent splashing and freeze-ups during the fill cycle. Replacing a cracked or missing cup restores consistent fills and reduces leaks.

• Directs water from the fill tube straight into the icemaker mold
• Helps prevent overspray, splashing, and ice buildup around the icemaker
• Replace if the cup is cracked, warped, loose, or missing
• Common symptoms: water dripping/freezing under the icemaker, clumped or misshapen cubes

• Unplug the refrigerator and turn off the water supply before servicing
• Remove the icemaker assembly as needed to access the inlet/fill area
• Release the old cup and seat the new cup so the fill tube aligns with the opening
• Restore water and power; check for proper fill and any leaks

This replacement ejector is the plastic arm that pushes harvested ice cubes out of the ice mold and into the storage bin, helping restore proper ice ejection and reduce ice that sticks inside the tray. What it does:

• Pushes ice cubes out of the ice mold during the ice maker's harvest cycle.
• Works with the ice maker's motor/gear assembly to advance cubes into the bin.
• Replaces worn, cracked, or broken ejector arms that can leave ice stuck in the mold.
• Can help address symptoms such as cubes that don't eject, partial fills, or frequent ice jams.

• Disconnect power to the refrigerator before servicing to prevent electrical shock.
• Remove the ice bin and follow the OEM ice maker removal steps to access the ejector.
• Handle plastic components carefully to avoid cracking; inspect gears, mounts, and the ice tray for related wear.

This comb-shaped insert mounts at the front of the modular ice maker. It strips freshly ejected cubes from the rake and directs them into the bin to help prevent jams and cube hang-ups for consistent ice harvests.

• Guides cubes off the ejector fingers and into the bin
• Helps prevent cubes from re-entering the mold, bridging, or jamming
• Replaces a cracked, warped, or missing stripper to restore proper harvest path
• Typical symptoms: cubes stuck on the ejector, repeated jams, ice spilling or clumping

• Disconnect power to the refrigerator and turn off the ice maker before servicing
• Remove the ice maker front cover; release locking tabs or screws to remove the old stripper
• Position the new stripper over the ejector fingers; seat fully without forcing the rake
• Reinstall cover/ice maker, restore power, and allow a full cycle to verify operation

This support mounts in the dispenser area to secure the ice housing assembly. It helps keep the chute and door properly aligned so ice dispenses smoothly and the opening seals as designed.

• Supports and positions the ice housing/chute assembly in the freezer door
• Helps maintain proper alignment and sealing of the ice door/flapper
• Reduces wobble or flex that can affect dispensing performance
• Typical signs it may be needed: loose or misaligned dispenser housing, ice or air leaking at the chute, frost buildup around the dispenser, inconsistent ice dispensing

• Disconnect power to the refrigerator before servicing
• Remove the dispenser trim/control to access the housing; handle wiring and tabs carefully
• Remove mounting fasteners, replace the support, and transfer any reusable hardware
• Reassemble, restore power, and test ice dispensing and chute seal

This thermostat retainer clip secures the defrost thermostat to the evaporator tubing in your refrigerator or freezer, maintaining firm contact for accurate temperature sensing and dependable defrost operation.

• Holds the thermostat firmly against the evaporator line for proper temperature feedback
• Helps prevent a loose or dangling thermostat that contribute to frost buildup and poor defrost performance
• Restores correct mounting when the original clip is cracked, bent, or missing
• Common signs include a broken clip or a thermostat not attached to the coil

• Disconnect power to the appliance before servicing; wear cut-resistant gloves
• Access the evaporator compartment; remove accumulated frost/ice as needed without prying on coil fins
• Position the thermostat body flat against the tubing and snap the retainer over it, avoiding pinched wires or damaged fins
• Confirm a secure fit and proper wire routing before reassembling and restoring power

The Icemaker Cycling Thermostat is an OEM part for Whirlpool refrigerators. This thermostat plays a crucial role in the icemaker's operation by monitoring the temperature in the icemaker and ensuring it is at the appropriate level for proper ice production. It reads the temperature to determine when the icemaker should cycle on and off.

Causes of a bad icemaker cycling thermostat can include electrical malfunctions, temperature sensor issues, or wear and tear.

Symptoms of a bad icemaker cycling thermostat may include:

• Inconsistent ice production.
• The icemaker not cycling properly.
• The icemaker not dumping the ice into the ice bin.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement screw secures panels, trim pieces and small assemblies so covers and components stay aligned and rattle-free. It's a simple, direct fastening part used when an original screw is missing or damaged. What it does:

• Fastens panels, trim, control housings and other small components to the appliance chassis
• Replaces missing, worn or stripped screws that cause loose panels or rattling noises
• Restores correct alignment of covers and trims after service or disassembly
• Provides a direct, hardware-level repair instead of temporary fixes

• Disconnect power (and gas, where applicable) and ensure the appliance is cool before starting.
• Use the correct screwdriver bit and turn until snug; do not overtighten to avoid stripping threads or damaging parts.
• Keep removed hardware for reference; replace like-for-like if threads or inserts are damaged.
• Wear eye protection and gloves when working on appliances.

The Screw is an OEM part for Whirlpool refrigerators, designed to secure components of the ice maker assembly. This screw maintains the structural integrity of the ice maker, ensuring that all parts are tightly fastened to prevent malfunction or inefficiency in ice production.

Causes of failure can include stripping of the screw threads through over-tightening or corrosion, leading to a less secure fit.

Symptoms of a bad Screw include:

• Loose or dislodged components within the ice maker assembly.
• Inconsistent or halted ice production due to components shifting.
• Unusual noises emanating from the ice maker as a result of loose parts.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Icemaker Motor Module is an OEM part for Whirlpool refrigerators. This module is the heart of the icemaker, responsible for controlling the ice production cycle. It manages the timing, water fill, and ice tray ejection, ensuring that your refrigerator consistently produces and dispenses ice.

Symptoms of a bad Icemaker Motor Module include:

• The icemaker failing to produce ice,
• Ice cubes not ejecting into the bin,
• The icemaker making unusual noises during operation.

Causes of motor module failure typically involve mechanical wear from continuous use, electrical failures such as short circuits, or water damage affecting the electronic components.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: The icemaker does not include the harness or the shut off arm.
