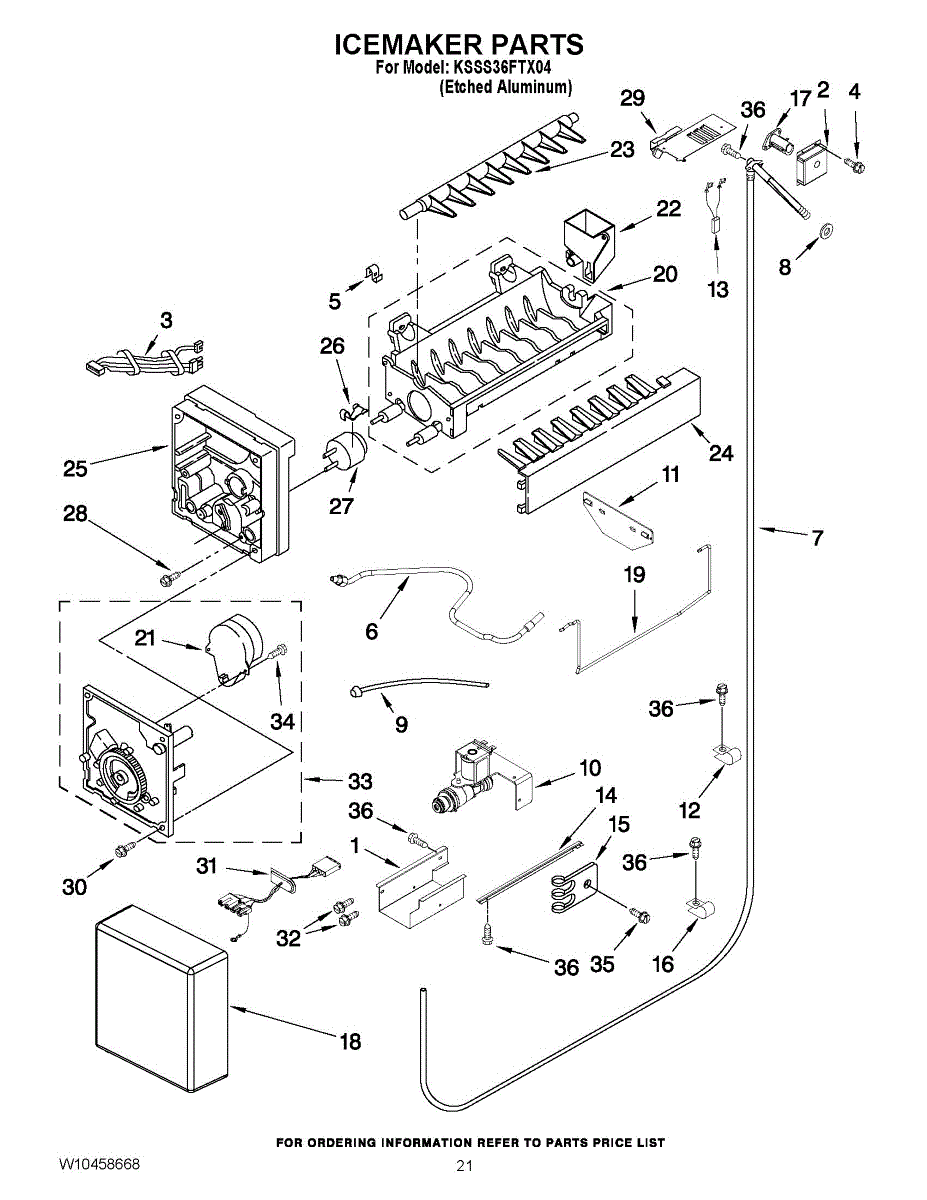

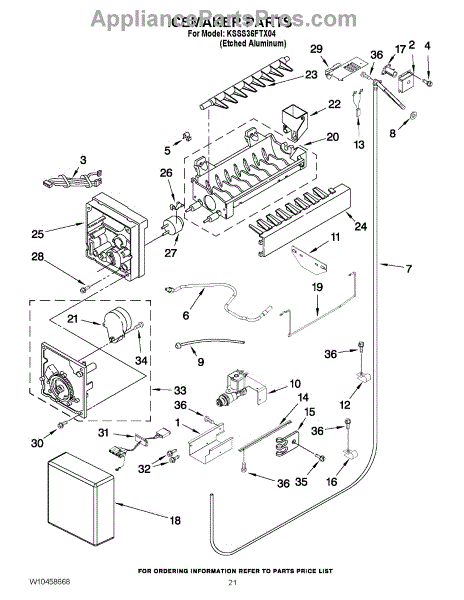

Parts for Kitchenaid KSSS36FTX04: 13 - Icemaker Parts

Reduces contaminants for cleaner, better-tasting water and ice. Replace every 6 months or when indicator light activates. Verify fit by model number.

Complete wire harness assembly that routes power between refrigerator components. Replace if wiring is damaged, burned, frayed, or has loose connections.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This small metal mounting clip secures the thermal fuse in place to maintain proper thermal contact and stable wiring. It helps keep the fuse positioned so the appliance can monitor temperature reliably and operate safely. What it does:

• Secures

No water or ice? This inlet fitting connects your home water supply to your refrigerator's ice maker and dispenser. Quick DIY repair for leaks.

Seals refrigerator door to prevent air leaks and temperature loss. Replace when worn, cracked, or no longer forming a tight seal. Verify fit by model.

The Water Supply Tube is an OEM part for Whirlpool refrigerators. This tube transports water to supply the automatic ice maker. It ensures a consistent water flow to produce batches of ice on demand.

Causes of a bad water supply tube can includ

This water inlet valve uses a single solenoid to control water flow into the unit. Replacing a sticking or leaking valve restores proper fill and can resolve issues like no ice production or unwanted drips.

• Opens and closes the household water s

Note: Extension only. For shut off arm, order W11251736.

This clamp secures flexible hoses to fittings to maintain a tight seal and prevent leaks. Use it to replace a worn or loose clamp to stop water or air seepage and restore proper hose attachment. What it does:

• Holds a washer, dryer, or appliance

This wire assembly is the factory replacement harness that connects electrical components so your appliance gets reliable power and signal routing. Restores proper connections for controls, sensors and powered parts. What it does:

• Routes power and signal between control board and components
• Replaces damaged, frayed or burned wiring that can cause intermittent or no operation
• Helps resolve symptoms like control or component failures, no-start or loss of specific functions
• Maintains correct connector fit and wire lengths for safe operation

• Disconnect all power (unplug or shut off breaker) before starting any repair
• Compare connectors and wire colors to the original harness before installing
• Route harness away from sharp edges, moving parts and heat sources; secure with existing clips/fasteners

Secures flexible tubing to fittings on water and drain lines. Replace when clamps lose tension or you find leaks. Confirm fit with your model number.

Icemaker clogs or stops making ice? This heated fill tube directs water from the inlet valve to your icemaker. Moderate DIY replacement fixes flow issues.

Cracked or missing ice maker cover exposing internal components? This protective cover shields the ice maker assembly. Simple DIY install in minutes.

Ice maker won't stop making ice? The shut off arm senses when the bin is full and stops production. Easy 10-minute DIY fix—just snap into place.

The Ice Mold is an OEM part for Whirlpool refrigerators. This component forms the ice cubes in the icemaker, shaping the water into cubes as it freezes. The ice mold is crucial for the efficient production of ice, ensuring that each cube is properly fo

Ice maker stopped making ice or won't eject cubes? A failed motor module is often the cause. DIY repair in under an hour with our video guide.

Ice maker not filling properly or water leaking in freezer? A cracked fill cup causes inconsistent fills and leaks. Simple DIY fix guides water correctly.

Ice cubes stuck in tray and won't eject? This ejector arm pushes ice from the mold into the bin. Simple snap-in install restores ice production.

Ice cubes jamming or hanging up in the ice maker? This stripper arm guides cubes off ejector fingers into the bin. Requires removing ice maker to install.

Mounts in the dispenser to secure the ice housing assembly. Keeps the chute and door aligned for smooth dispensing. Replace if cracked, broken, or worn.

This thermostat retainer clip secures the defrost thermostat to the evaporator tubing in your refrigerator or freezer, maintaining firm contact for accurate temperature sensing and dependable defrost operation.

• Holds the thermostat firmly agains

Ice maker stopped making ice? The cycling thermostat monitors temperature to control ice production. DIY-friendly repair with video instructions.

Replacement mounting screw for refrigerators. Secures panels, trim pieces, and small assemblies. Needed when original screw is missing or damaged.

Mounting screw for refrigerator ice maker assembly. Secures components to maintain structural integrity. Replace if lost, stripped, or corroded.

Ice maker stopped making ice or won't eject cubes? A failed motor module is often the cause. DIY repair in under an hour with our video guide.

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Fix ice maker not making ice or leaking with this complete assembly. Most DIYers complete installation in under an hour with basic tools and screwdriver.

Replace your refrigerator's door handle when the original is cracked, broken, or worn. Mounts on the front door to provide a grip for opening and closing.

Size: 16 fl. oz. Spray bottle.
