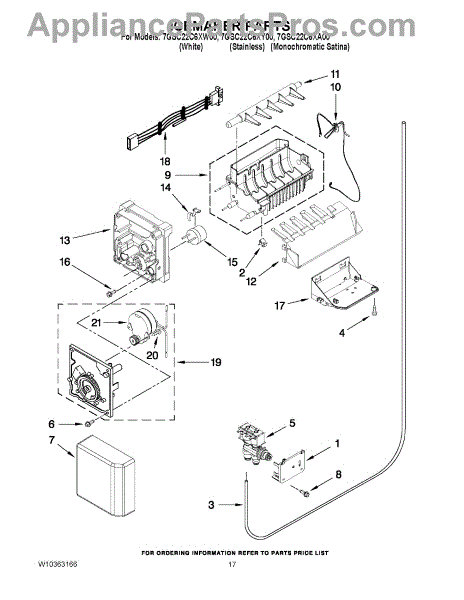

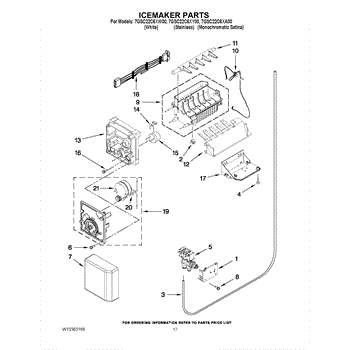

Parts for Whirlpool 7GSC22C6XA00: 10 - Icemaker Parts

The FreshFlow Refrigerator Air Filter is an OEM component for Whirlpool and Maytag refrigerators. Located inside the ventilation system, this filter purifies circulated air. This air filter is 3" wide by 2" high and white in color. It should be replaced every 6 months to ensure the best performance.

Causes of failure relate to clogging from trapped dust, dander and other allergens despite regular replacement intervals. Performance decreases as filter media becomes saturated over months of use.

Symptoms of a dirty or blocked refrigerator air filter include:

• Reduced airflow causes higher compressor runtime hours
• Odors being pulled into the fridge from unfiltered vents
• Shortening of food storage life due to unpurified air exposure
• Reduced fan speeds or strange noises originating from the vents

This genuine Whirlpool filter is also compatible with Maytag, Jenn-Air, and Amana models as well.

The Whirlpool EveryDrop Ice and Refrigerator Water Filter 1 is an OEM replacement part for Whirlpool refrigerators. This filter works to remove small particles from water to ensure clean, great-tasting ice and drinking water directly from the refrigerator door.  Measuring approximately 2.50 x 2.50 x 8.69 inches, this filter is easy to install.

For optimal performance, we recommend replacing the filter every six months. The filter material is made from coconut carbon block, which has a micron rating of 0.5 and a flow rate of 0.5 gpm. The filter is designed to operate at a maximum pressure of 125 psi and an operating temperature of 38-100°.

Symptoms of a filter needing replacement include:

• Gradual decline in water/ice quality over time exhibiting muddy appearance or odd tastes
• Filter life indicator appears showing it is time for a new one

Causes stem from normal usage over the stated capacity of the original filter. Allowing one to expire could produce unhealthy water.

This OEM replacement part is compatible with select Maytag, Jenn-Air, and Amana models as well.

This small metal mounting clip secures the thermal fuse in place to maintain proper thermal contact and stable wiring. It helps keep the fuse positioned so the appliance can monitor temperature reliably and operate safely. What it does:

• Secures the thermal fuse to the appliance housing or duct to prevent movement
• Keeps the fuse in correct contact with temperature-sensing surfaces
• Helps prevent intermittent heating or thermal-sensor misreads caused by a loose fuse
• Useful when replacing a damaged or missing fuse retainer during fuse service

• One thermal fuse mounting clip

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove access panels per your model's service instructions to reach the fuse location
• Install clip in the same orientation as the original; use pliers if needed to seat it firmly
• Inspect the thermal fuse and wiring while installing; replace any damaged components per OEM guidance

This water supply tube connects at the inlet water valve, routing water through your appliance's water system. Replacing a brittle, cracked, or kinked line helps restore reliable, leak-free operation and proper water flow. What it does:

• Carries water from the inlet valve to the designated component (such as dispenser, icemaker, or filter housing, depending on model)
• Helps maintain proper water pressure and uninterrupted flow
• Common symptoms include leaks at the back/bottom, slow or no water at the dispenser, or an icemaker not filling
• Addresses visible cracks, brittleness, or kinks in the existing tubing

• 1 water supply tube

• Disconnect power and shut off the household water supply; relieve line pressure by dispensing water
• Place a towel to catch residual water and note the original routing before removal
• For push-in/quick-connect fittings, insert fully and tug back to verify engagement; if using compression fittings, tighten snugly without overtightening
• Turn water on and check all connections for leaks before restoring power

Size: 8 x 1/2 ab.

This water inlet valve controls water flow into the washer, restoring proper filling and cycle performance. It replaces a worn or leaking inlet valve to help stop no-fill, slow-fill, or continuous-fill issues. What it does

• Directs hot and cold water into the wash tub when the machine calls for water
• Opens and closes solenoids to regulate fill volume and timing
• Stops water flow when the cycle or pressure switch signals to close
• Can stop or reduce leaks caused by a failed valve assembly

• Disconnect power and shut off the home's water supply before starting
• Inspect and, if needed, replace inlet hoses and gaskets when installing
• Tighten hose fittings by hand then snug with a wrench; avoid overtightening
• After installation, restore water and power and check carefully for leaks

Size: 8 x 1/2 ab.

A replacement machine screw with 8-32 threads used to secure panels and components on compatible Whirlpool appliances. Installs quickly to restore proper fit and stop rattling or loose parts. What it does:

• Secures panels, trim, brackets or components that use 8-32 machine-thread fasteners
• Restores proper alignment and prevents vibration-related noise
• Replaces missing, stripped, or damaged screws that allow parts to come loose
• Works where a standard 8-32 machine screw is specified by the manufacturer

• Disconnect power and/or gas before servicing the appliance to reduce shock or injury risk
• Use the proper screwdriver or nut driver for the screw head to avoid stripping
• Thread gently and stop when snug; do not overtighten to prevent stripping or damage
• If threads are damaged, replace with the correct-size screw rather than forcing it

This Arm-Stripper is the OEM replacement component that holds and positions the stripper mechanism, restoring correct movement and alignment so the appliance operates smoothly and reliably. What it does:

• Replaces a worn or broken stripper arm that can cause misalignment or improper operation
• Restores correct part movement to reduce binding, noise, or skipped cycles
• Helps maintain proper engagement with adjacent components for consistent performance
• Fits into the existing mounting points and works with the original mechanism design

• One Arm-Stripper

• Disconnect power (unplug or shut off breaker) before beginning any repair
• Basic hand tools are usually required; handle the part and surrounding components carefully to avoid damage
• Inspect adjacent components (fasteners, clips, pivots) and replace if worn to ensure proper fit

This support mounts in the dispenser area to secure the ice housing assembly. It helps keep the chute and door properly aligned so ice dispenses smoothly and the opening seals as designed.

• Supports and positions the ice housing/chute assembly in the freezer door
• Helps maintain proper alignment and sealing of the ice door/flapper
• Reduces wobble or flex that can affect dispensing performance
• Typical signs it may be needed: loose or misaligned dispenser housing, ice or air leaking at the chute, frost buildup around the dispenser, inconsistent ice dispensing

• Disconnect power to the refrigerator before servicing
• Remove the dispenser trim/control to access the housing; handle wiring and tabs carefully
• Remove mounting fasteners, replace the support, and transfer any reusable hardware
• Reassemble, restore power, and test ice dispensing and chute seal

This thermostat retainer clip secures the defrost thermostat to the evaporator tubing in your refrigerator or freezer, maintaining firm contact for accurate temperature sensing and dependable defrost operation.

• Holds the thermostat firmly against the evaporator line for proper temperature feedback
• Helps prevent a loose or dangling thermostat that contribute to frost buildup and poor defrost performance
• Restores correct mounting when the original clip is cracked, bent, or missing
• Common signs include a broken clip or a thermostat not attached to the coil

• Disconnect power to the appliance before servicing; wear cut-resistant gloves
• Access the evaporator compartment; remove accumulated frost/ice as needed without prying on coil fins
• Position the thermostat body flat against the tubing and snap the retainer over it, avoiding pinched wires or damaged fins
• Confirm a secure fit and proper wire routing before reassembling and restoring power

This bimetal defrost thermostat controls power to the evaporator defrost heater. Replacing a failed thermostat restores proper defrost cycling, helping prevent ice buildup on the coils and safeguarding the unit from overheating during defrost.

• Senses evaporator coil temperature and opens/closes the defrost heater circuit
• Protects against overheating by cutting heater power when the coil warms
• Works with the control/timer to complete the defrost cycle
• Common symptoms: heavy frost on the freezer back panel/evaporator, warming temperatures after several days, or a defrost heater that won't energize

• Disconnect power; remove freezer shelves and the rear panel to access the evaporator
• The thermostat is typically clipped to the evaporator tubing—note placement/orientation before removal
• Make secure electrical connections and route wires away from sharp edges and the fan
• Reassemble, restore power, and operate the defrost system properly

This is a replacement screw fastener used to secure appliance components and panels. It restores proper fastening and helps stop loose parts from vibrating or shifting during operation. What it does:

• Secures panels, brackets, or components in place to maintain appliance stability
• Stops rattling, vibration noise, and intermittent contact caused by loose fasteners
• Restores proper alignment where original screws have stripped, corroded, or been lost
• Functions as a direct-fit hardware replacement when the OEM screw is needed

• One replacement screw (quantity: 1)

• Use appropriate driver and moderate torque to avoid stripping threads or damaging parts
• Disconnect power and follow appliance safety procedures before working on the unit
• Repair or replace the mating component as needed

This wire harness routes power and control signals between the appliance control and components to restore reliable electrical connectivity. It replaces damaged or burned wiring to help resolve intermittent operation and loss of function. What it does:

• Provides organized, insulated wiring to connect the control board to heaters, motors, sensors and switches.
• Restores continuity where frayed, pinched or burned wires cause faults or shorts.
• Common symptoms this can address: control panel unresponsive, appliance won't start, intermittent power or components not operating.
• Designed to follow factory routing and connector positions for correct fit and electrical function.

• Disconnect all power before replacing any wiring; verify power is removed at the breaker or unplug the appliance.
• Take photos or mark connector positions before removal to ensure correct reconnection.
• Avoid pulling on individual wires; remove and install at the connector housings to prevent terminal damage.
• If wiring is severely corroded or connectors damaged, inspect adjoining components and replace per service manual.

The Icemaker Motor Module is an OEM part for Whirlpool refrigerators. This module is the heart of the icemaker, responsible for controlling the ice production cycle. It manages the timing, water fill, and ice tray ejection, ensuring that your refrigerator consistently produces and dispenses ice.

Symptoms of a bad Icemaker Motor Module include:

• The icemaker failing to produce ice,
• Ice cubes not ejecting into the bin,
• The icemaker making unusual noises during operation.

Causes of motor module failure typically involve mechanical wear from continuous use, electrical failures such as short circuits, or water damage affecting the electronic components.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
