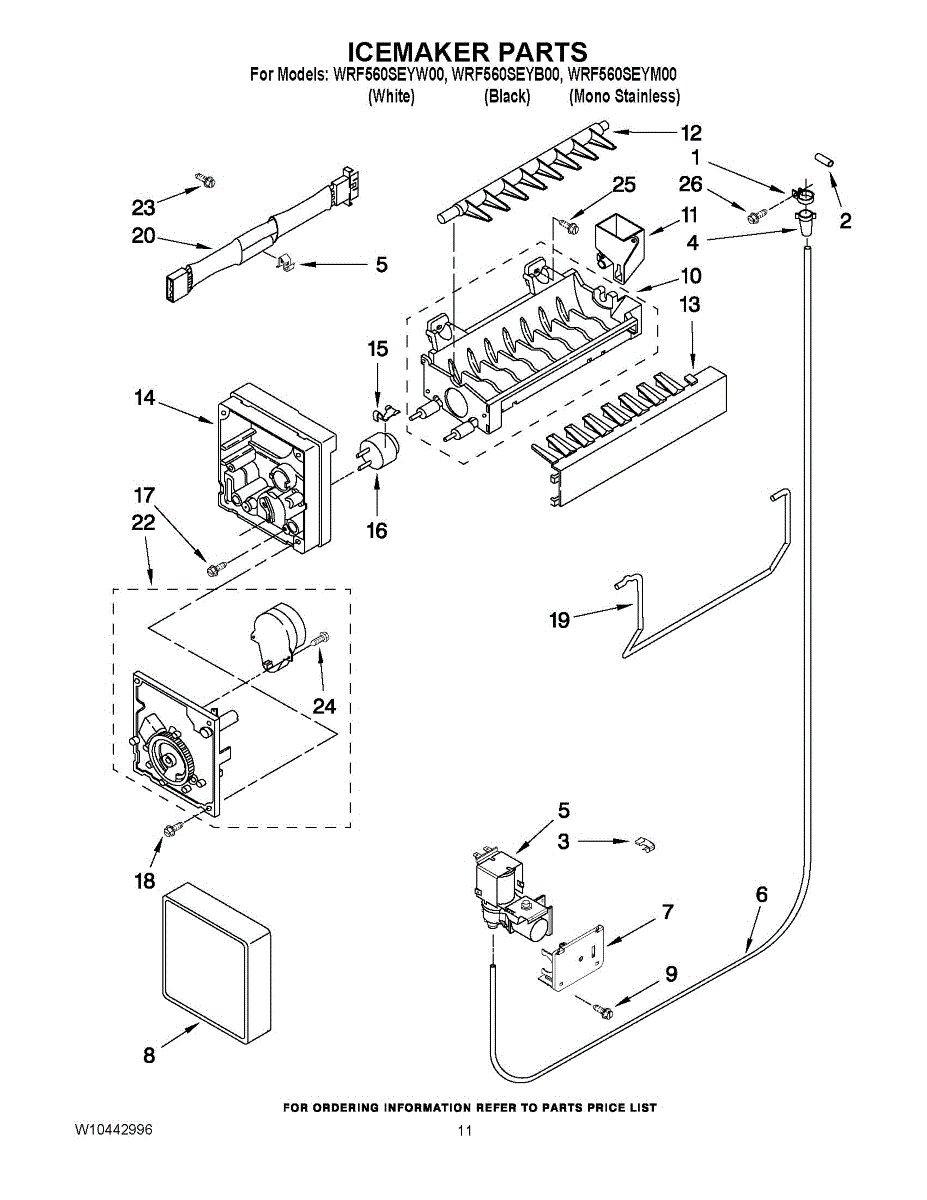

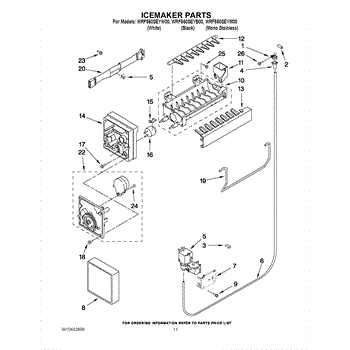

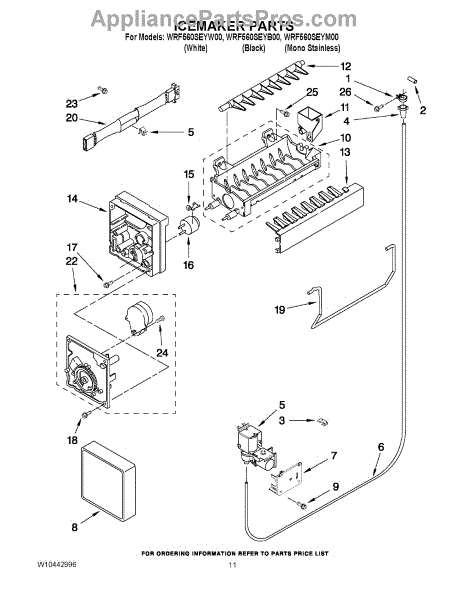

Parts for Whirlpool WRF560SEYB00: 07 - Icemaker Parts

Parts for Whirlpool WRF560SEYB00: 07 - Icemaker Parts

Location on Diagram
Part Description
Price & Availability
Best Seller
Product photo
5.0 (21)
By: Whirlpool
Part Number: EDR2RXD1

Reduces contaminants in ice and water. Replace every 6 months for optimal filtration. Simple twist-out installation. Verify fit by model number.

More
$64.50

IN STOCK
Ships Today Guaranteed
Add to Cart
Best Seller
Product photo
5.0 (63)
By: Whirlpool
Part Number: W10311524

Purifies circulating air in your refrigerator to reduce odors. Replace every 6 months for optimal freshness. Verify fit with your model number.

More
$16.95

IN STOCK
Ships Today Guaranteed
Add to Cart
1
Product photo
By: Whirlpool
Part Number: WP488878

Secures water supply hoses to fittings, preventing leaks in ice makers and refrigerators. Replace when rusted, bent, or losing grip. Verify fit.

More
$7.49

IN STOCK
Ships Today Guaranteed
Add to Cart
2
By: Whirlpool
Part Number: W10446152
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

3
By: Whirlpool
Part Number: 2210495
$31.90

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
4
Product photo
By: Whirlpool
Part Number: 4387491

Replace cracked or missing compression fitting inserts for 1/4-inch water tubing in refrigerators and ice makers. Prevents leaks at connections.

More
$5.95

IN STOCK
Ships Today Guaranteed
Add to Cart
5
Best Seller
Product photo
5.0 (1)
By: Whirlpool
Part Number: WPW10279866

Fix no water dispensing or ice maker not filling with this water inlet valve assembly. Controls water flow from home supply. Moderate DIY repair.

More
$117.65

IN STOCK
Ships Today Guaranteed
Add to Cart
5
Best Seller
Product photo
4.9 (44)
By: Whirlpool
Part Number: WPW10238100

Fix no ice production or water leaks under your fridge with this water inlet valve. Supplies water to ice maker and dispenser. DIY-friendly repair.

More
$105.48

IN STOCK
Ships Today Guaranteed
Add to Cart
6
Product photo
5.0 (2)
By: Whirlpool
Part Number: WPW10238092

Connects inlet valve to water system in your refrigerator. Replace if cracked, kinked, or leaking at connections to restore leak-free water flow.

More
$78.78

IN STOCK
Ships Today Guaranteed
Add to Cart
7
By: Whirlpool
Part Number: W10847867

Mounting bracket for refrigerators. Secures internal components in place. Replace if cracked, bent, broken, or missing to restore proper fitment.

More
$53.21

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
8
Best Seller
Product photo
4.9 (12)
By: Whirlpool
Part Number: WPW10289690

Cracked or missing ice maker cover exposing internal components? This protective cover shields the ice maker assembly. Simple DIY install in minutes.

More
$7.48

IN STOCK
Ships Today Guaranteed
Add to Cart
9
Product photo
By: Whirlpool
Part Number: WP489442

Size: 8-18 x 1/2 inch.

More
$9.05

IN STOCK
Ships Today Guaranteed
Add to Cart
10
Best Seller
Product photo
4.8 (42)
By: Whirlpool
Part Number: WPW10190929

The Ice Mold is an OEM part for Whirlpool refrigerators. This component forms the ice cubes in the icemaker, shaping the water into cubes as it freezes. The ice mold is crucial for the efficient production of ice, ensuring that each cube is properly formed and easily released into the ice bucket.

You should replace the ice mold if it shows signs of wear or damage. Causes of a bad ice mold can include mineral buildup from hard water, physical damage to the mold surface, or malfunctioning heating elements that prevent ice from releasing properly.

Symptoms of a bad Ice Mold include:

  • Ice cubes not forming correctly or being irregular in shape
  • Ice cubes sticking to the mold and not dispensing
  • The icemaker not producing ice at all
  • Leaks around the icemaker area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

More
$162.27

IN STOCK
Ships Today Guaranteed
Add to Cart
11
Product photo
5.0 (1)
By: Whirlpool
Part Number: W10122561

Ice maker not filling properly or water leaking in freezer? A cracked fill cup causes inconsistent fills and leaks. Simple DIY fix guides water correctly.

More
$18.47

IN STOCK
Ships Today Guaranteed
Add to Cart
12
Product photo
By: Whirlpool
Part Number: WP627843

Ice cubes stuck in tray and won't eject? This ejector arm pushes ice from the mold into the bin. Simple snap-in install restores ice production.

More
$50.57

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
13
Product photo
5.0 (2)
By: Whirlpool
Part Number: WPW10122563

Ice cubes jamming or hanging up in the ice maker? This stripper arm guides cubes off ejector fingers into the bin. Requires removing ice maker to install.

More
$57.39

IN STOCK
Ships Today Guaranteed
Add to Cart
14
Product photo
5.0 (1)
By: Whirlpool
Part Number: WP2195914

Mounts in the dispenser to secure the ice housing assembly. Keeps the chute and door aligned for smooth dispensing. Replace if cracked, broken, or worn.

More
$54.25

IN STOCK
Ships Today Guaranteed
Add to Cart
15
Product photo
By: Whirlpool
Part Number: WP2315522

This thermostat retainer clip secures the defrost thermostat to the evaporator tubing in your refrigerator or freezer, maintaining firm contact for accurate temperature sensing and dependable defrost operation.

  • Holds the thermostat firmly against the evaporator line for proper temperature feedback
  • Helps prevent a loose or dangling thermostat that contribute to frost buildup and poor defrost performance
  • Restores correct mounting when the original clip is cracked, bent, or missing
  • Common signs include a broken clip or a thermostat not attached to the coil
What's included: 1 thermostat retainer clip Install notes:
  • Disconnect power to the appliance before servicing; wear cut-resistant gloves
  • Access the evaporator compartment; remove accumulated frost/ice as needed without prying on coil fins
  • Position the thermostat body flat against the tubing and snap the retainer over it, avoiding pinched wires or damaged fins
  • Confirm a secure fit and proper wire routing before reassembling and restoring power

More
$7.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
16
Best Seller
Product photo
4.9 (30)
By: Whirlpool
Part Number: WP627985

Ice maker stopped making ice? The cycling thermostat monitors temperature to control ice production. DIY-friendly repair with video instructions.

More
$60.52

IN STOCK
Ships Today Guaranteed
Add to Cart
17
Product photo
5.0 (1)
By: Whirlpool
Part Number: 8533917

Replacement mounting screw for refrigerators. Secures panels, trim pieces, and small assemblies. Needed when original screw is missing or damaged.

More
$12.13

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
18
Best Seller
Product photo
5.0 (2)
By: Whirlpool
Part Number: WP681249

Mounting screw for refrigerator ice maker assembly. Secures components to maintain structural integrity. Replace if lost, stripped, or corroded.

More
$7.56

IN STOCK
Ships Today Guaranteed
Add to Cart
19
Product photo
5.0 (2)
By: Whirlpool
Part Number: W11285509

The shut-off arm is the lever that tells the ice maker when to stop and start making ice. Replace a bent, missing, or jammed arm to restore proper ice production control and prevent bin overfilling. What it does:

  • Lowers to allow ice production; raises to stop cycles when the bin is full (down = on, up = off)
  • Helps prevent overfilling, spills, and auger jams
  • Common symptoms: ice maker won't stop making ice, no ice when the arm is stuck up, inconsistent ice production from misalignment
  • Restores proper ice level sensing when the original lever is damaged or missing
What's included:
  • One shut-off arm
Install notes:
  • Disconnect power and shut off water before servicing
  • Remove the ice bin to access the ice maker
  • Seat the arm's pivot ends fully in the ice maker head; avoid bending the lever
  • The arm moves freely up/down and clears the bin before restoring power

More
$71.95

IN STOCK
Ships Today Guaranteed
Add to Cart
20
By: Whirlpool
Part Number: W10309399

Wire harness assembly that connects control components to power and sensors in your refrigerator. Replaces damaged, frayed, or corroded wiring harnesses.

More
$65.74

IN STOCK
Ships Today Guaranteed
Add to Cart
22
Best Seller
Product photo
4.8 (77)
By: Whirlpool
Part Number: 8201515

Ice maker stopped making ice or won't eject cubes? A failed motor module is often the cause. DIY repair in under an hour with our video guide.

More
$98.95

IN STOCK
Ships Today Guaranteed
Add to Cart
23
Best Seller
Product photo
4.7 (6)
By: Whirlpool
Part Number: WP489478

Replacement fastener screw for appliances. Secures panels, trim, clips, and components. Needed when original screws are stripped, missing, or damaged.

More
$7.56

IN STOCK
Ships Today Guaranteed
Add to Cart
24
Product photo
By: Whirlpool
Part Number: 489136
$9.05

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
25
Product photo
3.0 (1)
By: Whirlpool
Part Number: WP488163

Replacement screw that secures panels, brackets, and trim to appliance cabinets. Restores reliable hold when original hardware is stripped or missing.

More
$7.34

IN STOCK
Ships Today Guaranteed
Add to Cart
26
Product photo
4.0 (1)
By: Whirlpool
Part Number: WP488787

Size; 8-18 x 1/2 inch.

More
$11.71

IN STOCK
Ships Today Guaranteed
Add to Cart
100
Best Seller
Product photo
4.7 (33)
By: Whirlpool
Part Number: 4317943

Ice maker not making ice or leaking? This complete ice maker kit replaces corroded contacts and faulty assemblies. DIY-friendly installation in 30-60 minutes.

Note: If the harness provided in the kit does not work with your refrigerator, remove the harness from your existing ice maker and reuse it.

More
$120.56

IN STOCK
Ships Today Guaranteed
Add to Cart
