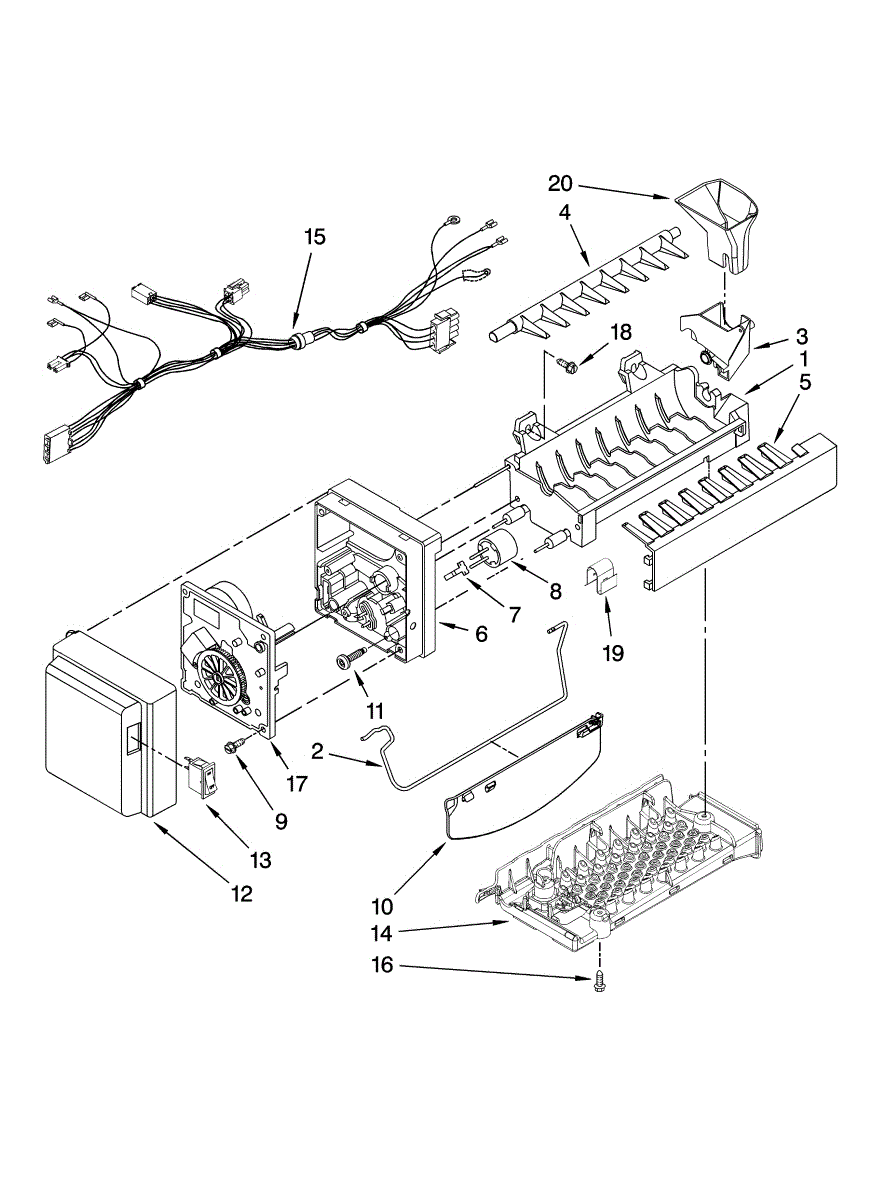

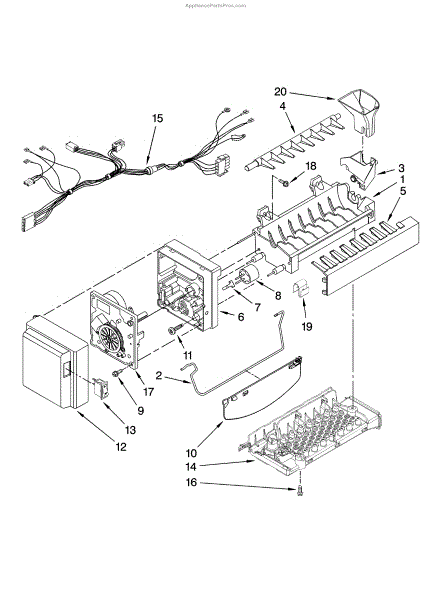

Parts for Kenmore 9873: Icemaker Parts

The Water Filter is an OEM part for Whirlpool refrigerators. It is designed to filter and purify the water for your refrigerator, ensuring clean and fresh drinking water and ice.

A bad refrigerator water filter can be caused by regular use and the buildup of contaminants over time. It may also become less effective if not replaced according to the manufacturer's recommended schedule.

Symptoms of a bad refrigerator water filter include:

• A decrease in water flow or water pressure.
• An unpleasant taste or odor in the water.
• The presence of particles or sediment in the water.
• Cloudy or discolored ice cubes.

If you notice any of these signs or if it has been more than six months since your last filter replacement, it's time to replace the refrigerator water filter with this genuine OEM part. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Ice Mold is an OEM part for Whirlpool refrigerators. This component forms the ice cubes in the icemaker, shaping the water into cubes as it freezes. The ice mold is crucial for the efficient production of ice, ensuring that each cube is properly formed and easily released into the ice bucket.

You should replace the ice mold if it shows signs of wear or damage. Causes of a bad ice mold can include mineral buildup from hard water, physical damage to the mold surface, or malfunctioning heating elements that prevent ice from releasing properly.

Symptoms of a bad Ice Mold include:

• Ice cubes not forming correctly or being irregular in shape
• Ice cubes sticking to the mold and not dispensing
• The icemaker not producing ice at all
• Leaks around the icemaker area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is the mechanical shutoff arm for the ice maker. It lifts to pause ice production when the bin is full and lowers to resume, restoring proper on/off control to help prevent overfilling or a no-ice condition.

• Starts and stops ice production based on arm position (down = on, up = off)
• Replaces a bent, broken, or missing arm to restore proper shutoff function
• Helps address: ice maker won't stop making ice/overfills the bin
• Helps address: ice maker won't make ice because the arm is stuck in the up/off position

• Disconnect power to the refrigerator before servicing
• Remove the ice bin for access; withdraw the old arm from the pivot holes
• Insert the new arm into the ice maker pivot points; ensure smooth up/down movement
• Restore power and verify the arm raises to stop and lowers to start ice making

This replacement ejector is the plastic arm that pushes harvested ice cubes out of the ice mold and into the storage bin, helping restore proper ice ejection and reduce ice that sticks inside the tray. What it does:

• Pushes ice cubes out of the ice mold during the ice maker's harvest cycle.
• Works with the ice maker's motor/gear assembly to advance cubes into the bin.
• Replaces worn, cracked, or broken ejector arms that can leave ice stuck in the mold.
• Can help address symptoms such as cubes that don't eject, partial fills, or frequent ice jams.

• Disconnect power to the refrigerator before servicing to prevent electrical shock.
• Remove the ice bin and follow the OEM ice maker removal steps to access the ejector.
• Handle plastic components carefully to avoid cracking; inspect gears, mounts, and the ice tray for related wear.

This support mounts in the dispenser area to secure the ice housing assembly. It helps keep the chute and door properly aligned so ice dispenses smoothly and the opening seals as designed.

• Supports and positions the ice housing/chute assembly in the freezer door
• Helps maintain proper alignment and sealing of the ice door/flapper
• Reduces wobble or flex that can affect dispensing performance
• Typical signs it may be needed: loose or misaligned dispenser housing, ice or air leaking at the chute, frost buildup around the dispenser, inconsistent ice dispensing

• Disconnect power to the refrigerator before servicing
• Remove the dispenser trim/control to access the housing; handle wiring and tabs carefully
• Remove mounting fasteners, replace the support, and transfer any reusable hardware
• Reassemble, restore power, and test ice dispensing and chute seal

This small extension mounts on the end of the ice maker's bail/shut-off arm. It restores the proper reach so the ice maker senses a full bin and stops production, helping prevent overfilling and ice jams. What it does:

• Attaches to the end of the ice maker bail/shut-off arm to extend its reach
• Helps the ice maker detect a full ice bin and pause ice production
• Replace if cracked, warped, or missing from the arm
• Common symptoms: ice maker won't stop making ice, ice overfilling or spilling into the freezer

• 1 shut-off arm extension

• Unplug the refrigerator before servicing
• Remove the ice bin for access and locate the ice maker bail/shut-off arm
• Install the extension on the arm as designed; ensure free movement and proper alignment with the bin
• Restore power and verify the arm moves freely and shuts ice production off when raised

A single-pole, single-throw rocker switch that restores reliable on/off control for one electrical circuit. Replacing a worn or failed rocker switch helps return consistent control and stops intermittent or unresponsive operation. What it does:

• Opens and closes a single electrical circuit when the rocker is pressed.
• Common replacement for switches that stick, fail to latch, or cause intermittent power.
• Can stop symptoms such as unresponsive controls, lights or functions that won't turn on/off, or sparks from a worn switch.
• Matches OEM form and function for direct replacement in compatible appliances.

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Note wire locations or take a photo before removing terminals to ensure correct reconnection.
• Use appropriate tools and avoid pulling on wires; if terminals are damaged, replace wiring or connectors.

This wire harness routes power and signals between your appliance's control and components to restore reliable electrical connections. Replacing a damaged harness helps stop intermittent power, faulty controls, or non-starting appliances. What it does:

• Transfers power and control signals between main control, motor, and other components
• Replaces cracked, burned, or frayed wiring that can cause intermittent operation
• Helps resolve symptoms like appliance not starting, control lights flickering, or components losing power
• Restores secure connector fit where pins or terminals are loose or corroded

• Disconnect all power before beginning service to avoid shock or injury
• Take photos or label connectors before removing the old harness to ensure correct routing
• Inspect connectors and terminals for damage; replace harness if insulation or terminals are compromised
• Secure harness away from sharp edges, moving parts, and heat sources during reassembly

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This fill cup insert channels incoming water into the correct area during the appliance's fill cycle, acting as a small guide/funnel. Replacing a damaged or missing insert helps prevent splashing, misdirected flow, and leaks around the fill point. What it does:

• Directs water from the fill tube into the intended receptacle
• Helps reduce splashing, overspray, and misfills during the fill cycle
• Restores proper alignment of the water stream
• Common symptoms: leaks or drips near the fill area, water missing its target, visible cracks/warping on the insert

• 1 fill cup insert

• Disconnect power and shut off the water supply before servicing
• Access the fill area; remove the old insert and retain any screws/clips
• Position the new insert under the fill tube, ensuring correct orientation; secure as designed
• Restore water/power and run a test fill; check for proper flow and leaks

This drive coupling connects the washer motor to the transmission, transferring power to spin and agitate the tub. Replacing a worn coupling restores proper drivetrain engagement and reduces slipping, grinding, or loss of agitation. What it does:

• Transfers rotational force from the motor to the transmission so the washer can agitate and spin.
• Failsafe for worn motor-to-gearcase connection; a broken coupling commonly causes no-agitate or no-spin symptoms.
• Can produce burning smell, loud grinding, or slipping when deteriorated.
• Helps prevent further damage to the motor or transmission by isolating shock loads.

• Disconnect power and water before starting any repair.
• Basic disassembly of the washer cabinet and access to the motor/transmission area is required.
• Verify correct alignment of tabs/slots during installation to ensure proper engagement.
