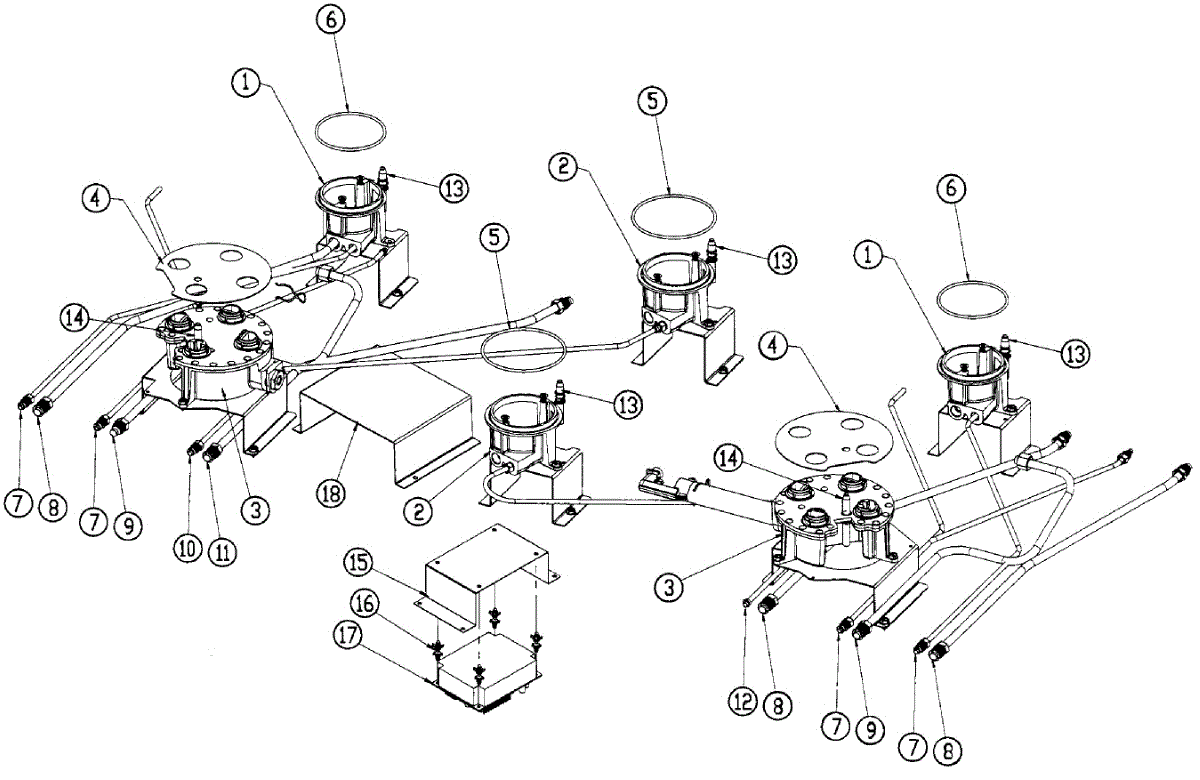

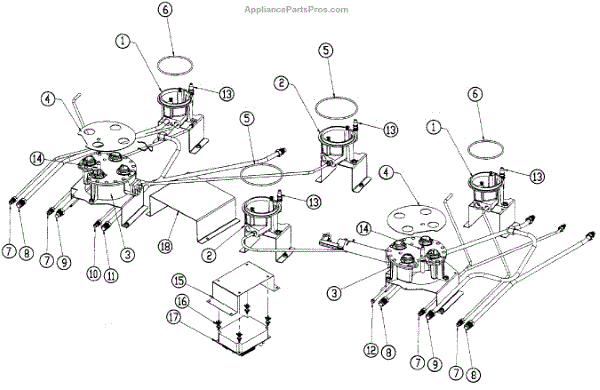

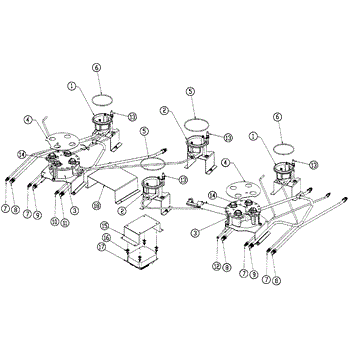

Parts for Dacor ER48DSCHLP: Igniter Assembly Parts

This service assembly secures and aligns the injector used in the appliance's dispensing/ice/water system, restoring proper positioning and reliable flow. Replace a damaged holder to stop misalignment that can cause leaks or intermittent dispensing. What it does:

• Holds and aligns the injector/nozzle in the dispenser or ice/water delivery path
• Keeps seals and hoses seated to prevent leaks and poor water flow
• Restores correct injector position when cracked, warped, or broken
• Helps resolve intermittent dispensing or dispenser misfeeds tied to misalignment

• Disconnect power and shut off water supply before beginning any repair
• Remove access panels and mounting fasteners to access the injector area; handle plastic clips gently to avoid breakage
• Inspect adjacent seals, hoses and the injector for damage; replace any worn parts as needed

This dual burner gasket seals the dual burner assembly to the cooktop surface, keeping spills out and the burner properly supported. Replacing a worn gasket restores a snug fit and consistent, reliable burner operation.

• Creates a tight barrier between the dual burner base and the cooktop
• Helps maintain correct burner height and alignment for stable operation
• Limits liquid and debris intrusion that can cause corrosion or binding
• Common signs: visible cracking/flattening, burner not sitting flush, liquids seeping below, or the burner shifting during use

• Disconnect power and shut off the gas supply; allow the appliance to cool completely
• Remove grates, caps, and burner components to access and remove the old gasket
• Clean mating surfaces before installation; do not stretch or twist the new gasket
• Reassemble and verify the burner sits flat and operates normally

This rubber O-ring seals the 8,500 BTU surface burner assembly to prevent gas and air leaks. A proper seal helps ensure reliable ignition and steady flame on the matching burner.

• Seals the 8,500 BTU burner/orifice connection to maintain correct gas flow
• Can help resolve issues like weak, uneven, or flickering flame on the designated burner
• Replacing a hardened, cracked, or swollen O-ring restores a proper seal

• Disconnect power and shut off gas before servicing
• Allow the cooktop/range to cool completely
• Access the burner assembly per your model's service procedure; avoid damaging adjacent gaskets
• Inspect mating surfaces and reinstall components evenly to ensure a proper seal

This LED isolator board supplies and protects the LED lighting/display circuitry on compatible Samsung appliances. It restores proper LED operation by isolating and regulating the LED power feed for reliable lighting and display performance. What it does:

• Routes and isolates power specifically for LED modules and display LEDs
• Helps stop LED flicker, dimming, or intermittent lighting caused by a failing isolator board
• Supports stable LED backlight and control signals to the appliance display
• Serves as a direct replacement for the original service board when the LED circuit is at fault

• One LED isolator/service board (DE81-06682A)

• Disconnect all power to the appliance before starting any repairs
• Handle the PCB by its edges and avoid static-sensitive contact with components
• Verify correct board orientation and connector seating during installation

This service shield LED isolator is a small module that controls and protects LED indicators on the appliance's control panel, making diagnostics and LED replacement easier for service techs. What it does

• Routes and isolates LED power and signals so indicator lights operate correctly
• Prevents backfeed and protects the main control board from LED-related faults
• Commonly replaced when LEDs are unlit, flickering, or display/indicator behavior is erratic
• Used during panel repairs and service diagnostics to restore proper LED function

• One service shield LED isolator module (single unit)

• Always disconnect power at the breaker or unplug the appliance before servicing
• Handle the module by edges and avoid touching contacts; observe basic ESD precautions
• Verify connector orientation and seating; do not force connectors onto pins
