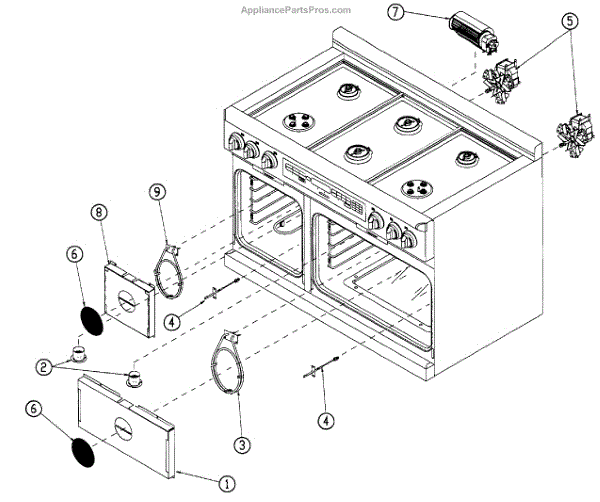

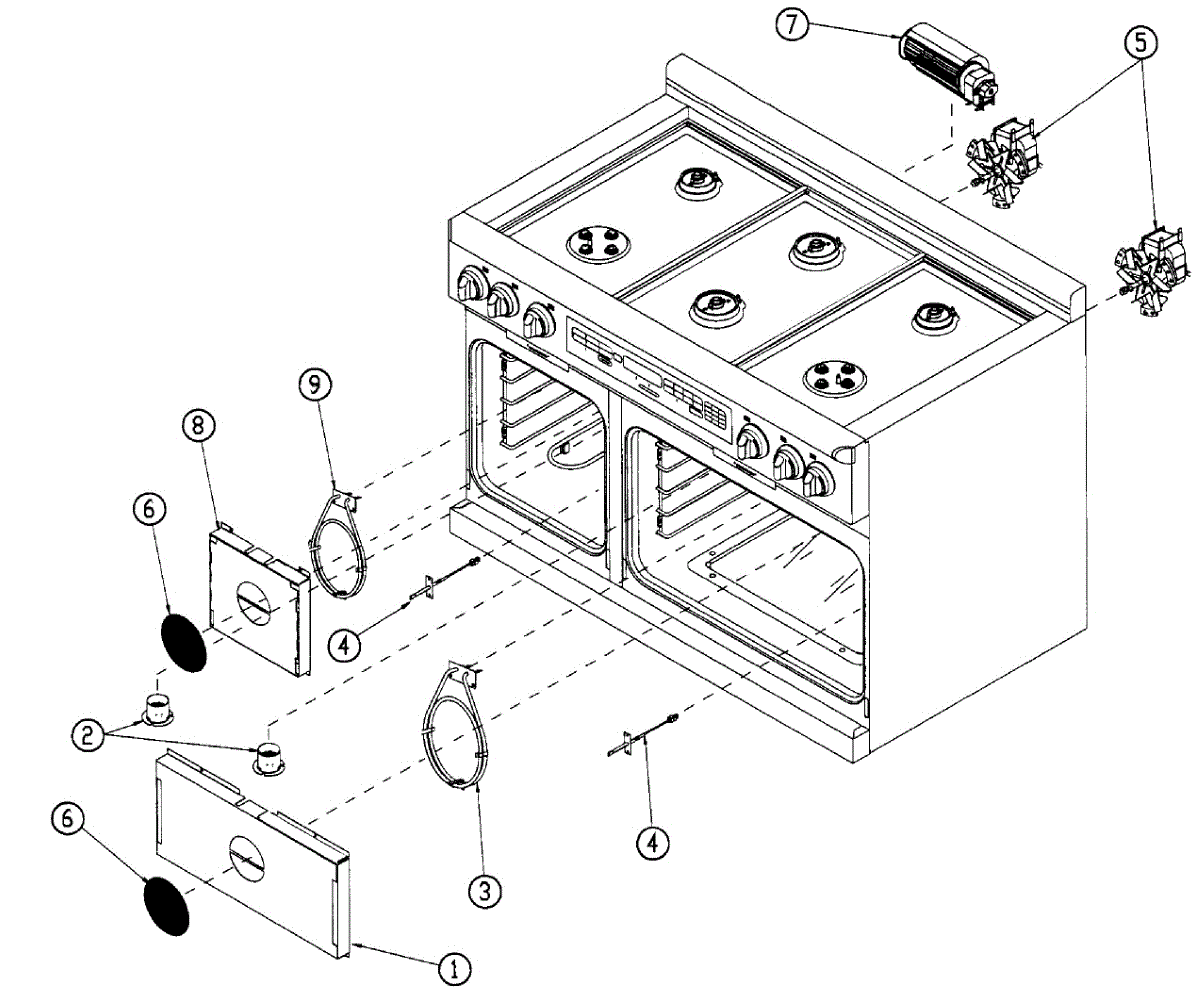

Parts for Dacor ER48DSCHLP: Oven Parts 1 Parts

A replacement service screw used to secure appliance panels and components. Durable fastener sized for common service points, making repairs and panel reassembly quick and reliable. What it does:

• Secures trim, access panels, brackets or small components during service and reassembly
• Commonly used where a shallow truss/wafer head is needed to sit flush without catching
• Helps stop rattling or loose parts caused by missing or stripped screws
• Matches OEM fit for compatible assemblies when the OEM part number is required

• One service screw (#8 x 1/2" truss/wafer head) as specified by the OEM part number

• Use the matching size driver to avoid cam-out and head damage
• Hand-start fasteners to avoid cross-threading; tighten until snug — do not overtighten
• Wear safety glasses and disconnect power before working on electrical appliances
• If a screw threads into plastic or thin sheet metal, consider replacing with the same OEM screw to preserve original threads

This convection heating element provides the heat source used with the oven's convection system to circulate hot air for faster, more even cooking. Replaces a failed or burned-out convection element to restore convection bake performance. What it does:

• Heats during convection mode so air pushed by the fan cooks food evenly
• Restores proper convection temperature when the element is open or degraded
• Helps eliminate cold spots and inconsistent baking when functioning correctly
• Commonly replaced when the oven shows no convection heat or uneven cooking

• Disconnect power to the appliance at the breaker before starting any repair.
• Handle the element and terminals carefully to avoid bending or damage.
• Verify correct connector fit and secure all terminal connections before restoring power.

This temperature sensor monitors the appliance's internal temperature and relays accurate readings to the control, helping maintain the set temperature. Replacing a failed sensor can resolve temperature-related errors and restore consistent, reliable heating performance.

• Senses cavity temperature and sends a signal to the control to regulate heat output
• Helps maintain target temperature during cooking cycles
• Common failure symptoms: inaccurate temperatures, won't reach or overshoots set temp, intermittent heating, or temperature-related error codes
• Can cause long heat-up times or premature shutdown when failing

• Disconnect power at the breaker/fuse and allow the unit to cool completely
• Access location varies by model; the sensor is typically mounted to the cavity wall or accessible from the rear panel
• Remove mounting screw(s), unplug the connector, and install the new sensor; transfer any bracket/seal if present
• Route leads clear of hot or moving parts and do not overtighten the mounting screw

This internal convection fan circulates heated air inside the oven cavity to promote more even cooking and consistent temperatures. It replaces a failed or noisy fan to restore proper convection performance. What it does:

• Circulates hot air for even baking and roasting
• Helps maintain consistent oven temperatures during convection cycles
• A faulty fan can cause uneven cooking, loss of convection function, or unusual noise
• Works as the internal blower assembly that directs airflow from the heating element

• Disconnect power to the range before beginning any repair.
• Handle the fan and housing carefully to avoid bending blades or touching sharp sheet-metal edges.
• Verify proper mounting and secure electrical connections; do not run the oven with loose hardware.

A replacement service screw used to secure appliance panels and components. Durable fastener sized for common service points, making repairs and panel reassembly quick and reliable. What it does:

• Secures trim, access panels, brackets or small components during service and reassembly
• Commonly used where a shallow truss/wafer head is needed to sit flush without catching
• Helps stop rattling or loose parts caused by missing or stripped screws
• Matches OEM fit for compatible assemblies when the OEM part number is required

• One service screw (#8 x 1/2" truss/wafer head) as specified by the OEM part number

• Use the matching size driver to avoid cam-out and head damage
• Hand-start fasteners to avoid cross-threading; tighten until snug — do not overtighten
• Wear safety glasses and disconnect power before working on electrical appliances
• If a screw threads into plastic or thin sheet metal, consider replacing with the same OEM screw to preserve original threads

This convection element kit replaces the oven's convection heating element to restore even heat for baking and roasting. Use it when the convection system no longer produces consistent hot air or the oven bakes unevenly. What it does:

• Heats air for the oven's convection cooking mode so the fan can circulate consistent temperature.
• Restores even browning and predictable bake/roast results when the convection element has failed.
• Common symptom indicator: uneven baking or roasting, or visible damage to the element.
• Can be part of repairs when the oven does not reach expected results in convection mode.

• Disconnect power at the breaker before starting any repair — electric shock hazard.
• Access typically requires removing the oven cavity back panel or inner rear panel; use proper tools and follow OEM instructions.
• Inspect wiring terminals and insulation; replace connectors that are corroded or damaged.
