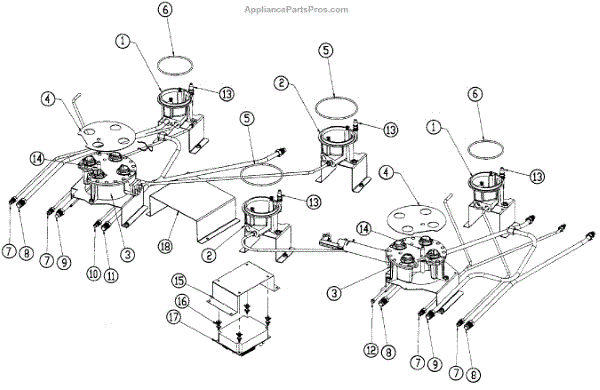

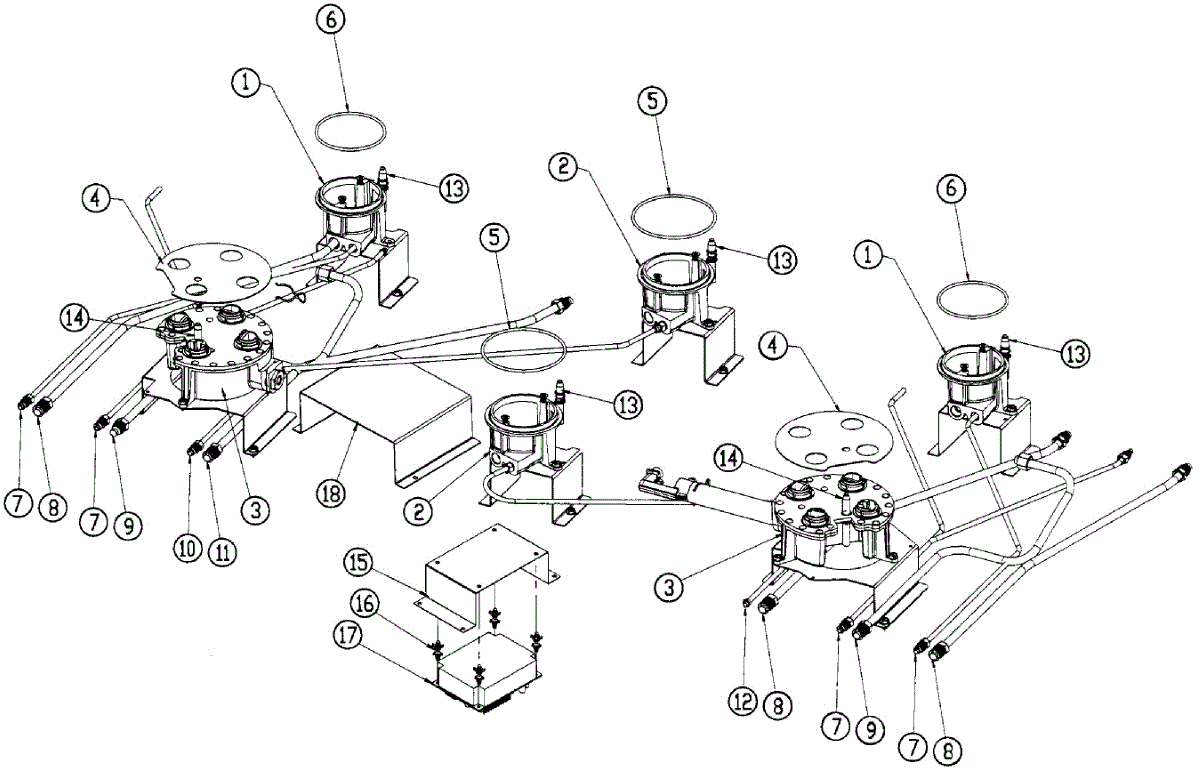

Parts for Dacor ER48DSCHNGH: Igniter Assembly Parts

This injector assembly is the gas injector used in compatible Samsung gas appliances to deliver controlled fuel flow to the burner. It replaces a worn or damaged injector to help restore proper ignition and heating performance. What it does:

• Directs the correct amount of gas to the burner for consistent flame and heat
• Helps maintain reliable ignition and steady burner operation
• Can resolve symptoms like weak or uneven flames, poor heating, or burner failure
• Works as a direct replacement for the factory injector assembly

• Turn off the appliance, disconnect power, and shut off the gas supply before starting work
• After installation, check all fittings and connections for gas leaks and proper operation
• Follow OEM service instructions and local codes when installing

This dual burner gasket seals the dual burner assembly to the cooktop surface, keeping spills out and the burner properly supported. Replacing a worn gasket restores a snug fit and consistent, reliable burner operation.

• Creates a tight barrier between the dual burner base and the cooktop
• Helps maintain correct burner height and alignment for stable operation
• Limits liquid and debris intrusion that can cause corrosion or binding
• Common signs: visible cracking/flattening, burner not sitting flush, liquids seeping below, or the burner shifting during use

• Disconnect power and shut off the gas supply; allow the appliance to cool completely
• Remove grates, caps, and burner components to access and remove the old gasket
• Clean mating surfaces before installation; do not stretch or twist the new gasket
• Reassemble and verify the burner sits flat and operates normally

This rubber O-ring seals the 8,500 BTU surface burner assembly to prevent gas and air leaks. A proper seal helps ensure reliable ignition and steady flame on the matching burner.

• Seals the 8,500 BTU burner/orifice connection to maintain correct gas flow
• Can help resolve issues like weak, uneven, or flickering flame on the designated burner
• Replacing a hardened, cracked, or swollen O-ring restores a proper seal

• Disconnect power and shut off gas before servicing
• Allow the cooktop/range to cool completely
• Access the burner assembly per your model's service procedure; avoid damaging adjacent gaskets
• Inspect mating surfaces and reinstall components evenly to ensure a proper seal

This LED isolator board supplies and protects the LED lighting/display circuitry on compatible Samsung appliances. It restores proper LED operation by isolating and regulating the LED power feed for reliable lighting and display performance. What it does:

• Routes and isolates power specifically for LED modules and display LEDs
• Helps stop LED flicker, dimming, or intermittent lighting caused by a failing isolator board
• Supports stable LED backlight and control signals to the appliance display
• Serves as a direct replacement for the original service board when the LED circuit is at fault

• One LED isolator/service board (DE81-06682A)

• Disconnect all power to the appliance before starting any repairs
• Handle the PCB by its edges and avoid static-sensitive contact with components
• Verify correct board orientation and connector seating during installation

This service shield LED isolator is a small module that controls and protects LED indicators on the appliance's control panel, making diagnostics and LED replacement easier for service techs. What it does

• Routes and isolates LED power and signals so indicator lights operate correctly
• Prevents backfeed and protects the main control board from LED-related faults
• Commonly replaced when LEDs are unlit, flickering, or display/indicator behavior is erratic
• Used during panel repairs and service diagnostics to restore proper LED function

• One service shield LED isolator module (single unit)

• Always disconnect power at the breaker or unplug the appliance before servicing
• Handle the module by edges and avoid touching contacts; observe basic ESD precautions
• Verify connector orientation and seating; do not force connectors onto pins
