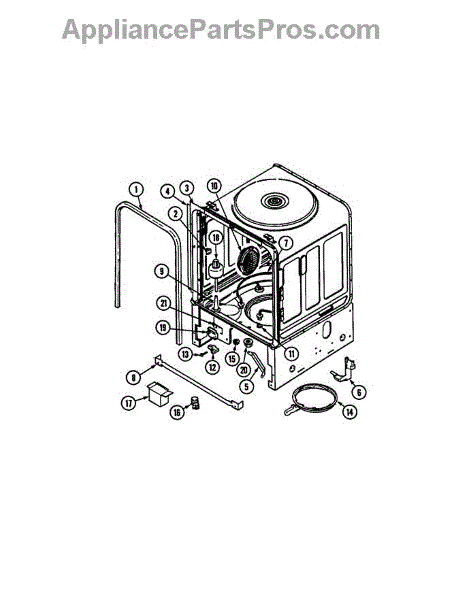

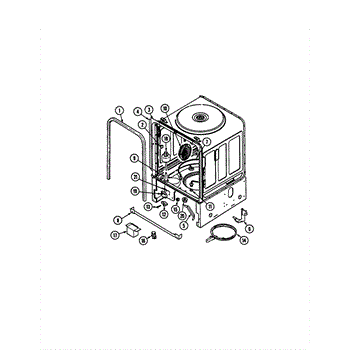

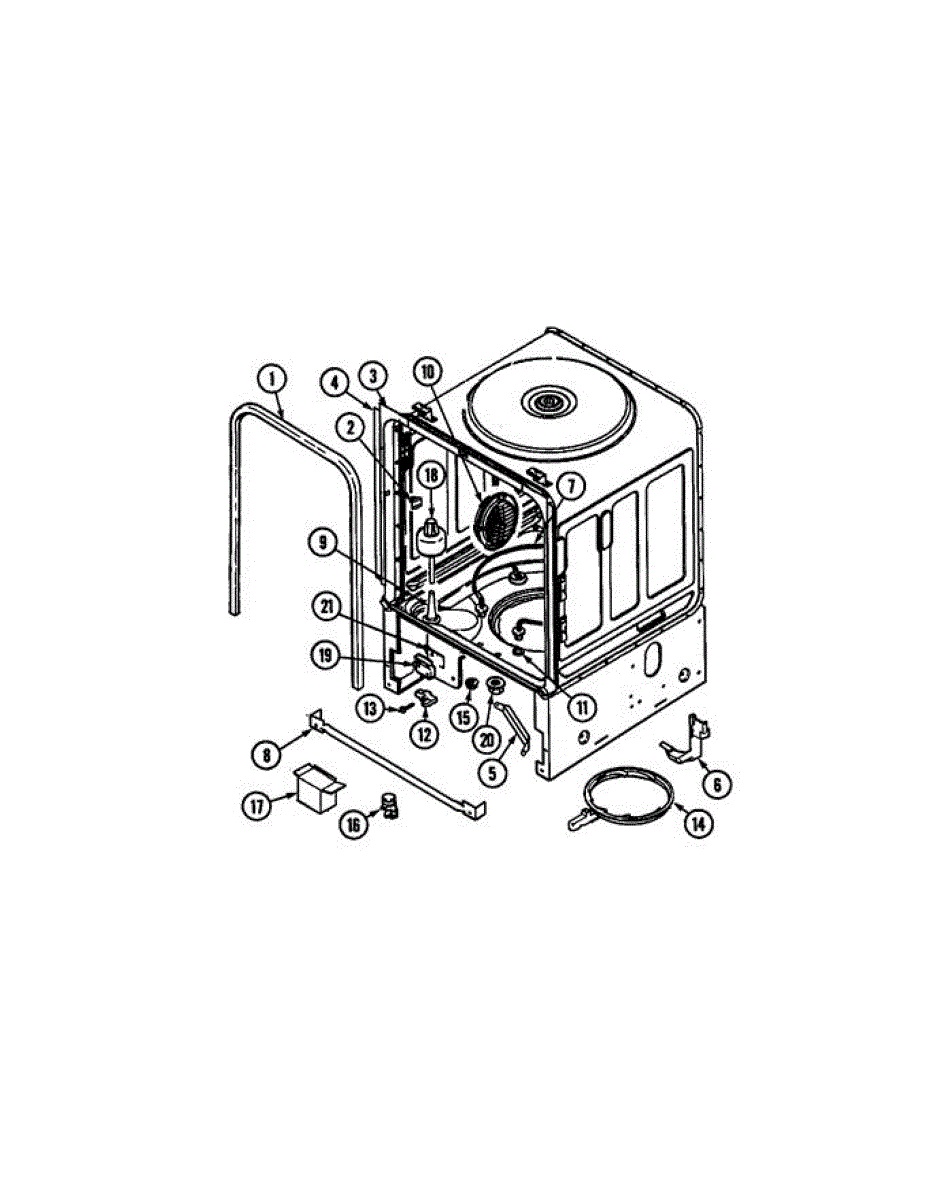

Parts for Jenn-Air JDB6510AWK: Inner Tub Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Top

Used for the top and bottom.

Used for the sides

Left hand side. For right hand use 99002181

Right hand side. For left hand use 99002182

O-rings, sleeves and nuts are not included. For O-rings use WPY913079. For sleeves use 99001333. For nuts use 99002208

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Screw: 8-16 x 3/8 inch.

Secures the power cord where it enters the cabinet, protecting the jacket and preventing pull on internal connections. Replace if cracked, broken, or missing.

This water level switch senses the dishwasher's tub float and controls the water inlet. Replacing a worn switch restores correct filling, helping prevent overfilling or dry cycles that can reduce cleaning performance. What it does:

• Monitors the float position to open/close the fill circuit at the proper water level
• Common symptoms: dishwasher won't fill or stops filling too soon
• May also cause continuous filling/overfill if contacts are stuck closed
• Intermittent operation can leave the tub underfilled and washing performance poor

What's included:

• 1 water level (float) switch

Install notes:

• Disconnect power and shut off the water supply before servicing
• Remove the toe/kick panel to access the switch near the float assembly under the tub
• Note wire positions; transfer connectors one at a time and secure the switch in its bracket
• The float moves freely and actuates the switch before reassembly and testing

Screw: 8-16 x 3/8 inch.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.
