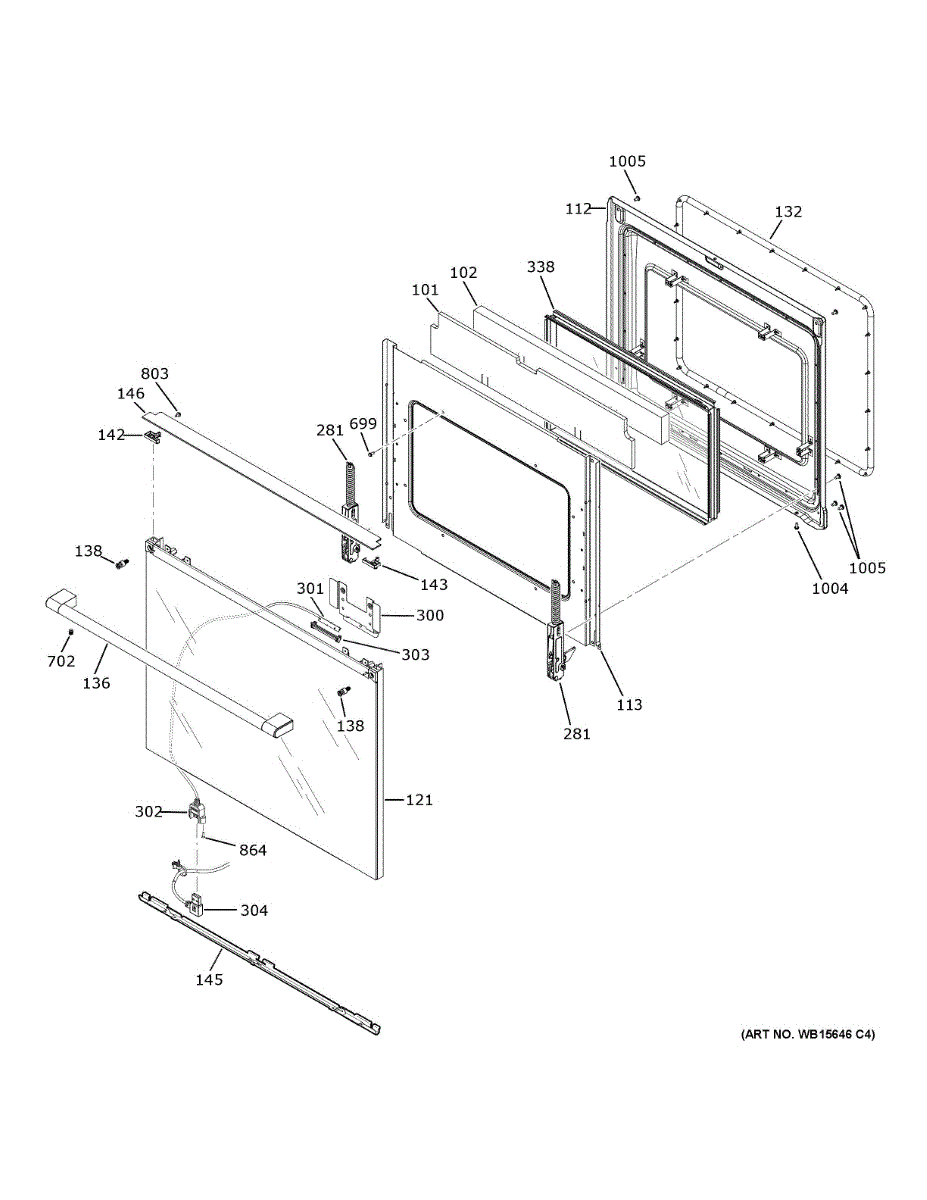

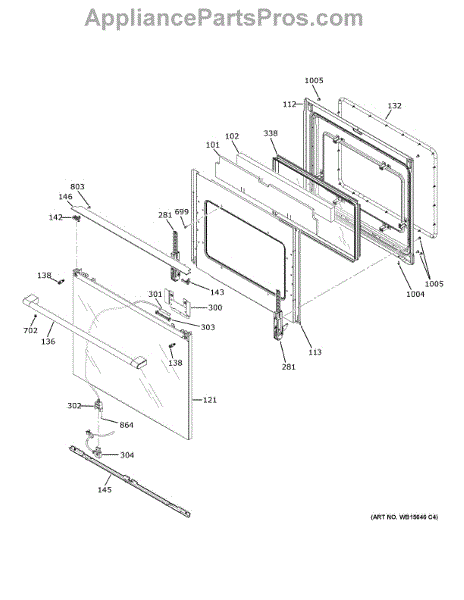

Parts for Ge CHS90XM2N7S5: Insulation Door Parts

Replace your range's cracked or damaged oven door liner assembly. Restores the inner door surface, protects insulation, and maintains proper fit.

Retains oven door insulation in place on electric ranges. Replace if cracked, broken, or missing to secure door insulation and maintain proper fit.

Replace your worn oven door gasket to restore heat-resistant seal, improve temperature control, and reduce heat escape. Confirm fit with your model number.

Stainless steel door handle and endcap for electric ranges and wall ovens. Replaces cracked, broken, or worn handles. Restores appearance and grip.

This threaded mounting stud secures appliance components, restoring proper fit and stability for panels, trim, or internal parts. Replacing a damaged or missing stud helps stop rattling and keeps assemblies aligned for safe operation. What it does:

• Provides a secure anchor point for panels, trim pieces, or component housings
• Restores correct alignment to reduce vibration and noise from loose parts
• Replaces broken, stripped, or missing studs that prevent proper fastening
• Helps maintain electrical and mechanical clearance by keeping parts in place

• Disconnect power to the appliance before beginning any repair.
• Use appropriate hand tools and match thread engagement; do not overtighten.
• Inspect mating threads and surrounding parts for damage before installation.

This left upper door spacer positions and secures the appliance door trim to ensure proper alignment and smooth operation. Replaces worn or damaged spacers that can cause rubbing, misalignment, or uneven gaps at the top corner of the door. What it does:

• Provides the correct gap and spacing between the door and surrounding trim for proper door alignment
• Helps prevent door binding, rubbing, or uneven closing at the upper left corner
• Restores factory fit after panel, hinge, or trim service
• Durable molded construction resists wear from normal door movement

• Disconnect power to the appliance before beginning any repair
• Access may require removing the door trim or inner door panel
• Handle trim pieces and spacer carefully to avoid scratching finishes

ST10-16 X 7/16"

The Set Screw is an OEM part for GE refrigerators. The set screw fits into the handle assembly, ensuring a tight and stable connection to the refrigerator door. This set screw is essential for preventing the door handle from becoming loose or coming off, which can affect the ease of opening and closing the refrigerator door.

Causes of a malfunctioning Set Screw can vary. Normal wear and tear is a common issue, causing the screw to strip or loosen over time. Incorrect installation is another factor.

Symptoms of a bad Set Screw include:

• A loose refrigerator door handle, which may wobble or detach partially from the door.
• Difficulty in opening or closing the refrigerator door due to a lack of secure grip.
• The need to frequently retighten the door handle.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a replacement flat-head 6-32 screw used to secure appliance panels, trim, and components. It restores proper fastening so panels stay aligned and wiring or controls remain held in place. What it does:

• Fastens panels, control housings, brackets and trim pieces
• Helps stop loose or rattling panels and trim
• Keeps electrical components and wiring secured inside the appliance
• Restores original fastening where a missing or damaged screw causes gaps or misalignment

• One 6-32 flat-head screw

• Use the correct driver or bit for a flat-head 6-32 screw and turn until snug
• Avoid over-tightening to prevent stripped threads or damaged parts
• If working near electrical components, disconnect power before servicing
• Inspect mating threads and replace if damaged for a secure fit

Replacement mounting screw for securing panels, trim, and internal brackets. Needed when original fasteners are missing, stripped, or damaged.

10-32 machine screw secures panels, brackets, door hinges, and handles in ovens and ranges. Replace missing, stripped, or broken screws for tight fit.
