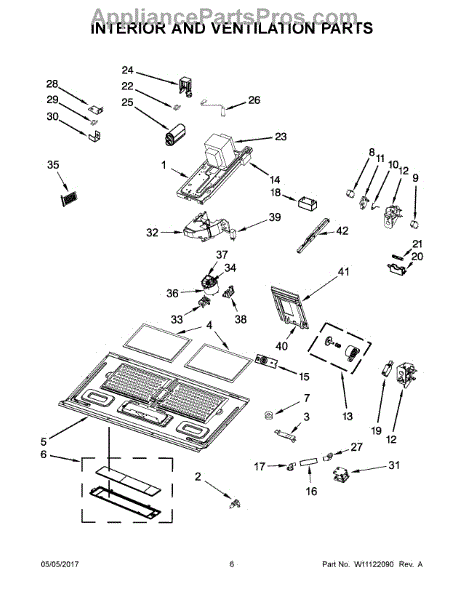

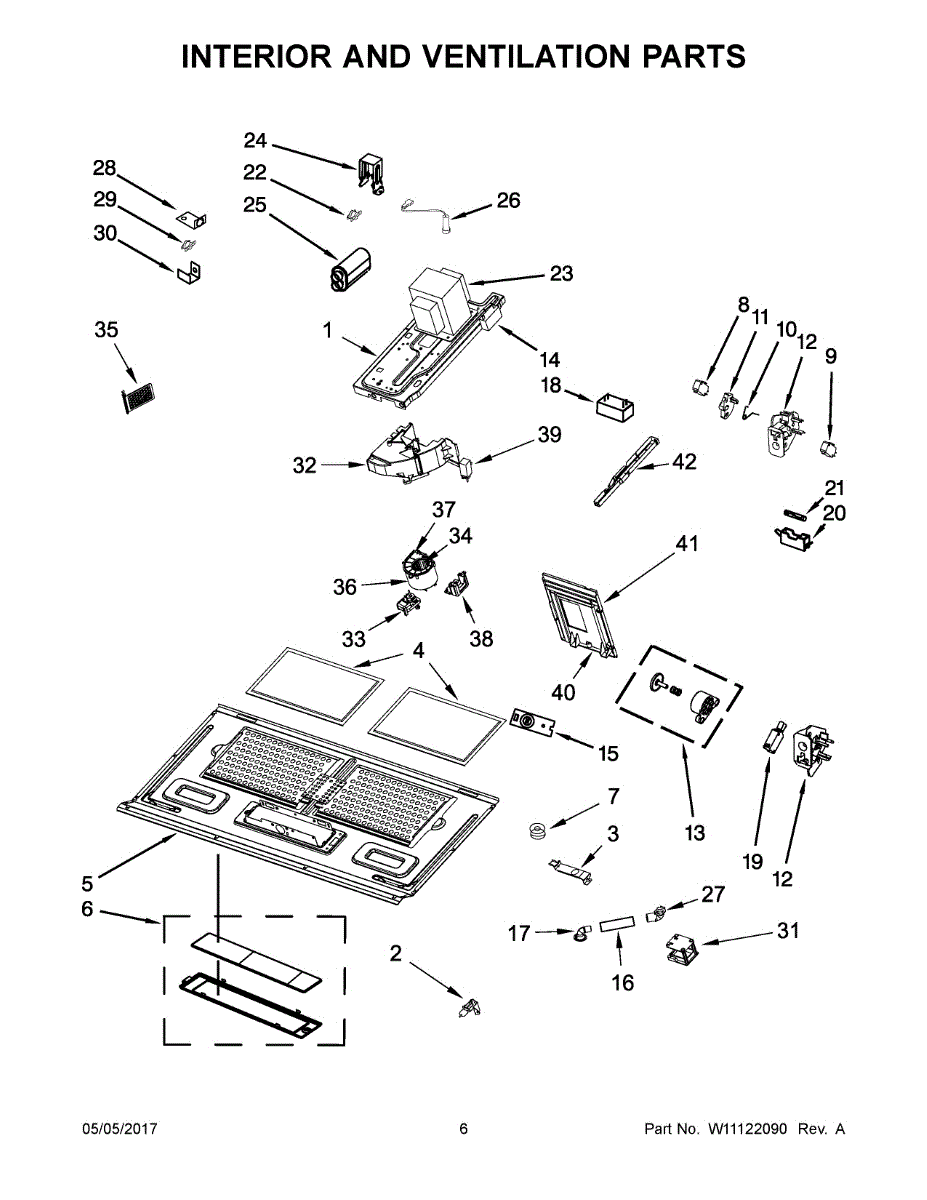

Parts for Kitchenaid YKMHC319EBS0: 04 - Interior And Ventilation Parts

Illuminates the microwave cavity for easy food monitoring. Replace when bulb burns out or flickers. Verify fit with your model number before ordering.

Mounting bracket that secures the sensor assembly inside your microwave. Replace if the bracket is bent, broken, or missing to properly secure sensors.

Filters grease and particles from vented air in your microwave. Replace when clogged or damaged to maintain air quality. Confirm fit with your model.

Replacement lower cabinet base panel for microwaves. Restores bottom support and protects internal components. Needed when original is cracked or damaged.

Replacement interior reflector panel for microwave cavity. Needed when original is cracked, damaged, or missing. Installs behind waveguide cover.

Fix a microwave that won't start, runs with door open, or requires slamming the door. This door switch is a common fix for intermittent operation issues.

Microwave displays 'close door' message or won't start? The door interlock switch is likely failed. Moderate DIY repair—replace all 3 switches together.

The Interlock Spring is an OEM part for Whirlpool microwaves. It is located within the door assembly and provides proper tension to assist with smooth opening and closing of the microwave door. The spring allows for controlled movement that facilitates easy access when using the microwave.

Causes of failure could be normal wear and tear over time, damage from rough or forced handling of the door, or failure from excessive use.

Symptoms of a bad microwave spring include:

• Difficulty opening or closing the door
• The door not staying securely closed or popping open on its own
• Excessive vibration or noise related to door operation

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

The Interlock Cam Plate is an OEM part for Whirlpool microwaves. It is responsible for securing the microwave door to notify the unit that the door is closed. It works in conjunction with other components to ensure proper alignment and engagement of the door. This allows the microwave to function safely and efficiently.

Causes of a faulty interlock cam plate can include wear and tear over time, damage due to regular use or mishandling, or malfunctioning internal components. These factors can result in issues such as the door not closing properly, difficulty in starting or operating the microwave, or safety concerns.

Symptoms of a bad interlock cam plate may include:

• The door not closing or latching properly
• The microwave not starting or operating when the door is closed
• Flickering interior lights

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Microwave Top Interlock Support is an OEM part for Whirlpool microwave ovens. It is an essential safety component that helps ensure the microwave door is securely closed and locked before the microwave can operate.

Causes of a faulty Top Interlock Support include physical damage from impact or wear over time, as well as failure of the internal mechanisms that detect the door's position.

Symptoms of a bad Microwave Top Interlock Support include:

• Microwave does not start or operate when the door is closed
• Door appears closed but microwave will not run
• Microwave starts with the door open, posing a safety hazard
• Error codes related to the door interlock system

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Microwave won't start or shows door open error? The bottom interlock support ensures proper door latching. Moderate DIY repair—access control panel.

This piston assembly restores the moving piston used in the appliance's fluid/valve system to help recover proper dispensing and motion. It replaces a worn or damaged piston so the affected function can operate as intended. What it does:

• Replaces the piston that moves inside a valve or dispenser to control fluid or airflow
• Restores proper actuation and sealing that can prevent drips or improper dispensing
• Commonly installed when symptoms include poor dispensing, leaks near the valve area, sticking motion, or unusual noises during operation
• Works as a direct-fit replacement where this OEM piston assembly is specified

• One piston assembly as shown

• Disconnect power (and water supply or gas, if applicable) before starting any repair
• Follow the appliance service manual and use appropriate tools; keep small fasteners and seals organized
• Inspect sealing surfaces and O-rings; replace damaged seals to ensure a leak-free install
• Test the appliance after installation to confirm correct operation

Fix inconsistent heating or error codes with this microwave thermistor. This temperature sensor monitors internal conditions for proper operation.

Protective cover shield that guards internal microwave components from debris and contact. Replace when cracked, broken, or missing to restore safety.

Microwave running intermittently or components failing? This electrical resistor regulates current to circuits, restoring reliable operation and control.

The Switch is an OEM part for Whirlpool microwaves. This switch is crucial for the proper operation of the microwave, as it ensures the correct function of the door mechanism and the control panel.

Causes of a bad microwave switch can include wear and tear over time, damage due to frequent use, or electrical faults that prevent it from functioning correctly.

Symptoms of a bad microwave switch include:

• The microwave not starting or stopping unexpectedly
• The door not latching properly
• Error messages on the control panel
• The microwave light not turning on or off as expected

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This block-style fuse holder secures and connects the appliance fuse to the wiring harness, restoring a safe electrical connection and thermal protection. Use it when the original fuse block is cracked, corroded, or no longer holding the fuse securely. What it does:

• Holds and connects the appliance fuse to the wiring harness so the thermal/overload fuse can function.
• Restores reliable electrical contact when the original block is cracked, melted, or corroded.
• Addresses symptoms such as intermittent power, no heat, or appliance not starting when caused by a bad fuse connection.
• Works with the existing fuse and wiring—does not replace the fuse itself.

• Disconnect power to the appliance before inspecting or replacing this part.
• Replace any damaged wiring, connectors, or insulation found during replacement; do not cut corners or bypass thermal safety devices.

Microwave has no power or won't heat? A blown thermal fuse is often the cause. This safety part protects against overheating. DIY repair in 30 minutes.

Fixes a microwave that won't heat or start. This thermal fuse protects your microwave from overheating. Direct-fit part for multiple models.

Microwave not heating or making humming noise? The high voltage transformer powers the magnetron. Moderate DIY repair with proper safety precautions.

Microwave won't heat but hums loudly? The diode regulates power to the magnetron. Test with multimeter—reads one direction only. Moderate DIY repair.

Internal shield for microwave ovens. Covers and protects internal components. Replace if cracked, dented, rusted, or missing for proper operation.

Fix microwave overheating or won't heat issues with this thermostat temperature limiter. Regulates oven temperature and prevents overheating damage.

Fix unresponsive buttons or a blank display by replacing the main electronic control board. This part manages cycles, settings, and the display panel.

This evaporator fan motor circulates cold air through the freezer and refrigerator compartments to maintain even temperatures and consistent cooling. Replaces a failed or noisy motor to help restore airflow and temperature stability. What it does:

• Spins the evaporator fan blade to move cold air across the evaporator and into the cabinet.
• Helps prevent warm spots and uneven cooling when operating correctly.
• Commonly replaced for noisy operation, failure to run, or intermittent airflow.
• Compatible with refrigerators that use this OEM-style fan motor design.

• Disconnect power to the appliance before starting any repair.
• Access typically requires removing interior panels or the evaporator cover; keep screws and fasteners organized.
• Inspect the fan blade and housing for ice buildup or obstructions before installing the new motor.

If your microwave is noisy or has weak ventilation, the fan wheel may be worn or unbalanced. This part restores proper airflow and quiet operation.

Replacement holder for microwave ovens. Secures and positions internal components. Order a new holder if your original is cracked, broken, or missing.

Fix rattling or loose internal parts with this microwave mounting plate. Secures components to the frame, restoring proper alignment and stability.

Mounting bracket secures your microwave to the cabinet or wall. Replace if bent, cracked, or missing to ensure safe, stable installation.
