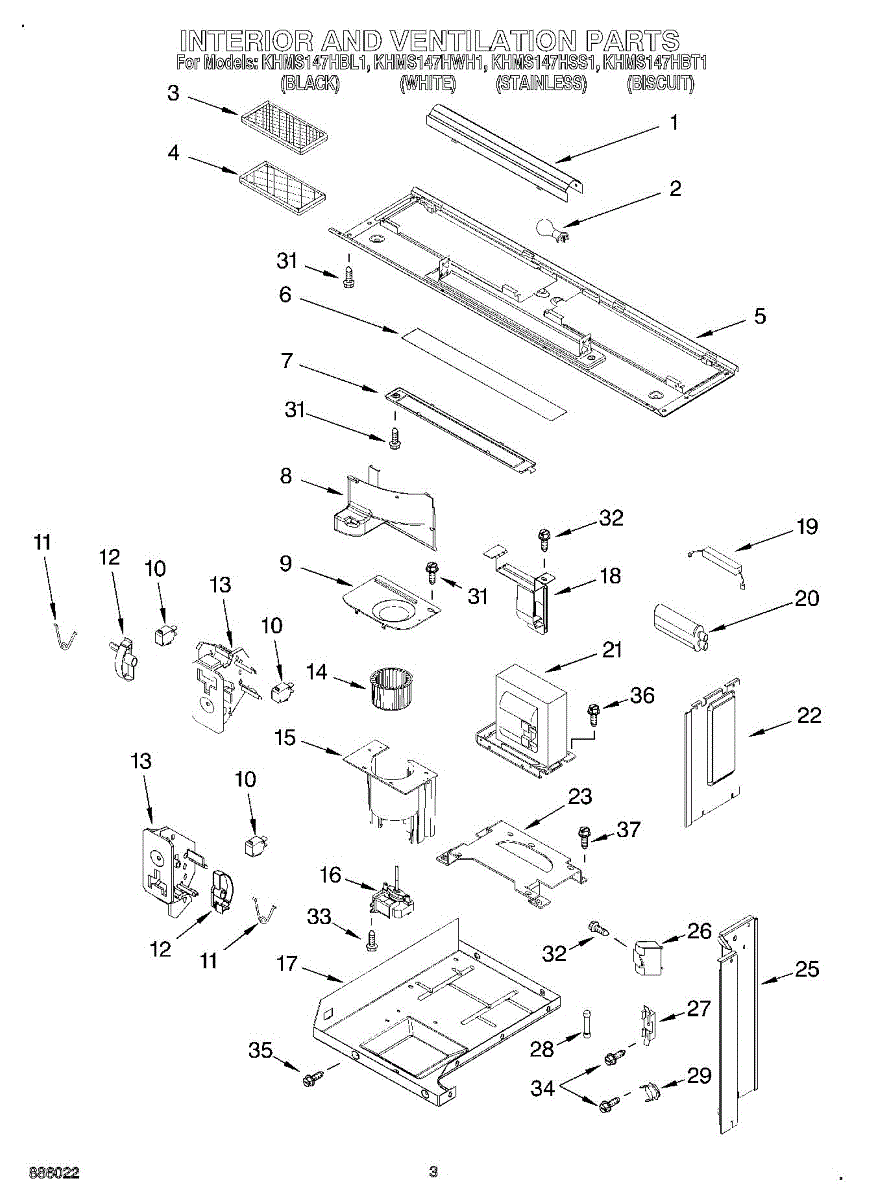

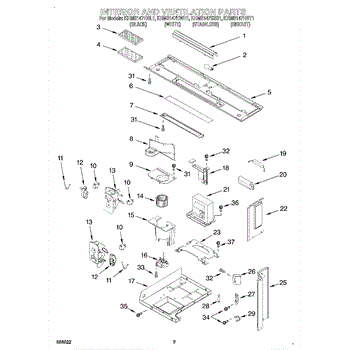

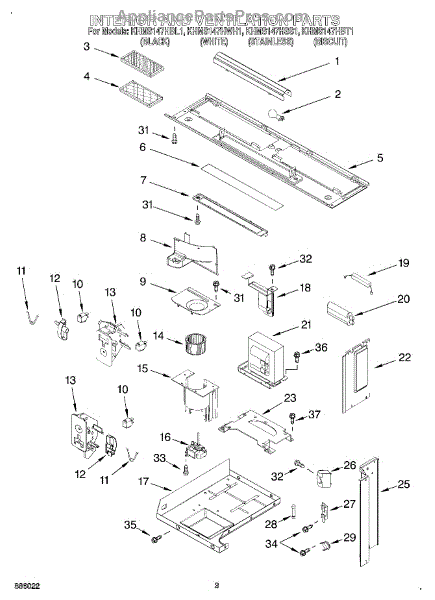

Parts for Kitchenaid KHMS147HBL1: 03 - Interior And Ventilation Parts

The Lamp is an OEM part for Whirlpool microwaves. This lamp illuminates the interior of the microwave, allowing you to see the cooking process and monitor the condition of your food.

Causes of a bad lamp can include regular use leading to burnout, electrical issues causing the lamp to fail, or physical damage from impact or mishandling.

Symptoms of a bad lamp include:

• The microwave interior not lighting up when the door is opened or during cooking
• Flickering or dim lighting
• The lamp failing to turn on despite replacing the bulb

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Charcoal Filter is an OEM part for Whirlpool microwaves. This filter is designed to remove cooking odors and smoke from the air circulated through the microwave's venting system. It is especially important in over-the-range microwaves that recirculate air rather than venting it outside. The filter measures about 12 inches wide by 6 inches deep. This is a 2 Pack.

Causes of a bad charcoal filter can include saturation from grease and odors over time, blockage from accumulated debris, or deterioration of the filter material. Regular replacement is necessary to maintain effective air filtration and proper microwave performance.

Symptoms of a bad Charcoal Filter include:

• Persistent cooking odors lingering in the kitchen
• Reduced ventilation efficiency
• Smoke not being properly filtered during cooking
• Noticeable decrease in the microwave's air circulation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Grease Filter is an OEM part for Whirlpool range hoods. This component is crucial for capturing grease particles and preventing them from accumulating in the ventilation system, ensuring proper airflow and maintaining kitchen cleanliness. The grease filter measures approximately 14 inches by 6 inches

Over time, grease filters can become saturated with grease and debris, reducing their effectiveness and potentially causing ventilation issues.

Symptoms of a bad grease filter include:

• Decreased airflow through the range hood
• Visible grease buildup on the filter
• Unpleasant odors lingering in the kitchen
• The filter appearing worn or damaged

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Switch is an OEM part for Whirlpool microwaves. It controls the turning on and off of power to the microwave during cooking cycles as well as detects positions within cycles to signal appropriate actuations of the microwave's magnetron, fans, and lights. The switch is a crucial electrical component that facilitates the fully automatic operation of preset cooking programs.

Causes of a bad switch can include wear and tear over time or unexpected surges that cause electrical component failure.

Symptoms of a bad switch include:

• Cooking programs failing to advance properly or stopping mid-cycle unexpectedly
• The microwave failing to turn on or experiencing power issues
• Random noises, humming, or lights occurring when the microwave is supposed to be idle
• Buttons or controls acting intermittently unresponsive

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Replacement interlock spring that provides tension for the appliance door latch so the door closes and the interlock switch can engage for normal operation. Restores reliable door engagement and latch return in compatible Whirlpool appliances. What it does:

• Provides tension to the door latch/interlock assembly so the door stays securely closed during use.
• Ensures the latch returns to the closed position and allows the interlock switch to complete the appliance's safety circuit.
• Helps resolve symptoms such as a loose or non-returning latch, door that won't stay closed, or cycles that stop because the door won't engage.
• Works as a direct replacement for the listed interlock spring in compatible Whirlpool assemblies.

• Disconnect power to the appliance before servicing to avoid electric shock or injury.
• Basic hand tools are typically required; panels or the door may need partial disassembly—refer to the model's service guide.
• Inspect the latch, striker, and interlock switch for wear or damage and replace if needed; improper installation can prevent correct engagement.

Replace a worn or misaligned interlock with this microwave door interlock assembly. It aligns and supports the door switches so the control accurately senses a fully closed door, restoring safe, reliable operation.

• Interfaces with the door latch hooks to actuate the safety door switches
• Ensures the microwave only runs when the door is fully closed
• Useful when the original interlock is cracked, loose, or out of alignment

• Disconnect power before service; microwaves can retain dangerous high voltage even when unplugged
• Access is typically behind the control panel; over-the-range units may need to be taken down for service
• Mount securely and verify the door latch hooks smoothly actuate the switches
• After reassembly, test door closure and start/stop operation before regular use

The Diode is an OEM part for Whirlpool microwaves. The diode plays a key role in regulating power flow and protecting other sensitive components from voltage fluctuations.

Causes of a bad microwave diode can include component failure due to age or heat exposure over time. Diodes are also susceptible to electrical damage if exposed to power surges.

Symptoms of a bad diode can include:

• The microwave failing to power on or having intermittent power
• Food not heating up properly or unevenly
• Strange sounds like buzzing or humming emanating from inside
• The door lock mechanism not engaging or release properly
• Repeated tripping of fuses or circuit breakers

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This magnetron capacitor is the microwave high-voltage capacitor that helps supply the magnetron with the pulse of energy needed to produce heat. Replacing a failing capacitor restores normal heating performance and reduces arcing or loud humming. What it does

• Stores and releases the high-voltage pulse required by the magnetron so the microwave can generate heat.
• Prevents unstable magnetron operation that can cause weak or no heating.
• Common symptoms of a failing capacitor: oven runs but doesn't heat, intermittent heating, loud buzzing/humming, or visible arcing inside the cavity.
• A failed capacitor can also cause blown internal fuses or tripped circuits.

• One capacitor.

• Disconnect power and verify the appliance is completely de-energized before servicing.
• Capacitors can hold dangerous charge; discharge the capacitor safely with an insulated tool.
• Use the exact replacement part and follow the appliance service manual for routing and connections.

This is a thermal safety fuse that opens the circuit if temperatures rise beyond a safe limit, protecting the appliance from overheating and preventing further damage. Replacing a failed fuse restores power to the affected circuit once the underlying cause is addressed.

• Monitors temperature in a protected circuit and cuts power if unsafe heat is detected
• Helps prevent overheating-related damage
• Typical failure signs: no power/no operation, cycle won't start, shuts off mid-cycle after overheating event
• Must not be bypassed; replace if open and investigate the root cause of overheating

• Unplug appliance or disconnect power before service
• Verify the fuse is open with a multimeter; replace only after correcting any airflow/overheating issues
• Install in the same orientation and location as the original to ensure proper temperature sensing
• Handle wiring carefully; transfer connectors one at a time to avoid miswiring

The Screw is an OEM part for Whirlpool microwaves. It is responsible for securing various parts of the microwave together. This screw ensures a tight and secure fit for parts and helps maintain the structural integrity of the microwave, preventing any loose or rattling parts.

A bad microwave screw can occur due to wear and tear, accidental damage, or misplacement during maintenance or repairs. If you notice symptoms such as loose or wobbly components, difficulty in opening or closing the microwave door, or abnormal noises while the microwave is in use, it may be time to replace this part.

Symptoms of a bad microwave screw include:

• Loose or wobbly components
• Difficulty in opening or closing the microwave door
• Abnormal noises during operation

Restore your Whirlpool microwave by replacing the faulty or missing microwave screw with this genuine OEM part.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The Screw is an OEM part for Whirlpool microwaves. It is responsible for securing various parts of the microwave together. This screw ensures a tight and secure fit for parts and helps maintain the structural integrity of the microwave, preventing any loose or rattling parts.

A bad microwave screw can occur due to wear and tear, accidental damage, or misplacement during maintenance or repairs. If you notice symptoms such as loose or wobbly components, difficulty in opening or closing the microwave door, or abnormal noises while the microwave is in use, it may be time to replace this part.

Symptoms of a bad microwave screw include:

• Loose or wobbly components
• Difficulty in opening or closing the microwave door
• Abnormal noises during operation

Restore your Whirlpool microwave by replacing the faulty or missing microwave screw with this genuine OEM part.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


Fastener screw

This is a replacement screw used to secure appliance parts and panels. It restores proper fastening where the original screw is missing, stripped, or corroded. What it does:

• Secures panels, brackets, or components in place to maintain appliance alignment
• Replaces lost, damaged, or rusted fasteners for a reliable hold
• Helps prevent rattling or movement caused by a missing screw
• Works wherever the OEM screw specification and fit match

• One screw

• Use the matching screwdriver or driver bit; avoid overtightening to prevent stripping
• Disconnect power and follow appliance safety precautions before servicing
