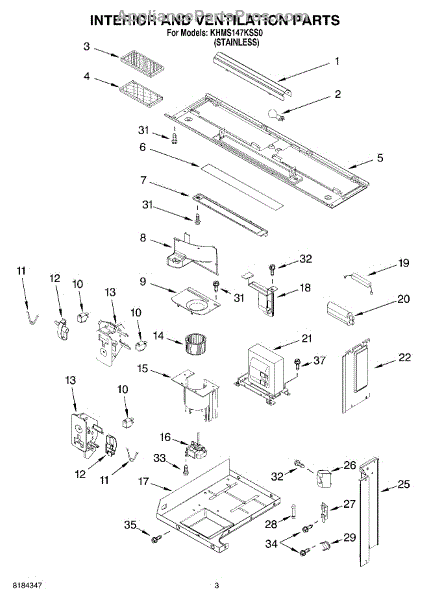

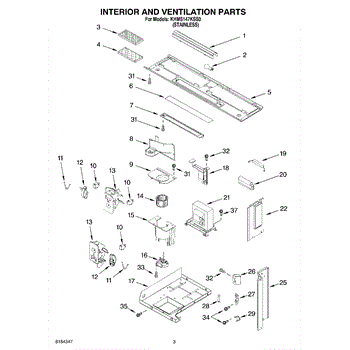

Parts for Kitchenaid KHMS147KSS0: 03 - Interior And Ventilation Parts

This is a small incandescent surface light bulb used inside the microwave to illuminate the cooking cavity. It provides visibility so you can monitor food while it cooks. Replace this bulb if the interior light no longer turns on or flickers intermittently.

Carbon filter for range hoods and over-the-range microwaves. Dimensions: 5-3/4" x 12-1/4" x 3/8" (5.75 x 12.25 x 0.375). Rectangle shape. Removes cooking odors from cooking air. Replace when clogged, discolored, or every 6-12 months.

Grease filter for range hoods and over-the-range microwaves. Dimensions: 5-15/16" x 13-3/8" x 3/32" (5.9375 x 13.375 x 0.09375). Rectangle shape. Captures grease from cooking air. Replace when clogged, discolored, or every 6-12 months.

Light cover glass for microwaves. Installs underneath to protect bulbs. Replace if cracked, broken, or missing from accidental damage or wear.

This microwave lamp housing holds and protects the interior light bulb that illuminates the microwave cavity. It secures the bulb in place and provides electrical connections for proper operation. Replace this part if your microwave interior light is flickering, not working, or if the housing is cracked or damaged.

The Switch is an OEM part for Whirlpool microwaves. It controls the turning on and off of power to the microwave during cooking cycles as well as detects positions within cycles to signal appropriate actuations of the microwave's magnetron, fans, and lights. The switch is a crucial electrical component that facilitates the fully automatic operation of preset cooking programs.

Causes of a bad switch can include wear and tear over time or unexpected surges that cause electrical component failure.

Symptoms of a bad switch include:

• Cooking programs failing to advance properly or stopping mid-cycle unexpectedly
• The microwave failing to turn on or experiencing power issues
• Random noises, humming, or lights occurring when the microwave is supposed to be idle
• Buttons or controls acting intermittently unresponsive

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Replacement spring for microwave door latch mechanism. Restores tension to door catch so latch engages properly. Needed when spring is cracked or broken.

Replace a worn or misaligned interlock with this microwave door interlock assembly. It aligns and supports the door switches so the control accurately senses a fully closed door, restoring safe, reliable operation.

• Interfaces with the door latch hooks to actuate the safety door switches
• Ensures the microwave only runs when the door is fully closed
• Useful when the original interlock is cracked, loose, or out of alignment

• Disconnect power before service; microwaves can retain dangerous high voltage even when unplugged
• Access is typically behind the control panel; over-the-range units may need to be taken down for service
• Mount securely and verify the door latch hooks smoothly actuate the switches
• After reassembly, test door closure and start/stop operation before regular use

Microwave won't heat but hums loudly? The diode regulates power to the magnetron. Test with multimeter—reads one direction only. Moderate DIY repair.

Microwave not heating or making loud humming noise? The high-voltage capacitor supplies power to the magnetron. DIY repair in under an hour.

Microwave has no power or won't heat? A blown thermal fuse is often the cause. This safety part protects against overheating. DIY repair in 30 minutes.

The Screw is an OEM part for Whirlpool microwaves. It is responsible for securing various parts of the microwave together. This screw ensures a tight and secure fit for parts and helps maintain the structural integrity of the microwave, preventing any loose or rattling parts.

A bad microwave screw can occur due to wear and tear, accidental damage, or misplacement during maintenance or repairs. If you notice symptoms such as loose or wobbly components, difficulty in opening or closing the microwave door, or abnormal noises while the microwave is in use, it may be time to replace this part.

Symptoms of a bad microwave screw include:

• Loose or wobbly components
• Difficulty in opening or closing the microwave door
• Abnormal noises during operation

Restore your Whirlpool microwave by replacing the faulty or missing microwave screw with this genuine OEM part.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The Screw is an OEM part for Whirlpool microwaves. It is responsible for securing various parts of the microwave together. This screw ensures a tight and secure fit for parts and helps maintain the structural integrity of the microwave, preventing any loose or rattling parts.

A bad microwave screw can occur due to wear and tear, accidental damage, or misplacement during maintenance or repairs. If you notice symptoms such as loose or wobbly components, difficulty in opening or closing the microwave door, or abnormal noises while the microwave is in use, it may be time to replace this part.

Symptoms of a bad microwave screw include:

• Loose or wobbly components
• Difficulty in opening or closing the microwave door
• Abnormal noises during operation

Restore your Whirlpool microwave by replacing the faulty or missing microwave screw with this genuine OEM part.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


Fastener screw
