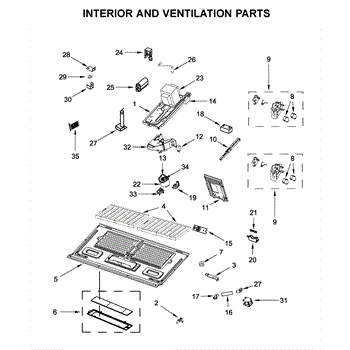

Parts for Kitchenaid KMHP519ESS5: Interior And Ventilation Parts

The Light Bulb is an OEM part for Whirlpool microwaves. It provides illumination within the microwave cavity, enhancing visibility so you can monitor your cooking without opening the door. This feature is essential for convenience and to ensure proper cooking, as it helps to prevent heat loss and maintain the microwave’s energy efficiency.

Symptoms of a bad Light Bulb include:

• The microwave interior remaining dark despite the appliance being in use.
• Flickering or inconsistent lighting when the microwave is operating.
• The bulb not turning on, indicating it may be burnt out or there is a connection issue.

Causes of a bad light bulb can include filament wear out due to prolonged use, damage from moisture or grease exposure inside the microwave, or electrical surges that can shorten the bulb's lifespan.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models, ensuring it fits a wide range of microwave models.

This lower cabinet base supports and secures the appliance cabinet, keeping internal components aligned and stable for safe operation. It restores proper fit and reduces movement that can cause noise or wear. What it does:

• Provides structural support for the appliance cabinet and internal components
• Helps keep the unit level and reduces rocking or vibration during use
• Protects lower components from debris and incidental impacts
• Restores proper alignment after damage or corrosion to the original base

• Always disconnect power (and gas, if applicable) before beginning repairs
• Replacement may require lifting or tilting the appliance—use two people and follow OEM handling guidance
• Retain and reuse original fasteners when possible; replace any damaged clips or screws

The Reflector is an OEM part for Whirlpool microwaves. It is located inside the microwave cavity behind the waveguide and works to redirect electromagnetic waves for more even cooking.

Symptoms of a damaged reflector include:

• Inconsistent or incomplete heating of foods during cooking
• Hot and cold spots forming within the microwave cavity
• Lower overall power output from the microwave

Causes of reflector damage can be cracking or pitting of the reflective aluminum surface over multiple heating cycles. Impact incidents from user error may also damage its shape.

This OEM Whirlpool replacement assists in delivering uniform energy distribution for optimal microwave performance. This part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, and Roper microwave models.

The Interlock is an OEM part for Whirlpool microwaves. It is an important safety mechanism that monitors the door latch and prevents microwave operation when the door is open.

Symptoms of a faulty interlock include:

• The microwave fails to start or run when the door is open
• Buzzer sounding indicating a blocked safety device
• Door unable to latch or stay closed securely

Causes can be due to worn contacts within the interlock from repetitive door opening cycles. Over time, this safety component becomes fatigued.

Replacing with this new OEM interlock protects against unintentional microwave exposure by ensuring the door remains closed during operation. Peace of mind is restored with a working safety mechanism.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This thermistor is a fridge temperature sensor that monitors internal air temperature so the control board can regulate cooling. Replacing a faulty thermistor restores accurate temperature readings and more consistent refrigerator performance. What it does:

• Detects interior temperature and sends readings to the control board
• Helps the compressor and fans cycle correctly to maintain set temperatures
• Common symptom: erratic or incorrect temperature inside the refrigerator
• Common symptom: refrigerator runs constantly or cooling is inconsistent
• Common symptom: temperature-related error codes or temperature alarm messages

• Disconnect power to the appliance before starting any repair
• Handle the sensor and wiring harness carefully to avoid damage
• Route and secure the wiring as original; ensure connectors are fully seated

This replacement shield is a small protective cover that helps guard internal components from debris and direct contact, keeping your appliance operating safely and reliably. It restores the intended protection and fit when the original shield is damaged or missing. What it does:

• Covers and protects nearby wiring, sensors, or components from accidental contact and debris
• Helps maintain proper airflow/pathways where applicable to prevent interference
• Reduces risk of rubbing or chafing on wiring and parts that can cause failures
• Can stop rattling or vibration caused by a loose or broken cover

• One replacement shield as shown

• Disconnect power (and water if appliance requires) before beginning any repair
• Inspect surrounding clips and fasteners; replace any that are damaged to ensure a secure fit
• Use basic hand tools; avoid forcing the shield into place to prevent breakage

This block-style fuse holder secures and connects the appliance fuse to the wiring harness, restoring a safe electrical connection and thermal protection. Use it when the original fuse block is cracked, corroded, or no longer holding the fuse securely. What it does:

• Holds and connects the appliance fuse to the wiring harness so the thermal/overload fuse can function.
• Restores reliable electrical contact when the original block is cracked, melted, or corroded.
• Addresses symptoms such as intermittent power, no heat, or appliance not starting when caused by a bad fuse connection.
• Works with the existing fuse and wiring—does not replace the fuse itself.

• Disconnect power to the appliance before inspecting or replacing this part.
• Replace any damaged wiring, connectors, or insulation found during replacement; do not cut corners or bypass thermal safety devices.

This is a thermal safety fuse that opens the circuit if temperatures rise beyond a safe limit, protecting the appliance from overheating and preventing further damage. Replacing a failed fuse restores power to the affected circuit once the underlying cause is addressed.

• Monitors temperature in a protected circuit and cuts power if unsafe heat is detected
• Helps prevent overheating-related damage
• Typical failure signs: no power/no operation, cycle won't start, shuts off mid-cycle after overheating event
• Must not be bypassed; replace if open and investigate the root cause of overheating

• Unplug appliance or disconnect power before service
• Verify the fuse is open with a multimeter; replace only after correcting any airflow/overheating issues
• Install in the same orientation and location as the original to ensure proper temperature sensing
• Handle wiring carefully; transfer connectors one at a time to avoid miswiring

This high-voltage magnetron capacitor stores and supplies the large charge needed by a microwave's magnetron, helping the oven generate heat for cooking. Replace a failed capacitor to restore normal high-voltage operation. What it does:

• Stores DC high voltage required by the magnetron in the microwave high-voltage circuit
• Helps deliver the pulse of energy that allows the magnetron to produce microwave radiation for heating
• Common symptom: microwave runs but does not heat or has greatly reduced heating power
• Other possible signs: arcing, loud buzzing from the high-voltage area, or frequent blown fuses

• HIGH VOLTAGE HAZARD: Always unplug the appliance and discharge the high-voltage capacitor before handling—capacitors can hold a dangerous charge even when powered off.
• Use insulated tools and follow the appliance service manual.
• Inspect surrounding high-voltage components (diode, transformer) and replace any damaged parts per the service manual.

The Diode is an OEM part for Whirlpool microwaves. The diode plays a key role in regulating power flow and protecting other sensitive components from voltage fluctuations.

Causes of a bad microwave diode can include component failure due to age or heat exposure over time. Diodes are also susceptible to electrical damage if exposed to power surges.

Symptoms of a bad diode can include:

• The microwave failing to power on or having intermittent power
• Food not heating up properly or unevenly
• Strange sounds like buzzing or humming emanating from inside
• The door lock mechanism not engaging or release properly
• Repeated tripping of fuses or circuit breakers

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This evaporator fan motor circulates cold air through the freezer and refrigerator compartments to maintain even temperatures and consistent cooling. Replaces a failed or noisy motor to help restore airflow and temperature stability. What it does:

• Spins the evaporator fan blade to move cold air across the evaporator and into the cabinet.
• Helps prevent warm spots and uneven cooling when operating correctly.
• Commonly replaced for noisy operation, failure to run, or intermittent airflow.
• Compatible with refrigerators that use this OEM-style fan motor design.

• Disconnect power to the appliance before starting any repair.
• Access typically requires removing interior panels or the evaporator cover; keep screws and fasteners organized.
• Inspect the fan blade and housing for ice buildup or obstructions before installing the new motor.

This fan wheel spins inside the appliance to move air through the system, restoring proper airflow for heating and cooling. It replaces a cracked, worn, or unbalanced wheel to reduce noise and improve performance. What it does:

• Circulates air through the appliance to support heating, cooling, or ventilation
• Helps maintain consistent temperatures and prevents motor overload from restricted airflow
• Reduces rattling or grinding noise caused by a warped or broken wheel
• Restores proper airflow when the original wheel is damaged or missing

• One fan wheel

• Disconnect power to the appliance before starting any repair
• Access may require removing an access panel or cabinet components; follow the manufacturer's service instructions
• Inspect the blower housing and mounting for damage; replace any damaged clips or fasteners
• Ensure the wheel spins freely and is seated correctly on the motor shaft before reassembly
