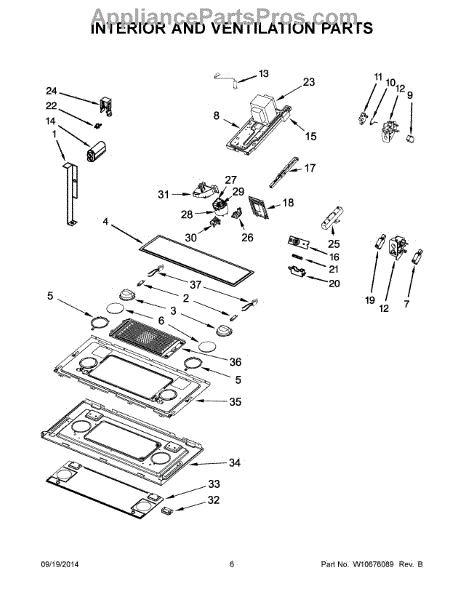

Parts for Maytag JMV8208CS0: 04 - Interior And Ventilation Parts

The Light Bulb is an OEM part for Whirlpool microwaves. It provides illumination within the microwave cavity, enhancing visibility so you can monitor your cooking without opening the door. This feature is essential for convenience and to ensure proper cooking, as it helps to prevent heat loss and maintain the microwave’s energy efficiency.

Symptoms of a bad Light Bulb include:

• The microwave interior remaining dark despite the appliance being in use.
• Flickering or inconsistent lighting when the microwave is operating.
• The bulb not turning on, indicating it may be burnt out or there is a connection issue.

Causes of a bad light bulb can include filament wear out due to prolonged use, damage from moisture or grease exposure inside the microwave, or electrical surges that can shorten the bulb's lifespan.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models, ensuring it fits a wide range of microwave models.

The Grease Filter is an OEM part for Whirlpool microwaves, designed to enhance the performance of over-the-range units. This filter maintains the appliance's efficiency and the kitchen's air quality by capturing grease and other particles from the air that circulates through the microwave during cooking.

Signs of wear and tear or damage can affect not only the microwave's performance but also the cleanliness of your kitchen environment. Regular maintenance, including cleaning and replacing the grease filter as necessary, is essential for keeping your microwave functioning optimally and ensuring the air in your kitchen remains clean.

Symptoms that indicate a need for replacement:

• Decreased ventilation efficiency, resulting in lingering cooking odors
• Reduced airflow, which can cause the microwave to overheat
• Visible grease buildup and difficulty cleaning the filter

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Microwave Door Interlock Switch is an OEM part for Whirlpool microwaves. This safety device ensures that the microwave only operates when the door is securely closed. The interlock switch prevents the microwave from running with the door open, protecting users from exposure to microwave energy.

You should replace the door interlock switch if it becomes faulty or damaged. Causes of a bad switch can include wear and tear from frequent use, electrical malfunctions, or physical damage from slamming the microwave door.

Symptoms of a bad microwave door interlock switch include:

• Microwave not starting or running intermittently
• Microwave running with the door open
• Error messages or safety warnings
• The interior light not turning on or off properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Microwave Door Switch is an OEM replacement part for Whirlpool microwaves. It is important for safety as it detects when the door is properly closed and latched before initiating cooking cycles. The switch prevents operation if the door is ajar.

Causes of a bad door switch can include wear and grime accumulation over many years of use, impact damage, or failures in the plastic actuator or electrical components.

Symptoms of a bad door switch include:

• The microwave failing to start cooking even with the door closed and latched
• Error messages related to the door position being displayed
• Inability to lock or properly sense the closed door position

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Interlock Spring is an OEM part for Whirlpool microwaves. It is located within the door assembly and provides proper tension to assist with smooth opening and closing of the microwave door. The spring allows for controlled movement that facilitates easy access when using the microwave.

Causes of failure could be normal wear and tear over time, damage from rough or forced handling of the door, or failure from excessive use.

Symptoms of a bad microwave spring include:

• Difficulty opening or closing the door
• The door not staying securely closed or popping open on its own
• Excessive vibration or noise related to door operation

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

The Interlock Cam Plate is an OEM part for Whirlpool microwaves. It is responsible for securing the microwave door to notify the unit that the door is closed. It works in conjunction with other components to ensure proper alignment and engagement of the door. This allows the microwave to function safely and efficiently.

Causes of a faulty interlock cam plate can include wear and tear over time, damage due to regular use or mishandling, or malfunctioning internal components. These factors can result in issues such as the door not closing properly, difficulty in starting or operating the microwave, or safety concerns.

Symptoms of a bad interlock cam plate may include:

• The door not closing or latching properly
• The microwave not starting or operating when the door is closed
• Flickering interior lights

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Microwave Top Interlock Support is an OEM part for Whirlpool microwave ovens. It is an essential safety component that helps ensure the microwave door is securely closed and locked before the microwave can operate.

Causes of a faulty Top Interlock Support include physical damage from impact or wear over time, as well as failure of the internal mechanisms that detect the door's position.

Symptoms of a bad Microwave Top Interlock Support include:

• Microwave does not start or operate when the door is closed
• Door appears closed but microwave will not run
• Microwave starts with the door open, posing a safety hazard
• Error codes related to the door interlock system

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Bottom Interlock Support is an OEM part for Whirlpool microwaves. This component plays a crucial role in ensuring the microwave door latches securely, maintaining a proper seal for safe and efficient operation.

Over time, the bottom interlock support can wear out or become damaged due to regular use, physical impact, or issues with the door mechanism. A faulty interlock support can compromise the microwave’s safety features and proper functioning.

Symptoms of a bad bottom interlock support include:

• The microwave door not closing properly or securely
• The microwave not starting or stopping unexpectedly
• Error messages related to door latch or interlock issues
• Visible damage or wear on the interlock support

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Diode is an OEM part for Whirlpool microwaves. The diode plays a key role in regulating power flow and protecting other sensitive components from voltage fluctuations.

Causes of a bad microwave diode can include component failure due to age or heat exposure over time. Diodes are also susceptible to electrical damage if exposed to power surges.

Symptoms of a bad diode can include:

• The microwave failing to power on or having intermittent power
• Food not heating up properly or unevenly
• Strange sounds like buzzing or humming emanating from inside
• The door lock mechanism not engaging or release properly
• Repeated tripping of fuses or circuit breakers

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The High Voltage Capacitor is an OEM part for Whirlpool microwaves. This component allows the microwave to store and discharge high voltage current to the magnetron tube for generating microwave energy.

Symptoms of a faulty capacitor include:

• Slow or incomplete cooking even on high power levels
• Inconsistent or uneven heating inside the microwave cavity
• Sparking, burning or smoke emitting from inside components
• An appliance that fails to start or runs intermittently

Causes can be regular wear and tear over many years of use. The capacitor endures heat stresses each time the magnetron operates.

 This part is also compatible with select Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore brand microwaves.

This thermistor is a fridge temperature sensor that monitors internal air temperature so the control board can regulate cooling. Replacing a faulty thermistor restores accurate temperature readings and more consistent refrigerator performance. What it does:

• Detects interior temperature and sends readings to the control board
• Helps the compressor and fans cycle correctly to maintain set temperatures
• Common symptom: erratic or incorrect temperature inside the refrigerator
• Common symptom: refrigerator runs constantly or cooling is inconsistent
• Common symptom: temperature-related error codes or temperature alarm messages

• Disconnect power to the appliance before starting any repair
• Handle the sensor and wiring harness carefully to avoid damage
• Route and secure the wiring as original; ensure connectors are fully seated

The Door Switch is an OEM part for Whirlpool microwaves. It serves a critical safety function by ensuring that the microwave only operates when the door is securely closed. This switch prevents the appliance from starting if the door is open, safeguarding users from exposure to microwave radiation.

Symptoms of a bad Door Switch include:

• Microwave not starting or intermittently stopping,
• The microwave continuing to operate when the door is opened,
• Unusual sounds coming from the door area when opened or closed.

Causes of door switch failure typically involve mechanical wear from regular use, accidental damage from forcefully closing or opening the door, or alignment issues causing improper contact.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This block-style fuse holder secures and connects the appliance fuse to the wiring harness, restoring a safe electrical connection and thermal protection. Use it when the original fuse block is cracked, corroded, or no longer holding the fuse securely. What it does:

• Holds and connects the appliance fuse to the wiring harness so the thermal/overload fuse can function.
• Restores reliable electrical contact when the original block is cracked, melted, or corroded.
• Addresses symptoms such as intermittent power, no heat, or appliance not starting when caused by a bad fuse connection.
• Works with the existing fuse and wiring—does not replace the fuse itself.

• Disconnect power to the appliance before inspecting or replacing this part.
• Replace any damaged wiring, connectors, or insulation found during replacement; do not cut corners or bypass thermal safety devices.

This is a thermal safety fuse that opens the circuit if temperatures rise beyond a safe limit, protecting the appliance from overheating and preventing further damage. Replacing a failed fuse restores power to the affected circuit once the underlying cause is addressed.

• Monitors temperature in a protected circuit and cuts power if unsafe heat is detected
• Helps prevent overheating-related damage
• Typical failure signs: no power/no operation, cycle won't start, shuts off mid-cycle after overheating event
• Must not be bypassed; replace if open and investigate the root cause of overheating

• Unplug appliance or disconnect power before service
• Verify the fuse is open with a multimeter; replace only after correcting any airflow/overheating issues
• Install in the same orientation and location as the original to ensure proper temperature sensing
• Handle wiring carefully; transfer connectors one at a time to avoid miswiring

The Fixed thermostat is an OEM component specifically designed for Whirlpool microwaves. This part plays an important role in regulating the internal cavity temperature during the cooking cycle.

Symptoms of a bad Thermost-Fix include:

• Food not heating evenly or completely
• Portions of food becoming overcooked while others remain cold
• Inconsistent or improper cooking at set power levels

Causes of a bad Thermost-Fix can include failure or damage of internal thermostatic components or sensors, electrical issues preventing proper communication, or obstructions interfering with temperature monitoring.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This control transformer provides the low-voltage power needed for the appliance's control board and user interface, restoring reliable operation of displays, timers, and electronic controls. What it does

• Steps appliance line voltage down to the control circuit voltage so electronic controls and displays can operate.
• Commonly replaced when controls, displays, or touchpads lose power or behave intermittently.
• Helps resolve symptoms like dim or blank control displays, non-responsive touch controls, or intermittent electronic operation.
• Designed to match mounting and wiring of the original part for straightforward replacement.

• One transformer assembly as shown.

• Turn off and unplug the appliance (or shut off circuit breaker) before servicing to avoid electrical shock.
• Verify wiring locations and take a photo before disconnecting; reconnect matching each terminal.
• Inspect associated fuses and connectors; replace any damaged wiring or connectors during installation.

This resistor is an OEM electrical replacement that helps regulate current to a refrigerator/dryer appliance circuit so components operate reliably. Replacing a faulty resistor restores proper electrical control and can stop intermittent component failures. What it does

• Limits or regulates electrical current to a specific circuit so motors, heaters, or control circuits operate correctly
• Can cause an appliance component to run weakly, intermittently, or not at all when failed
• Commonly linked to symptoms such as component failure, intermittent operation, or related error codes
• Works as the direct replacement part for the original listed Whirlpool resistor

• One resistor

• Disconnect power to the appliance before attempting service to avoid shock
• Handle electrical connections carefully; ensure secure, correct reconnection before restoring power

This fan wheel spins inside the appliance to move air through the system, restoring proper airflow for heating and cooling. It replaces a cracked, worn, or unbalanced wheel to reduce noise and improve performance. What it does:

• Circulates air through the appliance to support heating, cooling, or ventilation
• Helps maintain consistent temperatures and prevents motor overload from restricted airflow
• Reduces rattling or grinding noise caused by a warped or broken wheel
• Restores proper airflow when the original wheel is damaged or missing

• One fan wheel

• Disconnect power to the appliance before starting any repair
• Access may require removing an access panel or cabinet components; follow the manufacturer's service instructions
• Inspect the blower housing and mounting for damage; replace any damaged clips or fasteners
• Ensure the wheel spins freely and is seated correctly on the motor shaft before reassembly

This evaporator fan motor circulates cold air through the freezer and refrigerator compartments to maintain even temperatures and consistent cooling. Replaces a failed or noisy motor to help restore airflow and temperature stability. What it does:

• Spins the evaporator fan blade to move cold air across the evaporator and into the cabinet.
• Helps prevent warm spots and uneven cooling when operating correctly.
• Commonly replaced for noisy operation, failure to run, or intermittent airflow.
• Compatible with refrigerators that use this OEM-style fan motor design.

• Disconnect power to the appliance before starting any repair.
• Access typically requires removing interior panels or the evaporator cover; keep screws and fasteners organized.
• Inspect the fan blade and housing for ice buildup or obstructions before installing the new motor.

The Socket Lamp is an OEM part for Whirlpool built-in microwaves. Located inside the cavity, this lamp illuminates the interior when the door opens. Constructed from heat-resistant materials, it reliably lights the way for viewing cooked foods.

Symptoms of a faulty Socket Lamp may include failure to illuminate the cavity when the door is opened.

Causes of issues can be normal wear of filaments over extended use, moisture damage if exposed to splatters/spills, or physical impact-breaking connections.

The symptoms of a bad Socket Lamp are:

• The inside of the microwave remains dark when the door opens
• Difficulty monitoring the progress of heated items
• Inability to view the placement of dishes inside the cavity
• Burned spots occurring due to lack of visibility

This OEM Whirlpool replacement restores consistent lighting to facilitate use. Compatible models include some Kenmore and select KitchenAid built-in microwaves also. Replacing improves the cooking experience.
