Parts for Jenn-Air JMC5200AAW: 05 - Internal Controls Parts

Parts for Jenn-Air JMC5200AAW: 05 - Internal Controls Parts

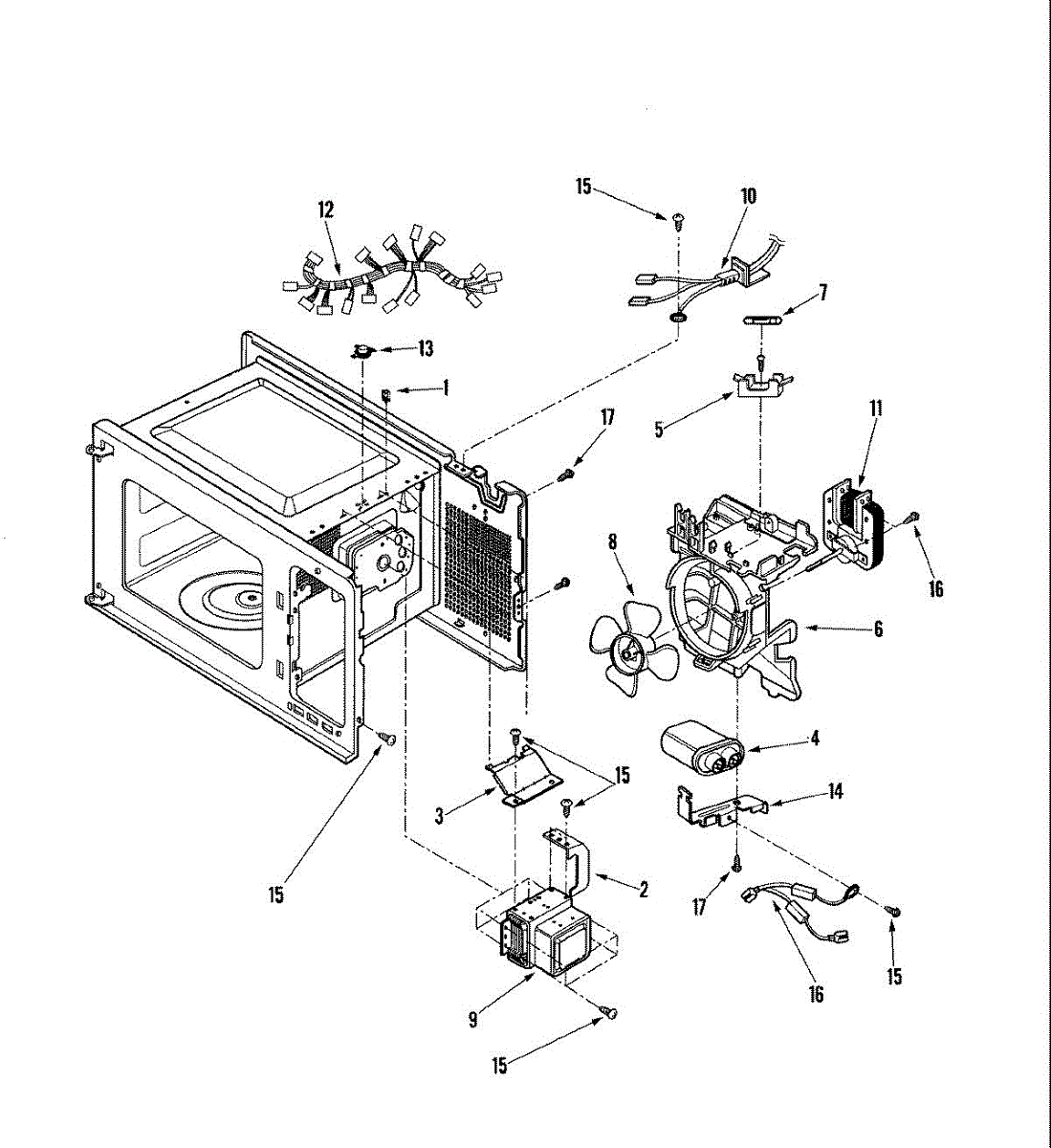

Location on Diagram
Part Description
Price & Availability
1
By: Whirlpool
Part Number: R0131047
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

2
By: Whirlpool
Part Number: 53001853
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

3
By: Whirlpool
Part Number: 8205641
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

4
Product photo
4.3 (3)
By: Whirlpool
Part Number: WP59001168

Microwave making a loud humming noise or won't heat? A faulty capacitor is often the cause. Requires cabinet removal and safe discharge. Restore function.

More
$124.26

IN STOCK
Ships Today Guaranteed
Add to Cart
5
By: Maytag
Part Number: W10124350
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

5
Product photo
By: Whirlpool
Part Number: WPY01050009

This 15 amp, 250 volt replacement fuse protects your appliance's electrical circuits by interrupting power when a fault or overload occurs. It restores safe operation once the underlying issue is fixed and the fuse is replaced. What it does:

  • Acts as an overcurrent protection device for circuits rated up to 15 A and 250 V
  • Prevents damage to wiring and components by opening the circuit during an overload or short
  • Common symptom: appliance has no power or specific functions stop working after a sudden failure
  • Replacing a blown fuse can resolve intermittent power loss or complete power failure tied to a single blown element
What's included: One 15A 250V fuse (single unit) Install notes:
  • Disconnect power to the appliance before inspecting or replacing the fuse
  • Replace only with a fuse of the same amperage and voltage rating to maintain safety and proper protection
  • Use insulated tools and avoid touching live terminals; internal access may require disassembly, follow OEM service instructions
  • If fuses blow repeatedly, stop using the appliance.

More
$12.72

IN STOCK
Ships Today Guaranteed
Add to Cart
6
By: Whirlpool
Part Number: R0131112
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

7
Product photo
By: Whirlpool
Part Number: W10206728

This fuse block is the appliance electrical terminal used to secure and connect a fuse or wire harness, restoring a safe electrical path for heating and motor circuits. It helps maintain reliable power transfer inside the appliance. What it does:

  • Provides a secure mounting point and electrical connection for a fuse or inline connection
  • Enables proper power flow between the control and high-voltage components
  • Can cause loss of power, intermittent operation, or heating issues when damaged or corroded
  • Replaces a worn, cracked, or melted terminal block to restore safe connections
What's included: One fuse block Install notes:
  • Disconnect power to the appliance before starting any work
  • Handle wiring carefully; secure all splices and fasteners to manufacturer torque recommendations

More
$16.49

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
8
Product photo

Fan

By: Whirlpool
Part Number: 53001843
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

9
Best Seller
Product photo
4.9 (27)
By: Whirlpool
Part Number: W10859575

Microwave not heating but still running? The magnetron controls heating function. DIY repair in under 2 hours with basic tools and multimeter testing.

More
$221.24

IN STOCK
Ships Today Guaranteed
Add to Cart
10
By: Whirlpool
Part Number: 53001845
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

10
By: Whirlpool
Part Number: 53001892
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

11
Product photo
By: Whirlpool
Part Number: 8183767
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

12
By: Whirlpool
Part Number: 53001847
$38.54

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
12
By: Whirlpool
Part Number: 53001896
$39.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
13
By: Whirlpool
Part Number: R0131241
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

14
By: Whirlpool
Part Number: R0131111
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

15
By: Whirlpool
Part Number: 4344826
$12.16

IN STOCK
Ships Today Guaranteed
Add to Cart
16
Product photo
By: Whirlpool
Part Number: 4358190
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

17
Product photo
5.0 (13)
By: Whirlpool
Part Number: 8169475

Fastener screw

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

18
By: Whirlpool
Part Number: 53001846
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

19
By: Whirlpool
Part Number: 53001898
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.
