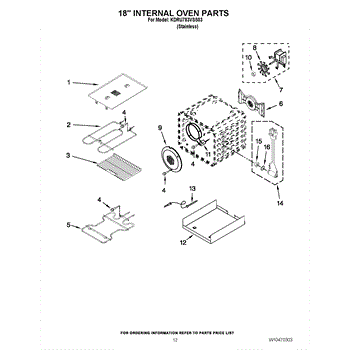

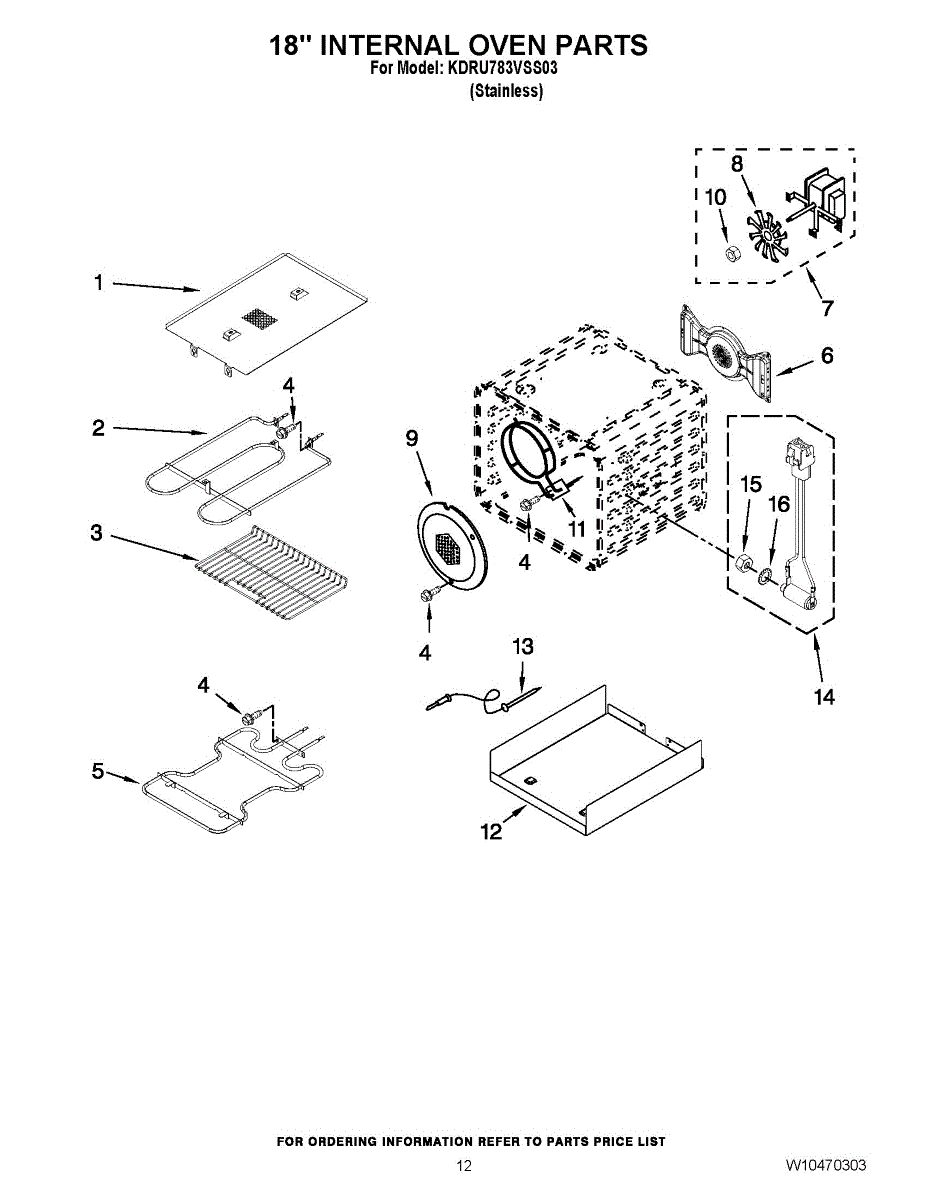

Parts for Kitchenaid KDRU783VSS03: 10 - 18`` Internal Oven Parts

This oven broil element replaces a failed upper heating element to restore direct top-heat broiling for searing and browning. It provides a straight, OEM-style replacement that fits into the oven cavity and reconnects to the existing terminals. What it does:

• Heats when the oven is set to Broil, delivering direct radiant heat from the top of the oven
• Restores proper browning, searing and finishing of foods when the original element fails
• Common symptom fix: element does not glow, no broil heat, or uneven top heating
• Works as a direct replacement when the original element is visibly burned, broken, or open

• Disconnect power at the breaker or unplug the range before beginning any work
• Remove the oven racks and access screws, then carefully pull the old element forward from its terminal block
• Match terminal type and orientation before reconnecting; handle terminals gently to avoid bending

The Whirlpool element mounting screw is an OEM replacement part responsible for securely fastening the heating element to the designated location inside the oven. This part ensures that the heating element remains firmly attached to the appliance's structure. The element mounting screw is crafted from durable materials to withstand high temperatures to provide a reliable and stable connection between the heating element and the oven.

This part fixes the following symptoms:

• Loose or wobbly heating element
• Uneven heating inside the oven
• Excessive vibrations or rattling noises during operation

The Whirlpool element mounting screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This fan motor powers the cooling fan that moves air through your unit. Replacing a worn or noisy motor restores proper airflow to help maintain stable temperatures and reliable performance. What it does:

• Drives the fan blade to circulate air for cooling and temperature control
• Helps prevent component overheating caused by weak or stalled airflow
• Fixes: fan not running or starting intermittently
• Fixes: loud humming, grinding, or rattling from the fan area
• Fixes: longer run times or warm spots due to poor airflow

• Includes: 1 fan motor

• Disconnect power before servicing; allow moving parts to stop
• Note wire positions and motor orientation; take a photo for reference
• Transfer the existing fan blade and mounting hardware as needed
• After install, ensure the fan spins freely and no wiring contacts moving parts before restoring power

This convection fan blade mounts to the fan motor and circulates hot air during convection cycles. Replacing a bent or damaged blade restores proper airflow, promoting more even temperatures and consistent baking and roasting performance.

• Mounts on the convection motor shaft to drive airflow through the oven cavity
• Helps maintain uniform temperatures for consistent convection baking/roasting
• Typical failure signs: rattling or scraping noises, visible wobble or damaged fins, weak airflow, or the fan not spinning freely
• A worn blade can contribute to uneven results in convection mode

• Disconnect power and allow the appliance to cool completely before servicing
• Access the blade behind the interior fan cover or rear panel (varies by model); note blade orientation and any spacers/washers for reassembly
• Handle sharp edges; avoid bending fins and ensure the blade spins freely without rubbing before restoring power
• For microwave/OTR convection units, high-voltage components are present.

This surface cooktop element provides the heating source for electric ranges and replaces a damaged or non-working burner to restore normal cooking heat. Designed to match OEM fit and function for compatible Whirlpool ranges. What it does:

• Heats cookware for stovetop cooking when the burner control is turned on
• Replaces a burned-out or broken surface element that no longer heats
• Can resolve symptoms like no heat from the burner, intermittent heating, or visible damage to the element
• Restores even heating when the original element has hot spots or partial failure

• Disconnect power at the breaker or unplug the range before servicing to avoid shock
• Allow the element and cooktop to cool completely before removing or installing
• Remove the old element by unplugging the connector or detaching mounting hardware, then connect the new element securely

Color: brown. Its total length is about 25 inches.

A hex locknut used to secure rotating shafts and threaded fasteners on compatible appliances. Small but critical, it keeps components held firmly in place to prevent loosening during normal operation. What it does:

• Secures shafts, pulleys, or control components to prevent axial movement
• Stops parts from working loose due to vibration or regular use
• Can resolve symptoms like noisy operation, wobbling parts, or loose knobs/assemblies
• Provides a reliable threaded connection when paired with the correct mating fastener

• One hex locknut (quantity: 1)

• Disconnect power and, if applicable, unplug appliance before starting any repair
• Use the correct wrench or socket size and tighten until snug—avoid overtightening
• If access requires disassembly, keep track of removed parts.
