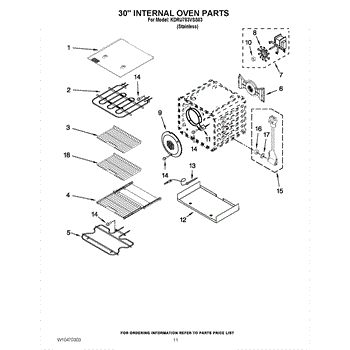

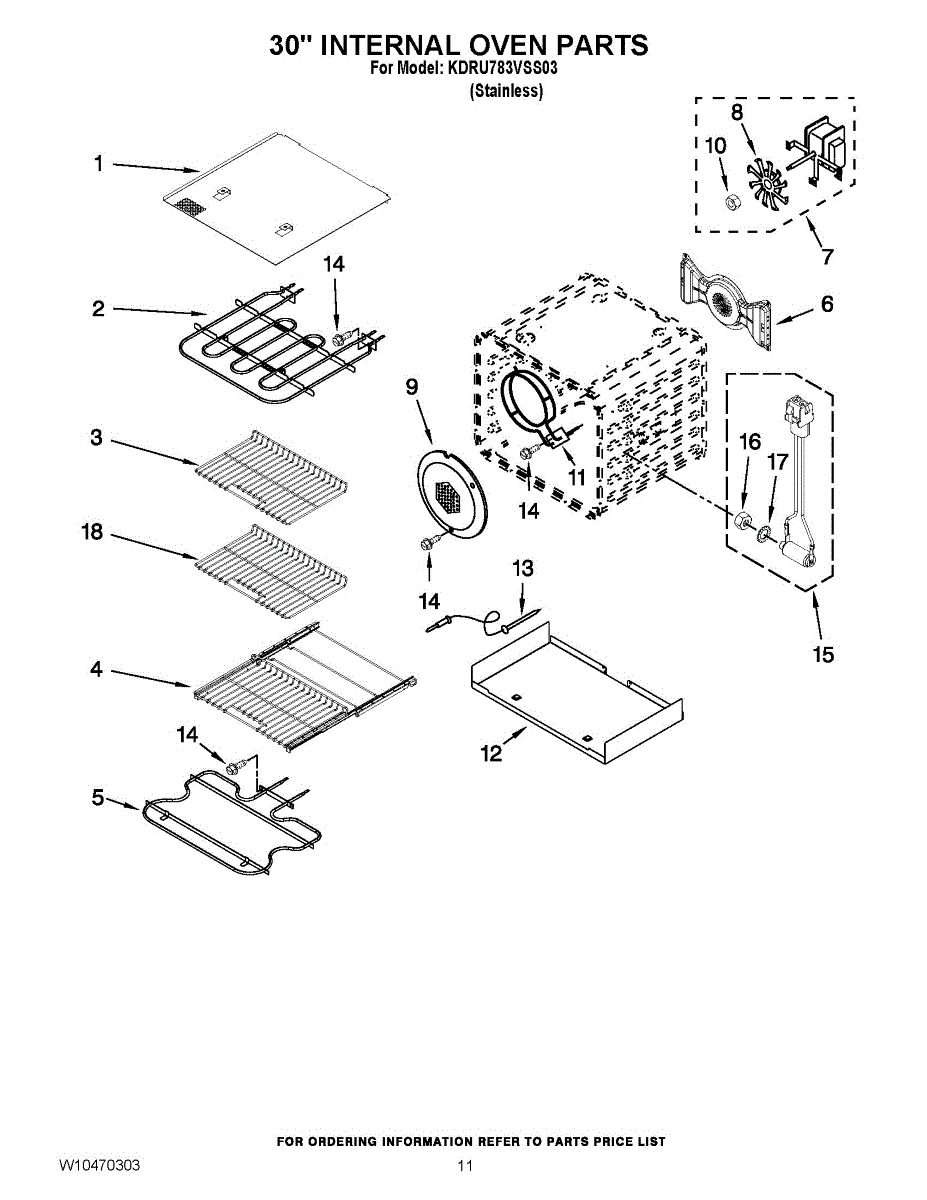

Parts for Kitchenaid KDRU783VSS03: 09 - 30`` Internal Oven Parts

This broil heating element provides the upper-oven heat for broiling and high-temperature cooking. Replaces a failed or damaged upper element to restore broil performance and even top-heat browning. What it does:

• Produces direct top-oven heat used for broiling and finishing dishes
• Restores broil function when the upper element no longer heats
• Helps eliminate uneven browning or food that won't crisp on top
• Shows visible signs of failure such as burning, breakage, or no heat

• One broil (upper oven) heating element

• Disconnect power (unplug or switch off breaker) before starting any work
• Handle element carefully to avoid bending or damaging terminals
• Electrical connections are secure and routed clear of interior surfaces
• After installation, restore power and test broil function; replace oven light cover or insulation as needed

Replace your cracked, warped, or missing range oven rack. This shelf slides into the oven cavity to support cookware during baking and roasting.

Replace a rusty, discolored, or missing oven rack. Slides into side supports to hold cookware at the right height for baking and roasting.

This fan motor powers the cooling fan that moves air through your unit. Replacing a worn or noisy motor restores proper airflow to help maintain stable temperatures and reliable performance. What it does:

• Drives the fan blade to circulate air for cooling and temperature control
• Helps prevent component overheating caused by weak or stalled airflow
• Fixes: fan not running or starting intermittently
• Fixes: loud humming, grinding, or rattling from the fan area
• Fixes: longer run times or warm spots due to poor airflow

• Includes: 1 fan motor

• Disconnect power before servicing; allow moving parts to stop
• Note wire positions and motor orientation; take a photo for reference
• Transfer the existing fan blade and mounting hardware as needed
• After install, ensure the fan spins freely and no wiring contacts moving parts before restoring power

Fix rattling or noisy oven fan with this convection fan blade. Restores proper airflow for even baking temperatures. Mounts directly on motor shaft.

Oven not heating or baking unevenly? A failed bake or broil element is often the cause. This heating element restores proper oven temperature control.

Probe indicator stays on or won't light when plugged in? This meat probe monitors internal food temperature. Easy DIY fix with video guide included.

Heating element not working? This mounting screw securely fastens the heating element in place. A simple DIY repair that takes about 20 minutes to complete.

Secure loose shafts or rattling components with this hex locknut. Prevents fasteners from loosening during operation. Simple hand-tool installation in minutes.

Fix loose oven components with this lockwasher. Prevents fasteners from vibrating loose during heating cycles. Simple 5-minute installation.

Replace your warped, discolored, or damaged oven rack. This steel rack installs inside the oven cavity to support cookware during baking and roasting.
