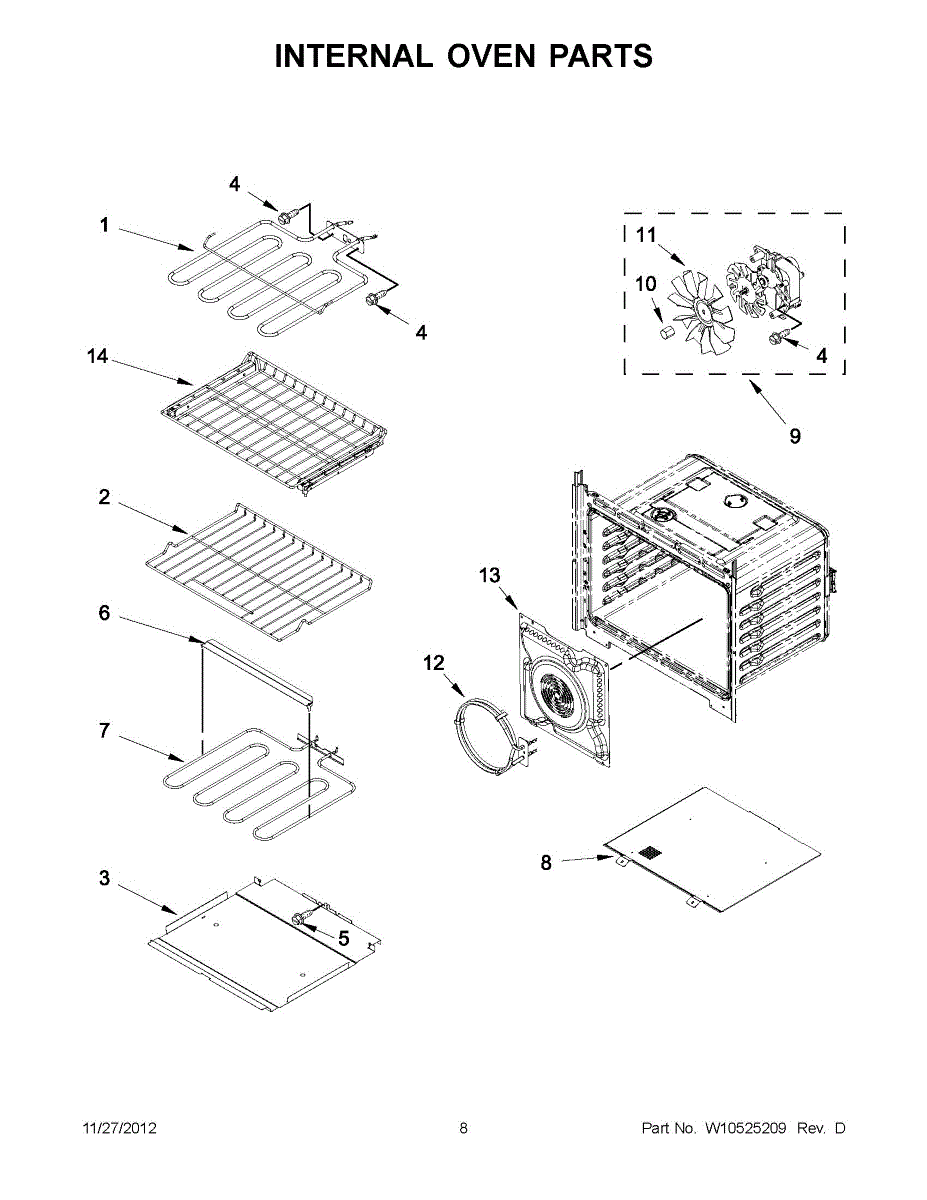

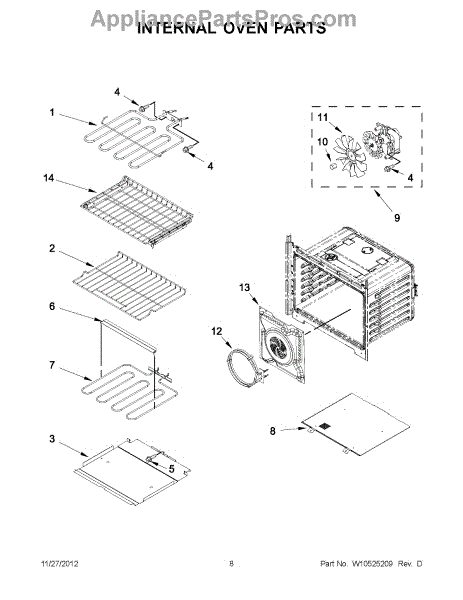

Parts for Kitchenaid KEMS309BBL00: 04 - Internal Oven Parts

Broiler not heating or browning unevenly? This upper broil element restores intense top heat for searing and finishing. Moderate DIY repair.

Replace your bent, missing, or stuck oven rack with this sturdy metal shelf. Slides on side rails for adjustable height positioning inside the cavity.

This bake tray replaces a worn or damaged oven baking surface to help you cook and roast evenly while containing spills. Durable metal construction offers a flat, stable surface for pans, cookies and sheet-baked foods. What it does:

• Provides a flat baking surface for cookies, roasting and sheet-pan meals
• Replaces trays that are warped, dented, rusted or have a damaged cooking surface
• Helps contain drips and spills to protect the oven floor from messes
• Restores proper tray function when missing or broken

• Allow the oven to cool completely before removing or installing the tray
• No tools required — slide into oven racks or support ledges as designed
• Wear work gloves to avoid sharp edges on damaged trays

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This is a metal crossbar support bracket that holds the hidden bake element in place beneath the oven floor. It ensures the bake element remains properly positioned for even heat distribution. Replace this bracket if the bake element is sagging, misaligned, or not heating evenly due to a broken or bent support.

Fix slow preheating or uneven baking with a new bake element. This heating component generates consistent heat throughout your oven cavity. DIY-friendly repair.

Heat shield insulates internal wall oven components from high cooking temperatures. Replace if cracked, charred, or damaged from heat exposure.

This fan motor powers the cooling fan that moves air through your unit. Replacing a worn or noisy motor restores proper airflow to help maintain stable temperatures and reliable performance. What it does:

• Drives the fan blade to circulate air for cooling and temperature control
• Helps prevent component overheating caused by weak or stalled airflow
• Fixes: fan not running or starting intermittently
• Fixes: loud humming, grinding, or rattling from the fan area
• Fixes: longer run times or warm spots due to poor airflow

• Includes: 1 fan motor

• Disconnect power before servicing; allow moving parts to stop
• Note wire positions and motor orientation; take a photo for reference
• Transfer the existing fan blade and mounting hardware as needed
• After install, ensure the fan spins freely and no wiring contacts moving parts before restoring power

Fix rattling or noisy oven fan with this convection fan blade. Restores proper airflow for even baking temperatures. Mounts directly on motor shaft.

This is a circular convection heating element that works in conjunction with the convection fan to circulate hot air evenly throughout the oven cavity for more uniform baking and roasting. If your oven is not heating properly in convection mode, cooking unevenly, or the convection feature has stopped working entirely, this element may have burned out or broken and needs replacement.

Fixes rattling noises and uneven cooking in convection ovens. This baffle directs airflow from the fan for consistent baking. Quick DIY repair.
