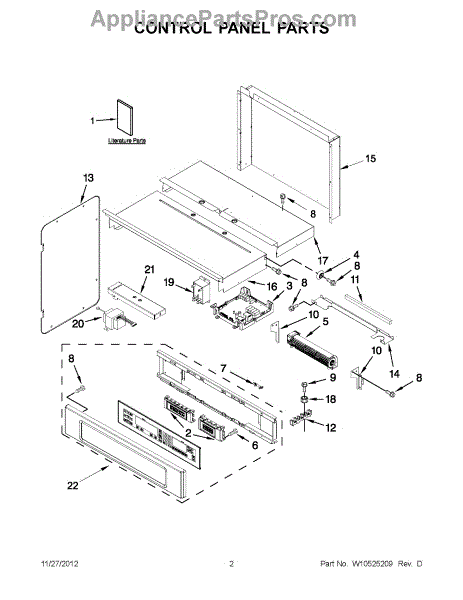

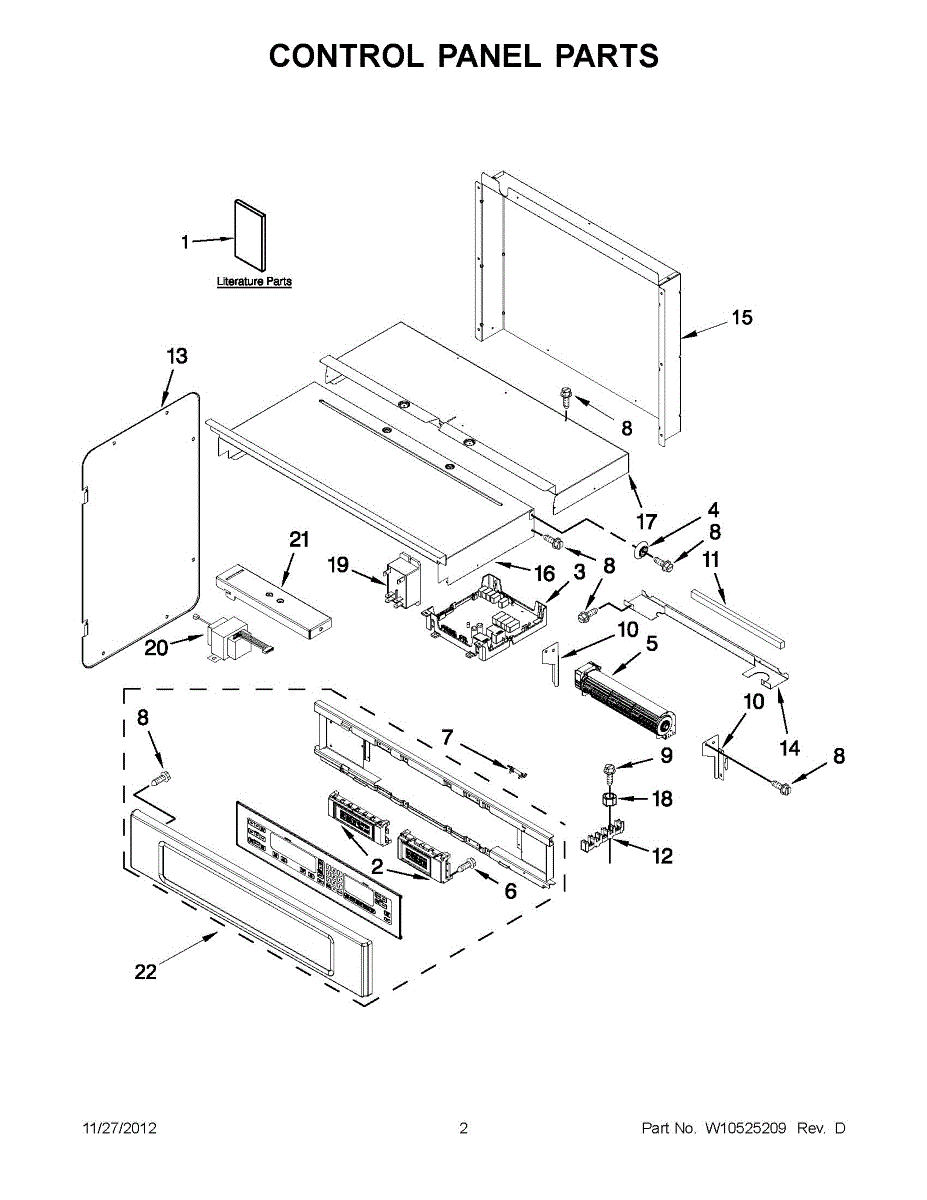

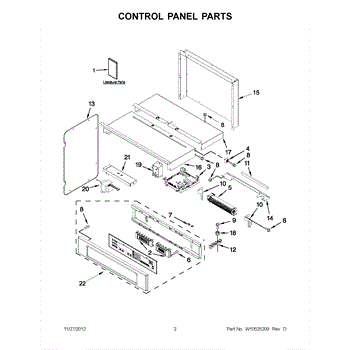

Parts for Kitchenaid KEMS309BBL00: 01 - Control Panel Parts

Fix unresponsive buttons or blank displays with a new microwave electronic control board. This part connects the control panel to your appliance's functions.

Microwave won't turn on or buttons unresponsive? The control board manages all functions. Moderate DIY repair with proper safety precautions required.

If your oven blower runs slow, barely moves air, or takes forever to cool down, this 2-speed cooling blower restores proper airflow and ventilation.

Heating element not working? This mounting screw securely fastens the heating element in place. A simple DIY repair that takes about 20 minutes to complete.

Oven goes dark after self-clean? This thermal fuse cuts power when overheating occurs. Common failure after cleaning cycles. Easy DIY repair.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a f

This foam seal fits between mating parts to create a tight barrier that helps prevent leaks and rattling. Replacing a worn or missing seal restores proper sealing and helps keep your appliance running quietly. What it does:

• Creates a compliant g

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate

This 10-32 terminal block nut fastens wire lugs to the appliance's terminal studs. Replacing a missing, stripped, or corroded nut restores a tight, reliable connection and helps prevent heat damage or intermittent power at the connection.

• Secure

This mounting plate secures internal components to the appliance cabinet, restoring proper alignment and support for attached parts. It's a simple, durable metal bracket that helps stop rattling and keeps assemblies stable. What it does:

• Provides a secure mounting surface for control assemblies or other internal components
• Restores correct alignment when a bracket is bent or missing
• Reduces vibration and rattling from loose or unsupported parts
• Helps prevent premature wear caused by misaligned components

• One mounting plate

• Disconnect power (and gas if applicable) before beginning any repair
• Basic hand tools are typically required; keep fasteners from the original part for reinstallation
• Handle edges carefully—metal brackets can be sharp
• Refer to your model's service manual or parts diagram for exact placement and mounting fasteners

Fix unresponsive buttons or blank displays with this microwave control panel. Restores touchpad and display functions for cycle selection and settings.
