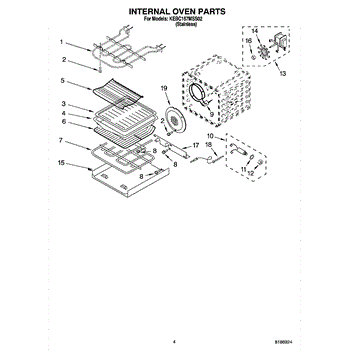

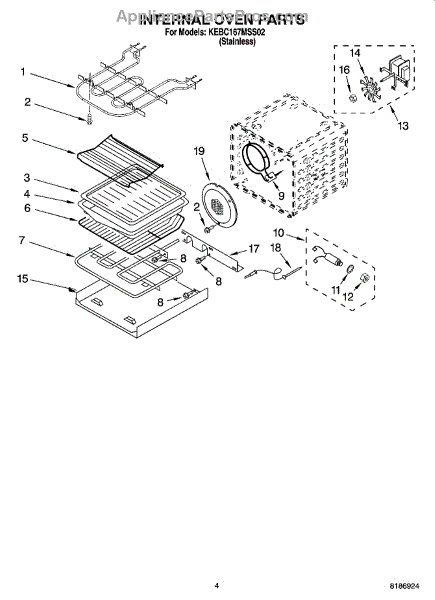

Parts for Kitchenaid KEBC167MSS02: 03 - Internal Oven Parts

The Broil Element is an OEM part for Whirlpool ovens. It is responsible for providing the high heat necessary for broiling food, located at the top of the oven cavity. This element ensures even and consistent heating for broiling.

Over time, the broil element can wear out or become damaged. Causes of a bad broil element can include electrical issues, excessive use, or physical damage from cleaning or handling.

Symptoms of a bad Broil Element include:

• The broil function not working
• Uneven heating during broiling
• Visible damage or breaks in the element

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Whirlpool element mounting screw is an OEM replacement part responsible for securely fastening the heating element to the designated location inside the oven. This part ensures that the heating element remains firmly attached to the appliance's structure. The element mounting screw is crafted from durable materials to withstand high temperatures to provide a reliable and stable connection between the heating element and the oven.

This part fixes the following symptoms:

• Loose or wobbly heating element
• Uneven heating inside the oven
• Excessive vibrations or rattling noises during operation

The Whirlpool element mounting screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

For broil pan use WP3196076.

For broil pan grid use WP3195996.

This broiler pan restores a sturdy broiling surface in your oven. It holds food for high-heat broiling while the lower tray catches drippings to help reduce smoke and keep the oven cavity cleaner.

• Provides a durable surface for broiling under the broil element or flame
• Collects grease and juices beneath the food during high-heat cooking
• Replaces pans that are missing, warped, chipped, or heavily rusted
• Helps cut down on smoke and mess from burnt-on residue on a damaged pan

• Allow the oven to cool completely before handling
• Slide the pan onto the appropriate rack position per your model's instructions; no tools required
• Use oven mitts—surfaces and edges can be hot after broiling
• If your model uses a separate broiler grid or rack, position it on top of the pan before cooking

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

This convection element supplies heat for your oven's convection mode. Working with the convection fan, it circulates hot air to maintain even, consistent baking and roasting performance.

• Provides the heat source during convection cycles for circulated-air cooking
• Helps maintain uniform cavity temperature and even browning
• Restores convection function when the original element is open or damaged
• Common symptoms: convection not heating, fan runs but little/no heat, longer or uneven cook times in convection

• Disconnect power at the breaker and allow the oven to cool completely
• Remove oven racks and the rear interior cover to access the element
• Remove mounting screws, pull the element forward, and transfer wires one at a time; ensure tight, secure connections
• Reinstall the cover, restore power, and run a brief convection test

This replacement jack mounts inside the oven cavity and provides the receptacle for the food temperature probe. It restores a dependable connection so the control can monitor internal food temperature and operate probe-cook features as intended.

• Provides the in-oven receptacle for the food/meat temperature probe
• Carries the probe's signal to the control during probe-cook cycles
• Helps resolve issues where the control does not recognize a probe or the probe feature won't run
• Replaces a jack that is damaged, corroded, or loose

• Disconnect power at the breaker and allow the oven to cool completely
• Access from inside the oven; remove the mounting screw(s) and carefully pull the jack to reach the wire harness
• Transfer/connect the harness and seat any gasket or insulation to maintain the oven cavity seal
• Do not overtighten fasteners; avoid pinching or damaging wires and insulation

A hex locknut used to secure rotating shafts and threaded fasteners on compatible appliances. Small but critical, it keeps components held firmly in place to prevent loosening during normal operation. What it does:

• Secures shafts, pulleys, or control components to prevent axial movement
• Stops parts from working loose due to vibration or regular use
• Can resolve symptoms like noisy operation, wobbling parts, or loose knobs/assemblies
• Provides a reliable threaded connection when paired with the correct mating fastener

• One hex locknut (quantity: 1)

• Disconnect power and, if applicable, unplug appliance before starting any repair
• Use the correct wrench or socket size and tighten until snug—avoid overtightening
• If access requires disassembly, keep track of removed parts.

This convection fan blade replaces a damaged or worn blade to restore proper air circulation for more even baking and roasting in convection ovens. It mounts to the oven's convection motor and helps maintain consistent cooking temperatures. What it does:

• Circulates hot air across the oven cavity for even browning and faster cook times
• Replaces cracked, warped or missing blades that cause vibration or scraping noises
• Reduces hot/cold spots that lead to unevenly cooked food
• Helps the convection system maintain stable airflow for consistent results

• Disconnect power to the appliance and allow the oven to cool completely before beginning.
• Remove oven back panel or interior cover per your model's service instructions to access the fan assembly.
• Handle the blade carefully—edges may be sharp; secure blade to motor hub using the original fastener and correct orientation.
• If the fan motor or mounting hardware is damaged, inspect and replace those components as needed.

This 6mm acorn nut secures exposed threaded studs and protects threads while giving a finished appearance. It's a simple replacement fastener that restores proper fit and helps prevent snagging or corrosion on accessible assemblies. What it does:

• Caps and secures exposed studs or bolts to keep assemblies fastened
• Protects threads from damage, dirt, and moisture
• Restores a finished look to trim, panels, or hardware mounts
• Can stop rattling or looseness when a worn/ missing nut is the cause

• One 6mm acorn nut

• Use the correct 6mm socket or nut driver; tighten until snug—avoid overtightening
• Disconnect power and follow appliance safety procedures before working near electrical or moving components
• Inspect mating threads for damage and replace the mating fastener if stripped

Color: brown. Its total length is about 25 inches.
