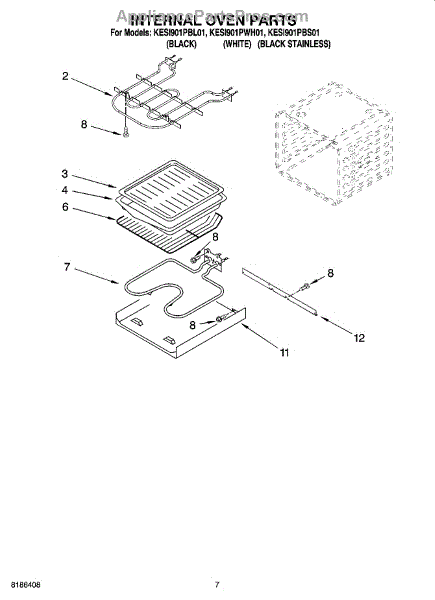

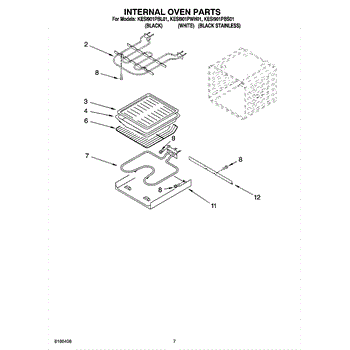

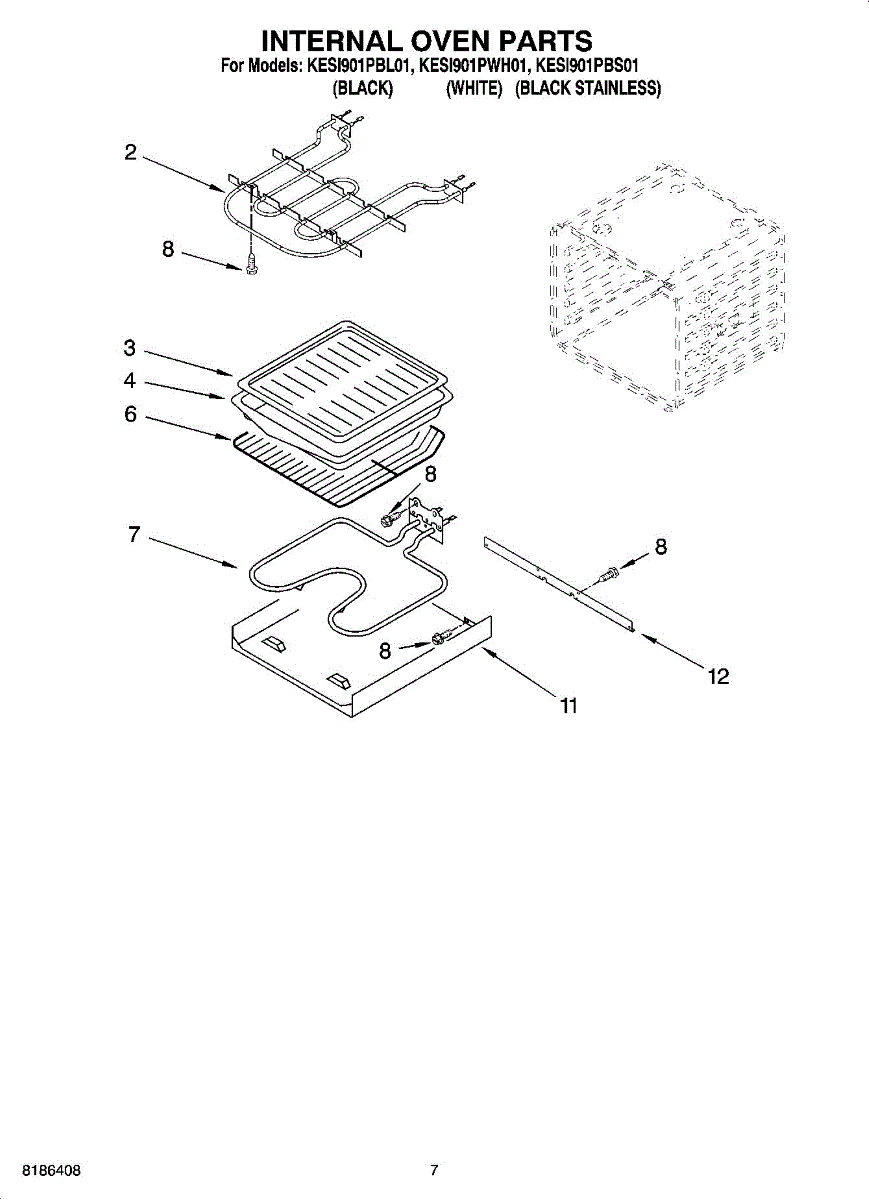

Parts for Kitchenaid KESI901PBL01: 05 - Internal Oven Parts

The Broil Element is an OEM part for Whirlpool ovens. It is responsible for providing the high heat necessary for broiling food, located at the top of the oven cavity. This element ensures even and consistent heating for broiling.

Over time, the broil element can wear out or become damaged. Causes of a bad broil element can include electrical issues, excessive use, or physical damage from cleaning or handling.

Symptoms of a bad Broil Element include:

• The broil function not working
• Uneven heating during broiling
• Visible damage or breaks in the element

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

For broil pan use WP3196076.

For broil pan grid use WP3195996.

The Oven Rack is an OEM part for Whirlpool ovens. This durable rack provides a stable surface for your cookware, allowing for optimal air circulation and even heat distribution. The rack measures about 24 inches wide by 16 inches deep.

Causes of a bad Oven Rack can include warping due to excessive heat, accumulation of rust or food debris, and physical damage which can affect its stability and performance.

Symptoms of a bad Oven Rack include:

• Difficulty sliding the rack in and out, indicating warping or damage.
• Uneven cooking or baking results due to poor placement or heat circulation.
• The rack failing to hold weight securely, posing a risk of dropping cookware.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Bake Element Kit is an OEM part for Whirlpool ranges. It is designed to provide the necessary heat for baking and roasting within the oven cavity. This element is located at the bottom of the oven and heats up when electricity passes through it, creating the right cooking environment for even and effective baking.

Causes of a bad bake element can include a burnout from age or overuse, where the element can physically break or develop hot spots resulting in uneven cooking. Corrosion or residue build-up can also impact its performance, leading to inadequate heating.

Symptoms of a bad Bake Element Kit include:

• Lack of heat production in the oven
• Uneven cooking or baking
• Visible damage to the element, such as blistering or splits

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Whirlpool element mounting screw is an OEM replacement part responsible for securely fastening the heating element to the designated location inside the oven. This part ensures that the heating element remains firmly attached to the appliance's structure. The element mounting screw is crafted from durable materials to withstand high temperatures to provide a reliable and stable connection between the heating element and the oven.

This part fixes the following symptoms:

• Loose or wobbly heating element
• Uneven heating inside the oven
• Excessive vibrations or rattling noises during operation

The Whirlpool element mounting screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
