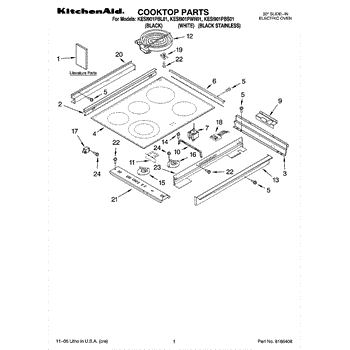

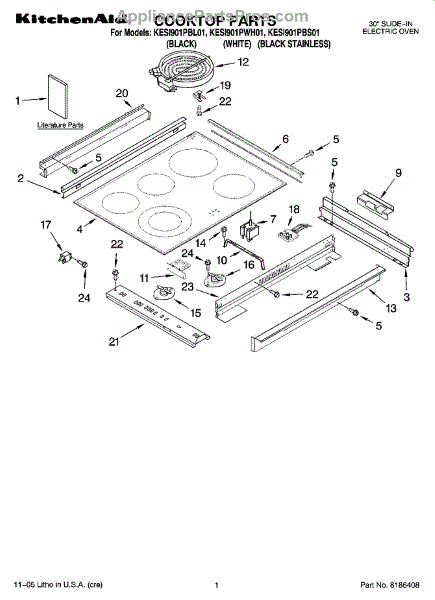

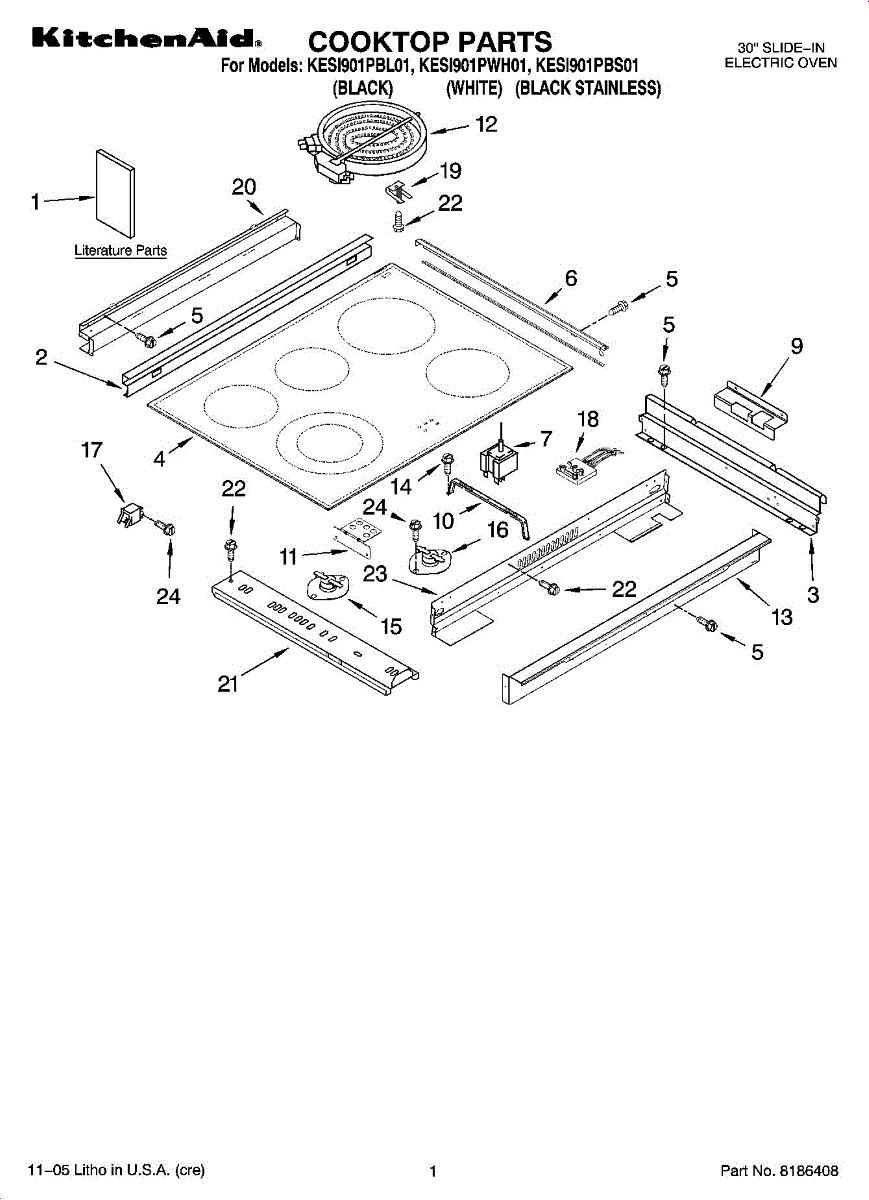

Parts for Kitchenaid KESI901PBL01: 01 - Cooktop Parts

This part has been discontinued and is no longer available

Color: Stainless steel. Rear

Color: White. Rear

Color: Black. Rear

Color: Stainless steel. Left hand side

Color: White. Left hand side

Color: Stainless steel. Right hand side

Color: Black. Left hand side

Color: White. Right hand side

Color: Black. Right hand side

For small, 6 inch element. Rating: 1500Watt. Typically for right rear element.

This infinite switch controls the variable heat settings for a cooktop surface burner so you can adjust cooking temperature smoothly and restore proper burner operation. What it does:

• Regulates power to a surface heating element so burners heat at selected settings
• Replaces a worn or failed control that causes burners to stay off or not heat properly
• Fixes burners that only work on one setting or won't respond to the knob
• Helps eliminate inconsistent or fluctuating burner temperatures

• Disconnect power to the range before starting any work to avoid electrical shock
• Accessible from the cooktop or back panel depending on model; remove panels carefully
• Note wire locations or take a photo before disconnecting; reconnect wires to matching terminals

For small element with rating of 1800Watt. Typically for right front or left rear element.

Right hand side

Left hand side

This warming surface element keeps food warm on the cooktop until you're ready to serve. It replaces a failed or weak warming zone so leftover dishes and pans stay at serving temperature. What it does:

• Provides low, steady heat for the designated warming zone on the cooktop
• Replaces an element that no longer heats or maintains warm temperature
• Restores even, consistent warming when the zone is cool or only partially heating
• Works with the cooktop's control switch and wiring to deliver regulated warmth

• Disconnect power to the appliance before inspecting or replacing the element
• Allow the cooktop and element to fully cool before attempting removal
• Replacement typically requires lifting or removing the cooktop; follow your model's service instructions

This surface heating element replaces a damaged or nonworking stovetop burner to restore even heat for cooking. It fits most compatible electric ranges and gives you a direct replacement for a faulty top burner element. What it does

• Provides the heating element that transfers heat to cookware on the cooktop
• Restores proper burner heat when an element no longer warms or cycles correctly
• Helps eliminate uneven cooking or intermittent on/off heating from a failed element
• Works as a direct replacement for the corresponding top/burner element on compatible ranges

• Disconnect power to the range before removing or installing the element to avoid electrical shock
• Pull the element straight out of the terminal block; avoid bending terminals or damaging the receptacle
• Inspect the burner receptacle for damage and replace if corroded or loose
• After installation, test the element on low and high settings and watch for proper operation

The Small Surface Element is an OEM part for Whirlpool electric ranges and cooktops. This heating element is responsible for providing heat to a specific area on the cooktop, typically used for smaller pots and pans. It ensures even and efficient heating, allowing for precise cooking control.

Causes of a bad surface element can include regular wear and tear, overheating, or electrical malfunctions. A malfunctioning surface element can result in uneven heating, longer cooking times, or no heat at all.

Symptoms of a bad small surface element include:

• The element not heating up
• Uneven or inconsistent heating
• Sparks or electrical arcing when the element is turned on
• Visible damage or discoloration on the element

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Surface Element is an OEM replacement part for Whirlpool ranges and cooktops. Specifically designed for the 7" cooktop element, the entire body of the Surface Element measures approximately 8" in diameter. It generates and distributes heat evenly across the cooktop.

Causes of a bad Surface Element can include electrical issues, such as wiring problems or a malfunctioning switch, and physical damage or wear that impairs its heating capability.

Symptoms of a bad Surface Element include:

• Inconsistent heating or failure to heat
• Visible damage to the element, such as burns or breaks
• The element not responding to the control switch
• Uneven cooking results due to fluctuating temperatures

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Large Surface Element is an OEM component for Whirlpool ranges. As a key heat source, it withstands significant thermal stresses each use for cooking tasks. This surface element measures approximately 10” in diameter.

Over time, microfractures may accumulate in the ceramic glass from repetitive heating/cooling cycles. Mineral deposits also build up on the surface, reducing heat transfer effectiveness.

Symptoms involve:

• Inconsistent or diminished heat from the designated zone
• Noticeable cracks, clouding or chips in the glass material
• Safety hazards if integrity is lost, exposing electrical/gas

The element is compatible also for select KitchenAid and Maytag appliances.

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

This fixed thermostat switches near 60C to control a heat-managed circuit—often the oven's cooling/blower fan. Replacing a failed unit restores proper fan cycling and helps protect the control area from excessive heat during and after cooking.

• Monitors temperature in the oven cabinet/control area and switches power based on heat level
• Cycles the cooling/blower fan on and off to manage cabinet temperature
• Helps safeguard electronic controls from heat buildup
• Failure may cause symptoms such as a fan that won't run, a fan that runs continuously, or an unusually hot control area

• Disconnect power at the breaker before servicing
• Access the thermostat per your model; it is typically mounted to a plenum or bracket near the oven cavity
• Move wires one at a time and mount the new thermostat flat against the surface for accurate sensing
• Restore power and verify the fan cycles during operation

Surface unit indicactor light.

This replacement tension spring restores proper tension and movement for the linked assembly, helping components return to position and operate smoothly. Designed to match the original spring's shape and function for reliable performance. What it does:

• Provides return tension for moving parts so doors, levers, or linkages operate correctly
• Helps maintain correct alignment and prevents sagging or binding
• Replaces worn or stretched springs that cause sluggish or uneven operation
• Common symptom: assembly won't return to its resting position or feels loose

• One tension spring

• Disconnect power (and water if applicable) before beginning any repair
• Use care handling springs under tension; wear eye protection
• Remove any retaining clips or brackets in the order shown in the service diagram

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

The Range Screw is an OEM part for Whirlpool ranges. It is a small but essential component used to secure various parts and panels of the range. It is designed to fit securely into pre-drilled holes, holding components tightly in place.

There are a few factors that can lead to a bad Range Screw. Over time, screws may become loose or stripped due to frequent use or inadequate tightening. Accidental cross-threading or overtightening can also damage the screw or the surrounding components.

Symptoms of a bad screw may include loose or wobbly parts, rattling noises during operation, or difficulty in keeping components securely attached. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
