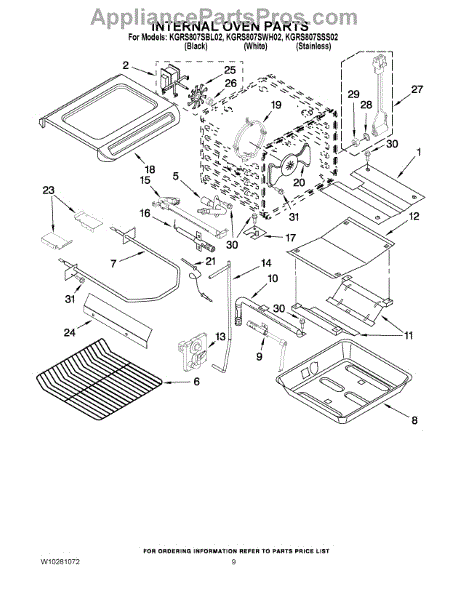

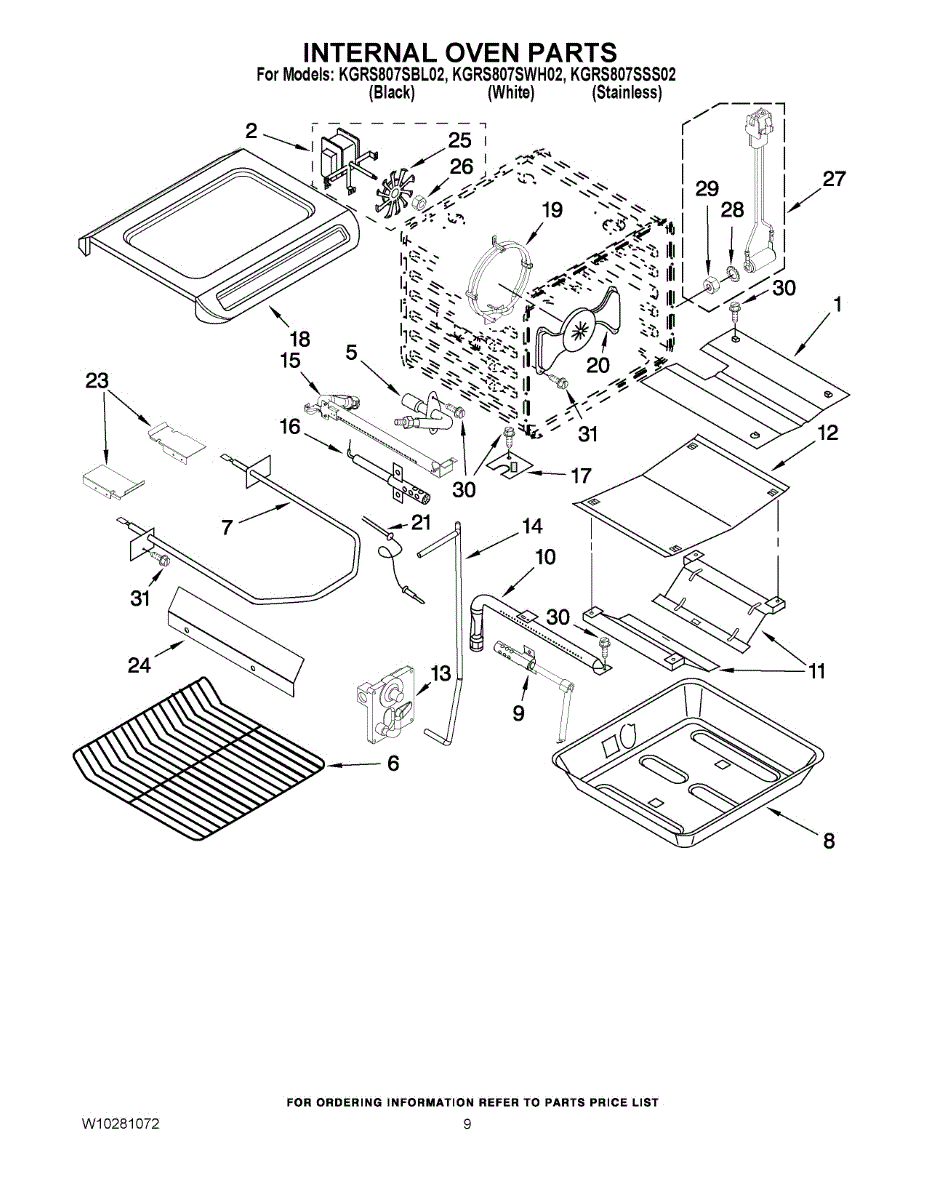

Parts for Kitchenaid KGRS807SBL02: 06 - Internal Oven Parts

This fan motor powers the cooling fan that moves air through your unit. Replacing a worn or noisy motor restores proper airflow to help maintain stable temperatures and reliable performance. What it does:

• Drives the fan blade to circulate air for cooling and temperature control
• Helps prevent component overheating caused by weak or stalled airflow
• Fixes: fan not running or starting intermittently
• Fixes: loud humming, grinding, or rattling from the fan area
• Fixes: longer run times or warm spots due to poor airflow

• Includes: 1 fan motor

• Disconnect power before servicing; allow moving parts to stop
• Note wire positions and motor orientation; take a photo for reference
• Transfer the existing fan blade and mounting hardware as needed
• After install, ensure the fan spins freely and no wiring contacts moving parts before restoring power

This fitting connects a hose or pipe to the appliance to create a secure fluid connection, helping prevent leaks and restore proper water or fluid flow. It's a small but essential plumbing connector used in supply and drain lines. What it does:

• Provides a sealed connection between appliance tubing and a fixture or valve
• Restores secure water/fluid flow when a worn or damaged connector is causing leaks
• Helps stop drips or intermittent flow caused by loose or corroded fittings
• Works as the link between rigid pipes and flexible hoses in supply/drain assemblies

• Turn off water supply and unplug the appliance before starting work
• Inspect mating tubing and seals; replace damaged hoses or O-rings as needed
• Hand-start threads to avoid cross-threading; tighten following OEM torque guidance
• If threads are present, use plumber's tape only where the OEM specifies; avoid over-tightening

Replace your worn, warped, or missing oven rack. This durable rack installs inside your oven cavity to hold cookware and allow proper air circulation.

Replacement oven rack support bracket for gas ranges. Installs inside the oven cavity to hold racks in position. Order if your support is bent, broken, or missing.

Replacement mounting screw for securing panels, brackets, and internal components. Needed when original screws are stripped, missing, or damaged during repair.

This spark electrode mounts at the bake burner and creates the ignition spark to light the oven flame. Replacing a worn or cracked electrode restores fast, reliable bake ignition and consistent oven temperatures.

• Generates a high-voltage spark to ignite gas at the bake burner
• Helps correct symptoms such as no heat on Bake, repeated clicking without ignition, or intermittent bake heating
• Wear, contamination, cracks, or misalignment of the tip can prevent proper ignition
• Restores dependable oven lighting and reduces delayed ignition

• Disconnect power and shut off gas supply before servicing
• Remove oven racks, oven bottom panel, and flame spreader to access the bake burner area
• Note wire routing and electrode position; transfer any bracket as needed and secure the new electrode
• Align the electrode tip close to the burner, then restore power and test ignition

This bake burner is the oven's main gas heating element for baking and roasting—replacing a worn or damaged burner restores proper oven heat and more consistent cooking results. Fits compatible gas wall and range ovens. What it does

• Provides the concentrated flame for the oven's bake function to heat the cooking cavity
• Restores normal baking temperatures when the original burner is warped, cracked, or rusted
• Can help eliminate uneven baking or failure to reach set temperature caused by a damaged burner
• Works with the oven's ignition system; burner does not include igniter unless listed separately

• One oven bake burner

• Disconnect electrical power and shut off the gas supply before beginning service
• Inspect and follow your model's service manual for proper burner alignment and mounting
• After installation, check for proper ignition and flame pattern; perform a gas leak check before use

Oven heat shield.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Oven won't heat but burners work? Clicking ignitor with no flame? This gas valve controls gas flow to bake and broil burners. Typical DIY install: 15-30 min.

The Spark Igniter is an OEM replacement part for Whirlpool gas ranges. Located inside the oven cavity it initiates combustion using high-voltage electricity. This is a broil igniter for the upper (broil) burner.

Causes of malfunction relate primarily to element degradation from extended heating cycles. Exposure to grease or other residue accumulation shortens the service life by insulating the hot surface.

Symptoms involve:

• Inability to ignite gas burners using the automatic igniter
• Safety issues arise requiring manual lighting with matches or lighters
• Difficulties baking or broiling without consistent flame generation
• Element replacement prevents further problems and safety hazards

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This broiler pan is the heat-safe tray used for broiling in the oven or broiler drawer. Replace a rusted, warped, or missing pan to maintain safe broiling and simpler cleanup by catching drippings.

• Holds food for broiling and supports correct placement under the broiler
• Collects drippings to help reduce flare-ups and smoke
• Restores safe use when the original pan is rusted, pitted, dented, or warped
• Seats on the designated rails/supports in the broiler drawer or compartment per model design

• Allow the appliance to cool completely; wear cut-resistant gloves
• Remove the broiler drawer or open the broiler compartment as your model requires
• Position the pan on the proper rails/supports and verify stable seating before use
• Follow your model's user guide for broiling setup and care

Oven not heating or baking unevenly? This bake element restores consistent heat for proper cooking. Common DIY repair, typically takes 30 minutes.

Probe indicator stays on or won't light when plugged in? This meat probe monitors internal food temperature. Easy DIY fix with video guide included.

Fix rattling or noisy oven fan with this convection fan blade. Restores proper airflow for even baking temperatures. Mounts directly on motor shaft.

Fix "meat probe shorted" or F3 E2 error codes with this oven temperature probe jack. Restores connection for probe-cook features in wall and range ovens.

Fix loose oven components with this lockwasher. Prevents fasteners from vibrating loose during heating cycles. Simple 5-minute installation.

Secure loose shafts or rattling components with this hex locknut. Prevents fasteners from loosening during operation. Simple hand-tool installation in minutes.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Heating element not working? This mounting screw securely fastens the heating element in place. A simple DIY repair that takes about 20 minutes to complete.
