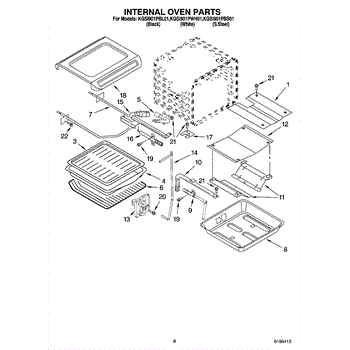

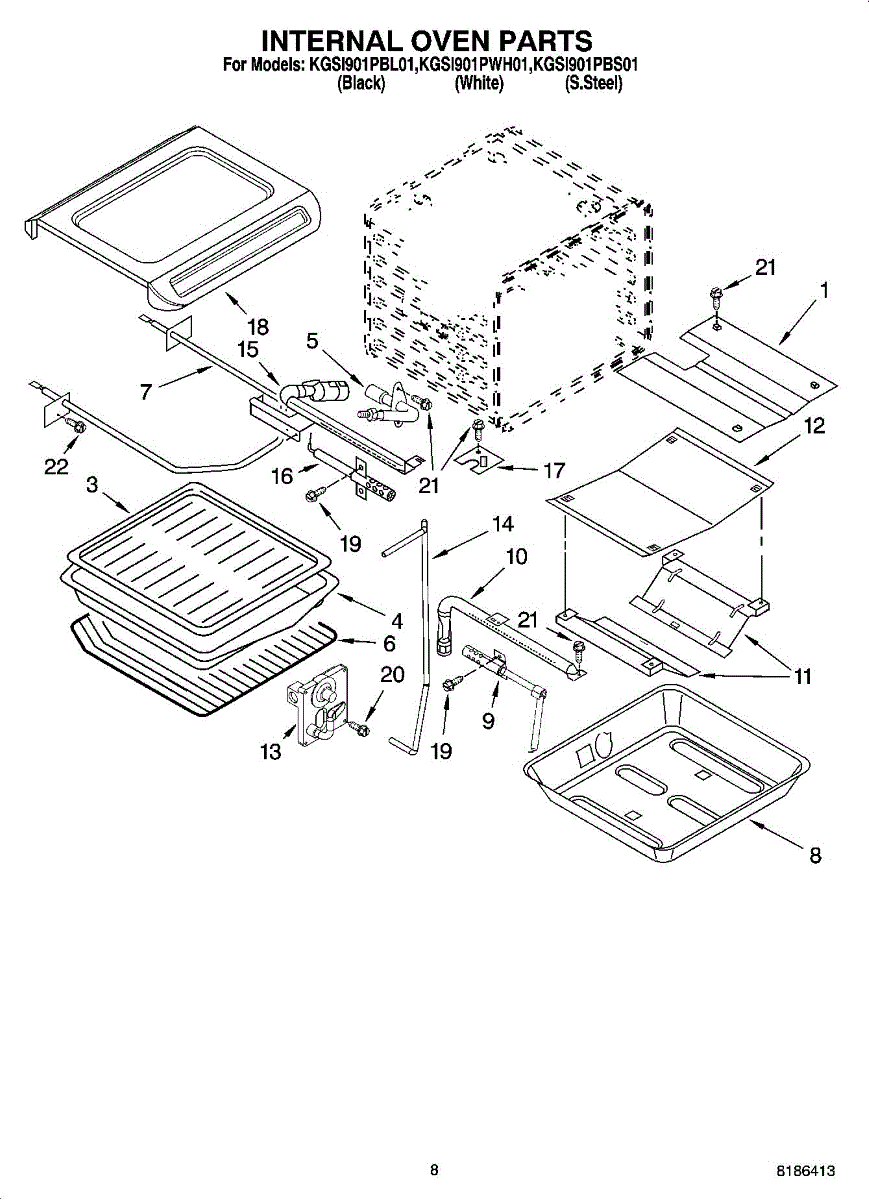

Parts for Kitchenaid KGSI901PBL01: 05 - Internal Oven Parts

For broil pan use WP3196076.

For broil pan grid use WP3195996.

This fitting connects a hose or pipe to the appliance to create a secure fluid connection, helping prevent leaks and restore proper water or fluid flow. It's a small but essential plumbing connector used in supply and drain lines. What it does:

• Provides a sealed connection between appliance tubing and a fixture or valve
• Restores secure water/fluid flow when a worn or damaged connector is causing leaks
• Helps stop drips or intermittent flow caused by loose or corroded fittings
• Works as the link between rigid pipes and flexible hoses in supply/drain assemblies

• Turn off water supply and unplug the appliance before starting work
• Inspect mating tubing and seals; replace damaged hoses or O-rings as needed
• Hand-start threads to avoid cross-threading; tighten following OEM torque guidance
• If threads are present, use plumber's tape only where the OEM specifies; avoid over-tightening

The Oven Rack is an OEM part for Whirlpool ovens. This durable rack provides a stable surface for your cookware, allowing for optimal air circulation and even heat distribution. The rack measures about 24 inches wide by 16 inches deep.

Causes of a bad Oven Rack can include warping due to excessive heat, accumulation of rust or food debris, and physical damage which can affect its stability and performance.

Symptoms of a bad Oven Rack include:

• Difficulty sliding the rack in and out, indicating warping or damage.
• Uneven cooking or baking results due to poor placement or heat circulation.
• The rack failing to hold weight securely, posing a risk of dropping cookware.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This oven burner supplies the bake flame in a gas oven, restoring consistent heat for baking and roasting. Replace a damaged or corroded burner to help recover even cooking and reliable ignition. What it does:

• Produces the primary bake flame for the oven cavity so food cooks evenly.
• Replaces a warped, cracked, or heavily corroded burner that can cause weak or uneven heating.
• Can resolve symptoms such as the oven not reaching temperature, uneven baking, or a burner that won't light reliably.
• Works with the oven's ignition and gas flow system; proper flame appearance is important for safe operation.

• Turn off gas supply and electrical power to the appliance before beginning any service.
• Remove oven racks and access panels to reach the burner; retain all fasteners.
• Inspect and clean the burner ports and ignition area during replacement; avoid bending or damaging the burner ports.

This oven burner supplies the bake flame in a gas oven, restoring consistent heat for baking and roasting. Replace a damaged or corroded burner to help recover even cooking and reliable ignition. What it does:

• Produces the primary bake flame for the oven cavity so food cooks evenly.
• Replaces a warped, cracked, or heavily corroded burner that can cause weak or uneven heating.
• Can resolve symptoms such as the oven not reaching temperature, uneven baking, or a burner that won't light reliably.
• Works with the oven's ignition and gas flow system; proper flame appearance is important for safe operation.

• Turn off gas supply and electrical power to the appliance before beginning any service.
• Remove oven racks and access panels to reach the burner; retain all fasteners.
• Inspect and clean the burner ports and ignition area during replacement; avoid bending or damaging the burner ports.

Oven heat shield.

This genuine replacement part is a gas valve for stoves. The gas valve is the part that attaches to the burners allowing for gas to flow through, creating the necessary conditions for the stove to produce a flame. If the stove is no longer sparking a flame, or the burners are not working properly, the gas valve of the stove will need to be replaced. Luckily, this is a relatively simple repair.To get started, make sure that the stove is unplugged. After that, remove the grates, burner caps, and burner bases from the stove. Then proceed to remove the control knobs from the stove. Using a screwdriver, remove the screws securing the orifice holders to the main top. Once removed, lift off the top panel of the stove. Lift the seal from the valve stem and detach the spark switch. Proceed to remove the tubing from the valve. After that, use a socket or nutdriver to unthread the screw to release the valve bracket from the manifold. Once this is complete, detach the old gas valve. Install the new valve by positioning it on the gas tubing and manifold. Thread the nut to reconnect the gas tubing to the valve. Proceed to reinstall the top panel of the stove. This OEM part is sold individually and is compatible with Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, and Roper brand stoves.

The Spark Igniter is an OEM replacement part for Whirlpool gas ranges. Located inside the oven cavity it initiates combustion using high-voltage electricity. This is a broil igniter for the upper (broil) burner.

Causes of malfunction relate primarily to element degradation from extended heating cycles. Exposure to grease or other residue accumulation shortens the service life by insulating the hot surface.

Symptoms involve:

• Inability to ignite gas burners using the automatic igniter
• Safety issues arise requiring manual lighting with matches or lighters
• Difficulties baking or broiling without consistent flame generation
• Element replacement prevents further problems and safety hazards

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This broiler pan is the heat-safe tray used for broiling in the oven or broiler drawer. Replace a rusted, warped, or missing pan to maintain safe broiling and simpler cleanup by catching drippings.

• Holds food for broiling and supports correct placement under the broiler
• Collects drippings to help reduce flare-ups and smoke
• Restores safe use when the original pan is rusted, pitted, dented, or warped
• Seats on the designated rails/supports in the broiler drawer or compartment per model design

• Allow the appliance to cool completely; wear cut-resistant gloves
• Remove the broiler drawer or open the broiler compartment as your model requires
• Position the pan on the proper rails/supports and verify stable seating before use
• Follow your model's user guide for broiling setup and care

This is a genuine replacement screw used to secure appliance components. It provides a simple, reliable fastener for reattaching panels, brackets, or assemblies so parts stay properly mounted and stable during operation. What it does

• Secures panels, trim, brackets or small assemblies in place
• Restores proper fastening where a missing or damaged screw causes loose parts or rattling
• Prevents movement that can lead to noise or misalignment of adjacent components
• Used wherever the original screw was removed or lost during repairs

• One replacement screw

• Use the matching screw head and thread engagement; do not force if it does not seat smoothly
• Tighten until snug—avoid overtightening to prevent stripping or cracking plastic parts
• Disconnect power before working on electrical appliances and follow basic safety precautions
• If original screw was rusted, check mating threads for damage before installing new fastener

The Screw is an OEM replacement part for Whirlpool ranges. This screw is used to secure various components of the range, ensuring that parts such as panels, brackets, or burners remain firmly in place during operation. It is designed to withstand the high-heat environment of a range, providing long-lasting durability.

Symptoms of a bad or missing Screw include:

• Loose or misaligned range components
• Rattling or unusual noises during operation
• Difficulty maintaining the range's structural stability

Causes of a failing or missing screw can include normal wear over time, accidental loss during maintenance or repairs, or damage from overtightening. Replacing faulty screws ensures the appliance remains safe and functional.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

The Whirlpool element mounting screw is an OEM replacement part responsible for securely fastening the heating element to the designated location inside the oven. This part ensures that the heating element remains firmly attached to the appliance's structure. The element mounting screw is crafted from durable materials to withstand high temperatures to provide a reliable and stable connection between the heating element and the oven.

This part fixes the following symptoms:

• Loose or wobbly heating element
• Uneven heating inside the oven
• Excessive vibrations or rattling noises during operation

The Whirlpool element mounting screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
