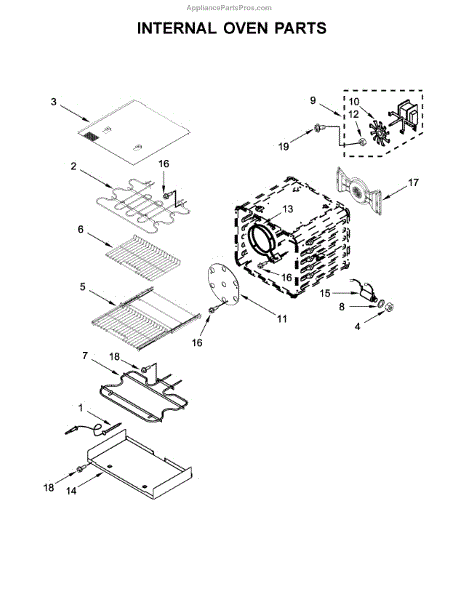

Parts for Kitchenaid KDRS467VBK01: Internal Oven Parts

Parts for Kitchenaid KDRS467VBK01: Internal Oven Parts

Location on Diagram
Part Description
Price & Availability
1
Best Seller
Product photo
5.0 (1)
By: Whirlpool
Part Number: WP9755542

Probe indicator stays on or won't light when plugged in? This meat probe monitors internal food temperature. Easy DIY fix with video guide included.

More
$75.95

IN STOCK
Ships Today Guaranteed
Add to Cart
2
Product photo
By: Whirlpool
Part Number: W10857686

If your oven won't broil or top heat is weak, this broil element restores upper heating. Fits into cavity and connects to existing terminals.

More
$147.28

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
3
By: Whirlpool
Part Number: W10160857
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

4
By: Whirlpool
Part Number: WP9755546

Secure loose shafts or rattling components with this hex locknut. Prevents fasteners from loosening during operation. Simple hand-tool installation in minutes.

More
$5.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
5
Product photo
5.0 (1)
By: Whirlpool
Part Number: W10570868
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

6
By: Whirlpool
Part Number: W10822069

Sliding oven rack for gas ranges. Replaces cracked, bent, or rusted racks. Heavy-duty steel construction supports bakeware at multiple positions.

More
$79.95

IN STOCK
Ships Today Guaranteed
Add to Cart
7
Product photo
By: Whirlpool
Part Number: W10860270

This bake element replaces the oven's lower heating element to restore normal baking heat and even cooking results. It fits compatible electric ovens and is a direct-replacement designed for safe, reliable operation. What it does:

  • Heats during bake cycles to provide consistent oven temperature for cooking and baking
  • Common fix when the oven won't heat or bake function fails
  • Replaces elements that are visibly damaged, blistered, or show open continuity
  • Helps eliminate cold spots and uneven baking when the element is functioning correctly
What's included:
  • One bake element
Install notes:
  • Disconnect power to the appliance at the breaker before starting work
  • Wear gloves and allow the oven to fully cool; access is typically from inside the oven or rear panel depending on model
  • Remove and replace carefully, reconnecting terminals securely and checking for proper operation before restoring regular use
  • If you see damage to mounting hardware or insulation, replace those parts as needed per service instructions

More
$85.95

IN STOCK
Ships Today Guaranteed
Add to Cart
8
By: Whirlpool
Part Number: WP9755547

Fix loose oven components with this lockwasher. Prevents fasteners from vibrating loose during heating cycles. Simple 5-minute installation.

More
$4.73

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
9
Product photo
By: Whirlpool
Part Number: W10860984

The Motor-Fan is an OEM component specifically designed for Whirlpool kitchen ranges. Located within the back wall of the oven cavity, the motor fan works to circulate air and remove excess moisture and smoke during the cooking process. Proper motor-fan functioning helps ensure efficient oven ventilation and performance.

Symptoms of a bad motor fan include:

  • Excessive smoke or moisture left in the oven after cooking
  • Oven taking longer to preheat and cook due to poor air circulation
  • Loud buzzing or grinding noises emanating from the fan

Causes of failure are normally wear and tear of motor windings or fan blade bearings from years of continuous use. Overheating can potentially reduce lifespan as well.

This OEM Whirlpool part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

More
$107.38

IN STOCK
Ships Today Guaranteed
Add to Cart
10
By: Whirlpool
Part Number: W10819914

Fixes uneven baking or roasting in your range. This convection fan circulates hot air for consistent cooking. Moderate DIY repair, typically 1 hour.

More
$50.57

IN STOCK
Ships Today Guaranteed
Add to Cart
11
By: Whirlpool
Part Number: W10261523
$25.19

IN STOCK
Ships Today Guaranteed
Add to Cart
12
By: Whirlpool
Part Number: W10794042

This retaining nut secures components on compatible Whirlpool appliances to restore proper fastening and reduce looseness. A simple replacement for stripped or missing nuts that helps stop rattling and keeps parts held in place. What it does:

  • Threads onto matching bolts or studs to fasten panels, brackets, or assemblies
  • Restores tight connections that can cause vibration, noise, or looseness when worn or missing
  • Commonly used where a small, serviceable nut is required for secure assembly
  • Helps prevent components from coming detached during normal use
What's included: One retaining nut Install notes:
  • Disconnect power and follow appliance-specific safety procedures before servicing
  • Use the correct size wrench or socket; start threads by hand to avoid cross-threading
  • Tighten securely but avoid overtightening to prevent damage to studs or mating parts
  • If threads are damaged, replace the mating stud or fastener as needed

More
$8.71

IN STOCK
Ships Today Guaranteed
Add to Cart
13
By: Whirlpool
Part Number: W11643125

This is a convection heating element for an oven, typically a circular or loop-shaped element located at the rear wall of the oven cavity near the convection fan. It provides even heat distribution when using the convection cooking mode. Replace this element if convection baking produces uneven results, the element shows visible damage or burn-through spots, or the convection mode fails to heat at all.

More
$64.70

IN STOCK
Ships Today Guaranteed
Add to Cart
14
By: Whirlpool
Part Number: W10160872
$46.96

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
15
Product photo
By: Whirlpool
Part Number: 8186589

Fix "meat probe shorted" or F3 E2 error codes with this oven temperature probe jack. Restores connection for probe-cook features in wall and range ovens.

More
$79.24

IN STOCK
Ships Today Guaranteed
Add to Cart
16
Best Seller
Product photo
4.6 (7)
By: Whirlpool
Part Number: WP4449154

Heating element not working? This mounting screw securely fastens the heating element in place. A simple DIY repair that takes about 20 minutes to complete.

More
$7.56

IN STOCK
Ships Today Guaranteed
Add to Cart
17
By: Whirlpool
Part Number: W10860133

Replacement convection oven baffle for electric ranges. This metal heat spreader directs airflow inside the oven cavity. Order now if yours is warped or damaged.

More
$97.85

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
19
Product photo
By: Whirlpool
Part Number: W10850807

Replacement mounting screw for securing panels, brackets, and internal components in ranges and ovens. Restores secure fastening when original screws are missing, stripped, or damaged.

More
$7.56

IN STOCK
Ships Today Guaranteed
Add to Cart
