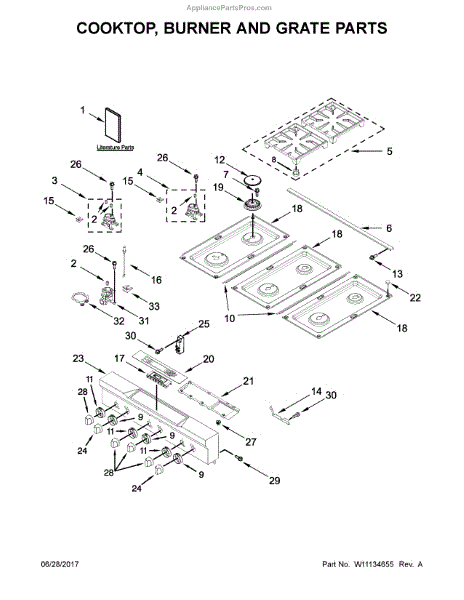

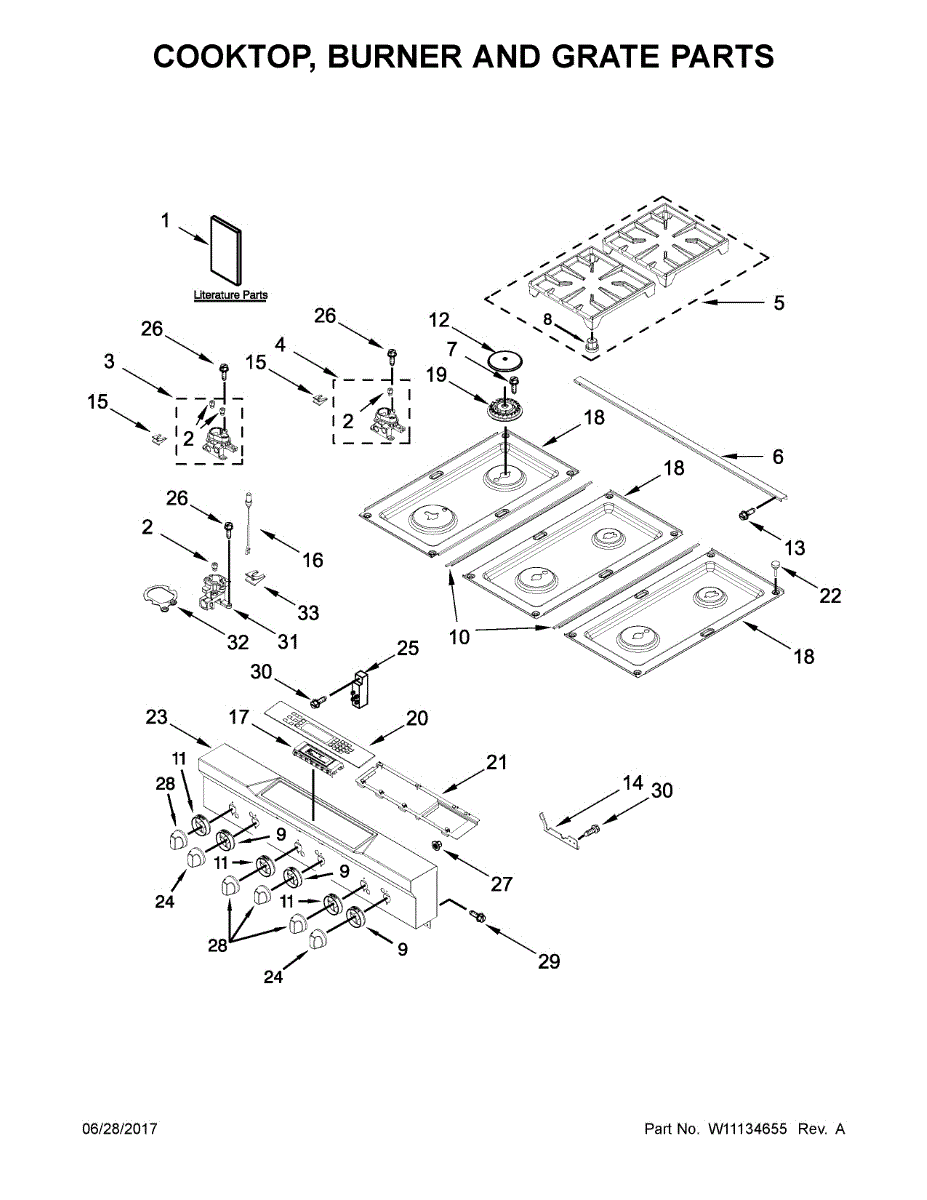

Parts for Kitchenaid KDRS467VBK01: Cooktop, Burner And Grate Parts

This orifice is the small, precision-opening nozzle that meters gas flow to a range or cooktop burner for proper flame performance. It helps restore steady ignition and consistent cooking heat when a burner is underperforming. What it does:

• Directs and meters gas to the burner to produce a stable flame
• Helps correct weak, uneven, or yellow flames caused by a worn or damaged nozzle
• Supports consistent burner output for predictable cooking results
• Works as the calibrated passage between the valve and burner head

• One orifice

• Install only after disconnecting gas supply and following appliance shutoff procedures
• Tighten to OEM torque recommendations and use thread sealant only where specified by manufacturer
• Test for leaks with a soap solution or approved gas leak detector before use

This orifice spud directs gas from the manifold into a range or oven burner for proper ignition and flame control. Replaces a worn or damaged spud to help restore reliable burner operation and consistent cooking heat. What it does:

• Fits between the gas manifold and burner tube to focus gas flow into the burner
• Helps maintain steady ignition and correct flame shape
• Commonly replaced when burners fail to light or flames are uneven
• Prevents gas leakage by providing a proper connection point for the burner tube

• Turn off gas supply and unplug the appliance before starting any repair
• Inspect surrounding seals and the burner tube for damage; replace if necessary
• Hand-start threads, then tighten securely — avoid overtightening

This orifice spud directs gas flow into the burner for consistent ignition and flame control. It restores proper burner performance so cooking heats evenly and burners light reliably. What it does:

• Seats the burner orifice to control gas flow to the burner
• Helps maintain a steady, even flame for consistent cooking
• Can resolve weak or uneven flames and burners that struggle to light
• Works as the sealed interface between the gas manifold and burner tube

• One orifice spud

• Turn off the gas supply and disconnect power before servicing
• Inspect surrounding seals and gaskets for damage and replace if necessary
• Use basic hand tools; avoid overtightening to prevent damage

This Holder (ORF) secures the related component in place to maintain proper alignment and reliable operation. Replacing a worn or broken holder restores stable mounting and prevents rattling or intermittent function. What it does:

• Secures the ORF component to the appliance chassis to keep parts aligned
• Prevents movement that can cause noise, misalignment, or intermittent operation
• Restores a solid mounting point if the original holder is cracked or broken
• Helps maintain proper spacing so adjacent parts operate without obstruction

• One holder (ORF)

• Disconnect power (and water if applicable) before starting repair
• Basic hand tools typically required; access may involve removing nearby panels
• Inspect surrounding clips and fasteners; replace if damaged to ensure secure fit

Replace worn or damaged surface grates with this grate kit to restore a sturdy, level cooking surface on your gas range or cooktop. It keeps pots and pans stable over the burners for safer, more consistent cooking.

• Supports cookware above the burners and provides a continuous cooking surface
• Helps keep pots and pans level to prevent rocking or tipping
• Replace if grates are cracked, warped, severely chipped, or missing feet/pads
• Can help address wobbly cookware, unstable placement, or uneven pan contact

• Turn all burners off and allow the cooktop to cool completely before handling grates
• Lift off old grates; clean the cooktop surface and burner caps while accessible
• Position the new grates in the proper locations; ensure all feet sit flat and any alignment features engage
• Test pan stability on each burner before cooking

This replacement mounting screw secures panels and small components on compatible Whirlpool appliances, restoring proper fit and reducing rattles or loose parts for a solid, finished appearance. What it does

• Fastens control panels, trim pieces, or internal brackets to the appliance chassis
• Helps stop panel vibration, rattling, or misalignment caused by missing or worn fasteners
• Restores secure attachment after disassembly for service or part replacement
• Simple hardware replacement that maintains original fit and function

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver or bit to avoid stripping the head
• Thread gently and stop when snug — do not overtighten to prevent damage to mating parts
• Keep removed hardware organized to ensure correct reassembly

The Grate Pad is an OEM replacement part for  Whirlpool gas ranges. This set of 4 pads is designed to fit securely underneath the grates above the burner pans. The grate pad works to protect the grates from scratches and prolong their service life. It also helps distribute heat evenly across cookware during cooking.

Causes of a bad grate pad can include soiling or staining that is not removable through normal cleaning. Exposure to high heat over many years could cause cracks or brittleness in the material.

Symptoms include:

• Scratches or pits appearing on the grate surface
• Warping of the pad shape makes secure fitting difficult
• The pad deteriorating or flaking off in pieces

This part is also compatible with Maytag, KitchenAid, Jenn-Air, and other gas ranges

This burner cap sits on top of the surface burner head to shape the flame and shield the head from spills. Replacing a damaged or missing cap helps restore even heating, reliable ignition, and the cooktop's original appearance.

• Covers the burner head and disperses flame for more even cooking
• Protects burner head and ports from food and liquid spills
• Helps maintain proper ignition and a steady blue flame
• Helps with symptoms like uneven/yellow flame, delayed ignition, or poor simmer

• Allow the cooktop to cool completely before handling
• Disconnect power and shut off gas
• Clean the burner head and clear ports before seating the cap
• Center the cap so it sits level and flush; misalignment can affect ignition and flame

This gas surface burner cap sits on top of the burner head to shape an even flame and shield the burner from spills. Replace a missing, chipped, or warped cap to restore proper flame pattern and appearance.

• Directs and evens the flame across the burner for consistent heating
• Shields the burner head and ports from spills and debris
• Helps promote reliable ignition when properly seated on the burner head
• Common signs it's needed: uneven or yellow flames, delayed ignition, flames lifting or noisy, visible chips/warping

• Ensure the cooktop/range is cool; disconnect power and shut off gas if working near igniters
• Lift off the old cap and clean the burner head/ports; do not enlarge or damage the ports
• Place the new cap on the matching burner, centered and seated flat; do not interchange sizes between burners
• Light the burner and confirm a steady, even blue flame; reseat the cap if the flame is uneven

This burner cap covers the auxiliary (small) gas burner on your cooktop or range. It shapes the flame for even heating and protects the burner head—helping restore reliable ignition and a clean, finished look.

• Sits on the auxiliary burner head to shape and contain the flame
• Promotes even heating and dependable ignition when properly centered
• Shields the burner head from spills and debris
• Replace if the original cap is missing, warped, chipped, or discolored
• Typical symptoms: uneven or yellow flame, delayed ignition or continuous clicking without lighting, weak heat on that burner

• Shut off gas and power; allow the surface to cool before servicing
• Lift off the old cap, clean the burner head, and place the new cap over the auxiliary burner
• Align any locating features so the cap sits flat and centered; misalignment can prevent ignition or cause a yellow flame

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This ignitor retaining clip secures the oven or range ignitor to the burner assembly so the ignitor stays properly positioned for reliable ignition. It's a small replacement part that restores proper ignitor mounting and alignment. What it does:

• Holds the oven/range ignitor in place on the burner assembly to maintain correct positioning
• Helps ensure consistent ignition by preventing the ignitor from shifting or coming loose
• Commonly replaced when the original clip is broken, bent, or missing
• Fits directly where the factory clip secures the ignitor to the burner housing

• Turn off power and gas supply to the appliance before starting any repair
• Access typically requires removing the oven burner or inner panel; follow the manufacturer service instructions
• Use appropriate tools to remove the old clip and secure the new clip without over-bending

This surface burner ignitor creates the spark that lights gas at a cooktop/range burner. Replacing a worn or cracked electrode restores quick, reliable ignition and helps prevent repeated clicking or failed lighting at that burner.

• Generates a high-voltage spark at the burner to ignite gas
• Common fix for a surface burner that won't light or takes many clicks to light
• Addresses visible cracks, chips, or burned ignition tip on the electrode

• Disconnect power and shut off gas supply before servicing; allow the appliance to cool
• Handle the ceramic insulator carefully; avoid touching the electrode tip
• Note wire routing and ensure a secure connection to the harness/spark module
• Position the electrode correctly relative to the burner head for consistent ignition

This user interface control board sits behind the oven's control panel, interpreting keypad inputs and driving the display. Replace it to restore responsive buttons, readable time/temperature, and reliable communication with the main oven control.

• Interprets keypad/touchpad signals and sends commands to the main control
• Powers and updates the clock, temperature, and status display
• Enables selection of bake, broil, clean, and temperature settings
• Common symptoms: unresponsive or intermittent keys, dim/blank display, random beeps or panel error codes, oven won't start though it has power

• Disconnect power at the breaker or unplug the appliance before servicing
• Use ESD protection; handle the board by the edges and avoid touching connector pins
• Note ribbon/wire orientation; transfer any brackets or overlays from the old board if needed
• After installation, restore power, set the clock, and test all keypad functions

This cooktop smooth-top surface replaces a damaged or worn cooktop on compatible electric ranges, restoring a flat cooking area for even heating and safer cookware contact. It keeps your range looking clean and functioning correctly. What it does:

• Provides a flat, easy-to-clean cooking surface for radiant or induction-style heating elements
• Restores proper contact between cookware and the heating element for consistent cooking
• Resolves visible cracks, chips, or deep scratches that can trap food or compromise safety
• Helps eliminate uneven heating or intermittent burner operation caused by a damaged surface

• Turn off power to the range at the circuit breaker before starting any repair
• Handle the glass surface carefully to avoid breakage; use proper lifting techniques
• Follow OEM instructions for alignment and fastener torque; avoid overtightening

This is a replacement cooktop top assembly that restores the cook surface and burner layout on compatible Whirlpool ranges. It replaces a damaged, cracked, or worn cooktop so you can safely resume normal cooking. What it does:

• Provides the finished cook surface and mounting for burners and controls
• Replaces cracked, warped, or cosmetically damaged cooktop tops
• Restores proper alignment and fit of burners and grates
• Helps eliminate steam or food intrusion from damaged surfaces

• Installation may require removing the range from its cavity and disconnecting power; disconnect electrical supply before servicing
• Handle the top carefully to avoid scratching or chipping; two people may be needed for safe handling
• Use manufacturer-recommended fasteners and follow OEM alignment references
• If replacing gas or electrical components attached to the top, verify seals and connections per OEM instructions

This cooktop glass surface is the smooth top replacement that restores a clean, even cooking area and holds burners and controls in place. It helps maintain safe, efficient stove operation and a finished look for the range. What it does

• Provides the finished glass cooking surface that supports burners and control components.
• Restores a sealed, easy-to-clean area for normal cooking use.
• Common replacement for cracked, chipped or heavily scratched tops that affect appearance or function.
• Helps prevent food and spills from reaching internal components when intact.

• Disconnect power (and gas if applicable) to the appliance before starting work.
• Handle the glass carefully—use gloves and eye protection to avoid cuts from edges or broken pieces.
• Installation may require removing burners, controls, and trim; keep screws and small parts organized.

This auxiliary burner head restores the small/simmer burner on a gas cooktop to proper flame shape and heat delivery, helping improve low-heat cooking control and consistent simmering. What it does:

• Directs and disperses gas to create a stable, even flame for the auxiliary (small) burner.
• Replaces damaged, warped or clogged burner heads that can cause uneven heating.
• Helps address weak, spotty or irregular flames on the small/simmer burner.
• Works with the burner cap and base to maintain correct flame pattern and efficiency.

• Turn off the appliance power and gas supply before servicing; follow all safety precautions.
• Remove the grate and burner cap, lift off the old burner head, then set the new head into place ensuring it seats correctly.
• After reinstalling the cap and grate, test for proper ignition and flame pattern; if you smell gas or see persistent problems, stop.

This burner head distributes gas evenly around the burner for a steady flame and reliable ignition. Replace a worn or clogged head to restore even heating, proper simmering, and consistent burner performance on your gas range or cooktop.

• Spreads gas from the orifice through ports to create an even, controlled flame ring
• Works with the burner cap and igniter/electrode for quick, consistent lighting
• Replace if ports are clogged, corroded, cracked, or warped causing uneven/yellow flames, delayed ignition, or popping
• Can help when the igniter sparks but the burner won't light or the flame won't spread

• Disconnect power and shut off gas; allow the surface to cool completely
• Remove the burner cap, then lift off the old head (some models use a retaining screw—reuse existing hardware)
• Align the new head with the orifice and igniter; seat fully and level
• Reassemble and test for proper ignition and flame; do not enlarge or clean ports with hard objects

This surface burner head distributes gas to the flame on a gas cooktop or range burner. Replacing a worn or clogged head helps restore even flame, reliable ignition, and consistent heat on the affected burner.

• Channels gas from the orifice through burner ports to create a uniform flame pattern under the cap
• Works with the spark electrode to ignite the gas
• A damaged or clogged head can cause: burner won't light or only clicks; uneven/yellow flame; weak or low heat on that burner
• Carbon buildup or corrosion on the head can lead to delayed ignition

• Disconnect power and shut off gas; allow the surface to cool completely
• Remove the burner cap; take off the old head and retain any mounting screws
• Align the new head over the orifice and spark electrode; seat flat and secure
• Clean burner ports and cap before testing for a steady, blue flame

This membrane switch touch pad is the user interface board that lets you select functions and control the appliance. It restores button response and readable control feedback for reliable operation. What it does:

• Registers user button presses and sends control signals to the main control board
• Replaces worn or unresponsive buttons that no longer activate cycles or settings
• Fixes intermittent or no-response issues from the console keypad
• Works with the console assembly to restore normal touch control behavior

• Disconnect power before servicing to avoid shock or damage
• Remove the console or control cover to access the keypad; handle gently to avoid tearing the membrane
• Verify connector seating and inspect the ribbon/harness for damage before installation
• No special programming typically required; test keypad function after reassembly

This rubber door bumper cushions and aligns the appliance door to prevent slamming and reduce vibration, helping doors close smoothly and protecting cabinet and door finishes from wear. What it does:

• Acts as a cushion between the door and cabinet, absorbing impact during closing
• Helps keep the door aligned and reduces rattling or vibration during use
• Prevents metal-to-metal contact that can cause chipping, scratching, or noise
• Commonly replaced when worn, flattened, cracked, or missing

• One rubber door bumper

• Remove power to the appliance before accessing the door area or hinges
• Usually presses into a hole or snaps into a mount on the door or cabinet; no special tools required for many models
• Inspect surrounding mounting boss for damage; replace if cracked or deformed

The Spark Module is an OEM prat for Whirlpool brand gas ranges. Within the gas control, it functions to generate high-voltage sparks igniting the standing pilot lights and burner flames.

Causes of failure include normal wear of internal electronics from extensive temperature cycling. Contamination or damage over time also disrupts proper sparking.

Symptoms of a faulty module include:

• Standing pilots failing to remain lit between use
• Burners not igniting when the control knob is turned
• Inconsistent burner output or shutdowns during cooktop usage

This Whirlpool replacement ensures temperature adjustments and cooking functions operate reliably. Compatible replacements are suitable for Whirlpool, Maytag, KitchenAid, and some Kenmore appliances as well.


This ground screw secures the appliance grounding conductor to the chassis for a reliable electrical ground connection, helping maintain safety and proper operation. It's a direct-fit fastener used where a dedicated ground screw is required. What it does

• Fastens the grounding conductor to the appliance frame to maintain a secure earth/ground connection.
• Helps prevent electrical shock and reduces risk of stray voltage on the chassis.
• Addresses symptoms like intermittent or absent grounding and loose or corroded ground connections.
• Used wherever the original equipment grounding screw has been lost, damaged, or corroded.

• Disconnect power at the breaker and unplug the appliance before starting any work.
• Only attach to designated grounding points on the chassis; ensure the mating surface is clean and free of paint or corrosion.
• Use the correct driver and moderate hand torque—do not overtighten to avoid stripping threads.

The Range Screw is an OEM part for Whirlpool ranges. It is a small but essential component used to secure various parts and panels of the range. It is designed to fit securely into pre-drilled holes, holding components tightly in place.

There are a few factors that can lead to a bad Range Screw. Over time, screws may become loose or stripped due to frequent use or inadequate tightening. Accidental cross-threading or overtightening can also damage the screw or the surrounding components.

Symptoms of a bad screw may include loose or wobbly parts, rattling noises during operation, or difficulty in keeping components securely attached. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This control knob replaces a worn, cracked, or missing push-on knob so you can turn and set appliance controls easily. It restores a secure grip and clear control feel for smooth operation. What it does:

• Fits onto the control shaft to allow manual selection of cycles, temperatures, or settings
• Restores a solid grip when the original knob is stripped, cracked, or loose
• Provides precise rotation and tactile feedback for accurate setting changes
• Helps prevent accidental setting changes by providing a secure fit

• Disconnect power to the appliance before servicing.
• This knob installs by pushing onto the splined control shaft; pull straight off to remove.
• Do not force; align splines before seating to avoid damage.
• If knob will not seat or the shaft is damaged, inspect/replace the control shaft or console components.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

The Clip is an OEM component specifically designed for Whirlpool free-standing electric ranges, securely fastening rack guides, and wire assemblies. This versatile clip features corrosion-resistant anchors and firm spring coils.

Causes of failure involve metal fatigue weakening the spring over years of expansion and contraction during heating, worn surfaces losing grip, or damaged barbs failing to anchor the racks correctly.

Symptoms of a bad cooking rack clip include:

• Loosened racks skewing pans off-center
• Detached wires posing burn and electrical hazards
• Rattling components exacerbating noises
• Difficulty transferring baking sheets without obstruction

Replace yours today with this genuine OEM Whirlpool clip. Compatible with KitchenAid, Maytag, and Jenn-Air appliances as well, its reinforced coils maintain constant tension for organized baking.

This bushing is a small sleeve-style bearing that supports a rotating shaft and reduces metal-to-metal wear for smooth operation. It helps restore proper alignment and quiet operation when the original bushing is worn. What it does

• Guides and supports a rotating shaft or spindle to reduce friction and wear
• Prevents metal-to-metal contact that can cause grinding or scoring
• Helps stop rubbing, squeaking, or vibration caused by a worn bearing surface
• Restores proper alignment of the moving component for smoother operation

• Inspect the mating shaft and housing for wear or damage before installing a new bushing
• Press or seat the bushing evenly; avoid hammering directly on the bushing surface
• Use proper tools and safety gear; disconnect power or unplug the appliance before service
• If surrounding parts are worn (shafts, seals, clips), replace them to prevent premature bushing failure

The Wire Harness is an OEM part for Whirlpool ranges. It is responsible for allowing for the safe and efficient ignition of the range's burners. The wire harness ensures a reliable and consistent flow of electrical current to the surface igniter. It provides the necessary spark to ignite the gas and initiate the cooking process.

A bad wire harness can occur due to wear and tear, exposure to heat, or accidental damage. If you notice symptoms such as the igniter not sparking, inconsistent ignition of the burners, or the range not heating up properly, it may be time to replace this part.

Symptoms of a bad wire harness include:

• Igniter not sparking
• Inconsistent ignition of the burners
• Range not heating up properly

Restore your Whirlpool range by replacing the faulty or damaged surface igniter wire harness with this genuine OEM part.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This wire harness connects and routes power and signals between electrical components to restore reliable electrical connections and control function. It's a direct-replacement wiring assembly used when factory wiring is damaged or intermittent. What it does

• Provides factory-style electrical connections between control, sensors, and motor/actuator circuits
• Replaces damaged, frayed, or burned wiring that can cause intermittent operation or loss of function
• Helps restore proper control response when broken or loose connector wires prevent component communication
• Maintains correct wire routing and connector fit for safe, reliable performance

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Compare the new harness to the original for connector type, length, and routing before installation
• Route wiring away from pinch points and heat sources; secure with existing clips or ties

This seal strip replaces a worn or damaged door gasket edge to restore a proper seal and help the appliance maintain temperature and operate quietly. It's a direct-fit service part used where a continuous seal is required. What it does:

• Provides a flexible barrier along the door/frame to reduce air leaks and heat/cold loss
• Helps prevent moisture buildup and improves energy efficiency when sealing is restored
• Reduces rattling and vibration caused by a compressed or torn seal edge
• Commonly replaced when the strip is torn, missing, or no longer adheres properly

• One seal strip

• Disconnect power to the appliance before servicing to avoid electrical or burn hazards
• Clean and dry the mounting surface; remove old adhesive or residue for best adhesion
• Align the strip carefully and press firmly; allow any adhesive to cure per manufacturer instructions

Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.

Size: 10-32 inch.
