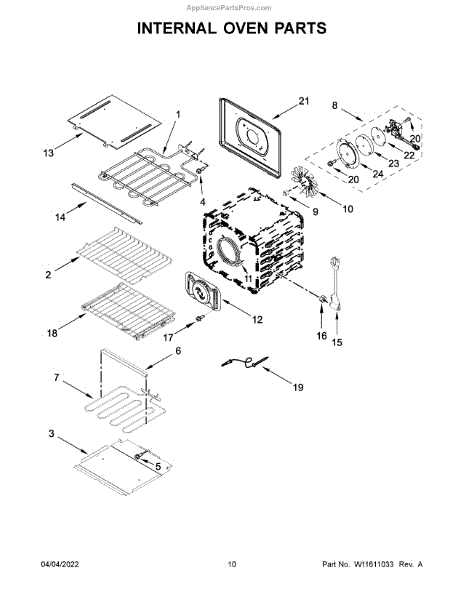

Parts for Kitchenaid KODE500EBS20: Internal Oven Parts

This replacement oven rack restores a safe, level surface for cookware inside your oven. It slides on the side rails to let you set the rack at the desired height and replace a bent, missing, or stuck rack.

• Provides a sturdy, level platform for pans, sheets, and dishes during baking or broiling
• Adjusts to multiple positions by sliding on the oven's side rails
• Common fix for racks that are warped, sagging, corroded, or no longer slide properly
• Helps prevent tipping by restoring a straight, properly fitting rack

• Allow the oven to cool completely and ensure all controls are off before servicing
• Pull the old rack forward to the stop, lift the front slightly to clear the stops, and remove
• Align the new rack with the desired guide rails, insert the rear first, and slide fully in
• Verify the rack sits level and engages the stops before use

This bake tray replaces a worn or damaged oven baking surface to help you cook and roast evenly while containing spills. Durable metal construction offers a flat, stable surface for pans, cookies and sheet-baked foods. What it does:

• Provides a flat baking surface for cookies, roasting and sheet-pan meals
• Replaces trays that are warped, dented, rusted or have a damaged cooking surface
• Helps contain drips and spills to protect the oven floor from messes
• Restores proper tray function when missing or broken

• Allow the oven to cool completely before removing or installing the tray
• No tools required — slide into oven racks or support ledges as designed
• Wear work gloves to avoid sharp edges on damaged trays

This is a replacement 8-18 screw used to secure components in compatible Whirlpool appliances. It provides a reliable, corrosion-resistant fastener to restore proper fit and function for panels and internal parts. What it does:

• Secures panels, brackets, or small internal components where an 8-18 thread is specified
• Restores loose or missing fasteners that cause rattling, misalignment, or improper sealing
• Matches OEM thread size and head profile for a correct fit when listed for your model
• Prevents further wear or damage caused by using the wrong screw size

• One screw as shown

• Turn off and unplug the appliance before starting any repair
• Use the proper screwdriver or driver bit to avoid stripping the head
• Do not overtighten—tighten until snug and components seat without play
• Replace only where the OEM specifies an 8-18 screw to ensure proper fit

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This support bracket secures internal appliance components to restore proper alignment and stable operation. A simple replacement for damaged or bent brackets to stop shifting parts and reduce noise. What it does:

• Holds and supports internal assemblies or panels to maintain correct positioning
• Prevents movement that can cause rubbing, rattling, or binding during operation
• Restores mounting points that may be cracked, bent, or worn
• Helps ensure smooth operation of connected parts by keeping them firmly anchored

• One support bracket

• Disconnect power (and water for dishwashers) before servicing
• Remove any panels or racks necessary to access the bracket; keep fasteners for reuse unless replacement specified
• Use basic hand tools; avoid over-tightening fasteners to prevent stripping or cracking

The Bake Element is an OEM part for Whirlpool ranges. This part provides the necessary heat for baking by generating and distributing heat evenly throughout the oven cavity.

Common causes of a bad bake element include wear and tear from frequent use, electrical faults, or physical damage from impacts or spills.

Symptoms of a bad Bake Element include:

• The oven not heating up or taking too long to reach the desired temperature
• Uneven baking results
• Visible damage such as burns, blisters, or breaks on the element
• The element not glowing red when turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This surface element replaces a damaged or worn cooktop burner to restore even, high-heat cooking performance. Designed for electric ranges, it provides a reliable heating zone for pots and pans. What it does:

• Heats cookware for boiling, frying and simmering when energized
• Replaces an element that fails to heat, heats intermittently, or shows burn marks
• Provides consistent surface temperature across the cooking zone
• Matches the OEM shape and wattage for proper fit and performance

• Disconnect power to the range at the breaker before servicing
• Handle the element and surrounding ceramic/glass carefully to avoid cracking
• Inspect and reuse or replace the support receptacle/connector if damaged

This convection baffle directs hot airflow inside the oven for more even cooking and protects the convection fan assembly. Replaces a damaged or missing baffle to restore proper air distribution and reduce rattling. What it does

• Channels hot air from the convection fan for consistent baking and roasting
• Helps keep food and debris away from the fan and heating elements
• Reduces fan noise caused by loose or broken baffles
• Can improve temperature consistency when the convection system is in use

• One convection baffle

• Always disconnect power (unplug or switch off circuit breaker) before servicing the appliance
• Remove oven racks and any interior trim needed to access the fan housing for safe installation
• Inspect mounting points and replace any stripped fasteners for a secure fit

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

This sliding oven rack restores smooth, stable access to cookware in your range or wall oven. Replace a bent, missing, or sticky rack so pans glide out easily for checking, basting, and safer removal of hot dishes.

• Provides a gliding shelf for loading and unloading cookware
• Helps improve access to dishes without reaching deep into a hot oven
• Common signs it's needed: rack won't slide smoothly, binds or sticks, is warped/bent, or is missing
• Restores full oven capacity and convenient use of designated rack positions

• Allow the oven to cool completely before installing; wear gloves to protect hands
• Remove the old rack; identify the correct rail position in your oven cavity
• Insert the new rack in the guides with the proper front/back orientation
• Slide in and out to confirm smooth travel before heating the oven; for any self-cleaning precautions related to racks

Color: brown. Its total length is about 25 inches.

This replacement screw fastens appliance panels and small internal components to restore secure mounting and reduce rattling or movement. It's a direct-replacement style fastener used where factory screws have become missing, worn, or damaged. What it does:

• Secures panels, brackets and accessory parts in their original mounting locations.
• Restores proper fit to reduce vibration, rattling or loose covers.
• Replaces stripped, rusted, or missing screws that prevent proper alignment.
• Small, low-profile fastener intended for factory thread and hole sizes.

• Disconnect power and water before starting repairs.
• Use the correct screwdriver or bit to avoid stripping the head.
• Tighten until snug; avoid over-tightening to prevent thread damage.
• Keep small parts away from children and pets during installation.
