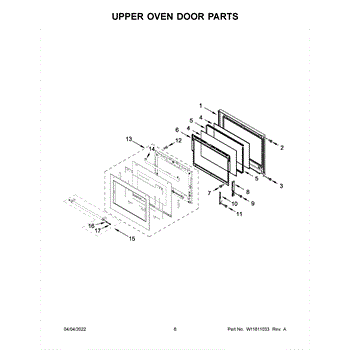

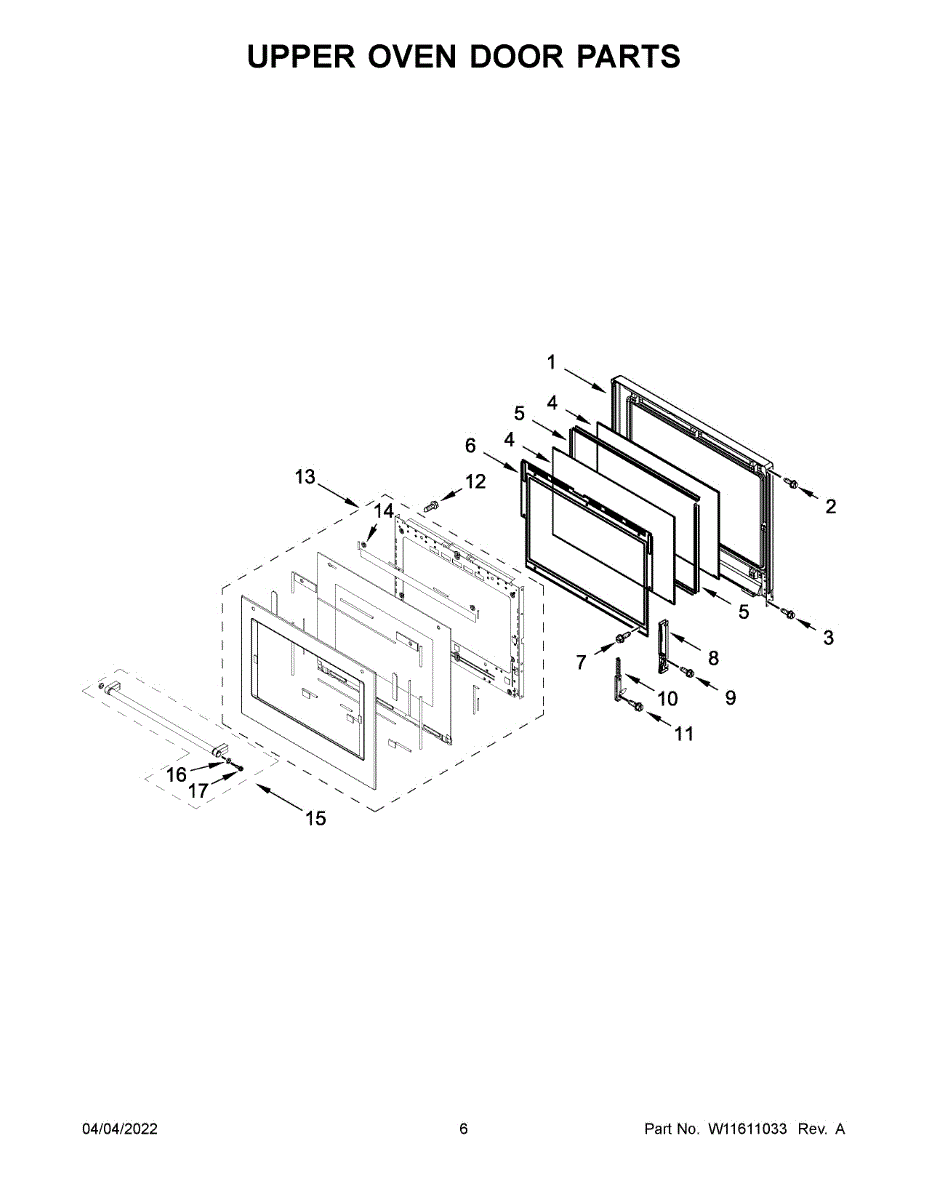

Parts for Kitchenaid KODE500EBS20: Upper Oven Door Parts

Replacement screw for range and oven assemblies. Secures panels, brackets, and internal components. Order if original is stripped, missing, or damaged.

Replace cracked, shattered, or broken outer door glass on your wall oven. Heat-resistant glass panel installs on oven door exterior for visibility.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This factory fastener secures components inside your appliance, keeping panels, brackets, and assemblies properly attached. Replacing a worn, stripped, or missing screw restores a tight fit and helps prevent vibration, rattling, and misalignment.

• Fastens parts to frames, panels, or brackets as specified in your model's parts diagram
• Helps maintain alignment and reduce vibration/rattling during operation
• Replace when the original screw is missing, corroded, stripped, or no longer holds
• Direct OEM hardware for the designated locations on applicable models

• Disconnect power; shut off gas/water if applicable. Allow hot surfaces to cool.
• Use the correct driver size; start threads by hand to avoid cross-threading.
• Tighten until snug—do not overtighten, especially into plastic or thin sheet metal.
• If a mating clip, insert, or nut is damaged, replace that hardware per your model diagram.

This door hinge secures and guides a refrigerator door, restoring proper alignment and smooth opening and closing. It replaces a worn or damaged hinge to reduce sag, rubbing, or uneven door gaps for improved sealing and operation. What it does:

• Provides a pivot point to support the refrigerator door and maintain proper alignment
• Restores even door gaps to help the gasket seal correctly and reduce cold air loss
• Eliminates rubbing, binding, or door sag caused by a worn or bent hinge
• Helps prevent additional wear on door components by stabilizing movement

• Designed for direct replacement; part number matches your unit before ordering
• Use basic hand tools; support the door while removing/installing the hinge to prevent injury or damage
• Disconnect power and remove stored items from the door if work could shift contents

This 10-32 x 3/8 machine screw secures appliance components. It keeps panels, brackets, and trim firmly attached so everything stays aligned and quiet during operation.

• Fastens metal parts using a 10-32 thread in pre-tapped holes or with a matching 10-32 nut
• Maintains proper alignment of panels, brackets, and trim to reduce vibration and rattling
• Replace if the original screw is missing, stripped, rusted, or damaged
• Using the correct hardware helps restore a secure, factory-tight fit

• Disconnect power; shut off gas supply if applicable. Allow the appliance to cool completely before servicing
• Note screw locations/lengths and replace like-for-like
• Start threads by hand to avoid cross-threading; snug with the appropriate driver—do not overtighten
• If the receiving threads are damaged, repair or replace the mating component before installing

This flat washer is a direct-replacement fastening washer that restores proper spacing and fastening for appliance panels and components. It helps re-secure loose hardware so assemblies sit and operate as intended. What it does:

• Provides a smooth bearing surface for bolts and screws to distribute load
• Helps keep fasteners tight to prevent wobble or loose panels
• Restores correct spacing and alignment between mating parts
• Can reduce vibration-related noise when worn or missing

• One replacement flat washer

• Disconnect power and water before starting repairs
• Use the correct size socket or driver to remove and reinstall fasteners
• Inspect mating fastener and surrounding parts for wear; replace if damaged
• Tighten hardware securely but avoid overtightening which can deform the washer

Secures panels, trim, and brackets in refrigerators, ranges, ovens, and microwaves. Replace if missing, stripped, or damaged during repairs or maintenance.
