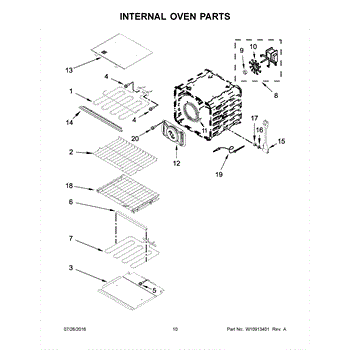

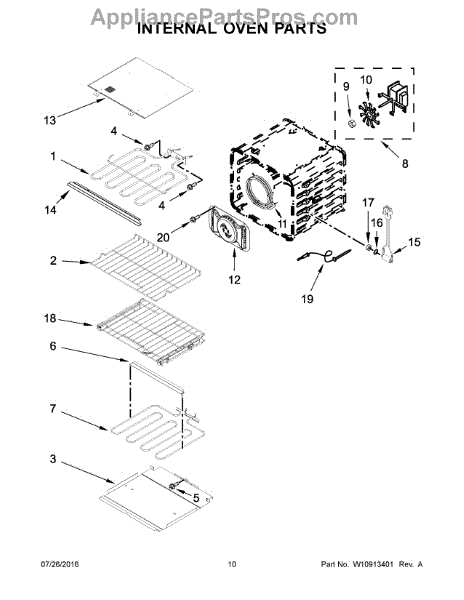

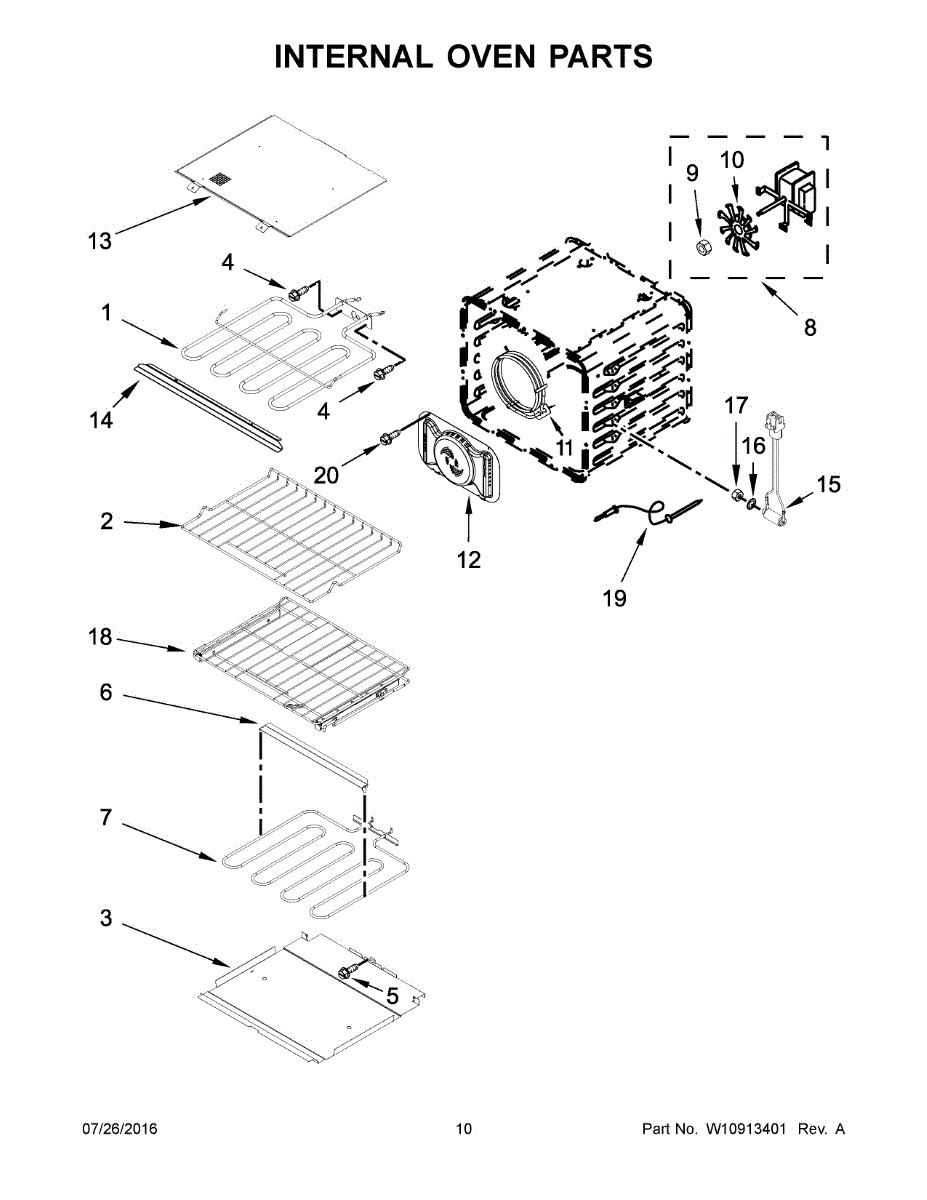

Parts for Kitchenaid KODE507EBS02: 06 - Internal Oven Parts

This broil element provides the intense top heat your electric oven needs for broiling and finishing dishes. Replacing a failed element restores consistent top browning when the broiler no longer heats or heats unevenly.

• Heats from the top of the oven cavity during broil to sear and brown foods
• Replaces a burned-out, shorted, or physically damaged element
• Symptoms: broiler won't heat, intermittent heating, uneven top browning, or visible blistering/breaks

• Disconnect power at the breaker before servicing; allow the oven to cool completely
• Remove oven racks; support the element while removing mounting screws and gently pull it forward to access terminals
• Transfer wires one at a time to the new element; ensure tight connections and that terminals do not touch metal surfaces; restore power and test broil

Replacement oven rack restores a stable cooking surface and allows easy access to food. It provides secure support for cookware and slides smoothly on oven rack guides so you can load and remove dishes safely. What it does:

• Holds cookware and bakeware inside the oven so pans sit level during baking and roasting.
• Slides in and out on factory rack guides for easy loading and checking food.
• Replace if the rack is bent, warped, sagging, or has a damaged finish that interferes with use.
• Helps prevent cookware from tipping or shifting while you remove hot items.

• Allow the oven to cool completely before installing or removing racks to avoid burns.
• Slide the rack into the desired set of guides until it seats fully and sits level.
• No tools are typically required; inspect rack guides and supports for damage before use.
• If the rack rubs, jams, or won't seat properly, check the oven guides.

This bake tray replaces a worn or damaged oven baking surface to help you cook and roast evenly while containing spills. Durable metal construction offers a flat, stable surface for pans, cookies and sheet-baked foods. What it does:

• Provides a flat baking surface for cookies, roasting and sheet-pan meals
• Replaces trays that are warped, dented, rusted or have a damaged cooking surface
• Helps contain drips and spills to protect the oven floor from messes
• Restores proper tray function when missing or broken

• Allow the oven to cool completely before removing or installing the tray
• No tools required — slide into oven racks or support ledges as designed
• Wear work gloves to avoid sharp edges on damaged trays

This is a replacement 8-18 screw used to secure components in compatible Whirlpool appliances. It provides a reliable, corrosion-resistant fastener to restore proper fit and function for panels and internal parts. What it does:

• Secures panels, brackets, or small internal components where an 8-18 thread is specified
• Restores loose or missing fasteners that cause rattling, misalignment, or improper sealing
• Matches OEM thread size and head profile for a correct fit when listed for your model
• Prevents further wear or damage caused by using the wrong screw size

• One screw as shown

• Turn off and unplug the appliance before starting any repair
• Use the proper screwdriver or driver bit to avoid stripping the head
• Do not overtighten—tighten until snug and components seat without play
• Replace only where the OEM specifies an 8-18 screw to ensure proper fit

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This support bracket secures internal appliance components to restore proper alignment and stable operation. A simple replacement for damaged or bent brackets to stop shifting parts and reduce noise. What it does:

• Holds and supports internal assemblies or panels to maintain correct positioning
• Prevents movement that can cause rubbing, rattling, or binding during operation
• Restores mounting points that may be cracked, bent, or worn
• Helps ensure smooth operation of connected parts by keeping them firmly anchored

• One support bracket

• Disconnect power (and water for dishwashers) before servicing
• Remove any panels or racks necessary to access the bracket; keep fasteners for reuse unless replacement specified
• Use basic hand tools; avoid over-tightening fasteners to prevent stripping or cracking

The Bake Element is an OEM part for Whirlpool ranges. This part provides the necessary heat for baking by generating and distributing heat evenly throughout the oven cavity.

Common causes of a bad bake element include wear and tear from frequent use, electrical faults, or physical damage from impacts or spills.

Symptoms of a bad Bake Element include:

• The oven not heating up or taking too long to reach the desired temperature
• Uneven baking results
• Visible damage such as burns, blisters, or breaks on the element
• The element not glowing red when turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Motor-Fan is an OEM component specifically designed for Whirlpool kitchen ranges. Located within the back wall of the oven cavity, the motor fan works to circulate air and remove excess moisture and smoke during the cooking process. Proper motor-fan functioning helps ensure efficient oven ventilation and performance.

Symptoms of a bad motor fan include:

• Excessive smoke or moisture left in the oven after cooking
• Oven taking longer to preheat and cook due to poor air circulation
• Loud buzzing or grinding noises emanating from the fan

Causes of failure are normally wear and tear of motor windings or fan blade bearings from years of continuous use. Overheating can potentially reduce lifespan as well.

This OEM Whirlpool part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This retaining nut secures components on compatible Whirlpool appliances to restore proper fastening and reduce looseness. A simple replacement for stripped or missing nuts that helps stop rattling and keeps parts held in place. What it does:

• Threads onto matching bolts or studs to fasten panels, brackets, or assemblies
• Restores tight connections that can cause vibration, noise, or looseness when worn or missing
• Commonly used where a small, serviceable nut is required for secure assembly
• Helps prevent components from coming detached during normal use

• Disconnect power and follow appliance-specific safety procedures before servicing
• Use the correct size wrench or socket; start threads by hand to avoid cross-threading
• Tighten securely but avoid overtightening to prevent damage to studs or mating parts
• If threads are damaged, replace the mating stud or fastener as needed

This surface element replaces a damaged or worn cooktop burner to restore even, high-heat cooking performance. Designed for electric ranges, it provides a reliable heating zone for pots and pans. What it does:

• Heats cookware for boiling, frying and simmering when energized
• Replaces an element that fails to heat, heats intermittently, or shows burn marks
• Provides consistent surface temperature across the cooking zone
• Matches the OEM shape and wattage for proper fit and performance

• Disconnect power to the range at the breaker before servicing
• Handle the element and surrounding ceramic/glass carefully to avoid cracking
• Inspect and reuse or replace the support receptacle/connector if damaged

This convection baffle directs hot airflow inside the oven for more even cooking and protects the convection fan assembly. Replaces a damaged or missing baffle to restore proper air distribution and reduce rattling. What it does

• Channels hot air from the convection fan for consistent baking and roasting
• Helps keep food and debris away from the fan and heating elements
• Reduces fan noise caused by loose or broken baffles
• Can improve temperature consistency when the convection system is in use

• One convection baffle

• Always disconnect power (unplug or switch off circuit breaker) before servicing the appliance
• Remove oven racks and any interior trim needed to access the fan housing for safe installation
• Inspect mounting points and replace any stripped fasteners for a secure fit

The Heat Shield is an OEM part for Whirlpool wall ovens and ranges. It serves to insulate internal components from high temperatures generated during cooking cycles.

Causes of a bad heat shield failure include cracks or charring of the insulating material from prolonged exposure to intense heat over many years.

Symptoms of a bad heat shield include:

• Premature failure of electronic boards or wiring near openings
• Warping or deformation of surrounding plastic parts
• Temperature sensor errors or inconsistent oven operations
• Increased energy usage without adequate heat deflection

Replacing this OEM part sustains reliable performance and extends the life expectancies of surrounding parts. Compatible also with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, and Kenmore wall ovens.

This jack probe is a small electrical connector that provides a secure signal or power connection between wiring harnesses and appliance components, helping restore reliable circuit contacts and proper function. What it does

• Provides a stable electrical connection between harness leads and a mating component or board
• Restores intermittent or open circuits that can cause component failure or erratic operation
• Commonly linked to symptoms such as intermittent power to a component, failures to start, or fault codes related to open connectors
• Simple replacement cures connection-related faults when the original connector is damaged or corroded

• One jack probe electrical connector

• Always unplug the appliance or disconnect power at the breaker before servicing
• Verify connector orientation and secure seating; improper seating may cause intermittent faults
• Inspect mating pins and surrounding wiring for damage before installing; replace any damaged wiring or terminals

A hex locknut used to secure rotating shafts and threaded fasteners on compatible appliances. Small but critical, it keeps components held firmly in place to prevent loosening during normal operation. What it does:

• Secures shafts, pulleys, or control components to prevent axial movement
• Stops parts from working loose due to vibration or regular use
• Can resolve symptoms like noisy operation, wobbling parts, or loose knobs/assemblies
• Provides a reliable threaded connection when paired with the correct mating fastener

• One hex locknut (quantity: 1)

• Disconnect power and, if applicable, unplug appliance before starting any repair
• Use the correct wrench or socket size and tighten until snug—avoid overtightening
• If access requires disassembly, keep track of removed parts.

Color: brown. Its total length is about 25 inches.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.
