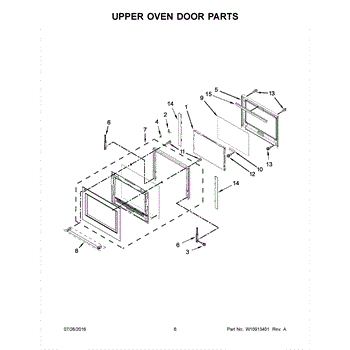

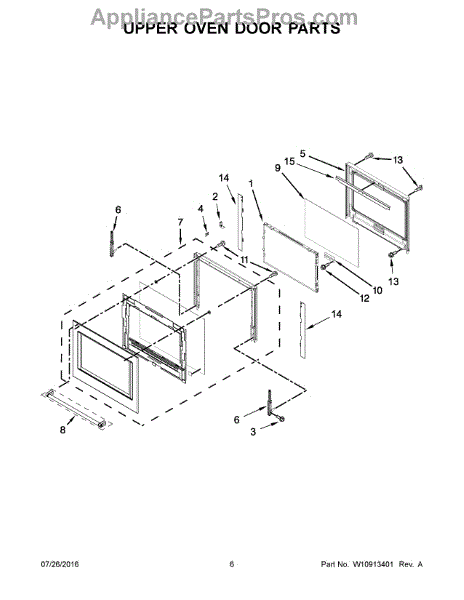

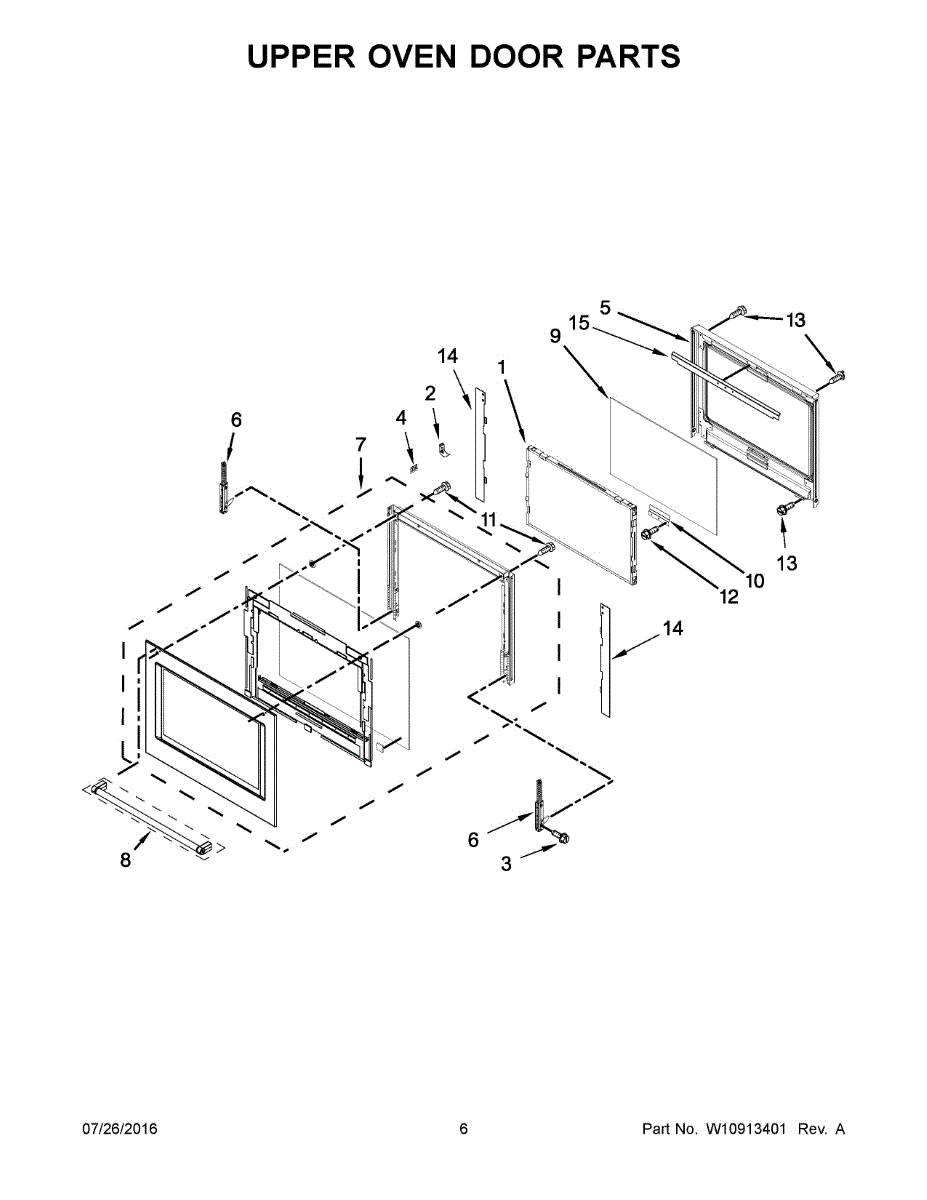

Parts for Kitchenaid KODE507EBS02: 04 - Upper Oven Door Parts

Sealed, multi-pane glass window pack assembly that installs in your oven door. Replace when glass is cracked, broken, cloudy, or damaged.

Secures oven glass panel in place and prevents movement or rattling. Replace this bracket if cracked, broken, or missing to stabilize glass and restore fit.

This 10-32 x 3/8 machine screw secures appliance components. It keeps panels, brackets, and trim firmly attached so everything stays aligned and quiet during operation.

• Fastens metal parts using a 10-32 thread in pre-tapped holes or with a matching 10-32 nut
• Maintains proper alignment of panels, brackets, and trim to reduce vibration and rattling
• Replace if the original screw is missing, stripped, rusted, or damaged
• Using the correct hardware helps restore a secure, factory-tight fit

• Disconnect power; shut off gas supply if applicable. Allow the appliance to cool completely before servicing
• Note screw locations/lengths and replace like-for-like
• Start threads by hand to avoid cross-threading; snug with the appropriate driver—do not overtighten
• If the receiving threads are damaged, repair or replace the mating component before installing

Secures oven door glass to the door assembly, maintaining stability and proper seal. Replace if worn or broken to restore door alignment. Verify fit with your model.

This is the inner door frame and glass liner assembly that forms the interior-facing panel of the oven door. It provides structural support for the door glass and helps contain heat within the oven cavity. Replace this assembly if the inner door glass is cracked or shattered, the frame is warped or damaged, or if heat is escaping around the door during use.

This door hinge secures and pivots the refrigerator door so it opens and closes smoothly, restoring proper door alignment and seal for reliable cooling performance. What it does:

• Supports the refrigerator door and provides a smooth pivot point for opening and closing
• Helps maintain proper door alignment to ensure a tight seal and consistent internal temperature
• Can prevent or correct door sag, rubbing, or uneven gaps
• Reduces noise or sticking that occurs when the hinge is worn or damaged

• Disconnect power to the appliance before attempting repairs and work with the door supported to prevent dropping
• Use appropriate tools to remove and reinstall hinge fasteners; keep track of any washers or shims
• Verify door alignment and gasket seat after installation; adjust hinge position as needed before fully tightening
• If other hinge hardware is worn or damaged, replace those components to ensure proper function

Black stainless steel outer door glass panel for wall ovens. Replaces cracked, chipped, or broken door glass. Installs on exterior of oven door.

This is a stainless steel door handle assembly that mounts on the front of the microwave door, allowing you to open and close it. The handle endures frequent use and can crack, loosen, or break over time. Replace it if the handle feels wobbly, has visible damage, or has snapped off entirely.

Mounting bracket that secures the glass panel in your wall oven door. Replace if the bracket is cracked, bent, or missing to properly hold the glass in place.

Fastens panels, brackets, trim, and hardware in your oven or range. Replace missing, stripped, or damaged screws to eliminate rattles and secure components.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Secures the glass panel to your wall oven door frame. Replace this bracket if it's cracked, broken, or missing to properly support the door glass.

Replacement glass door bracket for wall ovens. Secures the glass panel to the door frame. Replace if bracket is cracked, broken, or missing parts.

Secures and aligns the glass panel in your oven door assembly. Replace this bracket if it's cracked, broken, or missing to restore proper door fit.
