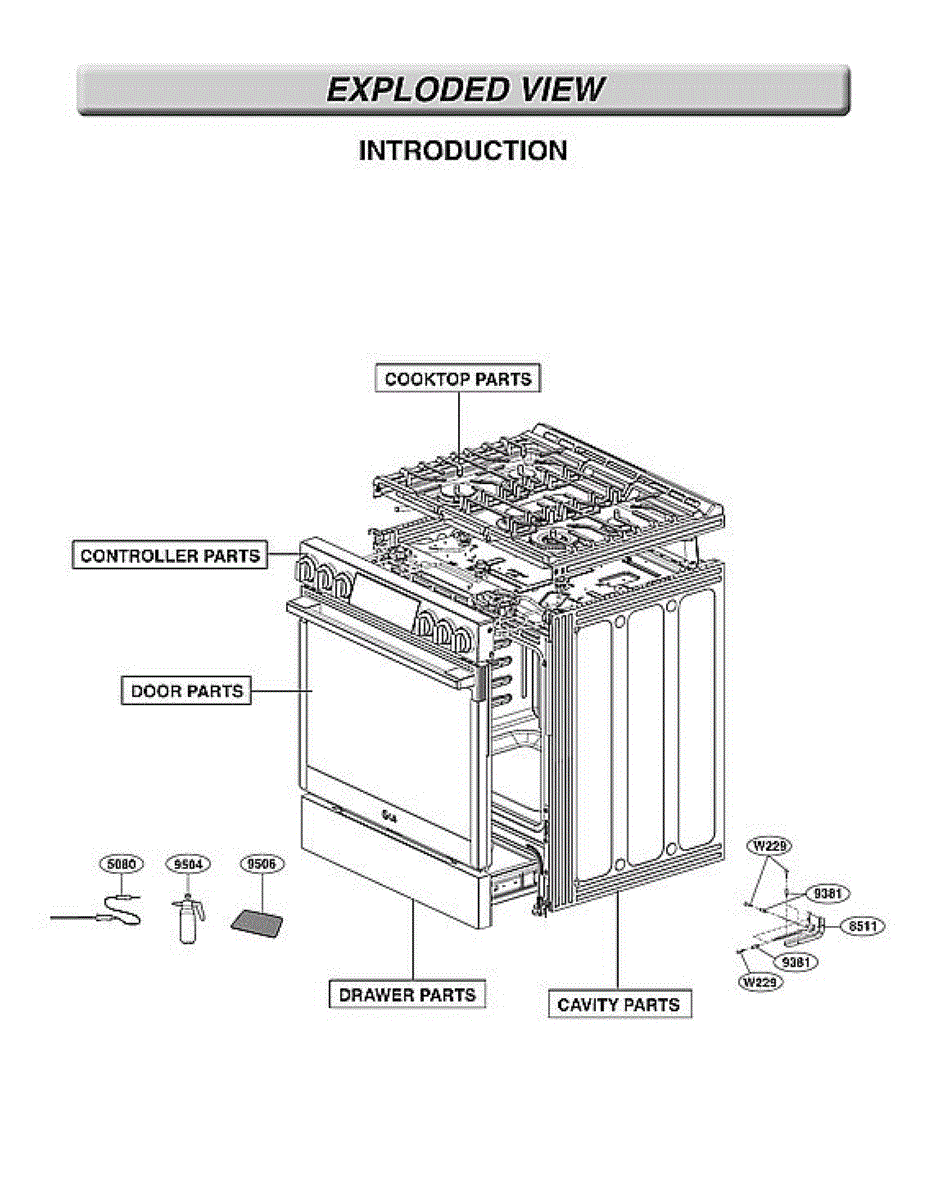

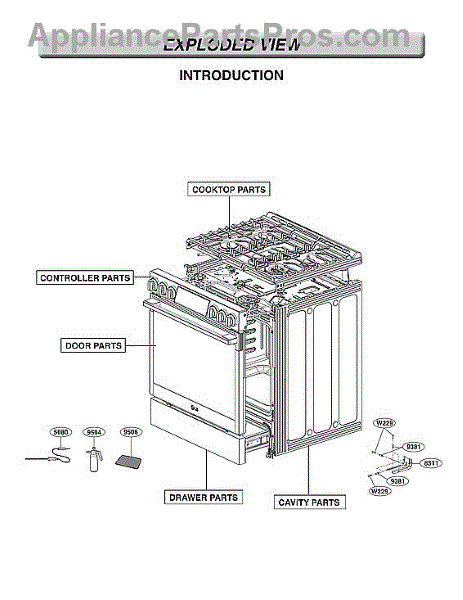

Parts for Lg LSGS6338F/00: Introduction Parts

Fix a burner that won't ignite or heat evenly with this surface burner assembly. Restores consistent flame and reliable heat to your gas range cooktop.

A Tap-Tite binding-head screw used to fasten appliance panels and components where a self-tapping metal thread is required. Replaces missing or damaged fasteners to restore secure assembly and reduce vibration or rattling. What it does:

• Creates its own mating thread in thin sheet metal for a secure hold without a nut.
• Holds panels, brackets, and trim in place to prevent looseness or movement.
• Commonly used where stripped, missing, or broken screws cause rattling, misalignment, or parts that won't stay attached.
• Compatible with standard screwdrivers or nut drivers sized to the binding-head.

• Disconnect power and unplug the appliance before working on it.
• Use the correct driver bit to avoid cam-out or head damage.
• Start straight and apply steady pressure; avoid overtightening to prevent stripping the formed threads.
• If the original hole is badly damaged, assess for repair or use of a larger fastener as needed.

Insulator component for electric and gas ranges. Protects wiring and components from heat damage. Replace if cracked, melted, or deteriorated over time.

Insulation component that protects internal range wiring and components from heat. Replace if cracked, deteriorated, or missing to restore proper insulation.

Replacement screw secures panels and components in your microwave. Install when original hardware is stripped, rusted, or missing to stop rattles.

Small fastening nut that secures components inside microwaves and ranges. Replace if worn, missing, or stripped to restore proper assembly fit.

A factory screw for securing specified components in your appliance. Replaces a missing or damaged fastener to restore a tight, reliable hold and help reduce vibration, rattling, and misalignment.

• Secures brackets, covers, or internal assemblies where this exact screw is specified by the manufacturer
• Useful when the original screw is missing, stripped, or corroded
• Helps eliminate looseness, vibration, and rattling noises
• Matches the original fastener for proper fit and thread engagement

• Disconnect power (and shut off water supply if applicable) before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace any damaged clips or inserts to ensure a secure repair

Replacement washer that secures fasteners and distributes load at connection points in ranges and ovens. Needed when original is missing, worn, or damaged.

Replacement screw for electric and gas ranges. Secures internal components and panels. Needed when original is stripped, missing, or damaged during repair.

Secures panels, brackets, and internal components in your range. Replace this screw if the original is missing, stripped, or rusted for proper fit.

This customized screw secures appliance components where a standard fastener won't fit, helping keep panels, brackets and small assemblies stable. It's a direct-fit replacement when the original specialized screw is missing or damaged. What it does:

• Fastens and holds appliance panels, brackets or small parts in place
• Prevents rattling, loose trim or misaligned components caused by a missing or stripped screw
• Matches the OEM fit and thread pattern for proper engagement and alignment
• Used in locations that require a non-standard or customized fastener

• Disconnect power and water before servicing the appliance
• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten securely but do not overtighten; overtightening can strip threads or crack parts
• Keep removed hardware organized so you can reinstall in the original location

This hardware washer helps distribute fastener load and maintain proper spacing in your LG appliance. Replacing a missing or worn washer restores secure mounting and alignment, reducing vibration and rattling from loose assemblies.

• Distributes the load of a screw or bolt and protects mating surfaces to maintain alignment
• Helps keep components secure and at the correct spacing
• A damaged or missing washer can lead to loosening, vibration, or rattling during operation
• Ensures correct hardware stack-up during reassembly after service

• Disconnect power and shut off water or gas before servicing
• Note the order and orientation of any washers/spacers; take a reference photo
• Use the correct driver or wrench and tighten snugly—do not overtighten
• Replace companion hardware if corroded, stripped, or damaged

The Common Nut is an OEM part for LG ranges. It secures the fan blade to the motor shaft. This nut maintains the fan's stability and preventing it from becoming dislodged during use.

Causes of a bad common nut can include loosening over time due to vibration, improper installation, or damage from impact or mishandling.

Symptoms of a bad common nut include:

• Excessive noise or vibration from the fan assembly
• The fan blade becoming loose or detached, causing poor air circulation
• Potential risk of the fan blade becoming a projectile if completely detached

This OEM LG part is also compatible with some Kenmore models.a

This is a replacement customized screw designed to secure appliance panels and components. It restores proper fit and fastening where the original screw is lost or worn, helping maintain safe, stable operation. What it does

• Replaces missing or damaged mounting screw used on appliance panels and internal components
• Restores secure fastening to reduce vibration and rattling during operation
• Matches the original OEM fit and thread form for correct engagement when verified for your model
• Helps prevent loose parts that can cause noise or interfere with moving components

• Disconnect power and water before servicing the appliance
• Verify screw size, thread direction, and length match the original before installation
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten securely but avoid overtightening to prevent stripping or damaging mating threads

This printed circuit board assembly controls optional features and functions on your range. It manages advanced cooking modes, settings, and electronic features beyond basic operation. Replace when optional functions stop working, display errors appear, or advanced features become unresponsive.

Replacement screw for electric and gas ranges. Secures panels, brackets, and internal assemblies. Restores tight fit when original is missing or stripped.

This 4.0x16mm tapping screw secures trim, panels, and brackets on ranges and microwaves. Replace missing, stripped, or damaged screws during repair.

This PCB power control board assembly manages the appliance's power distribution and control signals so the unit can operate safely and reliably. It replaces a failed board to restore normal electrical control and user-interface response. What it does:

• Supplies and regulates power to the appliance's control circuits and components
• Receives inputs from the user interface and sensors, then sends control signals to motors, valves, or relays
• Common symptom: appliance won't power on or has no display/response
• Common symptom: intermittent power loss, unexpected shutdowns, or erratic operation
• Common symptom: controls are unresponsive or functions fail to start

• One PCB power control board assembly

• Disconnect power before servicing to avoid electrical shock
• Handle the board by edges and avoid touching components; this is a static-sensitive part
• Inspect connectors and wiring for damage and ensure firm, correct reconnection

The Oven Ignitor is an OEM replacement part for LG ovens. It is a critical component responsible for igniting the gas burners or heating elements within the oven, allowing it to reach and maintain the desired cooking temperatures.

Symptoms of a bad oven ignitor include:

• Failure of the oven to ignite or heat up properly
• Intermittent or delayed ignition issues
• Clicking or sparking noises from the ignitor area

Causes of an oven ignitor failure can range from general wear and tear over time, to electrical or mechanical malfunctions, to obstructions or buildup preventing proper ignition.

This OEM LG part is also compatible with Sears/Kenmore models.

Secures the gas burner nozzle in your range cooktop. Replace this holder if it's cracked, broken, or no longer holding the nozzle firmly in position.

Fix misaligned or wobbling burner flames with this nozzle holder. Secures the nozzle in place to restore proper gas flow and even heating on your range.

Replacement door window glass for electric ranges. Restores clear viewing panel in oven door. Install when original glass is cracked, broken, or fogged.

Replacement window glass for range oven doors. Restores clear viewing area when original glass is cracked, chipped, cloudy, or shattered. Installs inside door.

Inner door cover panel for electric and gas ranges. Replaces damaged, cracked, or missing inner door cosmetic panels. Installs on the interior door assembly.

Bracket that anchors the handle to your range oven door. Replace if cracked, stripped, or broken to restore secure handle attachment and alignment.

This main PCB power control board assembly controls the appliance's electronic functions and power distribution so the unit responds correctly to user commands. Replacing a faulty board restores reliable control of the appliance's systems. What it does:

• Regulates power to the appliance's control circuits and manages user commands
• Communicates with sensors and other modules to coordinate cycles and features
• Can resolve symptoms like no display, unresponsive controls, or intermittent operation
• Prevents erratic behavior caused by damaged or failed circuitry

• Disconnect power before beginning service to avoid shock or damage
• Handle the board by edges and avoid touching components or connector pins
• Verify connector seating and wiring harness orientation during reassembly

Range won't change settings when you turn the control knob? This rotary selector switch restores cycle selection and user control over appliance functions.

If your cooktop controls are completely dead or display won't turn on, the transformer may have failed. Restores power to control board circuits.

The PCB Assembly is an OEM part for LG refrigerators. It stands for Printed Circuit Board, which is the main control board that manages and regulates various functions and components within the refrigerator.

Symptoms of a bad PCB Assembly include:

• The refrigerator not powering on or displaying any lights/indicators
• Specific components or features not functioning correctly (ice maker, dispenser, cooling, etc.)
• Error codes or warning lights illuminated on the control panel
• Strange noises or abnormal behavior from the refrigerator

Causes of a bad PCB Assembly can be related to electrical faults, such as short circuits, power surges, or component failures. Physical damage from impact, moisture exposure, or overheating can also contribute to the malfunction of the PCB.

This OEM LG part is also compatible with Sears/Kenmore refrigerators.

This is a circular wire harness holder that secures and organizes internal wiring within the range. It clips onto the frame or mounting points to keep wires routed properly and away from heat sources. Replace this part if it is broken or missing, which can cause loose wiring or potential contact with hot surfaces.

Rear cover panel for gas ranges. Mounts on the back of the range to conceal internal components. Replace if cracked, damaged, or missing.

This vent grille is the external trim piece that covers and protects the appliance exhaust opening, restoring proper airflow and finished appearance. It replaces damaged or cracked vent trim so air can vent safely and the appliance looks complete. What it does:

• Covers the appliance exhaust opening while directing airflow out of the cabinet or housing
• Helps prevent debris from entering the vent area and protects internal components
• Commonly replaced when cracked, broken, warped, or cosmetically damaged
• Can reduce air leaks around the exhaust opening when properly seated

• One vent grille

• Turn off and unplug the appliance or disconnect power before servicing
• Removal/installation typically requires removing a few fasteners or clips—handle trim pieces gently to avoid cracking
• Align grille tabs and secure with original screws or clips; do not overtighten

Idle packing bushing for electric and gas ranges. Replaces worn, cracked, or missing bushings. Ensures proper fit and cushioning for range components.

Display blank, dim, or showing incorrect numbers? This LED display module restores your range's control panel readout. Advanced repair requiring disassembly.

Decorative trim piece that surrounds the rear of your range for a finished appearance. Replace if cracked, chipped, damaged, or missing for restored looks.

This is a metal oven rack that slides into the guide rails inside the oven cavity, providing a flat surface to hold cookware at various heights. It allows for proper heat circulation around dishes during baking, broiling, or roasting. Replace this rack if it is warped, rusted, or if the support rails are bent, causing the rack to sit unevenly or slide poorly.

Replace your gas range burner head if flames are uneven, won't ignite, or produce yellow/orange flames. Controls ignition and flame for each burner.

The Burner Head is an OEM part for LG gas ranges. It is located underneath the burner caps and is responsible for producing the ignited flame during cooking.

Symptoms of a bad burner head include:

• Difficulty lighting or sustaining a flame
• Unbalanced or irregular burner performance
• Yellow flame tips or soot buildup
• Burner tubes appearing warped or misshapen

Causes of a faulty burner head can be issues like cracks in the burner material, blockages within the gas tubes, or deformations from long-term heat exposure.

 This burner head is also compatible with select Sears/Kenmore gas range models.

Replace a gas range burner head with uneven flames, weak heat output, or clogged ports. Sits at the center of the burner unit to control flame pattern.

Range burner cap covers the burner base on gas cooktops. Replace if cracked, chipped, discolored, or missing to restore proper flame distribution.

A replacement burner cap for gas cooktops that helps distribute the flame and protect the burner head for even cooking and reliable ignition. Fits as a single matching cap to replace a damaged or missing unit. What it does:

• Sits on top of the burner head to shape and stabilize the burner flame for more consistent heat
• Protects the burner head from spills, debris and corrosion that can affect ignition
• Helps restore proper flame pattern and reduce uneven cooking when a cap is cracked or warped
• Commonly replaced when a cap is chipped, melted, or missing and the burner won't heat correctly

• One burner cap (single)

• Ensure the range is turned off and cool before replacing the cap
• Remove debris and position the cap squarely over the burner head; no tools are typically required
• Follow all safety precautions in your appliance owner's manual when servicing gas components

Burner cap sits over sealed burner units to direct flame upward. Replace if cracked, chipped, or damaged from wear. Lifts off easily for quick replacement.

If your gas burner flame is uneven or yellow, the burner cap may be warped or cracked. This component covers flame ports for proper heat distribution.

Fix uneven flames or yellow burner tips with this gas range burner cap. Spreads flame evenly across the burner surface. Simple 5-minute swap.

Fix intermittent power or control failures with this gas range cable assembly. Routes power between the control board and components to restore operation.

The Switch is an OEM part for LG ovens. This switch is responsible for turning the oven light on and off when the door is opened and closed. It ensures that the oven light operates correctly, providing visibility inside the oven cavity when the door is opened.

A bad oven door light switch can occur due to electrical issues, wear and tear, or other internal malfunctions. If you notice symptoms such as the oven light not turning on or off when the door is opened or closed, it may be time to replace the light switch.

Symptoms of a bad switch include:

• Oven light not turning on when the door is opened
• Oven light not turning off when the door is closed

Ensure proper function in your LG oven by replacing the faulty switch with this genuine OEM part.

This LG replacement part is also compatible with select Kenmore models.


Wire harness assembly for electric ranges. Connects electrical components within the unit. Replace if wires are frayed, damaged, or connections are loose.

If your oven won't reach the right temperature or shows an F9 error, the temperature sensor may be faulty. Simple DIY repair in under 45 minutes.

Replace a damaged or corroded wire harness in your range. This single-connection harness restores proper electrical connections when original wiring is frayed, melted, or broken.

Fix uneven cooking or baking in your range. This convection fan motor circulates hot air for consistent heat distribution. Moderate DIY repair.

Secures the control panel to your range cabinet. Replace if the bracket is cracked, bent, stripped, or hardware no longer holds the console firmly in place.

Single wiring harness for electric and gas ranges. Replaces damaged, frayed, or corroded harnesses. Essential for restoring electrical connections.

Fix inaccurate oven temperatures with this range temperature sensor. Restores proper heating cycles when your oven runs too hot or cold.

Fix range control panel display issues or power failures with this DC power jack. Restores electrical connection to control board. Moderate DIY repair.

Motor loose or vibrating excessively? This motor bracket secures the motor to the chassis, reducing vibration and maintaining alignment for quieter operation.

Fixes uneven baking and longer cooking times in your range. This convection fan blade restores proper air circulation for consistent oven temperatures.

This Fan Blade is an OEM part for LG microwaves. It is a critical component designed to circulate air within the microwave, aiding in heat dissipation and ensuring even cooking.

Fan blades in microwaves can suffer from wear, imbalance, or damage due to regular use or accumulation of debris. A malfunctioning fan blade can lead to inadequate ventilation, affecting the microwave's cooking efficiency and potentially causing overheating.

Symptoms of a bad fan blade include:

• Unusual noises during operation, such as rattling or buzzing, indicate a loose or damaged blade.
• The microwave overheating or shutting off prematurely.
• Inconsistent cooking or hot spots in food suggest poor air circulation.
• The fan not starting, or stopping unexpectedly during use.
• Visible signs of damage or wear on the blade.

This OEM LG part is also compatible with some Sears/Kenmore models.


This bracket secures the turntable motor to the microwave oven cavity base, keeping the motor properly aligned so the glass tray can rotate smoothly for even heating.

• Supports and positions the turntable motor beneath the oven floor
• Helps resolve issues like a non-turning glass tray or jerky rotation
• May correct intermittent grinding or scraping noises from the tray area

• Unplug microwave before servicing; high-voltage components can retain a charge
• Remove the unit from its install location if required for bottom access
• Access turntable motor from the underside; support the cavity to prevent damage
• Reuse existing screws and motor unless otherwise specified

Replace your damaged or broken range handle bar. This bar installs on the oven door, providing a secure grip for opening and closing. Order now.

Fixes uneven rotation or component failure in your range. This synchronous motor assembly restores precise speed control. Moderate DIY repair.

Halogen oven light bulb illuminates your range interior for monitoring food while cooking. Replace when bulb burns out or flickers. Verify fit with your model.

This hinge bracket secures the oven door hinge mechanism on your range. Replace if the bracket is cracked, broken, bent, or missing to restore door support.

The range packing seal creates an airtight barrier around oven doors or other range components to maintain proper cooking temperatures and prevent heat loss. Positioned around door edges or component joints, it needs replacement if heat escapes, cooking becomes uneven, or the seal appears cracked or compressed.

Secures and supports your range oven door hinge for proper alignment and smooth operation. Replace if bracket is cracked, bent, or damaged to restore door fit.

Replacement support bracket for range control panels. Installs behind the control panel to provide structural support. Needed when original is broken or missing.

Range oven door gasket seals the oven cavity to retain heat and improve efficiency. Replace if torn, cracked, or no longer sealing properly. Confirm fit.

This pipe is the factory-design tubing used to route fluids inside the appliance, restoring proper flow and containment. Installing the correct pipe helps stop leaks and re-establish reliable fluid transfer where the original line has cracked or failed. What it does:

• Channels water or drain flow between internal components to maintain normal operation
• Prevents leaks by replacing cracked, split, or brittle tubing
• Helps restore proper filling, draining, or circulation when the original pipe is damaged
• Reduces risk of water-related faults and intermittent appliance behavior caused by compromised tubing

• One pipe as shown

• Turn off and unplug the appliance and shut off the water supply before starting work
• Remove any clips or fasteners carefully; save or replace clamps as needed
• Use the exact part number to ensure fit; route the pipe the same way as the original to avoid kinks

Gas pipe connects burner manifold to burner valves on gas ranges. Replace if cracked, corroded, or leaking. Ensures safe gas flow to burners.

This nozzle is the dispenser outlet that directs water or ice into your cup and helps prevent spills and leaks at the dispenser opening. It replaces a worn, cracked, or damaged nozzle to restore clean, controlled dispensing. What it does:

• Directs water or ice from the dispenser to the cup for orderly dispensing
• Helps prevent drips and splashes from the dispenser opening
• Replaces cracked, broken, or clogged nozzles that cause improper flow or leakage
• Restores proper alignment and sealing at the dispenser outlet

• One replacement nozzle

• Disconnect power and turn off the water supply before beginning service
• Typically installs with a simple snap or screw fit; follow your model's service manual
• Inspect surrounding seals and gaskets; replace if damaged to ensure a proper fit

This replacement case is the outer housing that protects and supports internal components, helping keep your appliance's parts secure and aligned for reliable operation. What it does

• Covers and shields internal components from dust and debris
• Keeps internal parts properly positioned to prevent rubbing or misalignment
• Helps reduce vibration noise by securing assemblies in place
• Visible damage or cracking can expose internals and affect function

• One replacement case

• Disconnect power before starting any repair to avoid shock
• Use basic hand tools; keep fasteners and panels organized during disassembly
• Handle plastic housing carefully to avoid cracking or scratching
• Take care to reconnect wiring and secure connectors per manufacturer guidance

Replace a failing gas range burner assembly when flames are uneven, burner won't ignite, or heating is inconsistent. Direct-fit part restores cooking.

Replace a burner assembly when flames are uneven, won't ignite, or produce yellow flames. This repair typically takes 15-30 minutes with basic tools.

This burner assembly is the main gas burner component for a compatible range or cooktop. It replaces a worn or damaged burner to restore reliable ignition and consistent flame control for safe, even cooking. What it does:

• Directs gas to the burner ports so the cooktop produces a controlled flame
• Works with the range ignition system to light the burner when switched on
• Commonly used when a burner won't light, has a weak or uneven flame, or flame blows out
• Helps replace corroded or damaged burner components that affect performance

• Turn off gas supply and electrical power before removing or installing the part.
• Inspect gaskets, seals and mounting hardware; replace if damaged.
• Tighten connections and check for leaks with a soap solution or leak detector after installation.

This is a metal cover that shields the convection fan and heating element inside the rear wall of the oven cavity. It protects the fan assembly from grease and food debris while allowing heated air to circulate evenly throughout the oven. Replace this cover if it is warped, corroded, or damaged, which can lead to uneven cooking or unusual noises during convection baking.

Pressure regulator assembly for gas ranges. Mounts to the gas supply line to control fuel pressure. Replace if cracked, leaking, or damaged.

Replace a burner cap when flames are uneven, yellow, or won't stay lit. This cap distributes heat evenly across your cooktop. Simple 5-minute swap—no tools.

Secures and finishes your range door opening with proper structural support. Replace if cracked, warped, or damaged to restore door alignment and seal.

This is the front-facing panel of the storage or warming drawer located beneath the oven cavity. It provides a finished exterior surface for the drawer and attaches to the drawer frame. Replace this panel if it is dented, warped, discolored, or if the mounting tabs are broken, causing the drawer front to hang unevenly.

This adjustable leg supports your range and allows you to level the appliance on uneven floors. It screws into the bottom corner of the range and can be adjusted up or down as needed. Replace this part if your range is wobbly, tilting, or sitting unevenly.

Idle bracket for electric and gas ranges. Secures internal components in place. Replace if bracket is bent, cracked, broken, or missing during repair.

Replacement slider for range drawers and panels. Restores smooth movement when original is worn, cracked, or broken. Mounts to moving components for alignment.

Replace worn range drawer sliders to restore smooth, quiet operation and proper alignment. Prevents damage to surrounding trim. Confirm fit with your model.

Replacement storage drawer for electric ranges. Installs below the oven cavity to restore convenient storage space. Needed when original is cracked or broken.

Replace a faulty oven temperature sensor if your range bakes unevenly, runs too hot or cold, or displays temperature errors. Moderate DIY repair.

Fix an oven that won't heat or gives F9 error code. This gas valve regulates gas flow to burners. Moderate DIY repair requiring basic tools.

Adjustable metal leveling foot that elevates and stabilizes your range. Mounts to the bottom of the unit. Replace if broken, worn, or missing.

Mounting anchor for range door handles. Replaces worn, broken, or missing anchors to restore secure handle attachment and eliminate wobbling or loose fit.

Accessory assembly for electric and gas ranges and wall ovens. Replaces damaged, broken, or missing accessory components. Restores proper fit and function.
