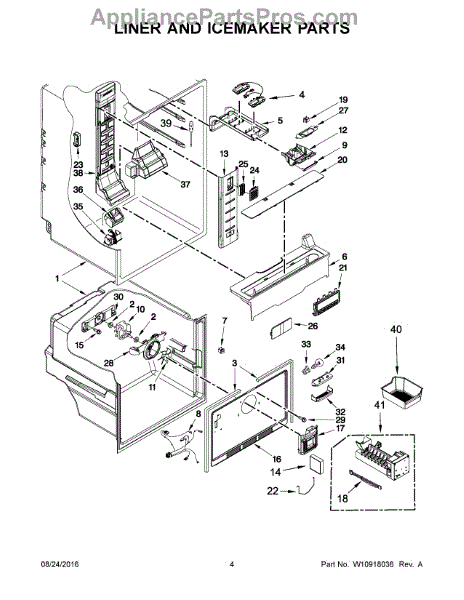

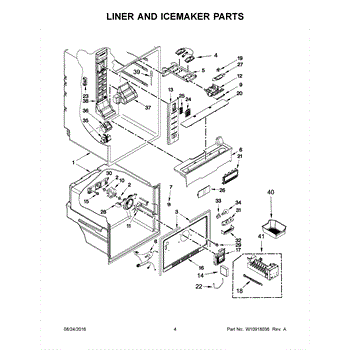

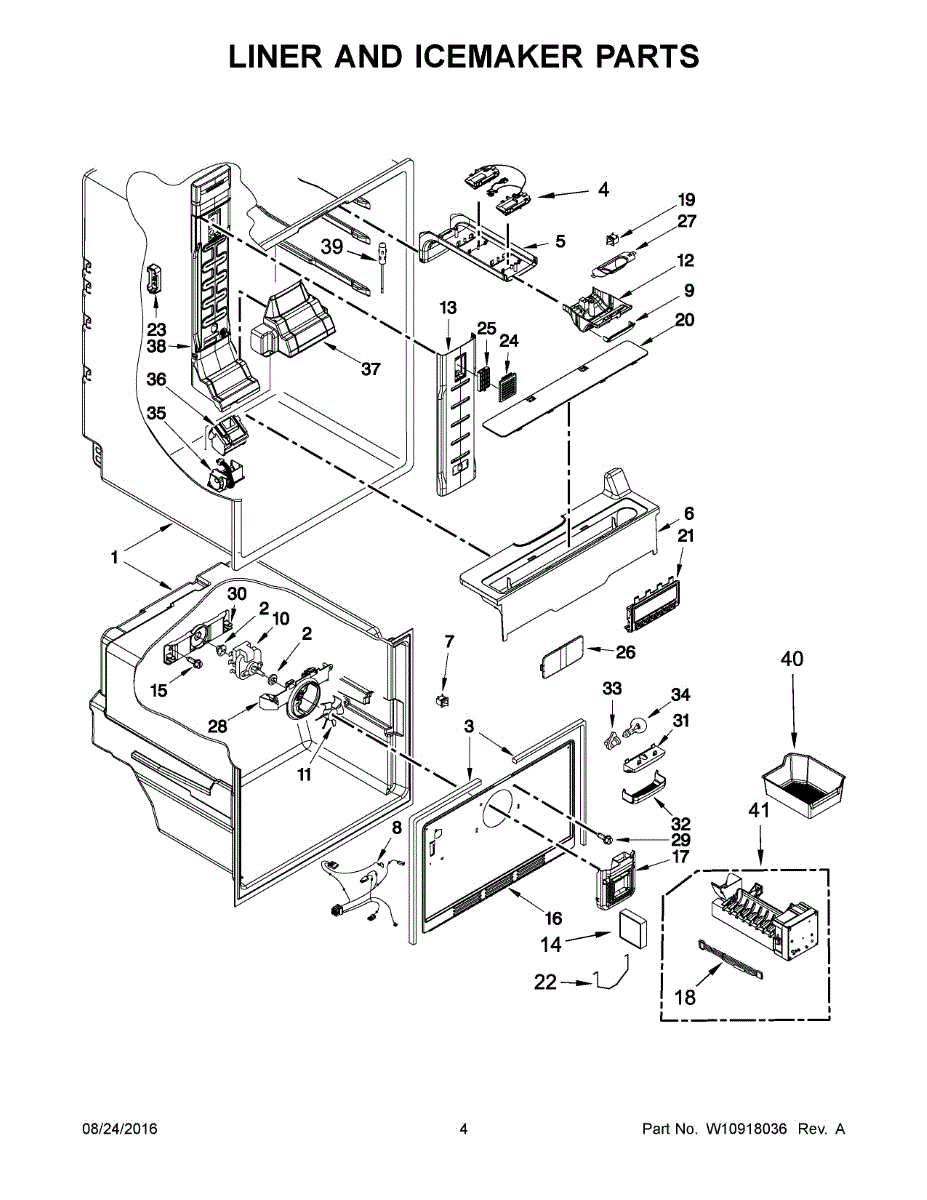

Parts for Whirlpool WRF560SMYE04: 03 - Liner And Icemaker Parts

The Whirlpool EveryDrop Ice and Water Refrigerator Filter 2 is an OEM replacement part for Whirlpool refrigerators. This advanced water filter is designed to provide superior filtration for both the ice maker and water dispenser. This water filter effectively reduces numerous contaminants, including lead, pesticides, and pharmaceuticals, ensuring that your drinking water and ice are not only clean but also taste great.

Regular replacement of the EveryDrop Filter is recommended to maintain optimal performance and water quality. Over time, filters can become clogged with particles and contaminants, leading to reduced water flow and a decline in the effectiveness of filtration.

Symptoms of a filter that needs to be replaced include:

• Noticeable decrease in water flow rate from the dispenser
• Unpleasant taste or odor in the water and ice
• The filter indicator light on the refrigerator turns on

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This rubber grommet cushions and secures a refrigerator fan motor, isolating vibration to help reduce noise and keep the fan properly aligned in its mount.

• Provides a snug, vibration-dampening seat for the fan motor shaft or mounting stud
• Helps prevent rattling, buzzing, or humming sounds from a loose fan mount
• Maintains proper fan alignment to avoid blade contact with shrouds or brackets
• Replaces aged, cracked, or compressed rubber that can lead to increased vibration

• Disconnect power before service; wear cut-resistant gloves
• Access the fan assembly (rear or evaporator section), support the motor, and remove the old grommet
• Press the new grommet fully into the bracket or housing; transfer any spacers as originally configured
• Reinstall the motor and verify the fan blade spins freely with no contact before restoring power

This replacement gasket creates a tight seal between mating components in your appliance. Restoring a proper seal helps contain air or water where designed, improving performance and helping prevent leaks, moisture intrusion, and energy loss.

• Seals the interface between parts to prevent air or water escaping
• Helps maintain correct temperatures and fluid paths as designed
• Replaces a torn, cracked, flattened, or warped original gasket
• Common symptoms include leaks, visible gaps, or moisture around the sealed area

• Disconnect power and shut off water supply before service
• Note the original gasket's orientation; take photos for reference
• Clean and dry both sealing surfaces; remove old gasket material/residue
• Seat the new gasket fully and evenly; avoid over-tightening fasteners and test for a proper seal

This electronic control board manages the appliance's functions and user interface so cycles run correctly and features respond as expected. It replaces a failed or intermittent control module to restore normal operation. What it does:

• Processes user commands from the control panel and starts selected cycles
• Communicates with sensors and actuators to regulate cycle timing and functions
• Controls power distribution to motors, valves, heaters or other components
• Common symptoms: unresponsive controls, error codes, cycles won't start, or intermittent operation

• One electronic control board

• Disconnect power to the appliance before starting any work
• Handle the board carefully to avoid static damage; disconnect ribbon/plug connectors before removing
• Verify connector positions and secure mounting when installing the replacement
• Follow OEM service instructions and test appliance operation after installation

A replacement housing that provides the outer cabinet support and protection for internal components. Restores structural integrity and helps keep wiring, controls and mechanisms enclosed and aligned for safe operation. What it does:

• Replaces a damaged or cracked cabinet housing that can expose internal parts
• Secures and aligns controls, wiring harnesses and internal assemblies
• Helps reduce vibration and rattling caused by loose or broken enclosure parts
• Prevents debris and moisture from reaching sensitive components

• One housing

• Disconnect power (and water supply for washers) before starting work
• Handle carefully to avoid scratching or bending mounting tabs
• Use manufacturer-recommended fasteners and follow the service manual for alignment

The Door Switch is an OEM part for Whirlpool refrigerators. This switch is crucial for controlling the interior lights and the activation of certain refrigerator functions when the door is opened or closed.

Symptoms of a failing Door Switch include:

• Interior lights staying on when the refrigerator door is closed
• Interior lights not turning on when the door is opened
• The refrigerator unexpectedly starting or stopping
• Alarms or indicators malfunctioning, signaling an open door when it is closed

Causes of a bad door switch can involve mechanical failure due to wear and tear from frequent use, damage from impacts (such as slamming the door), or electrical issues like a short circuit or faulty wiring.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This wire harness connects the evaporator components to the refrigerator's electrical system, restoring signal and power paths for defrost and fan circuits to help maintain proper cooling and defrost operation. What it does

• Provides factory-style electrical connections for the evaporator assembly and related components
• Restores power/signal to defrost heater, temperature sensors, and evaporator fan where applicable
• Helps address symptoms like intermittent cooling, defrost failure, or fan not running when the harness is damaged
• Matches OEM routing and connector types for a direct-replacement fit

• One wire harness as shown

• Disconnect power to the appliance before servicing to avoid shock or damage
• Follow OEM routing and connector orientation; secure harness away from sharp edges and moving parts
• Inspect related components (connectors, sensors, heater) for damage while replacing the harness

The Evaporator Motor is an OEM part for Whirlpool refrigerators. This motor powers the fan that circulates air over the evaporator coils, facilitating efficient cooling within the refrigerator and freezer compartments. Proper air circulation ensures consistent temperatures and helps maintain food freshness.

Causes of a bad evaporator motor can include wear and tear over time, electrical issues, or obstructions that prevent the fan from spinning freely.

Symptoms of a bad Evaporator Motor include:

• The refrigerator not cooling properly
• Unusual noises such as rattling or squealing from the motor area
• Frost buildup in the freezer compartment
• The refrigerator running constantly without reaching the desired temperature

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Evaporator Fan Blade is an OEM part for Whirlpool refrigerators. It is designed to circulate air over the evaporator coils, ensuring efficient cooling throughout the refrigerator and freezer compartments. The fan blade helps maintain an even temperature, contributing to the appliance's overall performance.

Causes of a bad fan blade can include wear and tear over time, ice buildup interfering with the blade, or physical damage from accidental impact or obstruction by debris.

Symptoms of a bad evaporator fan blade include:

• Unusual noises such as rattling or scraping
• Inconsistent or insufficient cooling in the refrigerator or freezer
• The refrigerator running longer than usual
• Visible damage or warping of the fan blade

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This housing is the outer shell that holds and protects the appliance's user interface and control components, keeping the console secure and helping prevent damage to the electronics. Ideal when the control area is cracked, broken, or cosmetically damaged. What it does:

• Secures the control board and user interface components inside the console
• Protects switches, touchpads, and display electronics from impacts and debris
• Restores a flush, stable mounting surface for buttons and controls
• Helps prevent moisture or contaminants from reaching internal electronics

• Disconnect power to the appliance before starting any repair
• Removing the console may require loosening screws and disconnecting wire harnesses; handle the control board and display with care
• Use appropriate hand tools and avoid bending or flexing the housing during installation

This ice maker cover shields the front of the ice maker assembly, protecting the module and moving parts from dust and accidental contact. Replacing a cracked or missing cover restores a clean, finished appearance and keeps components protected.

• Shields the ice maker's front components and control module
• Helps keep dust, splashes, and debris out of the mechanism
• Prevents accidental contact with moving ejector parts
• Replace if the cover is cracked, warped, missing, or will not stay attached

• Unplug the refrigerator before servicing
• Access the ice maker in the freezer compartment
• Carefully release the retaining tabs and remove the old cover; note orientation
• Align the new cover and press until it snaps securely into place—do not force the tabs

This replacement screw secures appliance panels, brackets, and components to the cabinet or chassis. The #8-15 x 1/2 in. size restores a snug, reliable hold when original hardware is missing, stripped, or corroded.

• Fastens panels, brackets, and trim to the appliance cabinet or chassis
• Helps reduce rattling, vibration, or looseness caused by missing/stripped hardware
• Restores proper alignment of parts that have shifted due to loose fasteners
• Size/spec: #8-15 thread, 1/2-inch length; use where this size is specified

• Disconnect power and shut off gas/water supplies before servicing
• Replace one screw at a time to maintain alignment of parts
• Start threads by hand to prevent cross-threading; do not overtighten
• Use a matching driver/bit type for the screw head used in your appliance

This air tower directs cold air from the evaporator into the fresh-food and freezer compartments to help keep temperatures even and maintain food freshness. Replacing a cracked or damaged tower restores proper airflow. What it does:

• Channels chilled air from the evaporator to refrigerator and freezer compartments
• Helps reduce hot spots and uneven cooling when functioning correctly
• Prevents airflow leaks that can cause frost buildup or excessive cycling
• Works with existing evaporator and blower fan to distribute air

• One air tower (air duct assembly)

• Disconnect power before servicing to avoid electrical shock
• Remove interior liners or shelves as needed; handle plastic shrouds gently to avoid cracking
• Verify fit and orientation match the original before final fastening

This wire assembly connects and powers the ice maker so it can cycle and make ice. It replaces a damaged or disconnected ice-maker harness to restore electrical continuity and reliable ice production. What it does

• Provides the electrical connections between the ice maker and the freezer wiring harness
• Restores power to the ice maker when factory wiring is frayed or broken
• Helps stop intermittent or complete ice-maker failure caused by damaged connectors or wiring
• Supports proper communication for fill and harvest cycles when installed correctly

• One wire assembly for the ice maker

• Disconnect power to the refrigerator before starting any repair
• Access may require removing freezer shelves/panels and the ice maker module per OEM instructions
• Match connector shapes and routing; avoid sharp bends or pinched wiring when installing
• After installation, restore power and run an ice-maker test cycle to verify proper operation

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This electronic control board is the main control module that manages appliance functions and user commands, restoring proper cycle selection and timed operations when the original board has failed. What it does:

• Controls cycle selection, timing, and major functions based on user inputs and sensor signals
• Communicates with the keypad/display and other modules to start, stop, and advance cycles
• Helps address intermittent operation, error codes tied to control faults, and incorrect cycle behavior

• Disconnect power before servicing to avoid shock or damage
• Handle the board by its edges and avoid touching components; observe static-discharge precautions
• Reconnect all harnesses and secure the board in its mounting before restoring power

This ice maker shut-off arm is the wire bail that senses ice level in the bin. It lifts to stop production when full and lowers to restart cycles, helping prevent overfilling and restoring normal, automatic ice making.

• Senses bin ice level and mechanically signals the ice maker to run or stop
• Prevents overfilling by stopping ice production when the arm is raised
• Restores ice making when the arm is lowered after ice is used
• Replacing a bent, missing, or jammed arm can help with "won't stop making ice" or "won't make ice" issues

• Disconnect power before servicing; remove the ice bin for access
• Insert the arm's pivot ends fully into the ice maker head openings; ensure correct orientation
• The arm moves freely without binding, then restore power and lower the arm to resume ice production

This thermistor cover shields and positions the refrigerator's temperature sensor so it reads cabinet air accurately. Replacing a cracked or missing cover helps restore stable temperatures and normal cooling performance.

• Holds the thermistor in place and shields it from direct airflow for accurate temperature sensing
• Helps prevent erratic temperatures, overcooling/undercooling, or long run times caused by an exposed sensor
• Commonly replaced when the original cover is cracked, loose, or missing
• Supports consistent temperature control by ensuring proper sensor placement

• Disconnect power before servicing
• Remove shelves/bins as needed to access the sensor location
• Align the thermistor and seat the cover fully; engage tabs or reuse existing hardware per model
• Avoid pinching the sensor or wiring and verify the cover is snug

This grille holds the refrigerator air filter in place behind the toe kick, allowing proper airflow through the filter and helping control odors. It replaces a damaged or missing grille to restore correct filter fit and operation. What it does:

• Secures the air filter housing so the filter seals and functions as intended
• Permits airflow through the filter media for odor control and fresher interior air
• Covers and protects the filter opening from debris and accidental contact
• Restores proper fit and appearance to the fridge front toe-kick area

• Disconnect power to the appliance before beginning any work
• Remove the old grille by gently pulling or releasing retaining clips as required by your model
• Align the grille with the filter opening and press until clips engage; do not force
• If an air filter is separate, verify the filter is seated correctly inside the grille before restoring power

This heat shield protects nearby components from high oven temperatures, helping prevent heat damage and maintain safe operation. It's a direct-fit replacement designed to restore proper thermal protection. What it does

• Deflects and shields adjacent parts from radiant heat generated by the oven cavity.
• Helps prevent discoloration, warping, or premature failure of nearby panels and wiring.
• Can stop heat-related smells or scorching around the oven interior or cabinet.
• Restores intended oven airflow and thermal clearance when the original shield is damaged or missing.

• One replacement heat shield

• Disconnect electrical power (and shut off gas for gas ranges) before starting any repair.
• Handle carefully — edges may be sharp; wear gloves and eye protection.
• Verify correct mounting orientation and fasteners; reuse original screws if in good condition or replace with OEM-specified hardware.

This burner orifice meters the gas delivered to a burner so you get a stable, properly sized flame. Replacing a clogged or damaged orifice helps restore quick ignition, consistent flame quality, and even heating on gas appliances.

• Meters gas flow from the valve to the burner for correct flame size and shape
• Helps maintain efficient, even heating and clean combustion
• Wear or blockage may show as delayed or no ignition, weak/uneven flame, or yellow tipping
• Can reduce popping or flare-ups caused by improper gas metering

• Shut off gas supply and disconnect power before servicing
• Remove the old orifice with the proper wrench/nut driver; install the new one snugly—do not overtighten
• After reassembly, leak-check connections and verify flame; adjust air shutter only if specified by the service manual

Size: 8 x 1/2 ab.

This mounting bracket secures internal components in place to keep your appliance stable and operating quietly. It replaces a worn, bent, or broken bracket to restore proper alignment and prevent loose or rattling parts. What it does:

• Provides a stable mounting point for panels, assemblies, or hardware
• Keeps connected components aligned to prevent rubbing or vibration
• Stops noises caused by loose or shifting internal parts
• Restores proper fit when an old bracket is bent, cracked, or missing

• Install with appliance unplugged or power disconnected to avoid shock
• Verify bracket orientation using the appliance's service diagram before fastening
• Use appropriate screws/fasteners and torque to avoid stripping or distortion

This lighting housing mounts in the freezer compartment to secure and shield the light assembly. Replacing a cracked or missing housing restores proper light placement, protection, and a clean, finished appearance inside the freezer.

• Secures the freezer light assembly in position
• Shields wiring/components from contact and impacts
• Helps direct illumination for clear interior visibility
• Common signs include broken/missing housing, loose or dangling light, or damaged mounting tabs

• Disconnect electrical power before servicing
• Remove retaining screws/clips and note original orientation
• Transfer any reusable light components to the new housing as designed, then reinstall and secure the housing
• Restore power and verify proper light operation

This light lens covers and protects the appliance's lamp, diffusing illumination in the cavity. Replacing a cracked or missing lens restores safe, even lighting and shields the bulb from splashes, heat, and debris.

• Provides a protective cover over the light and diffuses illumination
• Shields the bulb from grease, moisture, and debris for safer operation
• Restores proper lighting when the original lens is cracked, yellowed, warped, or missing
• Replaces lenses that won't latch or keep falling out

• Disconnect power to the appliance and allow the light area/bulb to cool completely.
• Wear gloves; damaged lenses can have sharp edges.
• Remove retaining screws or release tabs, noting the lens orientation; transfer any reusable clips.
• Seat the new lens fully and secure without overtightening to avoid cracking; restore power and test.

A direct-replacement electrical socket that restores a secure connection for a single appliance component. Replacing a worn or damaged socket helps stop intermittent power, flickering lights, or loss of function in affected circuits. What it does:

• Provides a secure electrical connection between the appliance wiring and the component it serves.
• Holds and aligns the mating connector or bulb so contacts meet reliably.
• Restores consistent power transfer when a brittle, corroded, or loose socket causes intermittent operation.
• Common symptom: component or light works intermittently, only when jostled, or not at all.

• One replacement socket

• Always disconnect power (unplug appliance or shut off breaker) before inspecting or replacing electrical parts.
• Inspect surrounding wiring and connector for heat damage; replace harnesses if insulation is compromised.
• Use basic hand tools to remove and reinstall; ensure contacts are fully seated and fasteners are secure.

This damper is the airflow gate that opens and closes to control air movement through the appliance's vent/duct path. Replacing a worn damper restores proper circulation and helps eliminate drafts and rattling from a loose or broken flap. What it does and common symptoms:

• Opens/closes a baffle to meter airflow through the air channel
• Helps maintain consistent air circulation and appliance performance
• Symptoms can include weak airflow or a constant draft when off
• Clicking, flapping, or rattling noises near the vent/duct area
• Visible damage or a stuck/broken flap at the damper

• One damper assembly

• Disconnect power before servicing; if applicable, shut off gas supply
• Access the damper behind the relevant cover/air duct; note orientation before removal
• Transfer any seals/clips from the old unit and ensure a tight, even seal on install
• After reassembly, restore power and verify the baffle moves freely and airflow is correct

This replacement access cover restores the appliance's exterior finish and helps protect internal components from dirt and accidental contact. Simple, direct-fit design for restoring safety and appearance after damage or removal. What it does

• Shields internal components and wiring from dust, debris, and accidental contact.
• Helps stop rattles and vibrations caused by a missing or loose cover.
• Restores the appliance's finished look after repair or maintenance.
• Provides a mounting surface for screws and attaches flush to the cabinet.

• Disconnect power (and water, if applicable) before starting any work.
• Remove any fasteners or trim pieces holding the old cover in place; lift cover straight out to avoid pinching wires.
• Align new cover and secure with the original screws; do not overtighten to avoid cracking the plastic.
• If any clips or mounting tabs are damaged, replace them before reinstallation to ensure a secure fit.

This damper housing is the plastic mounting and airflow channel that holds the refrigerator air damper assembly, helping direct cold air between compartments for proper temperature balance and efficient cooling performance. What it does:

• Secures the air damper and provides the airflow path between freezer and fresh-food compartments
• Helps regulate interior temperatures by guiding cold air where needed
• Prevents air leaks and misdirected airflow that can cause uneven cooling or frost buildup
• Works with the damper actuator to open and close the airflow passage as commanded by the control board

• One damper housing (air damper housing) as shown

• Disconnect power to the appliance before starting any repair
• Access may require removing interior liners, shelves or control panels—keep track of fasteners
• Handle plastic parts carefully to avoid cracking; align housing and damper components before fastening
• After installation, restore power and verify damper opens/closes and airflow is restored

The Thermistor is an OEM part for Whirlpool refrigerators. It is responsible for monitoring and regulating the refrigerator's temperature by sending temperature readings to the control board, which adjusts the cooling system accordingly. This ensures that the refrigerator maintains a consistent and optimal temperature for food preservation.

You should replace this thermistor if it becomes faulty. Causes of a bad thermistor can include electrical failures, physical damage, or wear and tear over time.

Symptoms of a bad Thermistor include:

• Inconsistent or incorrect temperatures in the refrigerator
• The refrigerator running continuously or not running enough
• Frost buildup or inadequate cooling

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This ice storage bin holds the ice made by your refrigerator's icemaker and keeps it contained and easy to access in the freezer. Replace a cracked or warped bin to prevent spills, jams, and poor seating.

• Collects and stores ice cubes produced by the icemaker
• Keeps cubes contained to minimize spills and stray frost
• Slides/seats on the designated rails or shelf area in the freezer
• Common signs of failure: cracks, broken tabs, bin won't seat or slides out, ice falling into the freezer

• Unplug the refrigerator or disconnect power; switch the icemaker off
• Pull the old bin straight out; empty and clean the area
• Slide the new bin in until fully seated; restore power and turn the icemaker back on
