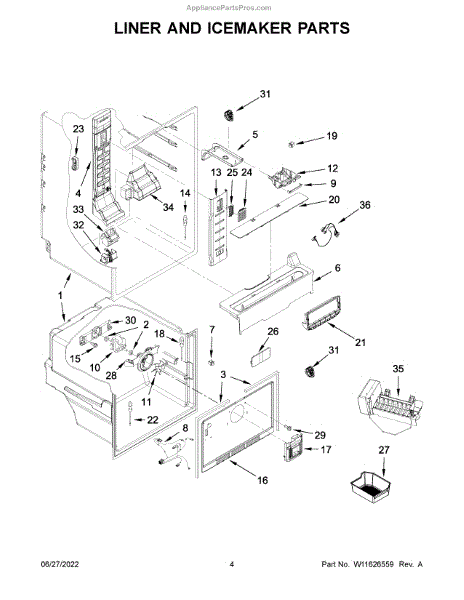

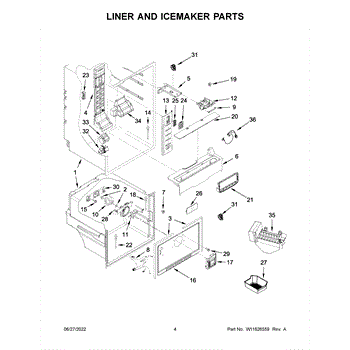

Parts for Whirlpool WRF560SMHB02: Liner And Icemaker Parts

This rubber grommet cushions and secures a refrigerator fan motor, isolating vibration to help reduce noise and keep the fan properly aligned in its mount.

• Provides a snug, vibration-dampening seat for the fan motor shaft or mounting stud
• Helps prevent rattling, buzzing, or humming sounds from a loose fan mount
• Maintains proper fan alignment to avoid blade contact with shrouds or brackets
• Replaces aged, cracked, or compressed rubber that can lead to increased vibration

• Disconnect power before service; wear cut-resistant gloves
• Access the fan assembly (rear or evaporator section), support the motor, and remove the old grommet
• Press the new grommet fully into the bracket or housing; transfer any spacers as originally configured
• Reinstall the motor and verify the fan blade spins freely with no contact before restoring power

This replacement gasket creates a tight seal between mating components in your appliance. Restoring a proper seal helps contain air or water where designed, improving performance and helping prevent leaks, moisture intrusion, and energy loss.

• Seals the interface between parts to prevent air or water escaping
• Helps maintain correct temperatures and fluid paths as designed
• Replaces a torn, cracked, flattened, or warped original gasket
• Common symptoms include leaks, visible gaps, or moisture around the sealed area

• Disconnect power and shut off water supply before service
• Note the original gasket's orientation; take photos for reference
• Clean and dry both sealing surfaces; remove old gasket material/residue
• Seat the new gasket fully and evenly; avoid over-tightening fasteners and test for a proper seal

The Refrigerator Door Switch is an OEM part for Whirlpool refrigerators. This switch monitors the opening and closing of the refrigerator door, activating lights and functions as needed while also keeping track of door activity for diagnostics purposes.

Causes of failure may be from normal wear and tear over time, moisture damage, or impact if the door is accidentally slammed.

Symptoms of a bad door switch include:

• Lights not turning on/off with door movement
• Dispensers or ice/water not working properly
• Cooling and freezing performance affected
• Error codes related to door operation

This OEM replacement part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models as well.

The Evaporator Motor is an OEM part for Whirlpool refrigerators. This motor powers the fan that circulates air over the evaporator coils, facilitating efficient cooling within the refrigerator and freezer compartments. Proper air circulation ensures consistent temperatures and helps maintain food freshness.

Causes of a bad evaporator motor can include wear and tear over time, electrical issues, or obstructions that prevent the fan from spinning freely.

Symptoms of a bad Evaporator Motor include:

• The refrigerator not cooling properly
• Unusual noises such as rattling or squealing from the motor area
• Frost buildup in the freezer compartment
• The refrigerator running constantly without reaching the desired temperature

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Evaporator Fan Blade is an OEM part for Whirlpool refrigerators. It is designed to circulate air over the evaporator coils, ensuring efficient cooling throughout the refrigerator and freezer compartments. The fan blade helps maintain an even temperature, contributing to the appliance's overall performance.

Causes of a bad fan blade can include wear and tear over time, ice buildup interfering with the blade, or physical damage from accidental impact or obstruction by debris.

Symptoms of a bad evaporator fan blade include:

• Unusual noises such as rattling or scraping
• Inconsistent or insufficient cooling in the refrigerator or freezer
• The refrigerator running longer than usual
• Visible damage or warping of the fan blade

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This housing is the outer shell that holds and protects the appliance's user interface and control components, keeping the console secure and helping prevent damage to the electronics. Ideal when the control area is cracked, broken, or cosmetically damaged. What it does:

• Secures the control board and user interface components inside the console
• Protects switches, touchpads, and display electronics from impacts and debris
• Restores a flush, stable mounting surface for buttons and controls
• Helps prevent moisture or contaminants from reaching internal electronics

• Disconnect power to the appliance before starting any repair
• Removing the console may require loosening screws and disconnecting wire harnesses; handle the control board and display with care
• Use appropriate hand tools and avoid bending or flexing the housing during installation

The Refrigerator Temperature Sensor is an OEM replacement part for Whirlpool refrigerators. It is a crucial component responsible for accurately monitoring and regulating the temperature inside the refrigerator and freezer compartments.

Symptoms of a faulty temperature sensor include:

• Inconsistent or fluctuating temperatures in the refrigerator or freezer
• The refrigerator running continuously or not cooling properly
• Error codes or indicators related to temperature control issues

Causes of a bad temperature sensor can include normal wear and tear over time, electrical malfunctions, sensor failure, or damage from moisture or condensation.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

This air tower directs cold air from the evaporator into the fresh-food and freezer compartments to help keep temperatures even and maintain food freshness. Replacing a cracked or damaged tower restores proper airflow. What it does:

• Channels chilled air from the evaporator to refrigerator and freezer compartments
• Helps reduce hot spots and uneven cooling when functioning correctly
• Prevents airflow leaks that can cause frost buildup or excessive cycling
• Works with existing evaporator and blower fan to distribute air

• One air tower (air duct assembly)

• Disconnect power before servicing to avoid electrical shock
• Remove interior liners or shelves as needed; handle plastic shrouds gently to avoid cracking
• Verify fit and orientation match the original before final fastening

The Door Switch is an OEM part for Whirlpool refrigerators. This switch is crucial for controlling the interior lights and the activation of certain refrigerator functions when the door is opened or closed.

Symptoms of a failing Door Switch include:

• Interior lights staying on when the refrigerator door is closed
• Interior lights not turning on when the door is opened
• The refrigerator unexpectedly starting or stopping
• Alarms or indicators malfunctioning, signaling an open door when it is closed

Causes of a bad door switch can involve mechanical failure due to wear and tear from frequent use, damage from impacts (such as slamming the door), or electrical issues like a short circuit or faulty wiring.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Refrigerator Temperature Sensor is an OEM replacement part for Whirlpool refrigerators. It is a crucial component responsible for accurately monitoring and regulating the temperature inside the refrigerator and freezer compartments.

Symptoms of a faulty temperature sensor include:

• Inconsistent or fluctuating temperatures in the refrigerator or freezer
• The refrigerator running continuously or not cooling properly
• Error codes or indicators related to temperature control issues

Causes of a bad temperature sensor can include normal wear and tear over time, electrical malfunctions, sensor failure, or damage from moisture or condensation.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

This thermistor cover shields and positions the refrigerator's temperature sensor so it reads cabinet air accurately. Replacing a cracked or missing cover helps restore stable temperatures and normal cooling performance.

• Holds the thermistor in place and shields it from direct airflow for accurate temperature sensing
• Helps prevent erratic temperatures, overcooling/undercooling, or long run times caused by an exposed sensor
• Commonly replaced when the original cover is cracked, loose, or missing
• Supports consistent temperature control by ensuring proper sensor placement

• Disconnect power before servicing
• Remove shelves/bins as needed to access the sensor location
• Align the thermistor and seat the cover fully; engage tabs or reuse existing hardware per model
• Avoid pinching the sensor or wiring and verify the cover is snug

This grille holds the refrigerator air filter in place behind the toe kick, allowing proper airflow through the filter and helping control odors. It replaces a damaged or missing grille to restore correct filter fit and operation. What it does:

• Secures the air filter housing so the filter seals and functions as intended
• Permits airflow through the filter media for odor control and fresher interior air
• Covers and protects the filter opening from debris and accidental contact
• Restores proper fit and appearance to the fridge front toe-kick area

• Disconnect power to the appliance before beginning any work
• Remove the old grille by gently pulling or releasing retaining clips as required by your model
• Align the grille with the filter opening and press until clips engage; do not force
• If an air filter is separate, verify the filter is seated correctly inside the grille before restoring power

The FreshFlow Refrigerator Air Filter is an OEM component for Whirlpool and Maytag refrigerators. Located inside the ventilation system, this filter purifies circulated air. This air filter is 3" wide by 2" high and white in color. It should be replaced every 6 months to ensure the best performance.

Causes of failure relate to clogging from trapped dust, dander and other allergens despite regular replacement intervals. Performance decreases as filter media becomes saturated over months of use.

Symptoms of a dirty or blocked refrigerator air filter include:

• Reduced airflow causes higher compressor runtime hours
• Odors being pulled into the fridge from unfiltered vents
• Shortening of food storage life due to unpurified air exposure
• Reduced fan speeds or strange noises originating from the vents

This genuine Whirlpool filter is also compatible with Maytag, Jenn-Air, and Amana models as well.

This ice storage bin holds the ice made by your refrigerator's icemaker and keeps it contained and easy to access in the freezer. Replace a cracked or warped bin to prevent spills, jams, and poor seating.

• Collects and stores ice cubes produced by the icemaker
• Keeps cubes contained to minimize spills and stray frost
• Slides/seats on the designated rails or shelf area in the freezer
• Common signs of failure: cracks, broken tabs, bin won't seat or slides out, ice falling into the freezer

• Unplug the refrigerator or disconnect power; switch the icemaker off
• Pull the old bin straight out; empty and clean the area
• Slide the new bin in until fully seated; restore power and turn the icemaker back on

This burner orifice meters the gas delivered to a burner so you get a stable, properly sized flame. Replacing a clogged or damaged orifice helps restore quick ignition, consistent flame quality, and even heating on gas appliances.

• Meters gas flow from the valve to the burner for correct flame size and shape
• Helps maintain efficient, even heating and clean combustion
• Wear or blockage may show as delayed or no ignition, weak/uneven flame, or yellow tipping
• Can reduce popping or flare-ups caused by improper gas metering

• Shut off gas supply and disconnect power before servicing
• Remove the old orifice with the proper wrench/nut driver; install the new one snugly—do not overtighten
• After reassembly, leak-check connections and verify flame; adjust air shutter only if specified by the service manual

This mounting bracket secures internal components in place to keep your appliance stable and operating quietly. It replaces a worn, bent, or broken bracket to restore proper alignment and prevent loose or rattling parts. What it does:

• Provides a stable mounting point for panels, assemblies, or hardware
• Keeps connected components aligned to prevent rubbing or vibration
• Stops noises caused by loose or shifting internal parts
• Restores proper fit when an old bracket is bent, cracked, or missing

• Install with appliance unplugged or power disconnected to avoid shock
• Verify bracket orientation using the appliance's service diagram before fastening
• Use appropriate screws/fasteners and torque to avoid stripping or distortion

This damper is the airflow gate that opens and closes to control air movement through the appliance's vent/duct path. Replacing a worn damper restores proper circulation and helps eliminate drafts and rattling from a loose or broken flap. What it does and common symptoms:

• Opens/closes a baffle to meter airflow through the air channel
• Helps maintain consistent air circulation and appliance performance
• Symptoms can include weak airflow or a constant draft when off
• Clicking, flapping, or rattling noises near the vent/duct area
• Visible damage or a stuck/broken flap at the damper

• One damper assembly

• Disconnect power before servicing; if applicable, shut off gas supply
• Access the damper behind the relevant cover/air duct; note orientation before removal
• Transfer any seals/clips from the old unit and ensure a tight, even seal on install
• After reassembly, restore power and verify the baffle moves freely and airflow is correct

This replacement access cover restores the appliance's exterior finish and helps protect internal components from dirt and accidental contact. Simple, direct-fit design for restoring safety and appearance after damage or removal. What it does

• Shields internal components and wiring from dust, debris, and accidental contact.
• Helps stop rattles and vibrations caused by a missing or loose cover.
• Restores the appliance's finished look after repair or maintenance.
• Provides a mounting surface for screws and attaches flush to the cabinet.

• Disconnect power (and water, if applicable) before starting any work.
• Remove any fasteners or trim pieces holding the old cover in place; lift cover straight out to avoid pinching wires.
• Align new cover and secure with the original screws; do not overtighten to avoid cracking the plastic.
• If any clips or mounting tabs are damaged, replace them before reinstallation to ensure a secure fit.

This damper housing is the plastic mounting and airflow channel that holds the refrigerator air damper assembly, helping direct cold air between compartments for proper temperature balance and efficient cooling performance. What it does:

• Secures the air damper and provides the airflow path between freezer and fresh-food compartments
• Helps regulate interior temperatures by guiding cold air where needed
• Prevents air leaks and misdirected airflow that can cause uneven cooling or frost buildup
• Works with the damper actuator to open and close the airflow passage as commanded by the control board

• One damper housing (air damper housing) as shown

• Disconnect power to the appliance before starting any repair
• Access may require removing interior liners, shelves or control panels—keep track of fasteners
• Handle plastic parts carefully to avoid cracking; align housing and damper components before fastening
• After installation, restore power and verify damper opens/closes and airflow is restored
