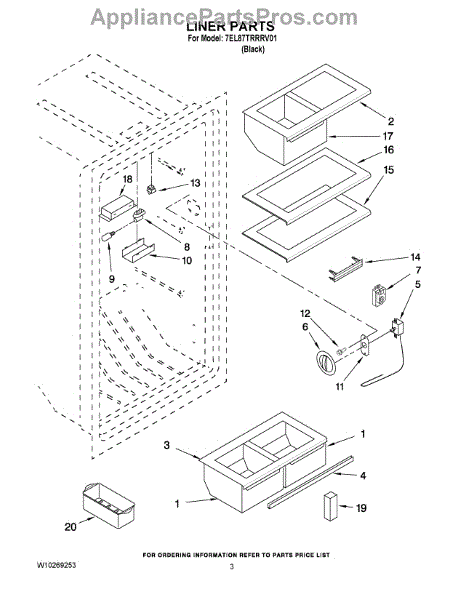

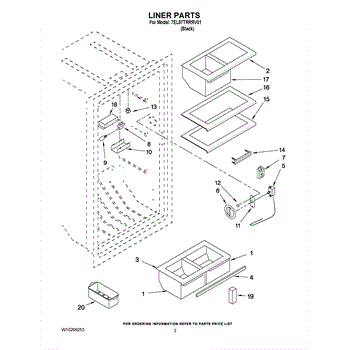

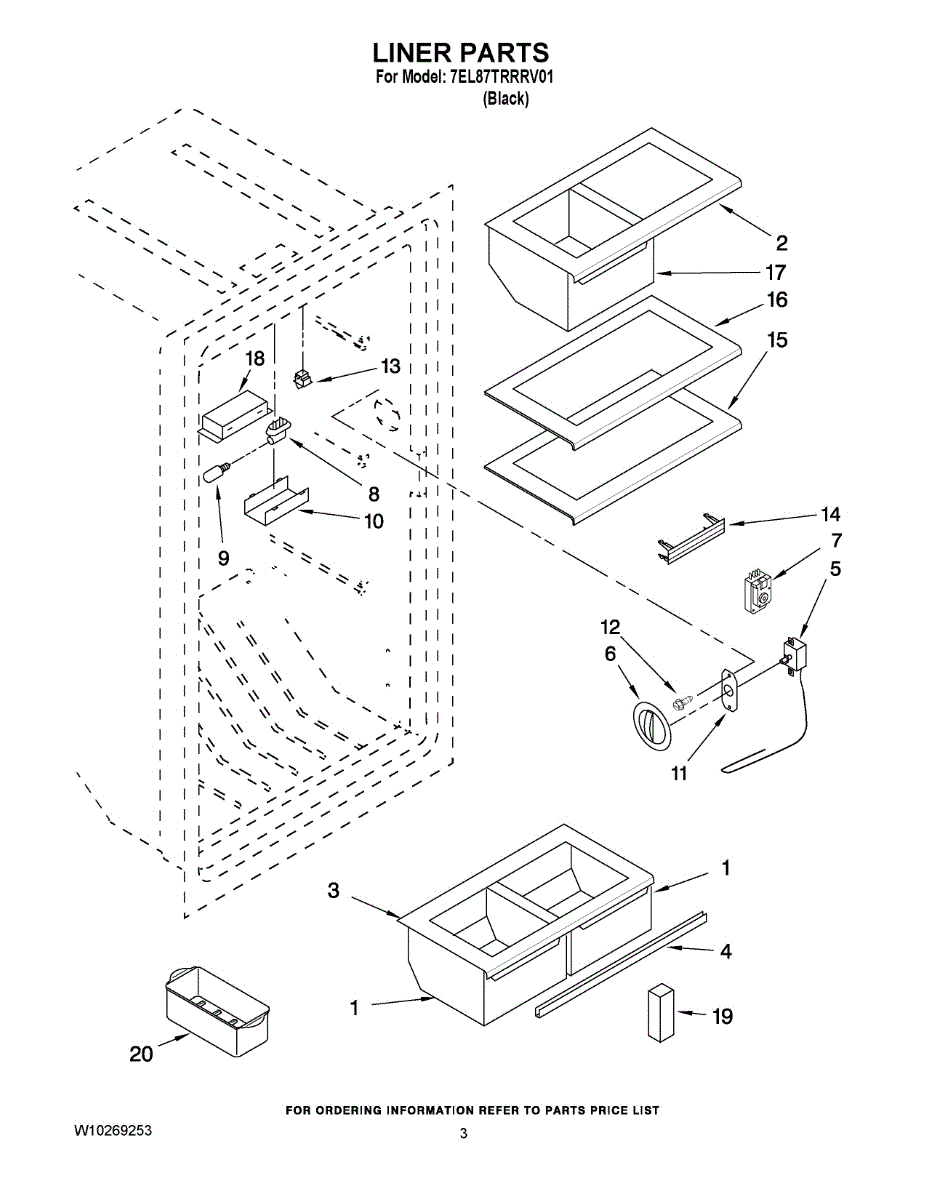

Parts for Whirlpool 7EL87TRRRV01: 02 - Liner Parts

This mechanical temperature control thermostat senses cabinet temperature and switches the cooling system on and off to maintain your setting. Replacing a worn control restores consistent, reliable temperature regulation. What it does

• Senses cabinet temperature and opens/closes contacts to cycle the cooling system
• Maintains the target temperature set by the control knob
• Helps prevent over-cooling (unit runs constantly) or warm conditions (won't cycle on)
• Common symptoms: unit runs nonstop, won't start/cycle, wide temperature swings, or no response when turning the control

• 1 temperature control thermostat

• Disconnect power before servicing
• Note the original routing and placement of the sensing bulb/capillary; reinstall in the same location and do not kink or sharply bend the tube
• Transfer any mounting bracket, clips, or knob from the original control if required
• After installation, set to a mid setting and allow up to 24 hours for temperatures to stabilize

This defrost timer controls when your refrigerator or freezer enters and exits the automatic defrost cycle to clear frost from the evaporator coils. Replacing a failed timer restores reliable defrosting to help maintain airflow, cooling performance, and stable temperatures.

• Advances on a timed schedule to initiate and end the defrost cycle
• Sends power to the defrost heater during defrost, then returns the system to cooling
• Helps prevent heavy frost buildup that restricts airflow and cooling
• Common symptoms of a bad timer: unit not defrosting or warming over time, heavy ice on the evaporator/cover, stuck running or stuck in defrost, or a timer that won't advance

• Disconnect power before servicing
• Access the timer (commonly in the control housing or machine compartment)
• Note/photograph wire positions and move leads one at a time to the new timer; mount securely
• Restore power and monitor for proper cycling; some models allow using the timer's advance slot to start a test defrost

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


Air duct baffle that seals and directs airflow between freezer and fresh-food compartments, helping maintain even temperatures and reduce temperature fluctuations. Replaces a worn or broken vent plug to restore proper airflow. What it does:

• Directs cold air through the refrigerator air duct to help balance temperatures between compartments.
• Seals the duct opening to limit warm air intrusion and reduce uneven cooling.
• Common symptom: refrigerator or fresh-food compartment feels warmer than expected or shows inconsistent cooling.
• Plastic replacement part; use when the existing vent plug is cracked, warped, or missing.

• Disconnect power before servicing the appliance to avoid electrical shock.
• Access typically requires opening the refrigerator interior; remove shelves or bins as needed for clearance.
• Part generally snaps or slides into the duct opening—minimal tools may be required; handle clips and plastic gently to avoid breakage.

This replacement refrigerator meat pan restores a dedicated, easy-sliding drawer for deli meats, cheeses, and snacks. It keeps items organized and contained so they're simple to find and access.

• Provides a shallow storage compartment that slides on existing shelf rails
• Helps organize smaller items separate from the main shelves
• Replace if the drawer is cracked, warped, or missing
• Symptoms include broken tabs, drawer falling off tracks, or sticking/not sliding smoothly

• Remove the old drawer and clear the shelf area before installing
• Align the new pan with the existing tracks/rails and slide into place—do not force
• Handle glass shelves carefully and support from underneath to prevent breakage
• Check shelf rails and supports for damage and correct alignment before use

Color: clear. It measures about 6 inches wide by 3-1/2 inches high by 15 inches deep.
