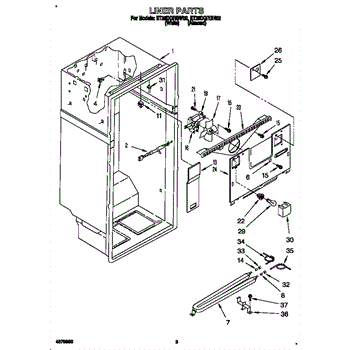

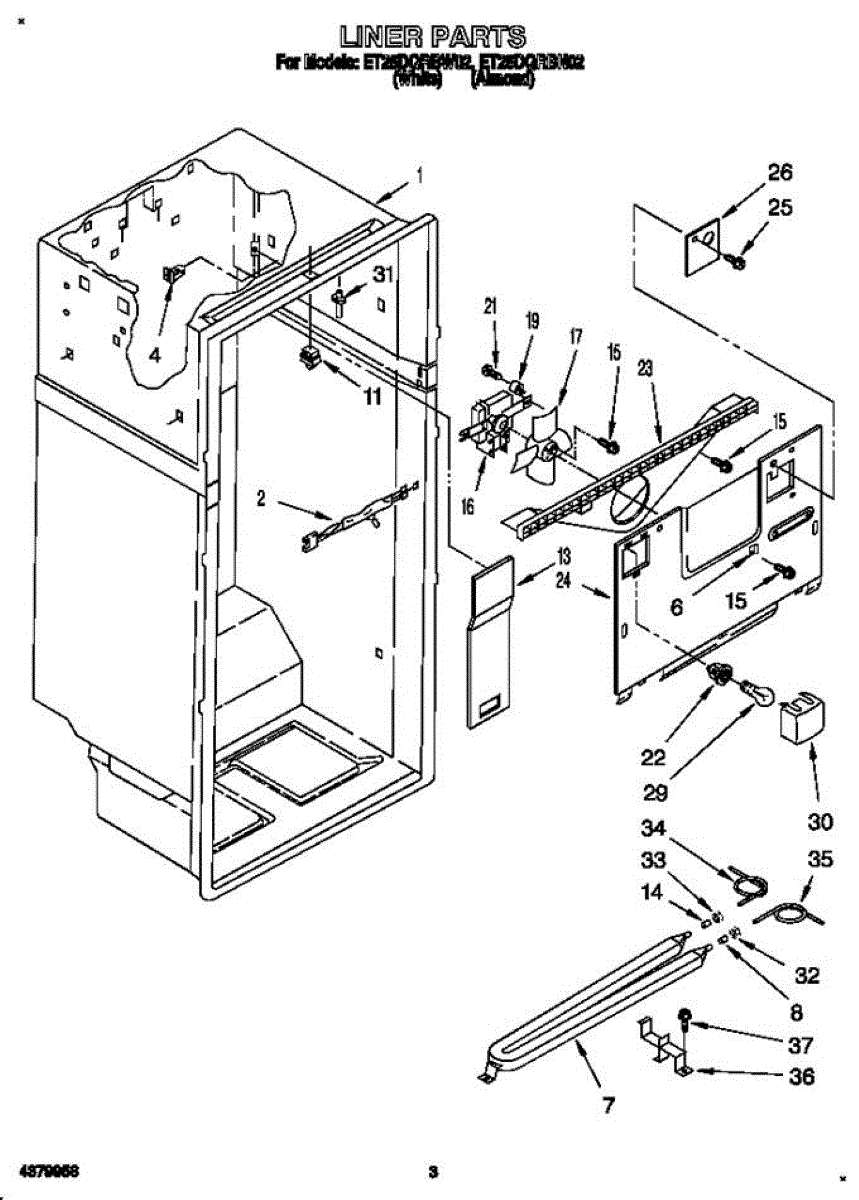

Parts for Whirlpool ET25DQRBN02: Liner Parts

This screw anchor is a small plastic fastener that secures panels and trim on appliances, preventing screws from stripping or pulling out. It provides a reliable anchor point for screws where threaded material is thin or absent. What it does:

• Creates a secure mounting point for screws in sheet metal, plastic or thin panels
• Helps prevent screw looseness, stripping, and parts that shift or rattle
• Commonly used to hold trim, panels, or interior components in place
• Works with compatible screws to distribute load and stabilize attachments

• Use the correct screw size and length; anchors are made for specific screw diameters—do not force oversize screws
• Align anchor in the prepared hole before driving the screw to avoid cracking the anchor or surrounding material
• Hand-start screws until seated, then tighten gradually—do not overtighten to prevent stripping or damage
• Disconnect power and follow appliance safety procedures before accessing internal panels

These inserts are for 1/4 inch plastic tubing. Package of 4.

This push-button door switch senses when your refrigerator door opens and closes to control the interior light. Replace a worn or stuck switch to restore reliable lighting and proper on/off operation when the door moves. What it does:

• Turns the interior light on when the door opens and off when it closes
• Common fix for a light that won't turn on with the door open
• Resolves lights that stay on continuously with the door closed
• Addresses intermittent lighting from a sticking or damaged plunger

• One door switch

• Disconnect power to the refrigerator before servicing
• Carefully pry the old switch from the liner; protect the surface to avoid damage
• Transfer wires to the new switch one at a time to maintain correct connections
• Press the new switch fully into place and restore power to test operation

Size: 8 x 1/2 ab.

The Evaporator Fan Motor Kit is an OEM replacement part for Whirlpool refrigerators. It includes the evaporator fan motor, which is responsible for circulating air over the evaporator coils, and any necessary mounting hardware or accessories.

Symptoms of a need to replace the evaporator fan motor kit include:

• Inadequate cooling or uneven temperature distribution within the refrigerator
• Loud noises or excessive vibrations coming from the evaporator area
• Complete failure of the refrigerator to cool or maintain temperature

Causes of a faulty evaporator fan motor can include general wear and tear, electrical malfunctions, bearing failures, or physical damage from impact or foreign objects.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

This evaporator fan blade mounts on the freezer's fan motor and circulates cold air through the cabinet. Replacing a cracked, loose, or warped blade restores proper airflow for even cooling and reliable refrigerator performance.

• Circulates air across the evaporator coils to push chilled air throughout the compartments
• Helps maintain consistent temperatures and overall cooling efficiency
• Supports frost control by keeping air moving over the coils
• Typical failure signs: rattling/scraping noises, weak airflow, uneven cooling, or frost buildup

• Unplug the appliance before servicing; wear cut-resistant gloves
• Access the evaporator fan (commonly behind the rear freezer panel)
• Pull the old blade straight off the motor shaft; align and press the new blade on, matching the original orientation/position
• Hand-spin to confirm clearance; reassemble and restore power to test airflow

This part has been discontinued and is no longer available.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This hole cover seals an access/opening in the refrigerator evaporator housing to help maintain proper airflow and prevent moisture or frost from entering the cabinet. A simple replacement that restores the evaporator enclosure's intended seal. What it does:

• Seals an opening in the evaporator housing to reduce air leaks and unwanted moisture entry
• Helps prevent excessive frost or ice buildup near the evaporator area
• Supports consistent cooling by keeping the evaporator cover intact
• Can stop interior water or debris from entering the evaporator cavity

• Disconnect power to the appliance before starting any repair
• Remove the evaporator cover or access panel as required to reach the opening
• Press or snap the cover into place until it seats securely; no special tools typically required
• If the cover is brittle or damaged, inspect surrounding mounting surfaces and replace as needed

The Bulb-Light is an OEM part for Whirlpool refrigerators. This bulb is designed to illuminate the interior of your refrigerator, making it easier to see and organize the contents.

Symptoms of a failing refrigerator light bulb include:

• Dimming or flickering of the light
• Light not turning on when the refrigerator door is opened
• Inconsistent performance, with the light turning on and off intermittently

Causes of light bulb failure in refrigerators generally involve the bulb reaching the end of its useful life, loose connections in the light socket, or issues with the refrigerator’s door switch that controls the light.

This OEM part is also compatible with other Whirlpool brand appliances, such as Maytag, KitchenAid, Jenn-Air, Amana, and others.

Refrigerator shelf support stud.

Comes with 4 nuts and 2 inserts. Instruction sheet included.

Comes with 4 nuts and 2 inserts. Instruction sheet included.

The Ice Maker Water Line is an OEM part for Whirlpool refrigerators. It supplies water from the household plumbing to the ice maker, ensuring a consistent and reliable production of ice cubes. This kit includes a 1/4-inch plastic water line that is approximately 72 inches long. The tubing will need to be cut to match the desired length.

Causes of a bad water line can include wear and tear from prolonged use, kinks or bends restricting water flow, or leaks due to punctures or cracks. A compromised water line can result in inadequate ice production or water leaks.

Symptoms of a bad ice maker water line include:

• Reduced or no ice production
• Leaking water from the refrigerator
• Visible cracks or damage to the water line
• Ice cubes that are smaller than usual

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
