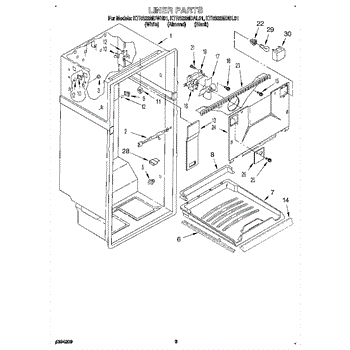

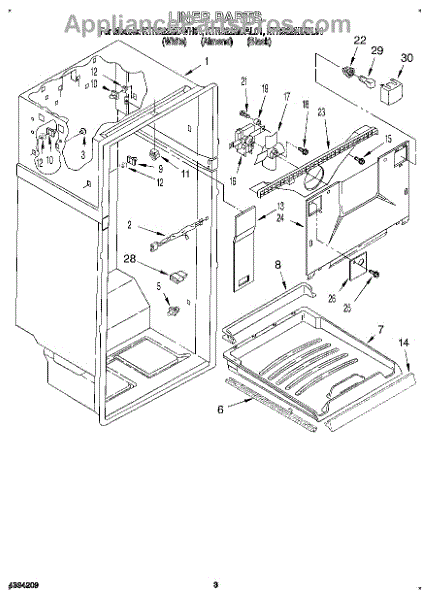

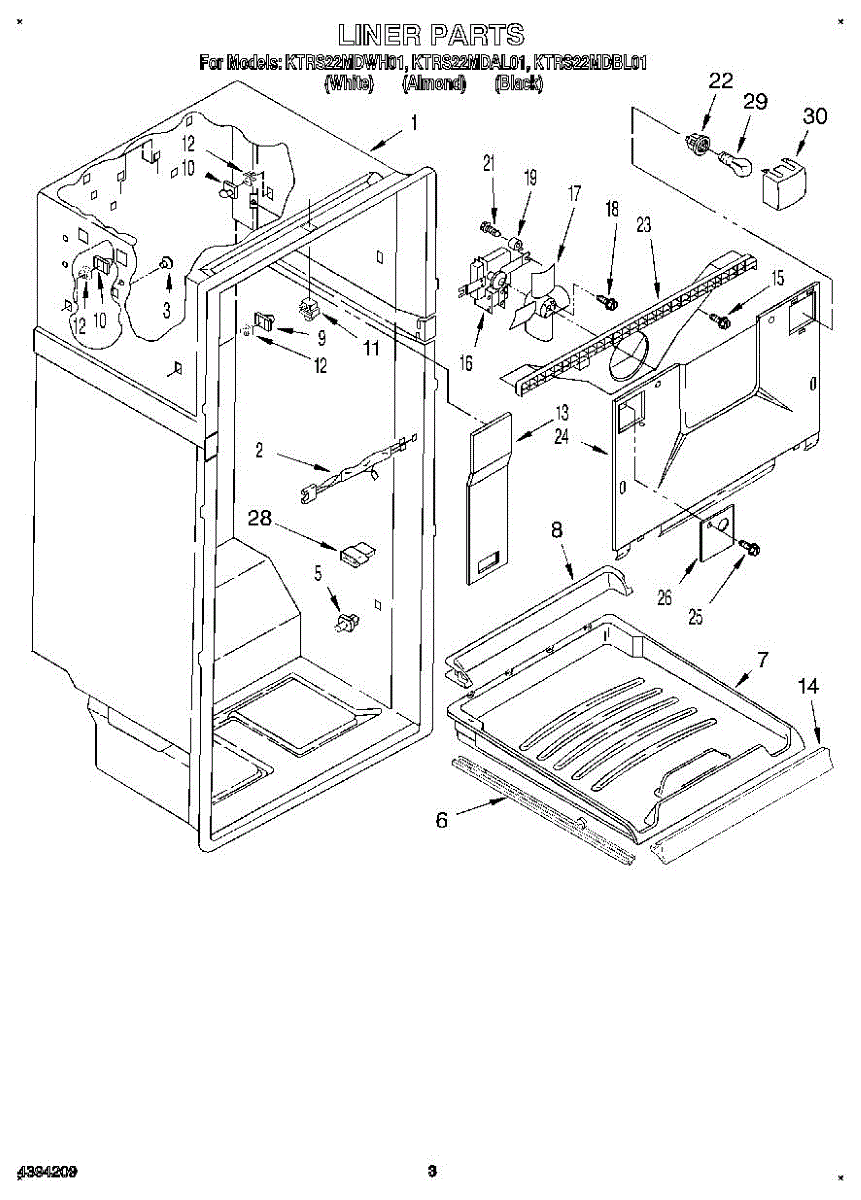

Parts for Kitchenaid KTRS22MDBL01: 02 - Liner Parts

This shelf stud secures a refrigerator shelf or shelf trim to the cabinet, restoring stable shelf positioning and preventing slipping or tilting. A simple hardware replacement that helps keep shelves level and items secure. What it does:

• Provides the mounting point that holds a shelf or shelf trim in place.
• Common replacement when the stud is cracked, broken, stripped, or missing.
• Stops shelves from tilting, sliding, or dropping when loaded.
• Works with the shelf edge/support to maintain proper alignment.

• Disconnect power to the appliance before starting any work, and remove all items from the shelf area.
• Remove the shelf or trim and handle any glass carefully; wear gloves and eye protection.
• The stud typically snaps or presses into the shelf support—refer to the model's diagram for exact orientation and fasteners.
• Support the glass while installing to avoid chipping or dropping.

The Shelf Stud Kit is an OEM part for Whirlpool refrigerators. This kit includes the necessary studs to secure the shelves within the refrigerator, ensuring they remain stable and properly aligned for optimal storage.

Common causes of a bad shelf stud include repeated loading and unloading of shelves, which can lead to wear and tear, or accidental damage from impacts.

Symptoms of a bad shelf stud include:

• Shelves tilting or falling out of place
• Difficulty in securing shelves
• Visible cracks or damage to the studs

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This kit includes four rack studs for select dishwashers. The studs fasten compatible rack components and accessories to the wire dishrack, helping keep rows and attachments secure during loading and wash cycles. What it does:

• Secures rack components and accessories to the dishwasher's wire rack
• Replaces broken, worn, or missing studs that no longer hold firmly
• Helps prevent rack items from detaching, shifting, or rattling during operation
• Common symptoms: loose/missing studs, falling rack attachments, unstable tine rows or holders

• Four rack studs

• Disconnect power; pull the rack out (remove it if needed) to access the work area
• Match the orientation of the new studs to the originals
• Insert and fully seat each stud through the rack wire and mating component
• Check that the rack components are secure and the rack slides smoothly before running a cycle

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Shelf Stud Kit is an OEM part for Whirlpool refrigerators. This kit includes the necessary studs to secure the shelves within the refrigerator, ensuring they remain stable and properly aligned for optimal storage.

Common causes of a bad shelf stud include repeated loading and unloading of shelves, which can lead to wear and tear, or accidental damage from impacts.

Symptoms of a bad shelf stud include:

• Shelves tilting or falling out of place
• Difficulty in securing shelves
• Visible cracks or damage to the studs

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 8 x 1/2 ab.

The Evaporator Fan Motor Kit is an OEM replacement part for Whirlpool refrigerators. It includes the evaporator fan motor, which is responsible for circulating air over the evaporator coils, and any necessary mounting hardware or accessories.

Symptoms of a need to replace the evaporator fan motor kit include:

• Inadequate cooling or uneven temperature distribution within the refrigerator
• Loud noises or excessive vibrations coming from the evaporator area
• Complete failure of the refrigerator to cool or maintain temperature

Causes of a faulty evaporator fan motor can include general wear and tear, electrical malfunctions, bearing failures, or physical damage from impact or foreign objects.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

This evaporator fan blade mounts on the freezer's fan motor and circulates cold air through the cabinet. Replacing a cracked, loose, or warped blade restores proper airflow for even cooling and reliable refrigerator performance.

• Circulates air across the evaporator coils to push chilled air throughout the compartments
• Helps maintain consistent temperatures and overall cooling efficiency
• Supports frost control by keeping air moving over the coils
• Typical failure signs: rattling/scraping noises, weak airflow, uneven cooling, or frost buildup

• Unplug the appliance before servicing; wear cut-resistant gloves
• Access the evaporator fan (commonly behind the rear freezer panel)
• Pull the old blade straight off the motor shaft; align and press the new blade on, matching the original orientation/position
• Hand-spin to confirm clearance; reassemble and restore power to test airflow

This is a replacement 1/4-20 threaded screw used to secure appliance components and panels. It restores proper fastening where a matching screw is missing, loose, or stripped and helps stop rattling or misalignment. What it does:

• Secures panels, brackets, and assemblies to maintain proper alignment and reduce vibration
• Replaces missing or damaged fasteners that cause loose or rattling parts
• Works wherever a 1/4-20 threaded screw is specified by the manufacturer
• Simple mechanical fastener—no electrical or calibration changes required

• Disconnect power to the appliance before servicing to avoid injury
• Use the matching driver and thread engagement; do not overtighten to prevent stripping
• Verify screw length and head type match the original before installing
• If threads are damaged, repair or replace the mating component rather than forcing the screw

This light socket replaces a worn or heat-damaged lamp holder so your appliance light works reliably again. Its straight-connector design fits applications with in-line wiring, ensuring a secure electrical connection to the interior light bulb.

• Holds the light bulb and supplies power to it
• Restores interior illumination for better visibility
• Straight terminal orientation for housings requiring inline wiring clearance
• Typical signs of failure: light stays off with a good bulb, flickers, or shows heat damage at the socket

• Disconnect power at the breaker or unplug before servicing; allow the area to cool completely
• Remove any lens/cover; transfer wires one at a time to maintain correct connections
• Secure the socket with existing bracket/fasteners; do not overtighten
• Test light operation before reassembly and confirm the door switch activates the light

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This hole cover seals an access/opening in the refrigerator evaporator housing to help maintain proper airflow and prevent moisture or frost from entering the cabinet. A simple replacement that restores the evaporator enclosure's intended seal. What it does:

• Seals an opening in the evaporator housing to reduce air leaks and unwanted moisture entry
• Helps prevent excessive frost or ice buildup near the evaporator area
• Supports consistent cooling by keeping the evaporator cover intact
• Can stop interior water or debris from entering the evaporator cavity

• Disconnect power to the appliance before starting any repair
• Remove the evaporator cover or access panel as required to reach the opening
• Press or snap the cover into place until it seats securely; no special tools typically required
• If the cover is brittle or damaged, inspect surrounding mounting surfaces and replace as needed

Restore clear visibility inside your appliance with this replacement light bulb. Replace a burned-out or flickering lamp so you can easily see contents and monitor operation when the door or light switch is activated. What it does:

• Provides illumination inside the appliance or work area
• Activates with the door switch or control panel/light switch
• Typical failure signs: no light, intermittent flicker, dim/blackened bulb, broken filament
• Helps with loading, unloading, and checking food or cycle status

• 1 replacement light bulb

• Disconnect power (unplug or switch off circuit breaker) before servicing
• Allow the bulb and surrounding area to cool completely
• Install only the bulb type and wattage specified by your model; do not exceed the rating
• Do not overtighten; reinstall any lens or cover securely
