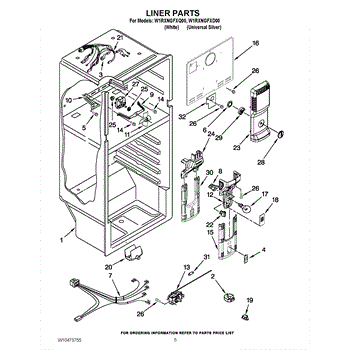

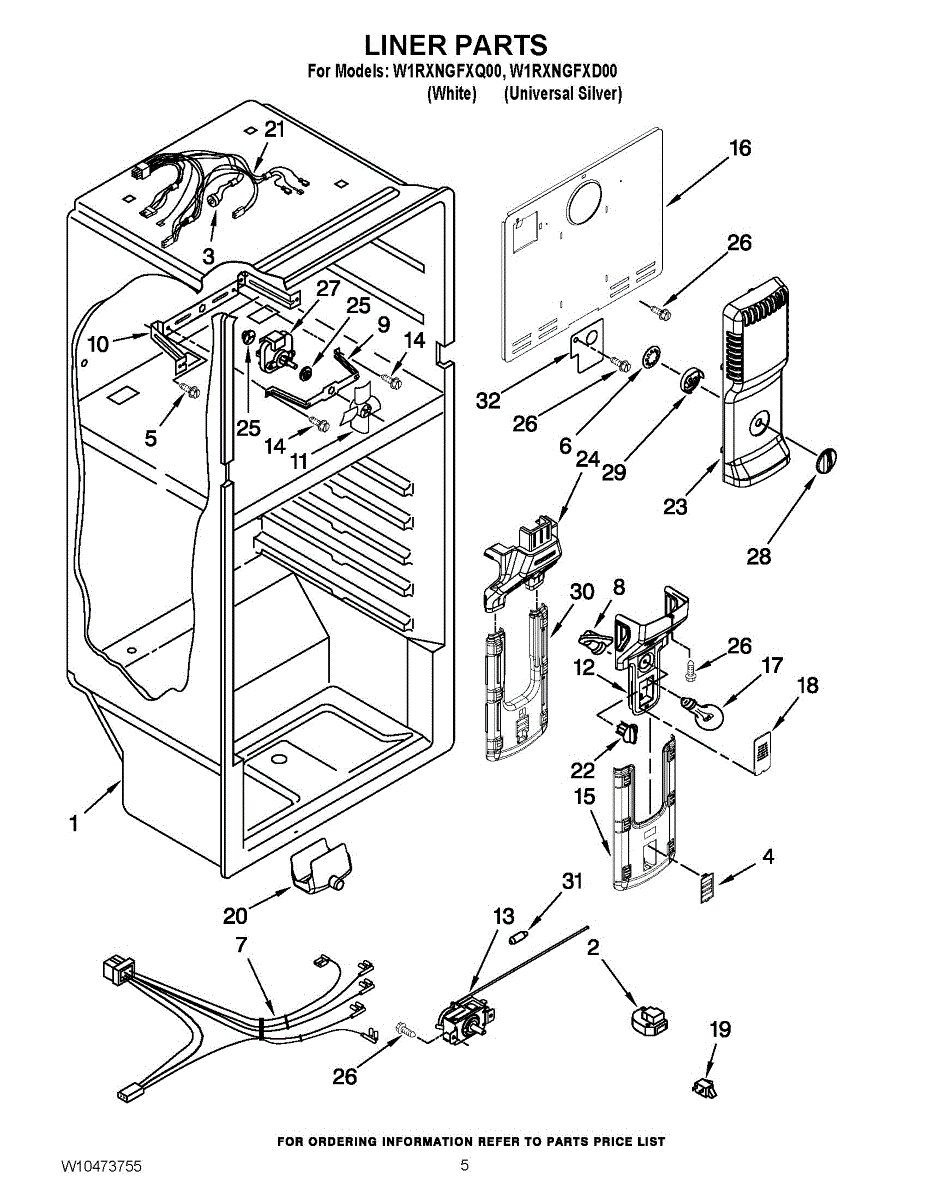

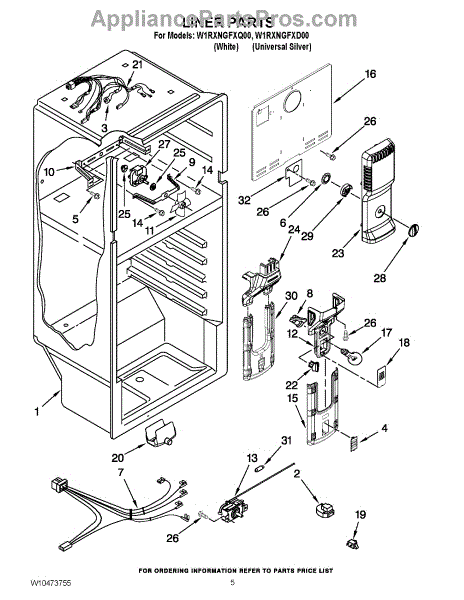

Parts for Whirlpool W1RXNGFXD00: 03 - Liner Parts

The Whirlpool Defrost Timer is an OEM replacement part for Whirlpool refrigerators. The defrost timer regulates the automatic defrost cycle, which prevents ice buildup on the evaporator coils in the freezer compartment by sending a signal to the defrost heater to turn on and melt any ice buildup on the coils.

Causes of a bad defrost timer can include mechanical wear over time, electrical failures, or internal component damage. Prolonged usage and voltage spikes can also affect the timer's functionality.

Symptoms of a bad Defrost Timer include:

• Excessive frost buildup in the freezer compartment
• The refrigerator or freezer not maintaining the set temperatures
• Unusual noises coming from the appliance
• The appliance running continuously without cycling off

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Defrost Thermostat is an OEM part for Whirlpool refrigerators. It is responsible for monitoring the temperature of the evaporator coils. When the coils reach a certain temperature, the thermostat signals the defrost heater to turn on and melt any ice or frost buildup. This ensures proper airflow and prevents excessive ice formation.

Causes of a bad defrost thermostat can be attributed to normal wear and tear over time or electrical malfunctions.

Symptoms of a bad defrost thermostat include:

• Excessive ice buildup in the freezer section.
• Inadequate cooling in the refrigerator compartment.
• Frost or ice accumulating on the evaporator coils.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Size: 8-18 x 1/2 inch.

This fan support bracket is a direct replacement mounting bracket that secures the fan/blower motor assembly and helps keep the blower aligned for proper airflow and quieter operation. It restores stable motor mounting and reduces vibration. What it does

• Secures the fan/blower motor and helps maintain correct fan alignment.
• Keeps the blower assembly stable to reduce vibration and noise.
• Helps prevent the blower wheel from rubbing or contacting surrounding panels.
• Supports consistent airflow for efficient operation and drying/cooling performance.

• 1 fan support bracket

• Disconnect power to the appliance before beginning any repair.
• Remove the appropriate access panel(s) to reach the fan/motor assembly.
• Compare the new bracket to the old part before installing.
• Use basic hand tools; avoid overtightening fasteners to prevent damage.

The Evaporator Fan Blade is an OEM part for Whirlpool refrigerators. It is designed to circulate air over the evaporator coils, ensuring efficient cooling throughout the refrigerator and freezer compartments. The fan blade helps maintain an even temperature, contributing to the appliance's overall performance.

Causes of a bad fan blade can include wear and tear over time, ice buildup interfering with the blade, or physical damage from accidental impact or obstruction by debris.

Symptoms of a bad evaporator fan blade include:

• Unusual noises such as rattling or scraping
• Inconsistent or insufficient cooling in the refrigerator or freezer
• The refrigerator running longer than usual
• Visible damage or warping of the fan blade

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 8-32 x .312 inch.

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This rubber grommet cushions and secures a refrigerator fan motor, isolating vibration to help reduce noise and keep the fan properly aligned in its mount.

• Provides a snug, vibration-dampening seat for the fan motor shaft or mounting stud
• Helps prevent rattling, buzzing, or humming sounds from a loose fan mount
• Maintains proper fan alignment to avoid blade contact with shrouds or brackets
• Replaces aged, cracked, or compressed rubber that can lead to increased vibration

• Disconnect power before service; wear cut-resistant gloves
• Access the fan assembly (rear or evaporator section), support the motor, and remove the old grommet
• Press the new grommet fully into the bracket or housing; transfer any spacers as originally configured
• Reinstall the motor and verify the fan blade spins freely with no contact before restoring power

Size: 8 x 1/2 ab.

The Evaporator Fan Motor is an OEM replacement part for Whirlpool refrigerators. It is responsible for circulating cold air inside the refrigerator compartment to maintain even temperatures. The evaporator fan motor works continuously to circulate air across the evaporator coil, where it is cooled and distributed throughout the fridge.

Causes of a bad fan motor can include debris accumulation hindering blade spin, failed motor windings from constant operation, or loose wiring connections interrupting power flow.

Symptoms include:

• Warm spots appearing in the fridge or freezer
• Inability to reach temperature set points
• Loud grinding or clicking noises from inside

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This hole cover seals an access/opening in the refrigerator evaporator housing to help maintain proper airflow and prevent moisture or frost from entering the cabinet. A simple replacement that restores the evaporator enclosure's intended seal. What it does:

• Seals an opening in the evaporator housing to reduce air leaks and unwanted moisture entry
• Helps prevent excessive frost or ice buildup near the evaporator area
• Supports consistent cooling by keeping the evaporator cover intact
• Can stop interior water or debris from entering the evaporator cavity

• Disconnect power to the appliance before starting any repair
• Remove the evaporator cover or access panel as required to reach the opening
• Press or snap the cover into place until it seats securely; no special tools typically required
• If the cover is brittle or damaged, inspect surrounding mounting surfaces and replace as needed
