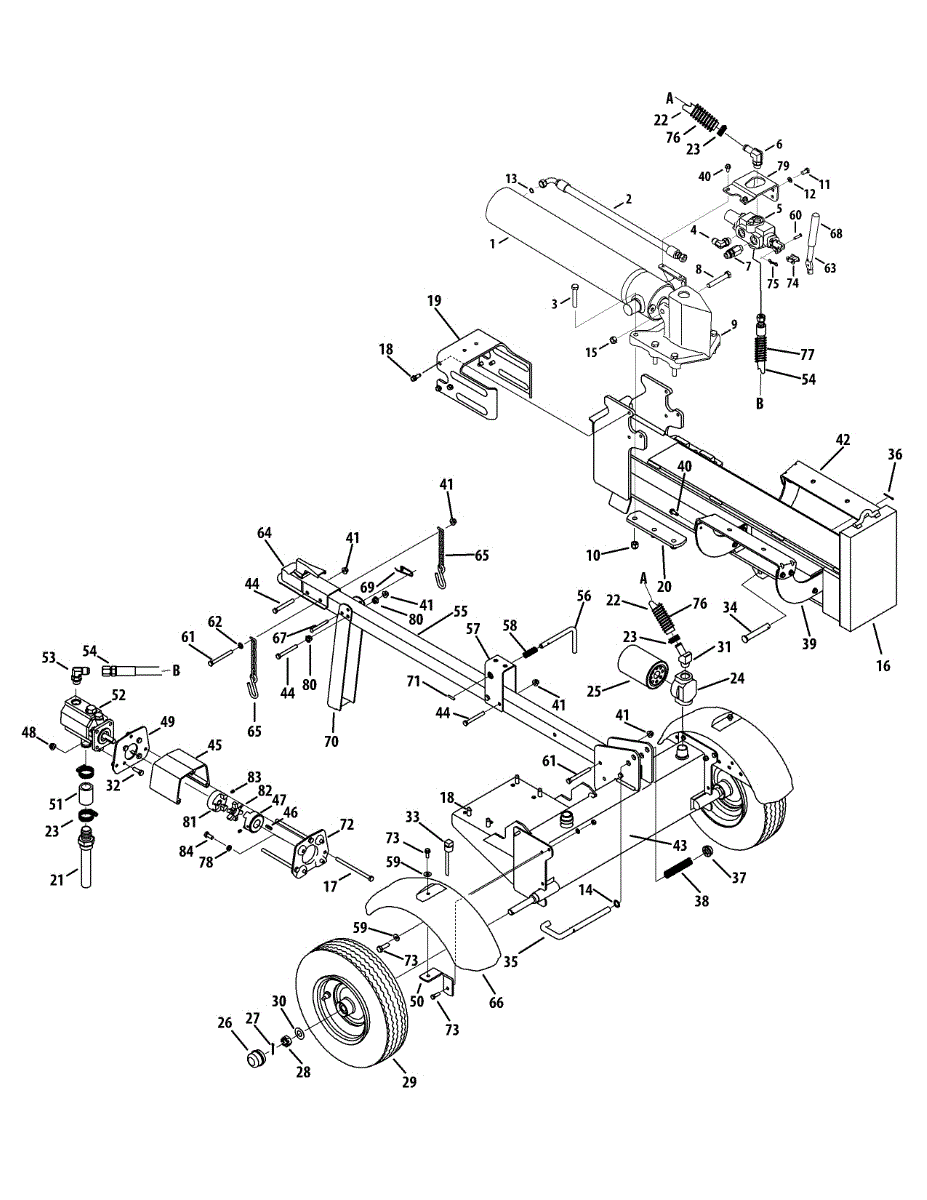

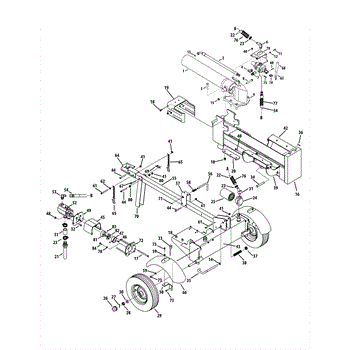

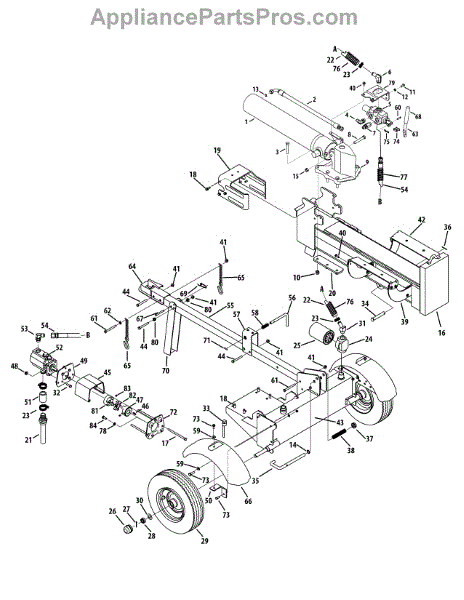

Parts for Mtd 24BG55M1706 / 2012: Logsplitter Mtd Parts

Hydraulic hose for log splitters. Connects hydraulic components to transfer fluid under pressure. Replace if cracked, leaking, or damaged.

Replacement hex bolt for lawn tractors, log splitters, and wood chippers. Secures components when original is stripped, missing, or corroded.

This replacement part is a log splitter valve, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. This log splitter valve is used in log splitters and helps shunt oil from the pump of the machine to the base of the cylinder. This causes the splitter to extend and assist in the log splitting mechanism. A new log splitter valve might be needed if the current splitting mechanism is not working properly. This means that the valve is malfunctioning and might need to be replaced. Be sure the device is completely powered down and cooled off before replacing this part. Log splitters can be dangerous so also be sure to wear working gloves while completing this job.This is a genuine OEM replacement part and is told individually. This part is sourced directly from the manufacturer. Reference the appropriate user guide for more specific instructions on how to replace this part.

Hydraulic fitting for log splitter systems. Connects hydraulic lines to ensure proper fluid flow. Replace if cracked, leaking, or damaged threads prevent secure connection.

If logs aren't splitting cleanly or the wedge is cracked or bent, this log splitter wedge restores proper splitting action. Direct replacement part.

This genuine part is a MTD hex nylon lock nut. It has a variety of applications in log splitters, riding lawn mowers, and lawn tractors. It is also known as a hex insert lock nut. A hex nut is used with anchor shackles, bolts, screws, and other externally threaded components. Used in conjunction with these other fasteners, the hex nut helps connect components to prevent tension and movement.A hex nut that has become worn, damaged, or lost can cause unsafe or unreliable operation of the unit. Hex nuts can be susceptible to thread galling or seizing, which can cause it to function improperly. Prior to working with this part, please refer to the original product manual for a full list of included parts and installation instructions. Additional tools may be needed for installation of this part. For safety, always wear gloves and ensure unit is powered down prior to performing any installation or repair.This high quality OEM replacement part is sourced directly from the manufacturer, and it is sold individually. It is made of high-quality durable metal. This part is compatible with Craftsman, Cub cadet, and more log splitters, riding mowers, and lawn tractors. Please note: original part number 712-3058 is now obsolete, and manufacturer has replaced the original part number with this part.

Hex screw for lawn mowers and outdoor power equipment. Secures components and panels. Replace if stripped, rusted, or missing for proper assembly.

This is a genuine washer lock that is designed to be used in various applications on lawn and garden equipment. It is a standard piece of hardware that provides a strong seal and distributes pressure between the two connected components. Because of the exposure to high pressure and vibrations, these washers can become damaged or broken over time. If they are not replaced promptly, the connection between the two different parts may be affected. These washers are small and can also get lost while doing other repairs, so it may be helpful to keep some extras on hand. This genuine OEM lock washer is manufactured to exact standards and is compatible with several lawn and garden machines from Husky, Cub Cadet, MTD, RYOBI, Yard Machines, Troy Bilt, Yard Man, and Bolens. It can be used with over 150 models of tractors, blowers, cultivators, trimmers, and snowblowers. Consult the parts diagram for the exact location(s) and application(s) of this washer. Replacing this washer will require a screwdriver or socket set to attach the screws or bolts that the washer is securing. Always wear gloves for hand protection when replacing engine components like this lock washer.

Replacement hex nut for lawn mowers, snowblowers, and outdoor power equipment. Used as a fastening component throughout the machine. Replace if missing.

This back plate (sometimes just called a plate) is a genuine MTD part. It is manufactured as a replacement part for log splitters and some models of lawn mowers.On a log splitter, the back plate is a safety feature and also helps deliver pressure. It is not uncommon for the back plate to become damaged or broken through normal use of the log splitter. If this happens, it is important to replace promptly as the machine may no longer function or be safe to use. This back plate is a genuine OEM part sourced directly from the manufacturer. It is sold individually. A wrench is required to make this repair. It is designed for compatibility with machines made by Craftsman, White Outdoor, Remington, MTD Gold, Yard Machines, Columbia, Troy-Bilt, and Cub Cadet.

Hydraulic inlet filter for log splitters. Filters contaminants from hydraulic fluid to protect pump and valves. Replace when clogged or annually. Confirm fit with your model number.

This part is a replacement return hose. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can be used to replace a damaged or detached return hose in a variety of outdoor power equipment. The return hose returns any excess fuel from the carburetor back into the fuel pump. Over time, this part can become worn or may be punctured, which can cause fuel leaks. In this case, it should be replaced immediately before the equipment is used again. It is always recommended that the appropriate safety precautions are adhered to when attempting to fix any power tools or machinery. For more accurate information on how and where to install this return hose, the appropriate owner's manual and included diagrams should be referenced.As an authentic replacement part, this return hose is suitable for use on several different models of chippers, shredders, and log splitters manufactured by MTD, Troy-Bilt, Yard Man, Cub Cadet, Husky, and Yard Machines. This is a genuine part made of high-quality, durable materials and is sold individually.

Filter housing for log splitters protects hydraulic system from contaminants. Replace if cracked, leaking, or during filter changes. Verify fit with your model number before ordering.

This is an oil filter designed for use in larger gasoline-powered landscaping and outdoor equipment such as log splitters and chippers. An oil filter is an essential safeguard to maintain a good operating condition and ensure long life in a gas engine. Oil filters remove toxic chemicals as small pieces of debris that can end up in the engines. Because these contaminants, if improperly removed, could also end up in the air or in the environment in other ways, oil filters must be meet EPA emission regulations. This filter not only meets federal environmental standards but also is an OEM guaranteed replacement part that is manufactured to the identical specification of the original parts being replaced. By the very nature of what it's supposed to accomplish, eventually, the filter will need to be replaced. Over time the filter's elements will become full of debris, and failing to replace it in a timely manner runs the risk of allowing the captured pollutants to escape back into the engine oil. When replacing the old filter, make sure to follow environmental guidelines as well, disposing of the oil and filter according to posted regulations. Replacing the filter is the ideal time to replace the engine oil as well. This filter is compatible with Husky, Cub Cadet, Troy-Bilt, Yard-Man, and MTD equipment.

This hubcap is an authentic OEM replacement part sourced directly from the manufacturer for use on log splitter and chipper wheels. The hubcap covers the central opening of the wheel assembly. This prevents dirt and debris from getting into the wheel assembly. If the hubcap comes off during use or is lost when replacing tires, a new one should be installed. The machine will work without a hubcap; however, the interior wheel assembly will be open to flying debris and could be damaged if rocks or large limbs go into the wheel assembly. During routine inspection and maintenance, the hub caps should be checked for damage and to make sure they are in place.The hubcap is easily removed and replaced with a screwdriver needed to pry the old hubcap off if it is still on the machine. The new hubcap simply snaps into place. This hubcap is made of high-quality metal and is sold individually. This hubcap is designed to be used with log splitters and chippers manufactured by MTD, Cub Cadet, Troy Bilt, Husky, and Yard-Man.

Secures wheels and attachments to axles on lawn mowers and tractors. Replace if bent, rusted, broken, or lost to restore safe equipment operation.

This nut, or slotted nut, is a genuine MTD part. It is a replacement part for use on lawn mowers, log splitters, wood chippers, lawn tractors, and chipper shredders. It is hexagonal in shape.The uses for this nut vary greatly depending on the machine with which owners plan to use it. Generally speaking, nuts work to secure various parts of components together. Loosening and tightening most nuts can be accomplished with a wrench. Before making any repairs, be sure that the engine has completely cooled, empty the fuel tank to avoid spillage, and disconnect the spark plug or battery. Wear work gloves and other protective gear.This nut is a genuine OEM part sourced directly from the manufacturer. It is sold individually; very often, more than one nut is used on machines such as these, so be sure to check how many are needed. It is designed for compatibility with various machines made by Agway Craftsman, Cub Cadet, Duerr, MTD, Lawn Chief, OEM, Ranch King, Remington, Ryobi, White Outdoor, Yard Machines, and Yard-Man.

Mandrel bearing for riding mowers and lawn tractors. Replace if spindle makes noise or blade wobbles. Ensures smooth blade rotation. Verify fit by model.

Grease retainer fastener for log splitters. Secures and holds the grease seal assembly in place. Replace if cracked, damaged, or missing during maintenance.

This cutting wheel assembly sits inside the chipper shredder housing to break down yard debris into smaller pieces. Replace when blades become dull, chipped, or the wheel wobbles excessively during operation.

Flat washer for lawn tractors and garden equipment. Distributes load under bolt heads and prevents surface damage. Replace if worn or missing.

Hex cap screw for securing components on lawn mowers, tractors, and outdoor power equipment. Replace if stripped, rusted, or missing hardware.

Log Splitters use this plug pipe to cover the oil tube and measure the amount of oil in the engine with the included dipstick. The dipstick sits inside the oil tube, and when it is pulled out, the amount of oil is determined by the markings on the dipstick. If the plug pipe is lost or misplaced while replacing the oil or making repairs to the engine, it will need to be replaced to prevent oil from leaking and to keep the pressure inside the oil tube optimal. Maintaining the correct oil level in all engines is critical to keeping the engine running. If the engine runs without oil, major damage can be done to the pistons and other parts, making the engine seized and have to be replaced. It is less expensive to maintain the oil than it is to replace the engine. This plug pipe with dipstick is an OEM replacement part that is sourced directly from the manufacturer. It is a gold-colored metal part with an attached dipstick. It is sold as an individual unit that is designed to be used on log splitters manufactured by MTD, Troy-Bilt, Yard-Man, Cub Cadet, and Yard Machines.

Cotter pins are simple but very effective fasteners used primarily to hold wheels in place on mowers. This is particularly true of the front wheels on riding mowers. Cotter pins are very light and can become overly pliable after extensive use. In some cases, the front wheels of a mower, which are the guide wheels that steer the device, become difficult to manage. The cure for this situation is often simply the replacement of the cotter pins that are not holding the guide wheels adequately in place. Before attempting to remove the pins, it is essential that the spark plug boot is moved so that the mower cannot be started. This is an important safety step because the repairer will be getting under the mower near the blades. The back wheels should be blocked so the mower cannot move, then the front end placed up on blocks. Remove the mower's hubcaps to gain access to the axle spindles. Straighten the legs of the pin so that when the curved portion of the cotter pin is grasped with pliers and it can be pulled straight back and be removed. The spindle, washers, and wheels should be checked for wear before the new pin is placed and secured. This OEM cotter pin is compatible with Bolens, Yard-Man, Craftsman, Yard Machines, Cub Cadet, Turf King, Troy-Bilt, Huskee, Toro, Ryobi, MTD, MasterCut, Murray, and Montgomery Wards.

This OEM replacement push cap can be used in a variety of lawn and garden equipment. The push cap is secured to the end of a shaft, providing protection to the user from the sharp metal edge of the shaft. The push caps that are included with the machines may wear out over time or fall off in some cases, creating an injury risk involving sharp metal edges. These push caps are high-quality and made from durable plastic. They are easy to install. The OEM push cap is a genuine part made by the original manufacturer, to ensure quality and s proper fit. The push caps can be used on lawn tractors, chippers, shredders, log splitters, and other equipment. Some of the brands that this push cap is compatible with include MTD, Husky, Yard-Man, Bolens, Troy-Bilt, Ryobi, Yard Machines, and cub Cadet.

Replacement spring for lawn tractors and riding mowers. Restores tension and function when original spring is broken, stretched, or missing.

Secures the log splitter's tray to the frame. Replace if your bracket is punctured, dented, warped, eroded, or has detached from the unit.

Hex head self-tapping screw for outdoor power equipment. Securely fastens components throughout your machine. Replace if missing, stripped, or worn.

This is a flanged lock nut. It’s designed to apply tension, typically on a joint that needs to have a certain amount of flex. As such, it’s mostly used on snowblower chutes and lawnmower handles. They can remain in place, but with a forgiving connection that can take a beating. The nut size is 3/8, with a thread size of 16. A lock nut will generally last for many years. However, the silicone ring inside will wear down if it’s frequently tightened and loosened. It needs to be replaced when it will no longer reliably remain in place. Generally, this begins as a symptom of slight slippage and worsens as time goes on. Thankfully, whether it’s being used on a snowblower or a lawnmower, this nut is generally straightforward to access. Simply unscrew the old nut, then screw the new nut on until it’s nice and tight. Our flanged lock nuts are genuine OEM MTD nuts, and they are sold individually.

Cradle bracket that secures the log tray to your log splitter, catching split wood pieces. Replace if cracked, bent, or broken to restore tray support.

Protective coupling shield for log splitters. Guards the coupling connection from debris and damage. Replace if cracked, bent, or missing for safety.

Flange lock nut secures components on mowers and outdoor power equipment. Replace if stripped, corroded, or missing to restore proper fastening.

Log splitter not building pressure or splitting slowly? This hydraulic gear pump restores splitting force. Moderate difficulty repair for experienced DIYers.

48-inch hydraulic hose for log splitters. Connects hydraulic pump to cylinder. Replace if cracked, leaking, or worn from age and pressure cycles.

Clevis pin for log splitter linkage connections. Replace if bent, worn, or missing to secure hydraulic cylinder and beam assembly connections.

This screw is a genuine Midwest Engine replacement part for appliances operated by small engines, including lawn tractors, lawn mowers, snowblowers, leaf blowers, vacuums, and tillers. The purpose of a screw is to link materials together by piercing into the materials and then rotating it until the materials are firmly clasped together.It is likely that a screw will have to be replaced at some point in the lifespan of an appliance due to simply losing or misplacing the screw. If the materials that are generally supposed to be held together seem to be loosening or have come apart, it is likely that the screw has either fallen out or has undergone damage that has warped it. This kind of damage can be attributed to general overuse, to age, or simply to long-term exposure. If a screw is subject to any of this kind of damage, it is best to replace it immediately. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This screw is compatible with the following brands: MTD, Cub Cadet, Troy-Bilt, and Yard Machines. This part sold individually.

Control handle for log splitters. Replaces broken, cracked, or worn handles. Mounts to control mechanism for operating the splitting ram.

Hitch coupling assembly for log splitters. Connects your unit to a towing vehicle. Replace if the coupling is cracked, bent, rusted, or damaged.

This is a replacement log splitter fender directly from the manufacturer. The fender protects and covers the wheel to help prevent any object from disrupting the wheel's motion or damaging the wheel itself. Fenders can crack and break from regular use. If any heavy object falls onto the fender, the wheel will be kept safe. However, if fender is cracked, it will need to be replaced to avoid wheel damage. Fenders can be replaced relatively easily. Depending on the model, the wheel may need to be removed. Jack up the log splitter to remove the wheel. The fender is held in place by three bolts which a socket wrench can remove. Once the wheel is off, remove the old fender and replace it with the new one using the same bolts. If the bolts are in rough shape, consider replacing them. Replace the wheel and lower the jack to complete the repair. The fender is a genuine OEM replacement part and is designed to be used with MTD, Troy-Bilt, and Yard Machines brand log splitters.

This is a quality clevis pin that is specifically designed for use with wood chippers and log splitters. The clevis pin is a secure and easily installed fastener that is often used in the place of rivets and bolts. As with other fasteners, the clevis pin is durable and long-lasting but wear and tear or use of the equipment can cause damage. If the clevis pin is damaged, broken, or has been lost, it will need to be replaced.When replacing a clevis pin, the tool should be powered off. Remove the spark plug wire and place the tool on a sturdy surface during the replacement process. The clevis pin may be located in various places depending on the model. Use the user's manual to determine where to get access to it. Remove the old pin and replace it with a new one before reassembling the machine.This clevis pin is sold on an individual basis. The component is designed to be compatible with lawnmowers, wood chippers, and log splitters manufactured by MasterCut, Yard-Man, MTD, Yard Machines, Ryobi, Cub Cadet, and Craftsman. This is an authentic OEM replacement part that is sourced directly from the manufacturer.

Replacement handle grip for log splitters and outdoor power equipment. Covers the handle surface for improved comfort and control. Replace when cracked or worn.

Replace a cracked, bent, or missing bracket and flange on your log splitter. This structural component provides secure mounting and support for safe operation.

Replace a broken, stripped, or missing hex bolt on your lawn mower or outdoor power equipment. Standard hardware for securing components.

This metal link connects the control handle to the hydraulic valve on a log splitter. It transfers the operator's lever movement to engage or disengage the splitting action. Replace this link if the control handle feels loose, disconnected, or fails to actuate the hydraulic valve properly.

Secures pins and shafts on lawn tractors and riding mowers. Replace if bent, missing, or worn. Bow-tie design inserts through pre-drilled holes.

This lock washer is used frequently for a number of applications on power yard equipment. The size, 5/16, is the default for many small engine housing and manifold applications. Lock washers are used with machined bolts to fasten engine blocks to the housing of the equipment being used. The compressed washer is able to handle the constant vibration of the small gasoline engine without losing the seal between the screw or bolt and the housing. Typically these lock washers only need to be replaced when they are misplaced during repairs or when the screws that attach them have to be chiseled or cut away, meaning the washers are destroyed as well. These OEM certified replacement washers have been manufactured to the same specifications as the originals they are replacing. In addition to lawn mowers, lock washers of this type and size are frequently used on blowers, lawn tractors, cultivators, snowblowers, and trimmers. Brands compatible with this type of washer are Murray, Husky, Poulan, Bolens, Yard-Man, Cub Cadet, Troy-Bilt, Yard Machines, MTD, and Ryobi.

This is a bushing made from black plastic with a cleft down the middle to provide enough flex for easy insertion. It has a flanged design, which means it won’t easily pop out after installation, even under stress from constant vibration. The bushing’s primary purpose is to protect wires and cables from damage as they pass through a channel. As such, the material is fairly durable and does not need to be replaced under ordinary circumstances. That said, there are some situations in which it can become damaged. For one thing, it’s easy to damage while repairing the wires or cables that run through the bushing. If the bushing does need to be replaced, it requires disconnecting any cables or wires that run through the bushing. Pop out the old bushing with a rubber mallet, install the new bushing the same way, reconnect the wires, and the repair is complete. This is an OEM part sourced directly from MTD, and it is sold individually. It was initially used on snowblowers but has also been used on lawnmowers and lawn tractors.

Log splitter won't engage or makes grinding noises? This jaw coupling connects drive shafts and absorbs shock loads. Moderately easy DIY repair.

This is a flexible coupling bushing - commonly called a spider bushing - that connects the engine to the hydraulic pump on a log splitter. It absorbs vibration and compensates for minor misalignment between the motor shaft and pump shaft. Replace this bushing if you notice excessive vibration, unusual noises from the pump area, or if the hydraulic pump is not engaging properly.
