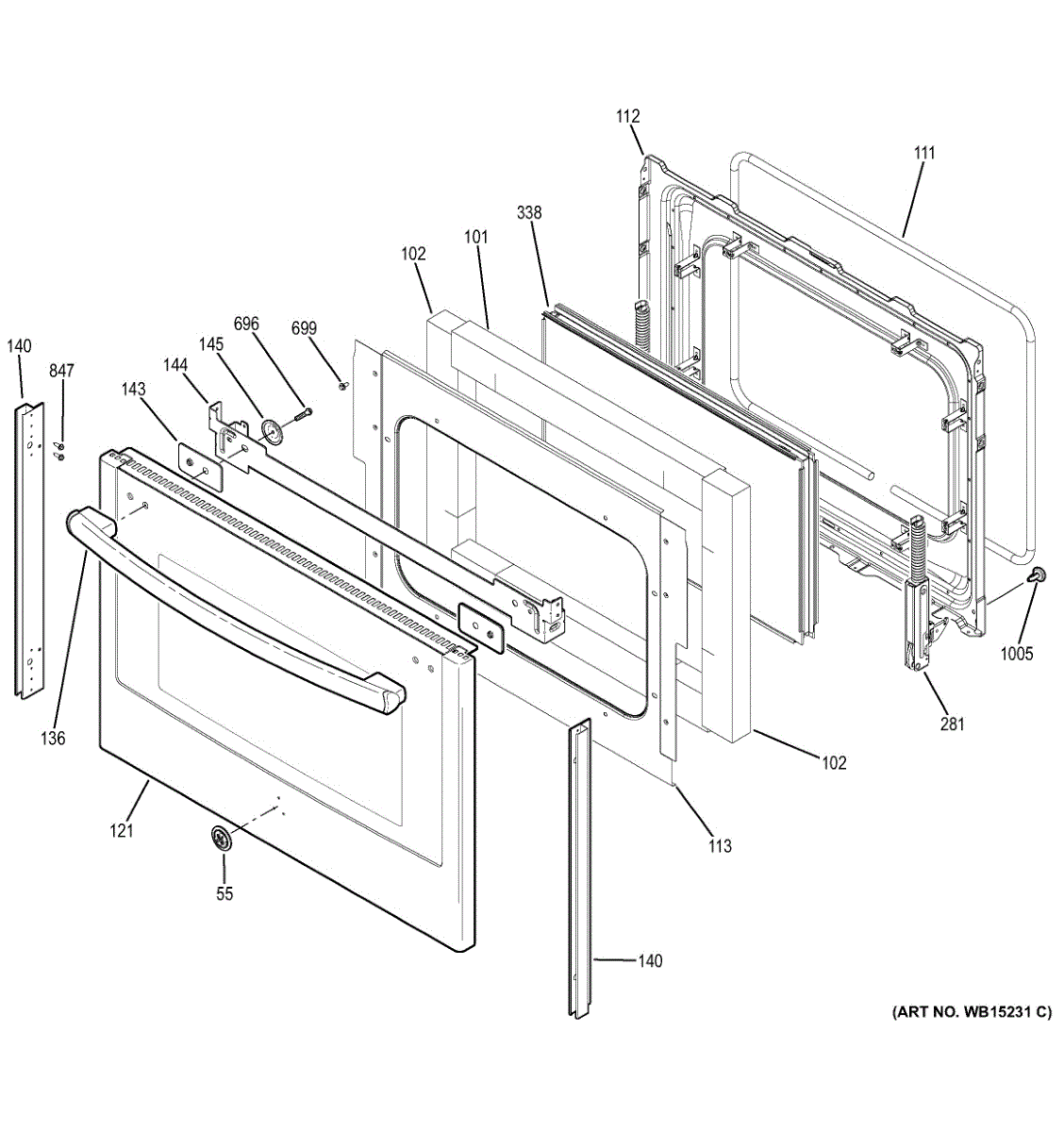

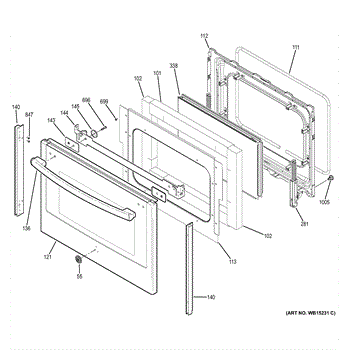

Parts for Ge JB850DF2BB: Lower Door Parts

Replacement badge designed to restore the appliance's exterior appearance and factory look. This decorative emblem replaces a faded, scratched, or missing badge so the control panel or door presents a clean, branded finish. What it does:

• Replaces a worn, cracked, faded, or missing badge to restore original appearance
• Sits on the appliance front where the original emblem was located for accurate visual match
• Helps maintain a factory-fresh look after cosmetic damage or panel repair
• Sold as the individual decorative emblem; intended as a direct-fit cosmetic replacement

• Clean and fully dry the mounting area before installing to ensure proper adhesion and fit
• Align carefully with the original location; press firmly and evenly to secure the badge

This oven door insulation pad fits behind the inner door liner to help retain heat in the oven cavity and reduce heat transfer to the outer door. It restores proper oven temperature control and improves cooking consistency. What it does:

• Replaces worn or damaged insulation that can allow heat to escape from the oven cavity
• Helps the oven reach and maintain set temperatures for more even baking and roasting
• Reduces excessive outer door temperatures and hot spots on the range front
• Restores the intended thermal barrier between the oven cavity and outer door assembly

• One oven door insulation pad

• Disconnect power to the appliance before starting any repair; allow the oven to cool completely
• Installation commonly requires removing the oven door and inner door liner—follow OEM instructions
• Handle insulation carefully; wear gloves and a dust mask if material is fibrous

This oven door side insulation sits between the inner and outer door panels to limit heat loss and reduce hot spots along the door edge. Replace when the original is burnt, brittle, or missing to help restore safe thermal performance.

• Provides a thermal barrier along the side of the oven door between panels
• Helps retain oven heat and reduce heat transfer to the outer door surface
• Can help address heat escaping around door edges or a door exterior that feels hotter than normal
• Replace if the insulation is charred, frayed, compressed, or contaminated during service

• Disconnect power at the breaker and allow the oven to cool completely
• Remove the door and disassemble per your model's service instructions; work on a padded surface
• Wear gloves and eye protection; handle insulation carefully and avoid compressing it
• Do not block vents or air passages during reassembly; note orientation for proper fit

The Oven Door Gasket is an OEM part for GE ranges. This gasket is responsible for creating an air-tight seal between the door and the oven housing. It allows heat to be properly contained within the oven cavity during the cooking process.

Causes of a bad gasket can include warping, cracking, or breakdown of the gasket material over repeated heating and cooling cycles. Exposure to excessive heat or impact damage is also possible.

Symptoms of a bad gasket include:

• Inability to maintain proper oven temperatures
• Leaks of heat, smoke, or flames from the door seal area
• Drafts or cold spots felt around the door perimeter
• Difficulty in fully latching the oven door closed

This OEM GE replacement gasket is also compatible with Hotpoint, RCA, and some Kenmore models.

This oven door insulation retainer secures the insulation inside the oven door, helping maintain proper heat containment and preventing insulation from shifting. It's a small but important clip that keeps the door's inner components stable. What it does:

• Holds inner door insulation in place so insulation stays positioned during use
• Helps maintain consistent heat distribution by preventing insulation gaps
• Reduces rattling or movement of the door interior when opening or closing
• Commonly replaced when insulation is loose, visible, or shifting inside the door

• One oven door insulation retainer

• Disconnect power to the appliance before beginning any repair to avoid shock or injury
• Access typically requires removing the oven door or inner door panel — follow your model's service instructions
• Handle door panels and insulation carefully to avoid damage; keep fasteners organized for reassembly

This spacer bracket is the factory replacement part that positions and secures a range or oven handle, keeping the handle aligned and spaced correctly for a snug fit and normal operation. What it does

• Holds the handle at the correct distance from the door or control panel so the handle sits straight and evenly
• Prevents handle wobble or rotation by supporting the mounting hardware
• Helps close gaps between the handle and appliance surface for a finished appearance
• Common symptom: loose, tilted, or wobbly handle or visible gap at the handle mounting

• Disconnect power to the appliance (unplug or turn off the circuit breaker) before starting any repair
• Use basic hand tools (screwdriver/socket) to remove the handle and fasteners, replace the bracket, then reassemble
• Keep small screws and fasteners organized during removal; replace any damaged fasteners
• Do not overtighten screws — snug is sufficient to avoid stripping or cracking the bracket

The Window Pack Assembly is an OEM replacement part for GE electric ranges. It comprises the outer oven window and securing brackets that hold the glass in place.

Causes of failure can include cracks in the glass from impact or thermal stress over time. Mounting brackets may loosen from normal use.

Symptoms of a faulty window pack assembly include:

• Fogging or condensation between panes of glass
• Leaks evident around the perimeter of the oven window
• Window that rocks or wiggles in the frame
• Inability to securely latch the window shut

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore oven models.

This hex-washer-head screw secures appliance components and panels. The correct 10-16 thread, 1-inch length fastener restores a tight, factory fit when an original screw is missing, stripped, or corroded.

• Fastens brackets, shields, trim, or panels to the appliance chassis
• Helps resolve rattling, gaps, or loose parts caused by a missing/damaged screw
• 10-16 thread with 1-inch length matches factory hardware for specified locations
• Hex-washer head provides solid tool engagement and distributes load to protect surfaces

• Disconnect power before servicing; if working on a gas appliance, also shut off the gas supply
• Support the part being secured and align holes before tightening
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Replace any additional missing screws in the same area for uniform support

ST10-16 X 7/16"

Package of 12

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment
