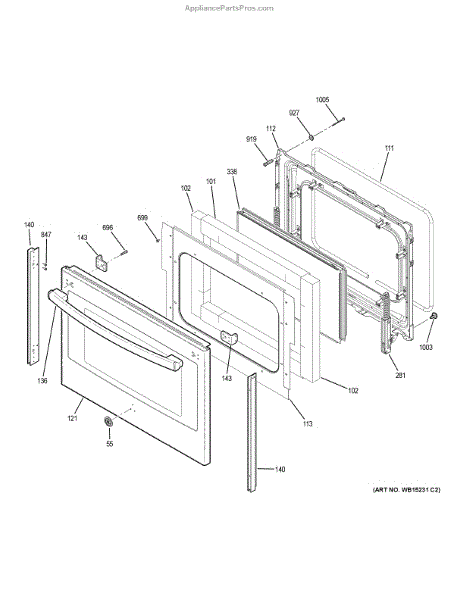

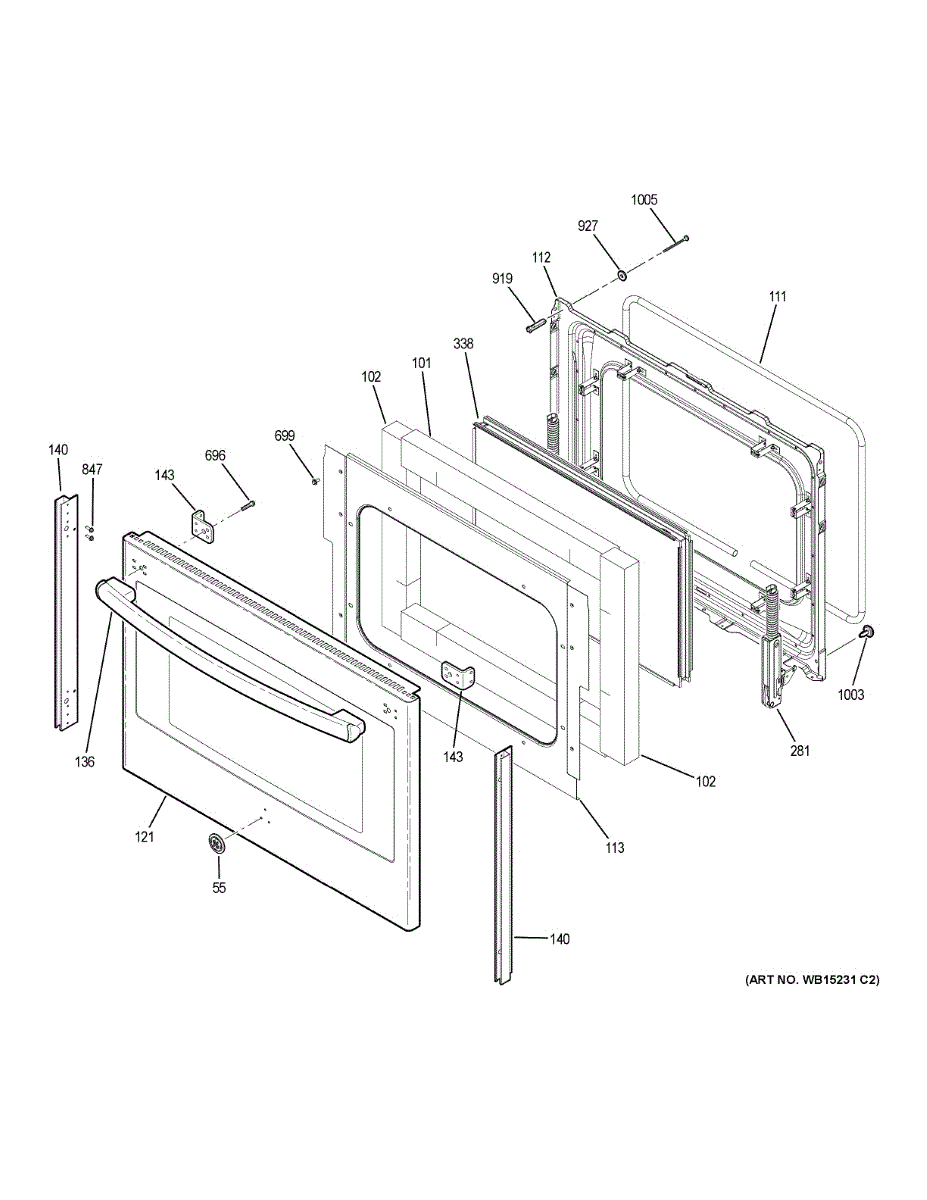

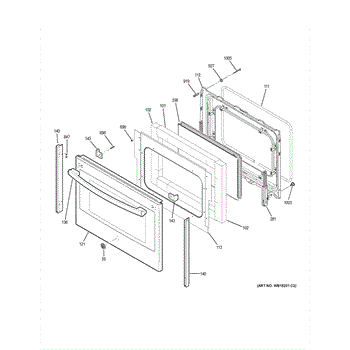

Parts for Ge PCB980SJ4SS: Lower Door Parts

The Badge Assembly is an OEM part for GE ranges. It includes the magnetic decorative badge affixed to the front of the range. This badge displays important information such as the brand name, model number, and technical specifications.

Causes of a bad badge assembly can include damage from impacts or abrasions over time, adhesive failure from repeated heat exposure, or normal wear from routine cleaning. On a range, the badge must withstand higher cooking temperatures.

Symptoms of a bad badge assembly include:

• Faded or illegible print on the badge face
• Cracks or breaks in the plastic material
• The badge lifting or peeling away from the surface
• Missing or loose attachment clips/fasteners

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This oven door insulation pad fits behind the inner door liner to help retain heat in the oven cavity and reduce heat transfer to the outer door. It restores proper oven temperature control and improves cooking consistency. What it does:

• Replaces worn or damaged insulation that can allow heat to escape from the oven cavity
• Helps the oven reach and maintain set temperatures for more even baking and roasting
• Reduces excessive outer door temperatures and hot spots on the range front
• Restores the intended thermal barrier between the oven cavity and outer door assembly

• One oven door insulation pad

• Disconnect power to the appliance before starting any repair; allow the oven to cool completely
• Installation commonly requires removing the oven door and inner door liner—follow OEM instructions
• Handle insulation carefully; wear gloves and a dust mask if material is fibrous

This oven door insulation side panel fits inside the oven door to help reduce heat transfer and improve cooking consistency. It replaces damaged or missing insulation to help maintain proper oven temperatures and protect the door assembly. What it does

• Helps retain heat inside the oven for more even cooking and efficient operation
• Reduces exterior door temperature by insulating the inner door cavity
• Prevents hot spots and heat loss caused by torn, compressed, or missing insulation
• Supports the oven door structure and helps keep inner components protected

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove the oven door per the manufacturer instructions to access internal insulation
• Handle insulation and door components carefully; wear gloves and eye protection
• Follow OEM instructions for reassembly and proper placement of the insulation panel

The Oven Door Gasket is an OEM part for GE ranges. This gasket is responsible for creating an air-tight seal between the door and the oven housing. It allows heat to be properly contained within the oven cavity during the cooking process.

Causes of a bad gasket can include warping, cracking, or breakdown of the gasket material over repeated heating and cooling cycles. Exposure to excessive heat or impact damage is also possible.

Symptoms of a bad gasket include:

• Inability to maintain proper oven temperatures
• Leaks of heat, smoke, or flames from the door seal area
• Drafts or cold spots felt around the door perimeter
• Difficulty in fully latching the oven door closed

This OEM GE replacement gasket is also compatible with Hotpoint, RCA, and some Kenmore models.

This oven door insulation retainer secures the insulation inside the oven door, helping maintain proper heat containment and preventing insulation from shifting. It's a small but important clip that keeps the door's inner components stable. What it does:

• Holds inner door insulation in place so insulation stays positioned during use
• Helps maintain consistent heat distribution by preventing insulation gaps
• Reduces rattling or movement of the door interior when opening or closing
• Commonly replaced when insulation is loose, visible, or shifting inside the door

• One oven door insulation retainer

• Disconnect power to the appliance before beginning any repair to avoid shock or injury
• Access typically requires removing the oven door or inner door panel — follow your model's service instructions
• Handle door panels and insulation carefully to avoid damage; keep fasteners organized for reassembly

This stainless lower outer door replaces a damaged or dented exterior lower door panel and restores the refrigerator's appearance while protecting the inner door components. Designed to match the original fit and finish for a clean look. What it does:

• Replaces a scratched, dented, or corroded lower outer door panel to restore exterior appearance
• Provides the outer protective surface that covers inner liners, insulation, and hardware
• Helps maintain proper door sealing and alignment when installed correctly
• Matches stainless finish to blend with the appliance's exterior

• Handle and door trim may need to be transferred from the old door; verify included hardware before installation
• Support the door during removal/installation to avoid injury or damage; two-person lift may be required
• Follow manufacturer service manual for hinge alignment and torque specifications

The Handle and End Cap Assembly is an OEM part for GE ranges. It serves as the central functional component for accessing the oven cavity. This assembly consists of the recessed pull handle as well as end caps that cover and protect the locking mechanism.

The handle and end cap assembly is responsible for smooth and controlled opening of the range door during use. It allows for easy access while cooking and loading or removing dishes.

Symptoms of a failing assembly include:

• Loose, wobbly or difficult to grip handle
• Misaligned or unstable door that does not close or seal properly
• Cracked, broken or missing end caps exposing internal parts
• Faulty lock release or inability to secure the door

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement door-handle bracket secures the refrigerator door handle to the door, restoring a firm, aligned grip. Durable black finish matches the original part and helps keep the handle properly positioned during everyday use. What it does:

• Secures the door handle to the refrigerator door so the handle stays tight and aligned
• Replaces cracked, broken or worn brackets that cause a loose or wobbly handle
• Restores proper handle engagement for opening and closing the door
• Helps prevent additional stress to the handle and mounting area

• One black door-handle bracket

• Basic hand tools required; for exact steps
• Support the handle during removal and installation to avoid dropping or damaging the door
• Disconnect power and water before working on the appliance for safety
• If screws or fasteners appear stripped or damaged, replace them to ensure a secure fit

This left door hinge secures and pivots a refrigerator or freezer door so it opens and closes smoothly. Replacing a worn hinge restores proper door alignment and helps the seal close evenly to maintain temperature. What it does:

• Provides the pivot point that supports the door and allows smooth opening/closing
• Restores correct door alignment to help prevent sagging or uneven gaps
• Reduces binding or scraping that can occur with worn or bent hinges
• Helps the door seal fully to reduce cool-air loss and compressor overwork

• Unplug the appliance and empty/secure the door before starting work
• Support the door while removing and installing the hinge to prevent dropping or damage
• Use the existing screws or included hardware as specified by the OEM; tighten fasteners securely

The Window Pack Assembly is an OEM replacement part for GE electric ranges. It comprises the outer oven window and securing brackets that hold the glass in place.

Causes of failure can include cracks in the glass from impact or thermal stress over time. Mounting brackets may loosen from normal use.

Symptoms of a faulty window pack assembly include:

• Fogging or condensation between panes of glass
• Leaks evident around the perimeter of the oven window
• Window that rocks or wiggles in the frame
• Inability to securely latch the window shut

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore oven models.

This silicon controlled rectifier (SCR) is an electrical switching component used to control power to heating or motor circuits, restoring proper on/off control for affected appliance functions. What it does:

• Regulates power flow in heater and motor control circuits to enable correct cycling
• Helps control startup and run voltage to motors and heating elements
• Commonly linked to symptoms like no power to heater or motor, intermittent operation, or erratic cycling
• Works as a replacement component on control assemblies that use a discrete SCR

• Disconnect all power to the appliance before accessing electrical components
• SCRs are static-sensitive and may require careful handling; use ESD precautions
• May be soldered or mounted to terminals; confirm mounting and connector type before installation

ST10-16 X 7/16"

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment
