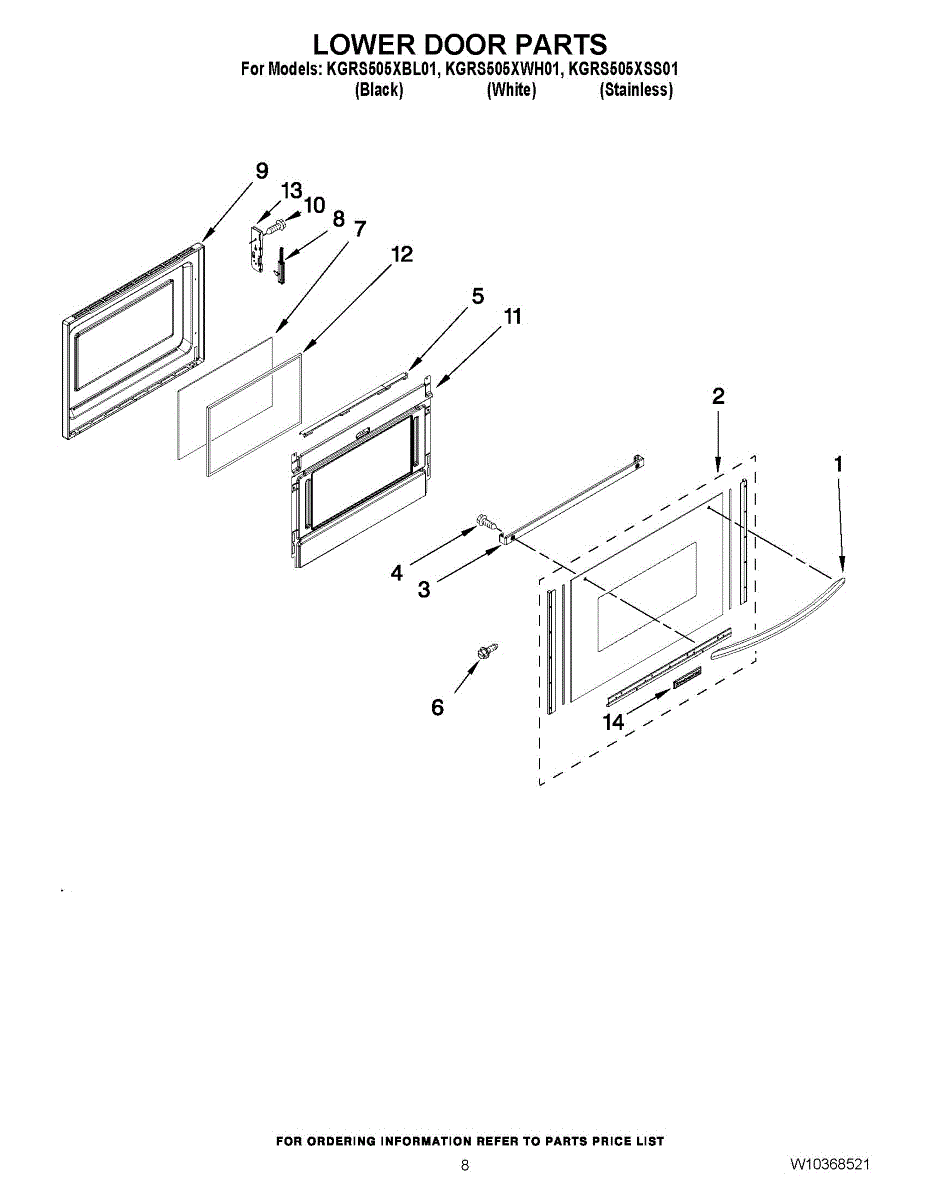

Parts for Kitchenaid KGRS505XBL01: 06 - Lower Door Parts

White range door handle for opening and closing your oven. Replace this cosmetic part if your current handle is cracked, broken, discolored, or missing.

Black range door handle for your oven. Replace a cracked, broken, or missing handle. Mounts to the front of the oven door for opening and closing access.

This is a stainless steel door handle for a wall oven or microwave. It mounts to the exterior of the door and provides a grip for opening and closing. Replace this handle if it is cracked, loose, or broken, making it difficult to safely open or close the appliance door.

Color: Black

The lower outer door glass is the glass panel fitted to the bottom section of a multi-pane oven or appliance door, serving as the exterior-facing layer of the lower door assembly. It provides a heat-resistant barrier and gives the door a finished appearance while helping to insulate the oven cavity. Replace this part if the glass is cracked, shattered, or has become cloudy or discolored in a way that cannot be cleaned.

Color: Stainless

Mounting bracket for range installation. Secures appliance to cabinet or wall. Replace if bracket is bent, broken, or missing during installation.

Replacement screw secures door handles, panels, and brackets on your range or oven. Install when original screws are stripped, missing, or damaged during repairs.

Replace your range oven door window frame if cracked, broken, or missing. This structural component holds the glass in place on the oven door assembly.

This 8-32 x 3/8 screw secures panels, brackets, and internal components in your appliance so everything stays aligned and tight. Replace worn or missing hardware to restore a solid, rattle-free fit and safe operation.

• Fastens components to frames, brackets, or panels
• Helps reduce vibration, rattling, and misalignment
• Replaces missing, stripped, or corroded screws
• Correct 8-32 machine thread for tapped holes in compatible assemblies

• Disconnect power before servicing; shut off gas or water if applicable
• Start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping

Inner glass pane for oven door window. Installs inside the door frame. Replace if shattered, cracked, or broken to restore safe viewing and thermal insulation.

Replace your right oven door hinge to restore proper alignment and smooth operation. Fixes sagging doors and gaps for a secure seal. Confirm fit by model.

Replace your oven's left door hinge to restore smooth opening and closing. Fixes door sag, misalignment, and sealing issues. Verify fit with your model.

This ground screw secures the appliance's grounding wire or strap to the chassis or terminal area, creating a reliable bonding point. Replace a missing or damaged screw to restore a proper ground connection during installation or service.

• Provides the designated bonding point for the grounding wire/strap
• Fastens to the frame or terminal area using 8-32 machine threads
• Helps maintain a consistent ground path for safe operation
• Typical reasons to replace: stripped head/threads, corrosion, or a missing screw

• Disconnect power at the breaker or unplug the appliance before servicing
• Route the ground wire/strap to the specified grounding location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Ensure the ground connection is secure and complies with local electrical codes before restoring power

Secures the control panel on your range. Replace this retainer if it's cracked, broken, or missing to keep the panel properly mounted and aligned.

Replacement hinge receiver for range oven doors. Secures the door hinge to the frame. Replace if cracked, broken, or worn to restore proper door support.

Replacement oven door hinge receiver for ranges. Mounts to the oven frame to secure the door hinge. Order a new receiver if yours is cracked or broken.

Color: Black
