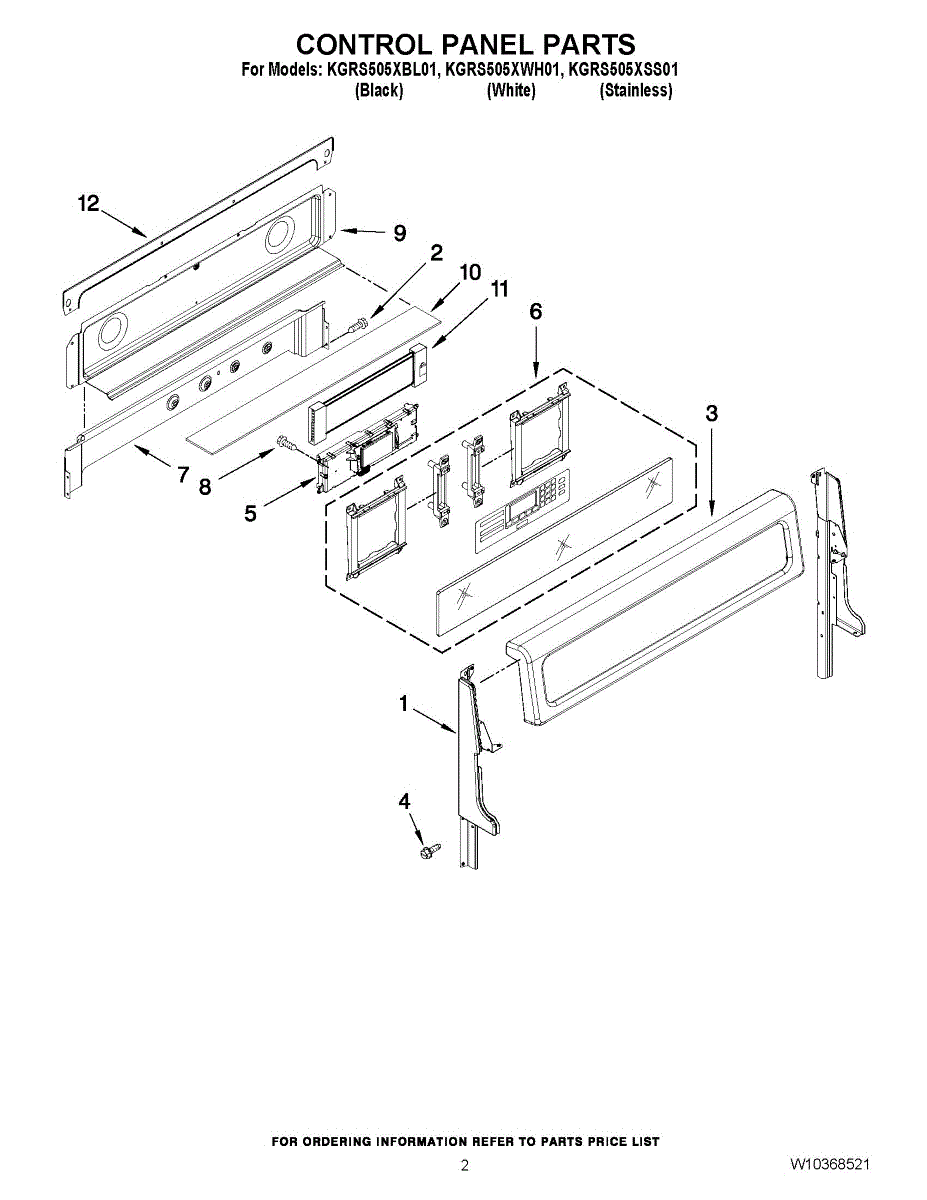

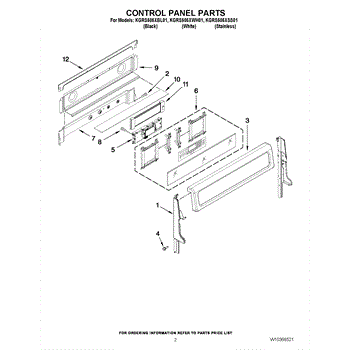

Parts for Kitchenaid KGRS505XBL01: 02 - Control Panel Parts

Color: Black

Color: White

Color: White

Color: Black

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

A cast white control console that houses and protects the appliance's control panel and buttons, restoring the unit's front appearance and providing a secure mounting surface for electronic controls. What it does:

• Replaces a cracked, broken or damaged console housing that exposes controls
• Provides a sturdy mounting surface for switches, buttons and the display
• Helps restore proper button alignment and tactile response
• Improves the appliance's appearance by replacing discolored or warped trim

• Disconnect power to the appliance before beginning any work
• Remove outer trim and control assembly to access the console; retain all fasteners
• Handle with care to avoid scratching the finish; align tabs and clips before fastening
• Test control operation after reassembly; do not overtighten screws which can crack cast material

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

This Rear Cover replaces the dryer's rear cabinet panel to protect internal components and restore the appliance's exterior integrity. It keeps wiring and assemblies enclosed and helps maintain safe, reliable operation. What it does:

• Covers and protects the dryer's internal components at the back of the cabinet
• Prevents debris and lint from entering internal assemblies
• Restores proper mounting for rear-mounted components and wiring
• Helps reduce rattles or vibration caused by a damaged or missing rear panel

• One rear cover

• Disconnect power (unplug electric or shut off gas and breaker) before servicing
• May require removal of the dryer drum or access panels to fit and secure the cover
• Use appropriate hand tools; tighten fasteners snugly but do not overtighten
