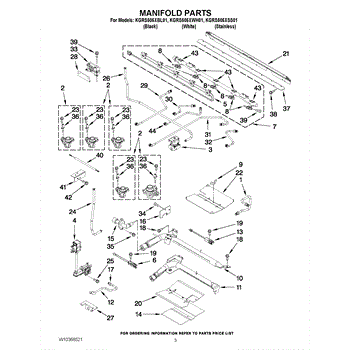

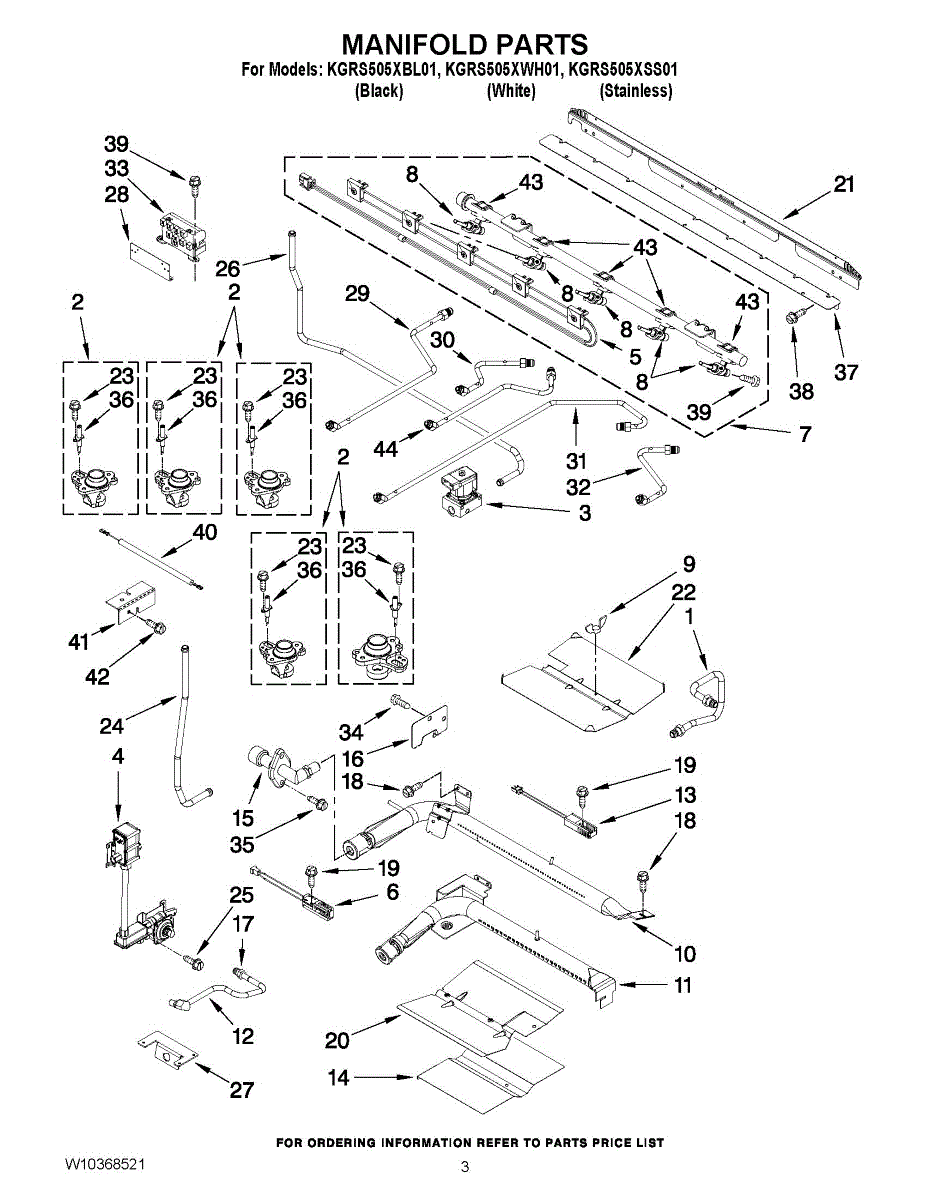

Parts for Kitchenaid KGRS505XBL01: 03 - Manifold Parts

This gas tubing is the direct-fit replacement part that routes natural or liquid propane gas between range components, restoring safe fuel flow for proper burner operation. It replaces worn or damaged tubing without modifying factory connections. What it does:

• Carries gas from the valve to burners or manifold to enable ignition and normal burner flames
• Commonly replaced when tubing is corroded, cracked, kinked or leaking
• Can stop symptoms such as persistent gas smell, burner failure to light, or intermittent flame
• Matches OEM fit and connection locations for a straightforward swap

• One gas tubing

• Shut off the gas supply and disconnect power before starting any work
• Only install on compatible appliances; use approved fittings and follow torque specs from the appliance manufacturer
• Check all connections for leaks after installation using a soapy-water solution or approved gas leak detector

This component holds the gas orifice in proper position for each surface burner, ensuring correct gas flow and flame pattern. Replace when burner flames are uneven, too high, too low, or won't light properly despite having gas flow.

Fixes center burner that won't light or has weak uneven flames. This orifice holder secures the gas orifice for proper alignment and stable flow.

If your range has weak flames, won't maintain temperature, or burners won't ignite, the gas valve regulator may need replacement. Controls gas pressure.

Fix burners that won't ignite or only spark with certain knobs. This wire harness restores electrical connections between switches and valves. DIY-friendly, typically 20-30 minutes to install.

The Oven Igniter is an OEM part for Whirlpool gas ranges. It is responsible for generating the spark needed to ignite the gas burner.

Causes can be standard wear and tear on the delicate metallic coil. Additionally, food or liquid spills may lead to premature breakdown or surface corrosion.

Symptoms of a faulty igniter include:

• Oven or burners failing to turn on or stay lit
• Requires repeated attempts at ignition before activating
• No spark or glow seen through the observation window

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Burner won't turn off or ignite? This manifold assembly distributes gas to all control valves. Moderate DIY install—use leak detection fluid.

Controls gas flow to individual cooktop burners on gas ranges. Replace if valve stem is bent, broken, or stuck, preventing smooth knob operation or shutoff.

The Burner Valve is an OEM replacement part for  Whirlpool gas cooktops and ranges. Each burner valve controls the flow of gas to its corresponding surface burner element.

Causes of a bad burner valve can include wear and degradation of internal mechanisms from years of continuous heating cycles. Mineral or debris buildup restricting gas flow is also possible.

Symptoms of a bad Burner Valve include:

• Inability to ignite or control individual burners
• Unstable, weak, or over-sized flames that cannot be adjusted
• Gas leaks detected around the valve area
• Premature failure if burners cannot be turned off properly

This OEM Whirlpool part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This gas surface burner valve controls the flow of gas to a 16,000 BTU burner on your range cooktop. It connects to the gas supply line and is operated by the corresponding control knob. Replace this valve if your burner won't light, the flame is uneven or won't adjust properly, or you detect a gas smell when the knob is in the off position.

Hand-tighten wing nut secures panels, brackets, and components in ranges and ovens for tool-free adjustment. Replace when lost, stripped, or broken.

Oven not broiling or browning food evenly? This broil burner restores high, direct heat for proper broiling. Straightforward repair for most DIYers.

Oven burner (bake burner) provides the main bake flame for a gas oven, restoring even heat for baking and roasting. It replaces a worn or damaged burner to help the oven reach and hold correct baking temperatures reliably. What it does:

• Supplies the primary bake flame to heat the oven cavity for baking and roasting.
• Ignites to produce a steady flame so the oven can reach and maintain set temperatures.
• Use when the oven fails to heat, heats unevenly, has a weak flame, or when the burner shows corrosion or physical damage.
• Fits as a direct replacement bake burner for compatible gas ovens.

• Turn off the gas supply and disconnect electrical power before servicing.
• Follow OEM instructions and use proper tools; ensure burner seats correctly and fasteners are secure.
• After installation, check all gas connections for leaks and follow manufacturer procedures to relight or test the oven.

Supplies gas from manifold to burner assembly. Replace if cracked, corroded, kinked, or leaking to restore safe fuel delivery to your gas range burners.

Replacement gas tubing for ranges. Installs between gas components to restore secure fuel routing. Needed when original tubing is cracked, corroded, or leaking.

The Oven Igniter is an OEM part for Whirlpool ovens. It is responsible for igniting the gas to start the oven heating process. This igniter is crucial for ensuring that the oven reaches and maintains the desired temperature for baking and cooking.

Over time, the igniter can suffer from wear and tear, leading to inefficient ignition or complete failure. Causes of a bad igniter can include repeated heating cycles, electrical issues, or physical damage to the igniter element.

Symptoms of a bad igniter include:

• The oven not heating up or taking too long to preheat
• A noticeable gas smell due to incomplete ignition
•  The igniter glowing without igniting the gas

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Heat shield for gas ranges. Protects internal components from heat damage. Replace if cracked, warped, or missing to maintain proper insulation.

This replacement fitting connects the appliance's water line to its internal plumbing so water flows where it's needed and stays sealed. It restores a proper watertight connection to help stop leaks and ensure reliable water delivery. What it does:

• Connects the external water supply line to the appliance's internal water inlet
• Creates a secure, watertight seal to prevent drips and leaks at the connection point
• Supports consistent water flow for ice makers, dispensers, or valves where used
• Can resolve symptoms like visible leaks, reduced water flow, or intermittent filling

• One replacement fitting

• Turn off the water supply and unplug the appliance before installing
• Inspect mating surfaces and replace any damaged O-rings or gaskets as needed
• Hand-tighten first, then snug with appropriate tools; avoid over-tightening
• If plumbing sealant is recommended by your installer, use plumber's tape on threaded connections only

Secures the gas orifice to the burner valve assembly on gas ranges. Replace if worn, stripped, or damaged to restore proper orifice positioning.

Metal grounding screw for electric ranges and ovens. Secures electrical grounding connections. Replace if stripped, corroded, or missing.

Fastening screw for securing components inside appliances. Replaces lost, stripped, or damaged screws during repairs or part installations.

Burner baffle directs heat and flame away from sensitive components on your gas range. Replace if cracked, warped, or missing to protect internal parts.

This range screw is an OEM replacement part sourced directly from the manufacturer for gas stove burners. These screws attach the ignitor to the burner. Screws may corrode and rust during everyday use. Spills and accidents on the range top may leak down to the screws and cause them to become worn. Screws are not considered part of the ignitor kit or burner kit and will need to be purchased separately. If the screws appear rusty or corroded while replacing the ignitor, it is beneficial to replace them. It is a good idea to purchase the screws at the same time as the parts are purchased so that they are available when needed. A Phillips head screwdriver is necessary to remove and replace the old screws. Make sure the power and gas are disconnected before installing the new screws.This screw is made of silver metal and is a Phillips head screw that is sold individually. Verify the number of screws needed before ordering. This screw is designed for use in gas ranges manufactured by Whirlpool, KitchenAid, Roper, Estate, Inglis, Maytag, Amana, Jenn-Air, and Crosley.

Gas supply tube that connects your range to the gas line. Replace if the tube is cracked, damaged, or leaking to restore safe gas flow to your appliance.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Gas supply tube for gas ranges. Connects the gas line to burners or oven. Replace if cracked, kinked, damaged, or showing signs of wear or corrosion.

Gas tubing for ranges. Replaces damaged, cracked, or worn tubing that connects gas supply to burner components. Essential for safe gas appliance operation.

Fix continuous clicking or no-ignite issues on gas range burners. This spark module controls ignition timing and generates sparks to light surface burners.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

Replacement mounting screw for securing handles, panels, and internal components. Needed when original screws are stripped, lost, or broken during repairs.

Fix burners that won't light with this range surface igniter. Replaces failed spark electrode to restore reliable gas ignition on cooktop burners.

Fix burners that won't light or spark intermittently with a new surface burner igniter. Most DIYers complete this repair in 20 minutes with basic tools.

Self-tapping screw used in range assembly. Features 8-18 thread size and 0.375 inch length. Also used in some washer models as cross-appliance hardware.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Mounting bracket for gas ranges. Secures components in place. Replace if bent, broken, or missing. Direct fit for compatible range models.

This LP conversion kit includes the orifice spuds and components needed to convert a natural gas range to operate on liquid propane (LP) gas. The kit replaces the existing natural gas orifices on the burners to allow proper fuel flow and flame size with LP gas. Use this kit when switching your range's fuel source from natural gas to propane.

This LP conversion kit includes the orifice spuds and components needed to convert a natural gas range to operate on liquid propane (LP) gas. The kit replaces the existing natural gas orifices on the burners to allow proper fuel flow and flame size with LP gas. Use this kit when switching your range's fuel source from natural gas to propane.
