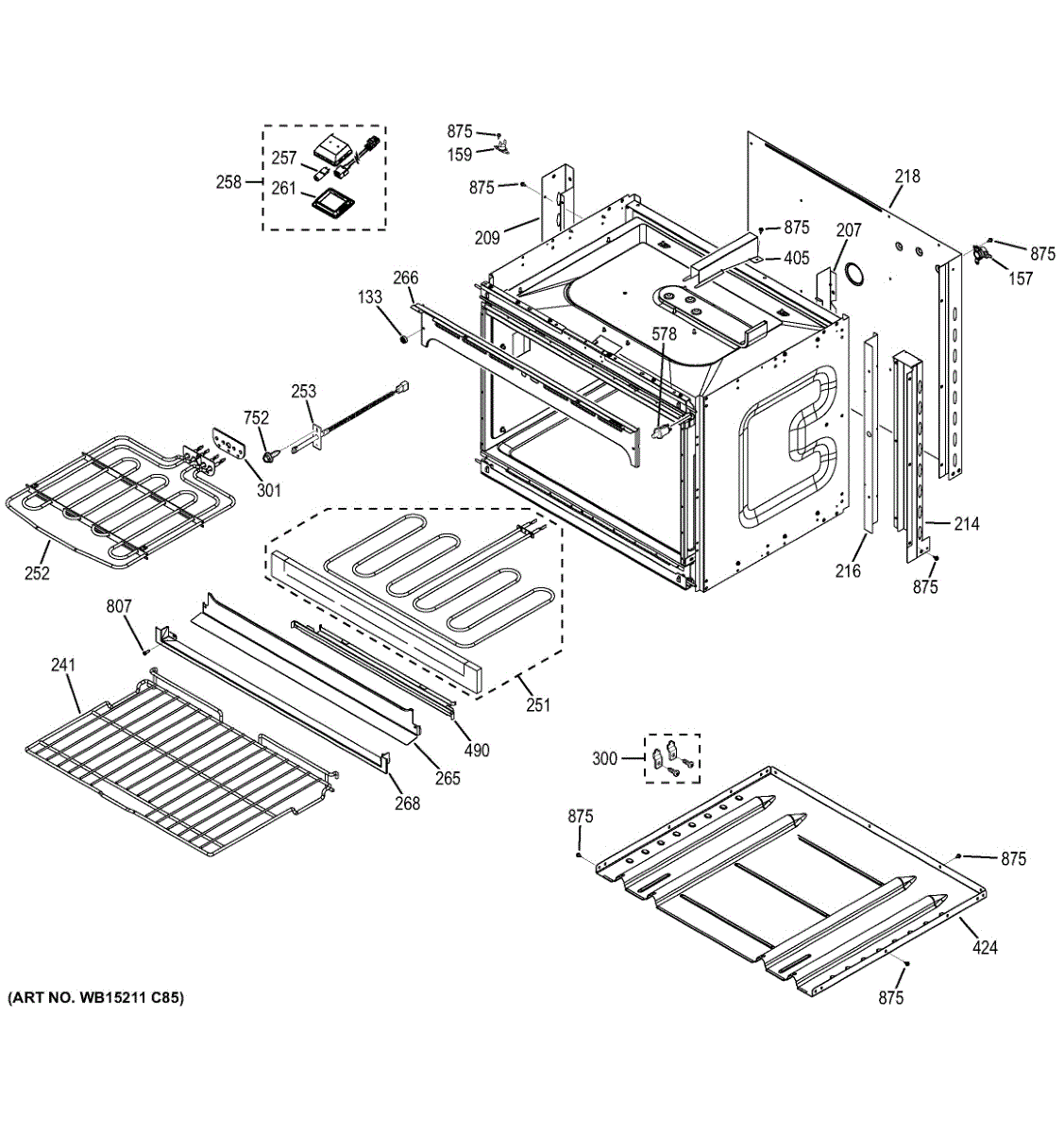

Parts for Ge JK3500DF4WW: Lower Oven Parts

Fixes oven not heating after self-clean cycle. This thermal safety switch cuts power when temperatures get too high. Simple diagnosis with continuity test.

Oven won't heat or shut off during self-clean? This high limit switch prevents overheating damage. Common fix after self-clean cycle failures.

Chrome-coated oven rack for wall ovens and electric ranges. Replace worn, damaged, or missing racks to restore cooking capacity and oven functionality.

If your oven won't heat during bake cycles or bakes unevenly, this hidden bake element kit restores proper temperature. Mounts under the oven floor.

This broil element is the replacement heating element for the oven's upper/broil function, restoring direct top-heat for broiling and finishing dishes. Fits common GE ovens that use this OEM-style element. What it does:

• Heats the oven's upper cavity to provide direct broil heat for searing and browning.
• Replaces a broken, burned-out, or non-heating broil element.
• Helps restore even broiling when the oven fails to reach or maintain broil temperatures.
• Compatible with ovens that use a concealed or exposed upper broil element design.

• 1 broil element

• Disconnect power at the breaker or fuse box before starting any repair.
• Remove oven racks and back panel/insulation as needed to access mounting screws and wire terminals.
• Note terminal locations and wiring before disconnecting; take a photo for reference.
• Use proper strain relief on wires and tighten mounting hardware securely; test function after reassembly.

Fix F2 or F34 error codes and inaccurate oven temperatures with this temperature sensor assembly. Moderate DIY repair, 30-60 minutes install time.

Halogen bulb illuminates your oven cavity so you can monitor cooking without opening the door. Replace when dim or burnt out. Verify fit with your model.

Halogen light assembly illuminates your oven cavity during cooking. Replace if light won't turn on, flickers, or glass is cracked. Confirm fit by model.

Replace your wall oven light lens cover to restore visibility inside the oven cavity. Essential when cracked, discolored, or damaged by heat exposure. Verify fit with your model number before ordering.

Lower vent trim for wall ovens. Installs along the bottom edge to cover the vent opening. Replace if cracked, discolored, warped, or missing.

White bottom cabinet trim panel for wall ovens and oven/microwave combos. Replaces damaged, cracked, or discolored trim. Installs at base of cabinet.

Secures and supports oven door pivot for proper alignment and smooth opening/closing. Replace if door sags, won't close flush, or hinge feels loose. Confirm fit with your model number.

Heat escaping around broil element? This pass-through gasket seals the opening where the element enters the oven liner, containing heat and steam. Quick DIY fix.

Replaces cracked or missing bottom air duct cover for your wall oven. Routes airflow and protects internal components from debris. Direct fit replacement.

Protective cover that conceals the bake element in the oven cavity bottom. Replace if cracked, warped, discolored, or missing for a clean appearance.

This is a high-amp SPDT (single pole, double throw) switch used in the oven door mechanism. It detects whether the oven door is open or closed and signals the control to enable or disable certain functions such as the oven light or broil element. Replace this switch if the oven light does not turn on or off when the door is opened or closed, or if the oven does not operate correctly in relation to door position.

Mounting screw secures panels, brackets, and trim in ranges and wall ovens. Replace when stripped, missing, or damaged to restore proper fastening.

White mounting screw for ovens and ranges. Secures interior panels, racks, and trim pieces. Replace if screw is stripped, missing, or broken.

Black. 8-18 AB HXW 3/8
